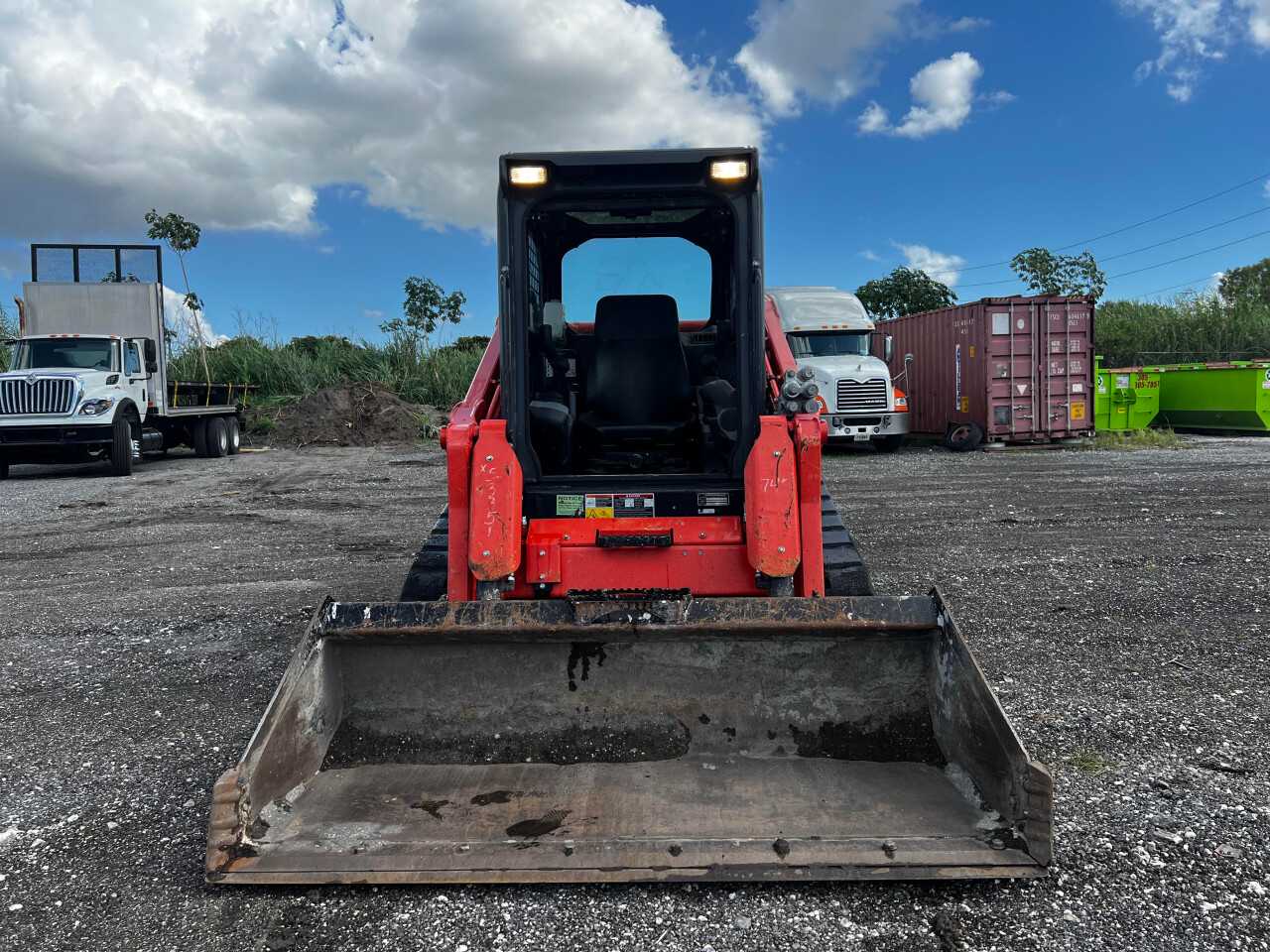

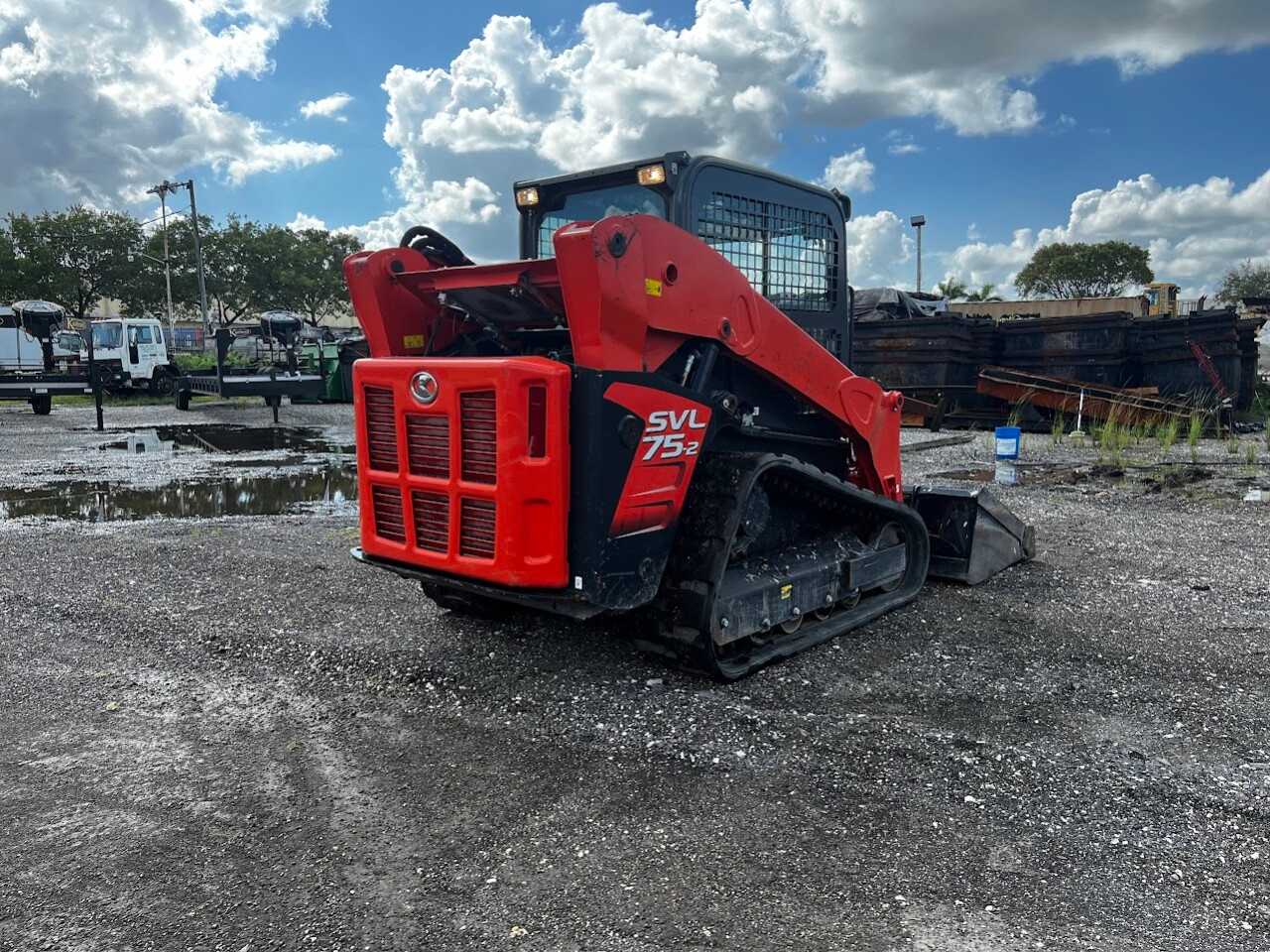

Kubota Compact Track Loader Model SV75-2

Kubota Compact Track Loader Model SV75-2 (Specifications sheet and instruction manuals attached) Hours: 484.9 Identification# KBCZ052CPL1C49256 Engine# 8LC3524 Vertical lift, high flow hydraulics with 14 pin connector, two speed travel with electronic torque management, Main frame and undercarriage. ENGINE: Aspiration: Turbocharged Bore: 3.7 in / 94 mm Stroke: 4.72 in / 120 mm Rated engine speed: 2400 rpm / 2400 rpm Engine gross horsepower @ rpm: 74.3 HP / 55.4 kW Engine net horsepower @ rpm: 73.2 HP / 54.6 kW Displacement: 203.3 cu. in. / 3331 cc Model name: V3307-CR-TE4 Cylinders: 4 DIMENSIONS AND WEIGHT: Ground clearance: 11.7 in / 296 mm Operating weight: 8874 lb / 4025 kg Track width: Standard 15 in / 380 mm FLUID CAPACITIES: Fuel tank capacity: 24.6 gal / 93 l Hydraulic tank: 9.2 gal / 35 l Hydraulic system capacity: 15.9 gal / 60 l TRAVEL SPEED: Low: 4.7 mph / 7.5 km/h High: 7.1 mph / 11.5 km/h Maximum traction force: 9678 lbf / 4390 kgf Track rollers (per side): 4 Ground contact pressure: Standard 4.7 psi / 0.33 kg/cm2 LIFTING SPECIFICATIONS: Tipping load. straight: 6570 lb / 2980 kg Lift arm path: Vertical Breakout force: Bucket - 6204 lbf / 2814 kgf Lift arm: 4766 lbf / 2162 kgf Rated operating capacity (SAE): Tipping load. 35% - 2300 lb / 1043 kg HYDRAULIC SYSTEM: Auxiliary hydraulic flow: Standard - 17.4 gpm / 66 l/min High: 29.3 gpm / 110.9 l/min Auxiliary hydraulic pressure: 3185 psi / 224 kg/cm2
