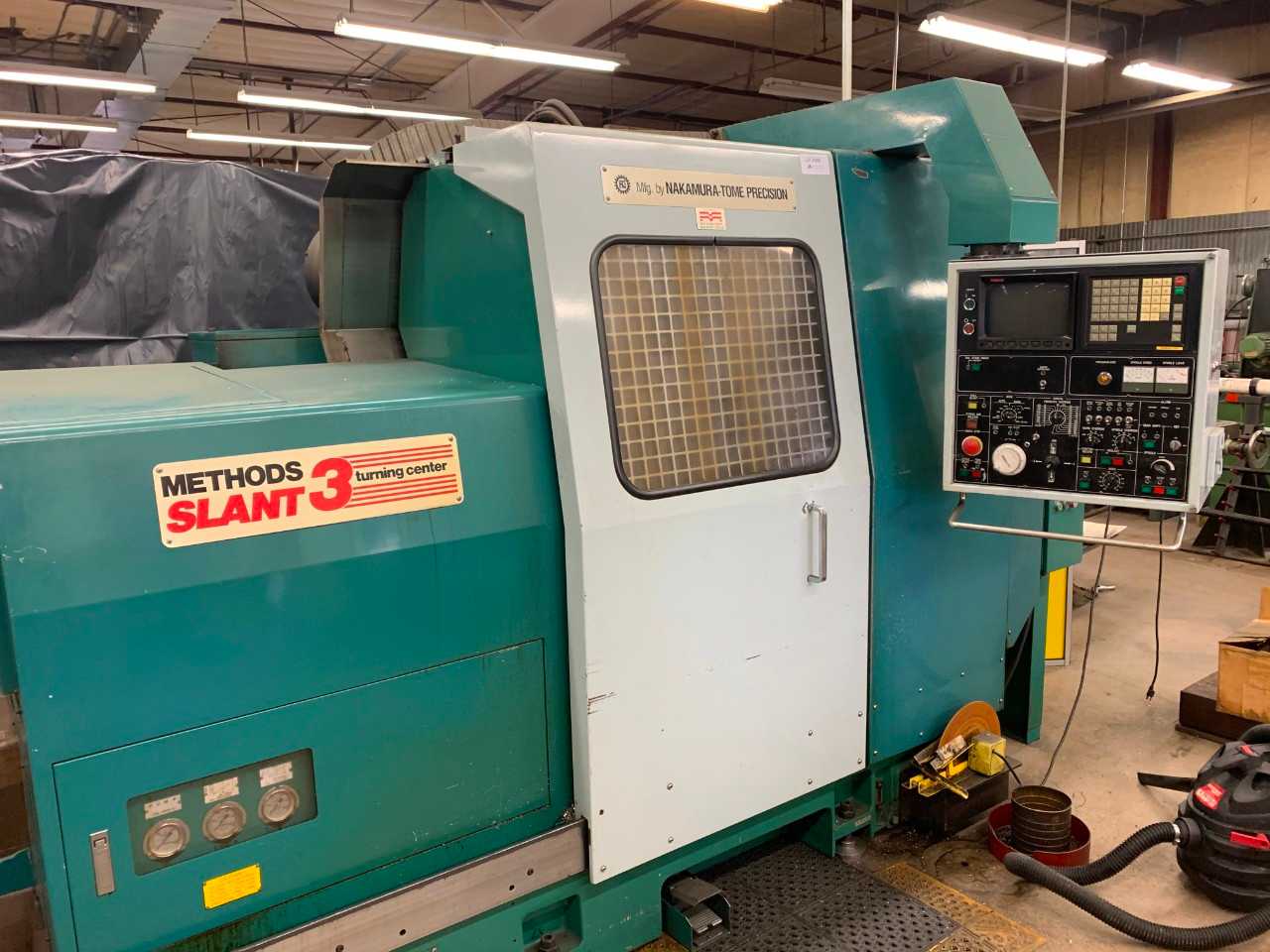

Nakamura Tome Slant 3B
Aucto ID: #369
3631265
11068
ended
Precision Aerospace CNC & Tooling Auction (Day 1)
Auction Lot Ended
Location:
Logistics:
Rigging:
Loading:
Shipping:
Verified Seller:
Selling since 2025.
Product Description

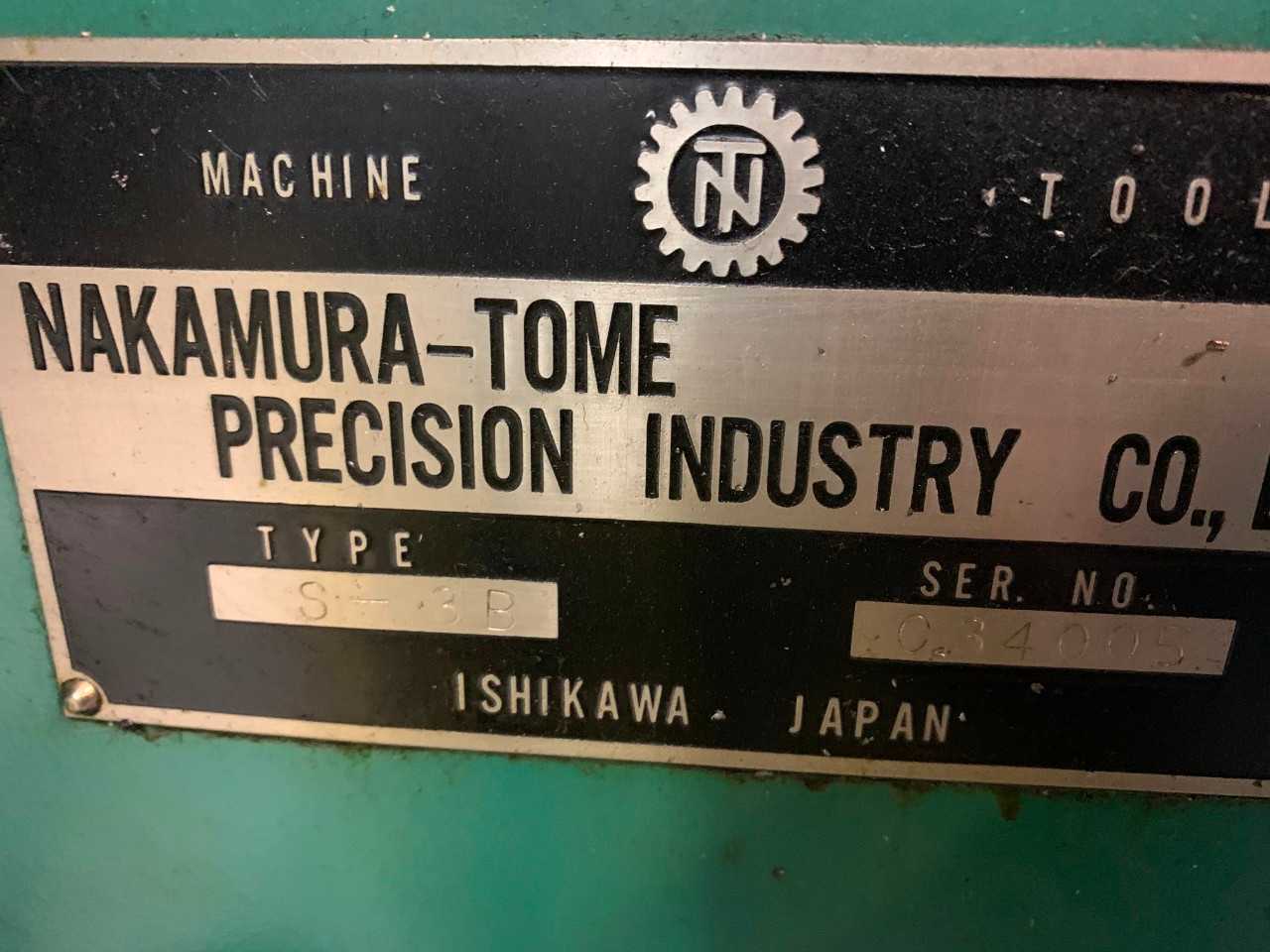

Swing Over Bed / Cross Slide: 31.10"/27.17", Turning Diameter: 15.57", Turning Length: 21.26", Z-Axis Travel: 22.83", X-Axis Travel: 10.83", Distance between centers: 29.84", Spindle Speed: 3,500 RPM, Spindle Motor: 25 HP, Spindle Nose: A1-8, Spindle Bore: 3.15", Bar Size: 2.5", Turret Stations: 12, Tool Size: 1" square / 1" round, Rapid Travels: X/Z - 295 ipm @ 590 ipm, Tail stock quill stroke: 3.94", Tail stock quill diameter: 3.54", Tail stock taper: MT-3, Dimensions: 92" x 69" x 80", Weight: 12,100 LBS, Serial Number: C34005
Technical Specifications
Category
 MACHINING EQUIPMENT -> LATHES -> CNC LATHESSale Terms & Conditions
