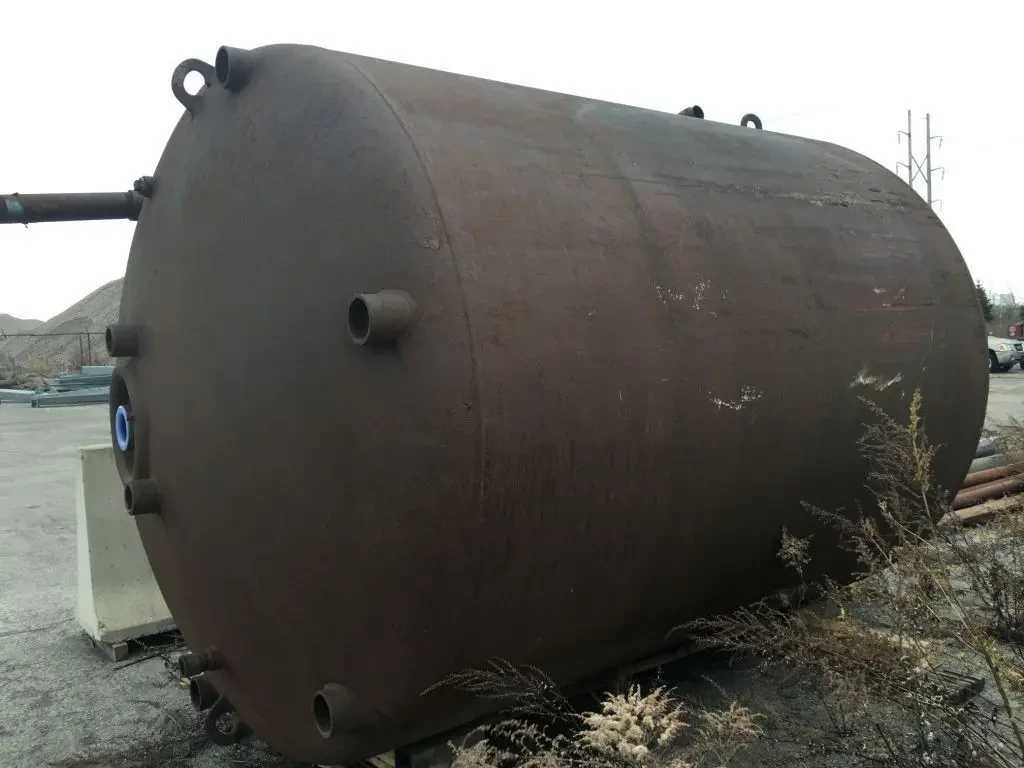

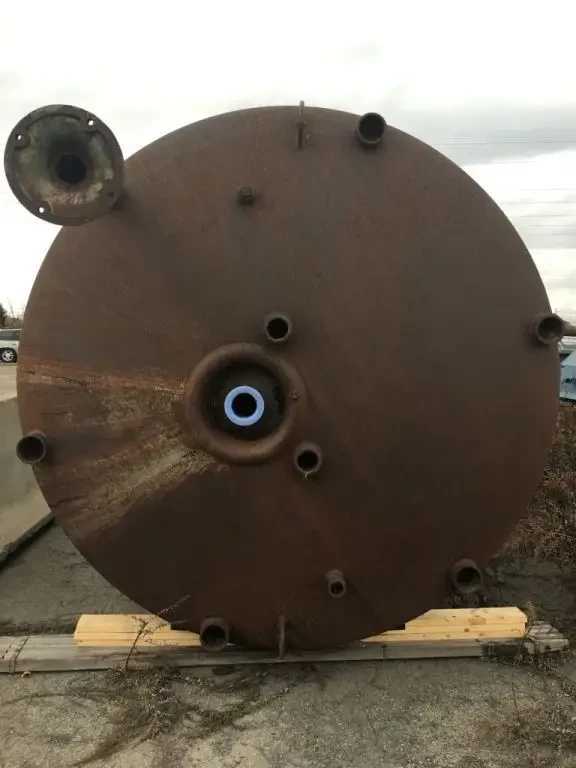

Name | Pfaudler 4000 Gallon Glass Lined Reactor |
---|---|
Aucto ID | 152 |
Manufacturer | Pfauder |
Model | 4000 gallon |
Additional Info | "Pfaudler 4,000 Gallon Glass Lined Reactor
Model R175-0405
National Board Number: 30300
Year Built: 1975
Internal Design Pressure: 100/FV PSI @ 650 F
Jacket Design Pressure: 90 PSI @ 350 F
Serial Number: S174-5432,
Specifications:
Working Capacity: 4000 Gallons
Per Inch of Straight Side: 31.33 Gallons
Bottom Head: 501 Gallons
Top Head: 501 Gallons
Jacket: 453 Gallons
Glass: 3315/NUC.
Heating Area:
Jacket: 300 Sq.-Ft.
Bottom Head: 69.4 Sq.-Ft.
Per Inch of Straight Side: 2.09 Sq.-Ft.
Design Pressure:
Internal @ 450 Deg. F: 100 PSI/Full Vacuum
Jacket @ 450 Deg. F: 90 PSI
Steel Thickness:
Inner Vessel:
Top Head: 15/16""
Shell: 1""
Bottom Head: 15/16""
Jacket Shell: 1/2""
Jacket Bottom Head: 5/8""
Dimensions:
Overall Height: 180"" Bottom of 36"" top opening to bottom of leg.
Vessel ID: 96""
Jacket ID: 102""

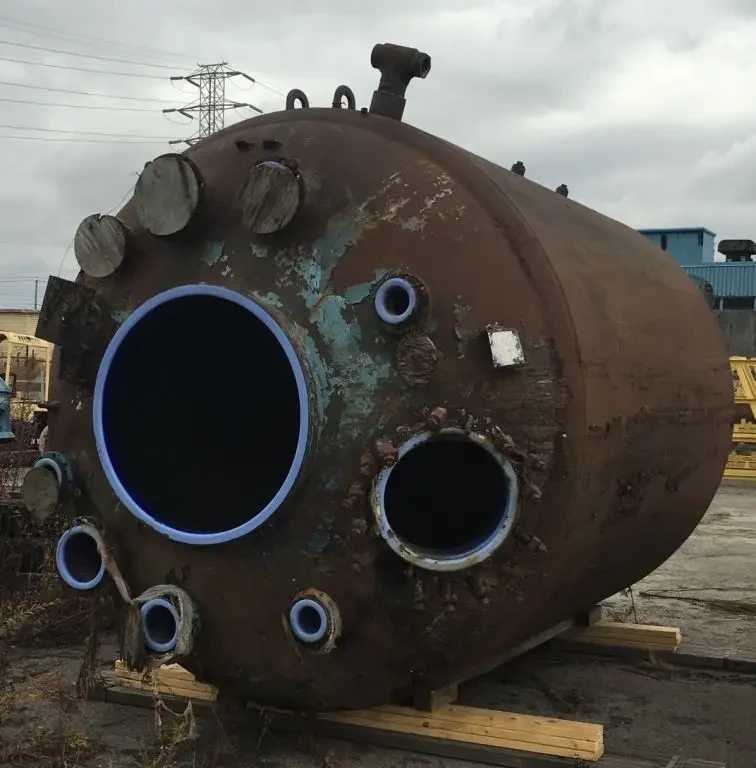

Qty(1): 18"" Round Manhole Opening on Top (no manhole cover)
Qty(1): 36"" Round Opening on Top (no cover)
Top Nozzles: Qty(4) 4.00"", Qty(2): 6.00"", Qty(2): 8.00""
Weight: 26,000 lbs.
Located at 2137 Fairfield Ave., Niagara Falls NY
PLEASE UNDERSTAND THAT EVERYTHING IS SOLD “AS IS, WHERE IS”…PLEASE READ THE AUCTION CONTRACT. WE ENCOURAGE MAKING AN INSPECTION. PLEASE CALL 310-487-3800 FOR INSPECTION. THANK YOU. |
