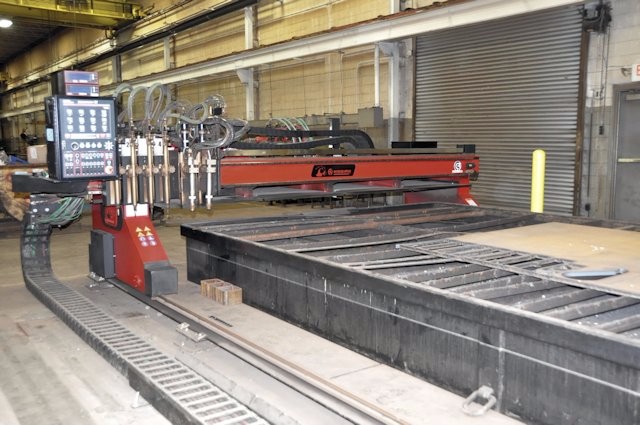

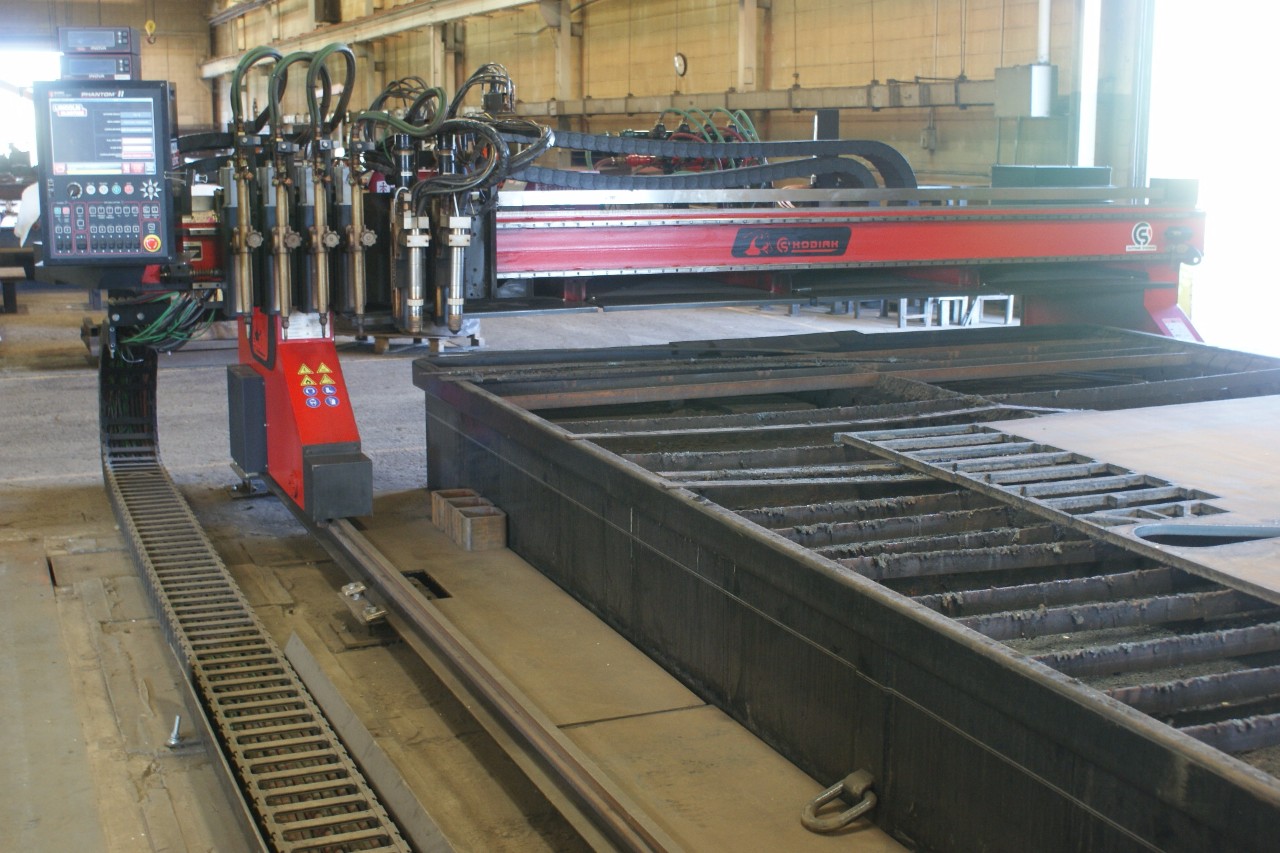

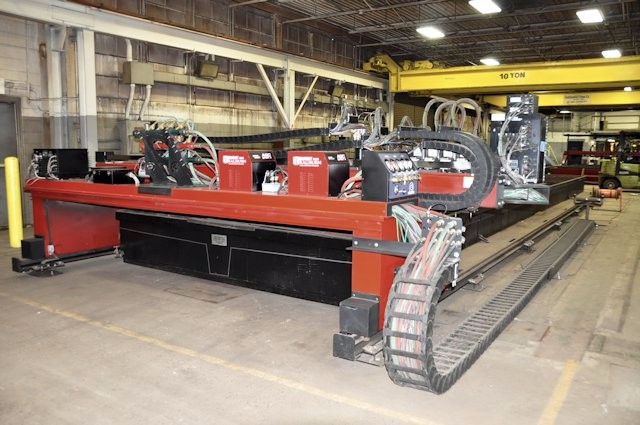

Lot 10061CSI Kodiak CNC Plasma

USED CSI KODIAK PRECISION INDUSTRIAL PLASMA & OXY/FUEL CUTTING MACHINE
YEAR: 2014 (Installed December of 2014)
Stock No. 10061
Equipped with:
10 Effective Cutting Width, 56 Floor Mounted Rail System with Two Safety Parking Zones
Burny Phantom II PC Based CNC Control System
Burny High Performance AC Drive System
2 ea. Burny Kaliburn Spirit II 400 Ultra Sharp Mechanized Plasma System
2 ea. Kaliburn Inova Automatic Plasma Torch Height Control
4 ea. CSI Motorized Oxy Fuel Torch Cutting Stations
Water Table with 10 x 48 Effective Cutting Area
Ingersoll-Rand Model 2340, 5 HP Air Compressor
HP Pro Tower PC, Sigmanest Version 10 Software, Monitor, Keyboard, Mouse and HP6100 Printer

Specifications:
10 Effective Cutting width x 48 Effective Cutting Length
Cross Travel System guided by Dual Linear Ways & Bearings
Precision Rack & Pinion (.75 .75 16Dp 20 deg. PA)
Heavy Duty Master and Slave Carriages
Individual High Quality Igus Power Track
Full Width Heat Shields for protection during Heavy Plate Cutting
Programmable Auto Lubrication for THK Style Bearings on Linear Ways
(4) CSI Advanced Rail Cleaning Systems
Stainless Steel Torch Band for Ease in Automatically Spacing Torches

56 Floor Mounted Rail System with (2) Safety Parking Zones

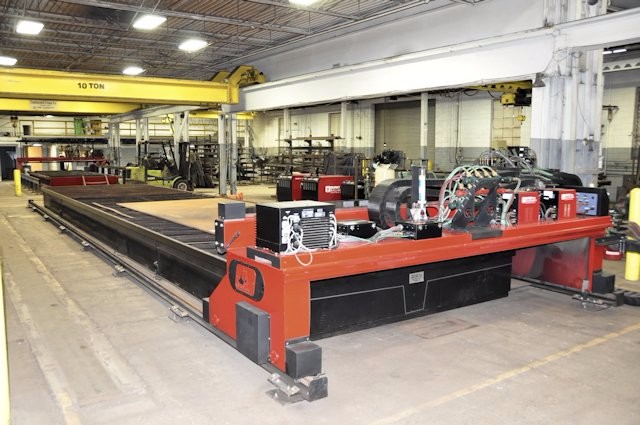

Heavy Duty Floor Mounted Bridge design
Hardened Tongue & Groove Tee Rail
Adjustable Leveling Pads and Hardware for a 48 Effective Cutting Length
Dual Side Drive Precision Rack & Pinion
End of rail Limit Switches and Hard Stops for ensured safety
Heavy Duty Industrial Grade Rails in standard 16 sections
High Quality Igus Power Track for all Supply Hoses & Cables
(Specifically designed for production cutting of (2) 10 x 20 plates)

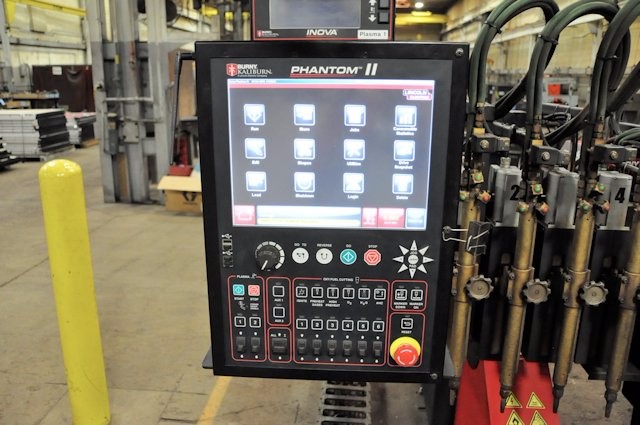

Burny Phantom II PC Base Control System including
Windows XPE (embedded Operating System 50 Stand Shapes Library
15 Active TFT Color LCD Touch Screen Programmable Rotation & Scaling
2.26 GHz Intel Core 2 Duo Mobile Processor DXF/DWG File Conversion
40 Gigabyte Hard Drive Capacity 8-Direction Jog Keypad
2 Gigabyte DDR3 RAM Cut Loss Memory
(4) Front Panel USB Ports Graphic Automatic Plate Alignment
Software Upgrades via Internet Built in Diagnostics
Go To Job Interrupt True Multitasking Environment
Dynamic Repositioning & Cu/Loss Recovery Multi process functionality
Built in Plasma Tracking Consumable Graph Real time Path Display
Internet & Network Capabilities Feed Rate Potentiometer

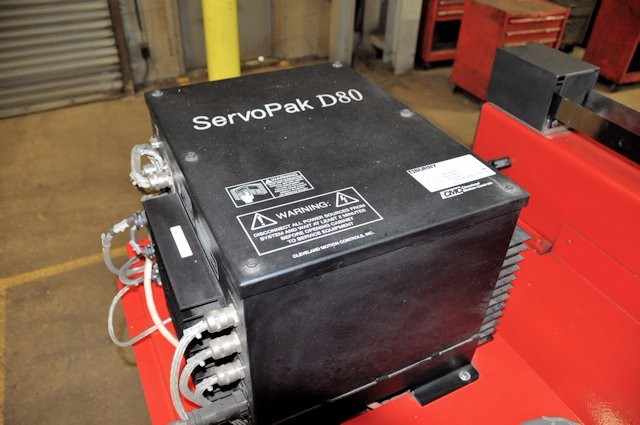

Burny High Performance AC Drive System
Heavy Duty Industrial Enclosure for the harshest environments
1000 watt 3-Axis PWM AC Drive Amplifiers with integrated Heat Sinks
AC Brushless Motors Mounted with 2000 Line Encoders Assemblies
In-Line Low Backlash Planetary Gearboxes
Digital Signal Processing (DSP) & Diagnostic LEDs
Digital Synchronization on Rail Axis
Stainless Steel Braided Shield on all Interconnecting cables
Speeds up to 500 ipm standard

Network Kit for Part Loading, Remote Help & Diagnostics:
Enables Immediate Downloads from your office desktop PC
Enables remote diagnostics by CSI via your internet connection
Greatly reduces down time and saves you money!

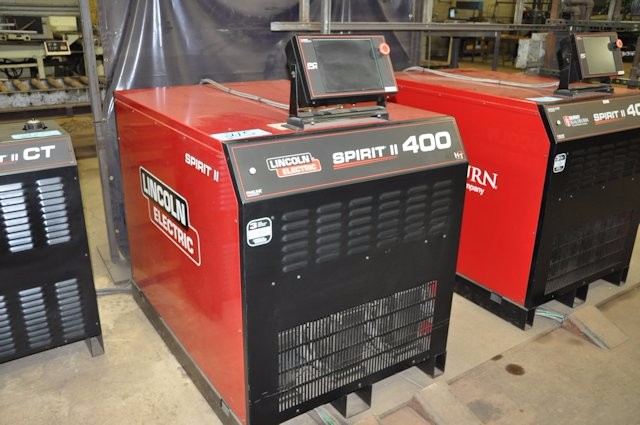

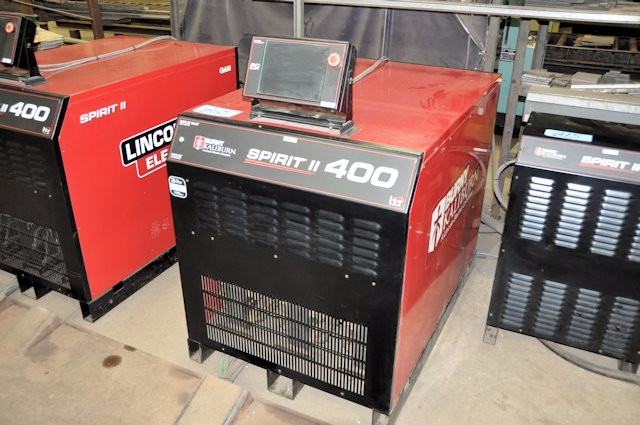

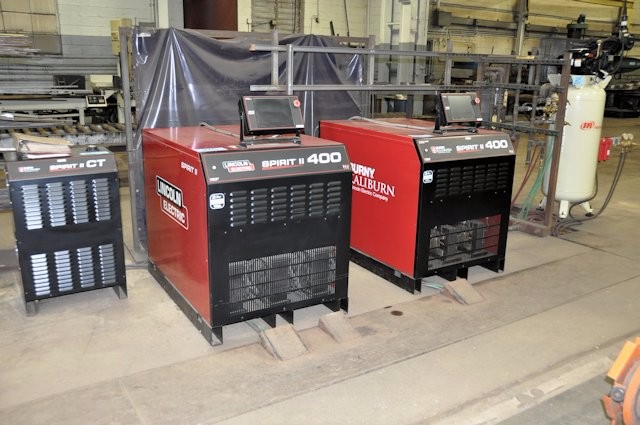

Burny Kaliburn Spirit II 400 Ultra Sharp Mechanized Plasma System
400 amp High Definition Plasma Cutting Systems
HOT Hafnium Optimizing Technology minimized wear
Exceptional Consumable Life and lower operating costs
Pierce Mild Steel up to 2 (3 from an edge start)
Virtually Dross-Free cutting with 2 degree or less edge angle
Marks and Cuts with the same consumables for efficiency
Quick-Disconnect Torch Head for reduced set-up time
Uses less gas than any system on the market

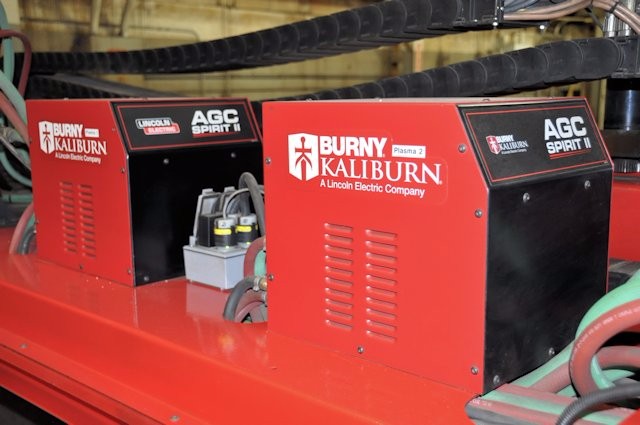

Configured with Automatic Gas Consoles

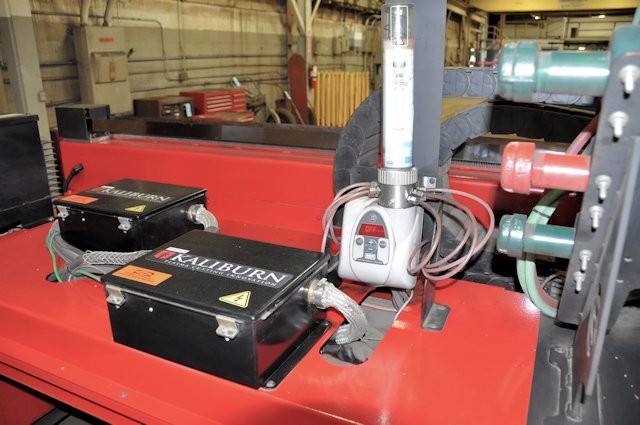

Kaliburn Inova Automatic Plasma Torch Height Controls
Heavy Duty Motorized Slide with 9.2 of stroke
Initial Height Sensing (IHS), for accurate and repeatable Initial Pierce Height Settings
Plasma Collision Sensor, torch will Breakaway during accidental collisions in all axis
Ohmic Contact, senses torch contact with the plate for IHS
Responds to Arc Voltage changes +/- 0.4 volt
Travel Speeds 500 ipm
Positioning resolution to .0001
Remote Control Console

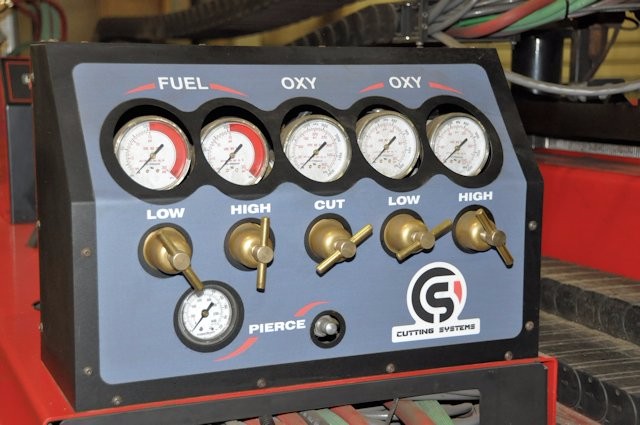

CSI Oxy/Fuel Gas Regulator Control System
High Volume Harris 425 Series Station Regulators
High/Low Pre-Heat Automatic
Ease On Pierce Rate Valve for High Pressure Oxygen Control
High Pressure Oxygen controlled with a High Volume Dome Loaded Regulator

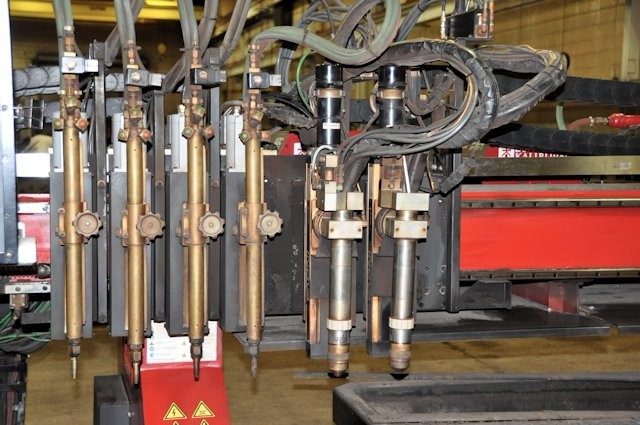

CSI Motorized Torch Cutting Stations including
Heavy Duty Motorized Lifter with 8 of stroke
All Anodized Aluminum Construction
Ball Screw Design guided by Linear Way & Linear Bearing
110 VAC Motor with mechanical Clutch and Lovejoy Coupler
Brass Torch Holder with Pinion and Hand Wheel
Harris 98-6TARF (3) Hose Machine Cutting Torch with 32 pitch Rack
Individual Control of Preheat Gases and High Pressure Oxygen
Hoses, Control Cables and All Necessary Connections
All Hoses & Cables are routed through high quality Igus Power Track

Water Table with 10 x 48 Effective Cutting Area
(Actual size 106 W x 49 L x 24 H)
Heavy Duty Wall Construction
Completely Welded Chamber
Air Operated to Raise/Lower Water Level
Sacrificial Slats located on 4 Centers
Removable Slag Pans for Easy Clean Out
Lifting Lugs for Easy Rigging

Buy it Now: 179,500 USD
/ 1 in stock
0 Watching
66 Views

You are not logged in.
Log into your Aucto Account.

Item Information

Brand: CSI
Model: Kodiak
Shipping Dimension: 576 X 120 X 48 In
Shipping Weight: 15000 LBs
