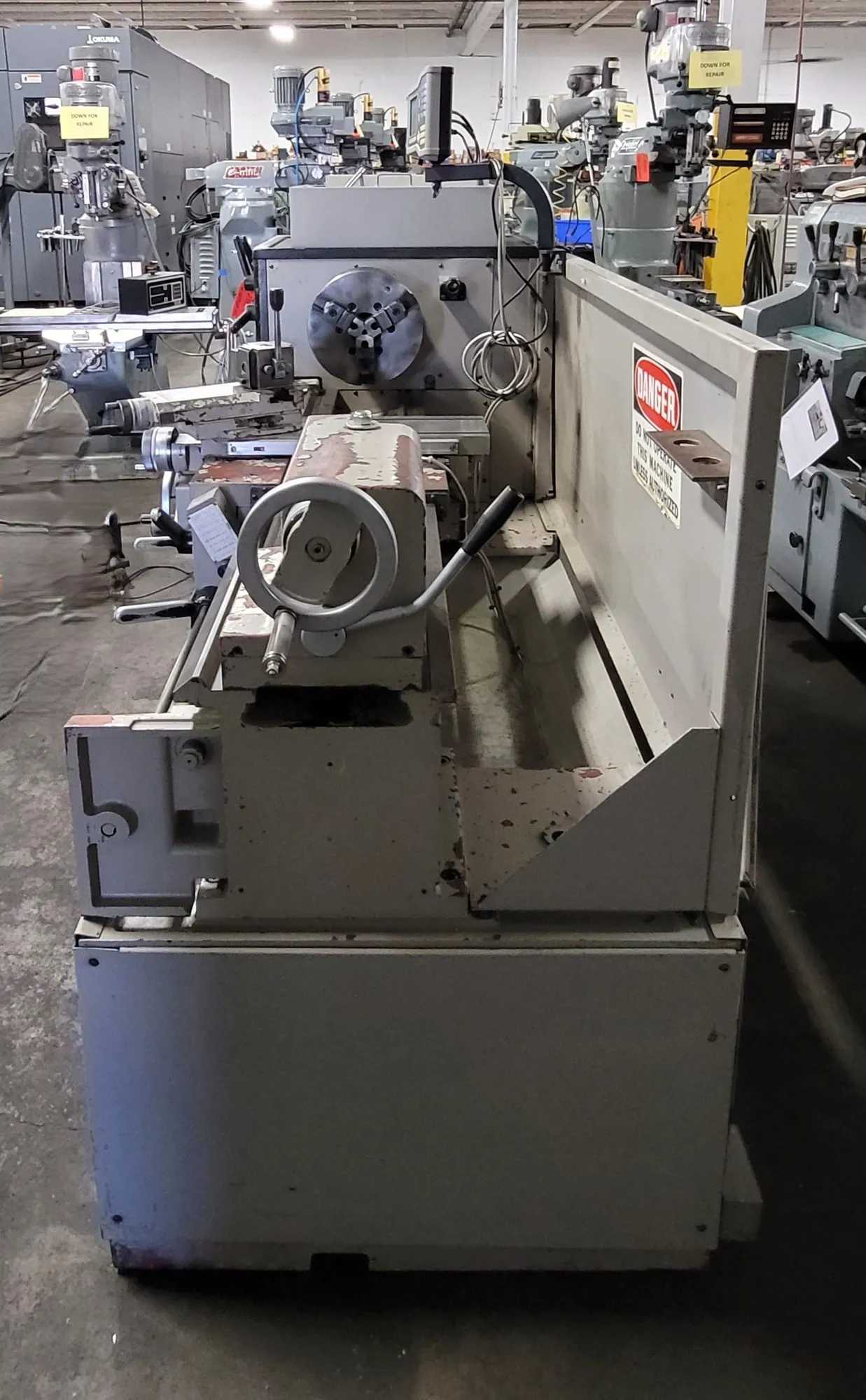

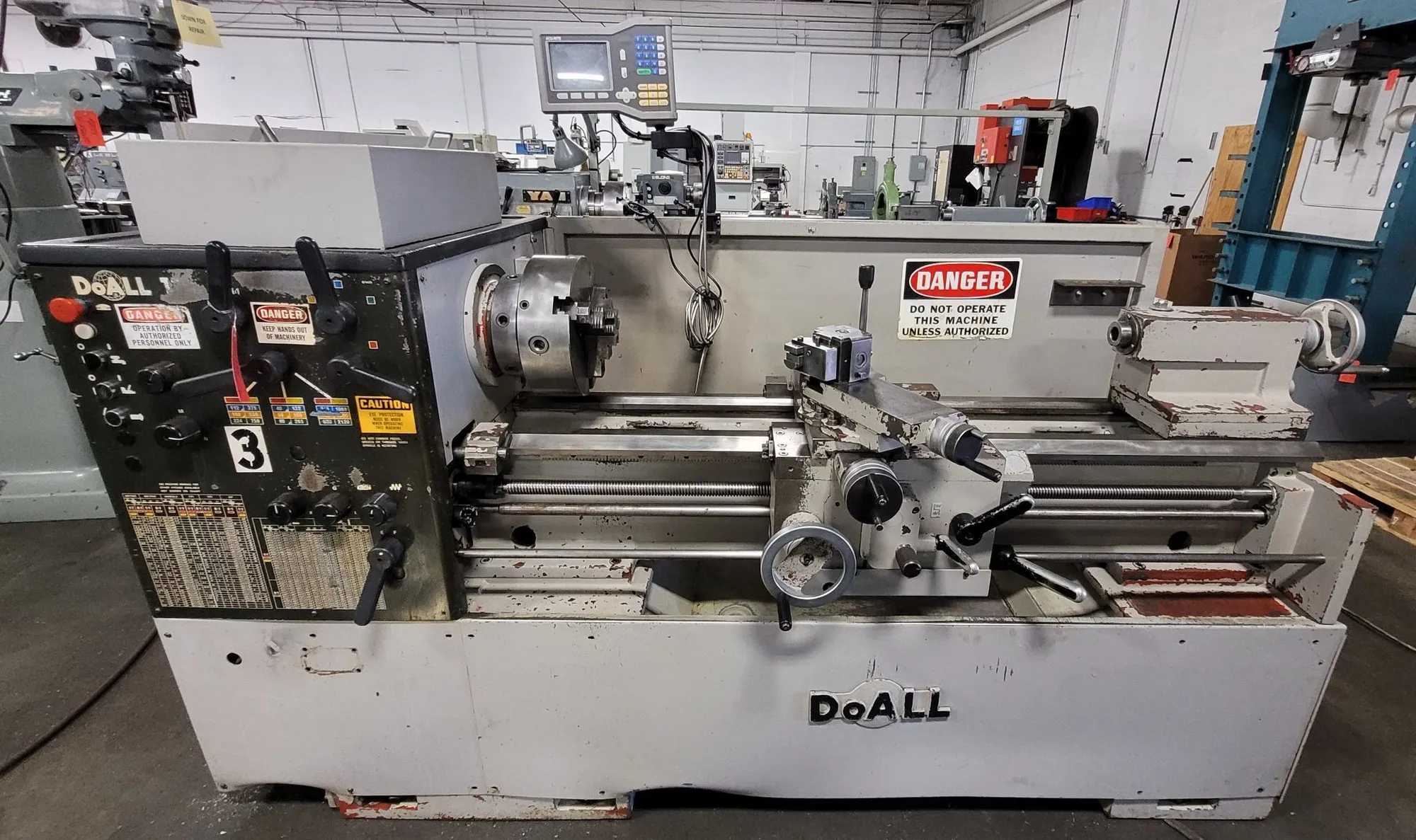

17" X 48" DOALL/ROMI #17 TOOLROOM ENGINE LATHE - PRECISION & PERFORMANCE

THE DOALL MODEL 17 ENGINE LATHE IS DESIGNED FOR TOOLROOM ACCURACY WHILE PROVIDING THE DURABILITY REQUIRED FOR PRODUCTION MACHINING. IT FEATURES A 17 IN SWING OVER BED, 48 IN DISTANCE BETWEEN CENTERS, AND 9.625 IN SWING OVER THE CROSS SLIDE. THE MACHINE IS EQUIPPED WITH A D1-8 CAMLOCK SPINDLE NOSE, A 3-1/8 IN SPINDLE BORE, AND A 10 HP SPINDLE MOTOR WITH A SPINDLE SPEED RANGE OF 40 TO 2,120 RPM. ADDITIONAL FEATURES INCLUDE AN ACU-RITE 2-AXIS DIGITAL READOUT (DRO), INCH AND METRIC THREADING WITH 96 THREADING CHANGES SUPPORTING 1/2–42 TPI AND 0.4–56 MM THREAD PITCHES, A #4 MORSE TAPER TAILSTOCK, HARDENED AND GROUND BED WAYS, AND A FULL-LENGTH SPLASH GUARD. INCLUDED WITH THE MACHINE ARE A 12 IN 3-JAW CHUCK AND A QUICK-CHANGE TOOL POST (NO HOLDERS). THE LATHE HAS AN APPROXIMATE WEIGHT OF 5,000 LB. THE MACHINE IS NOTED AS ON ITS WAY IN.
