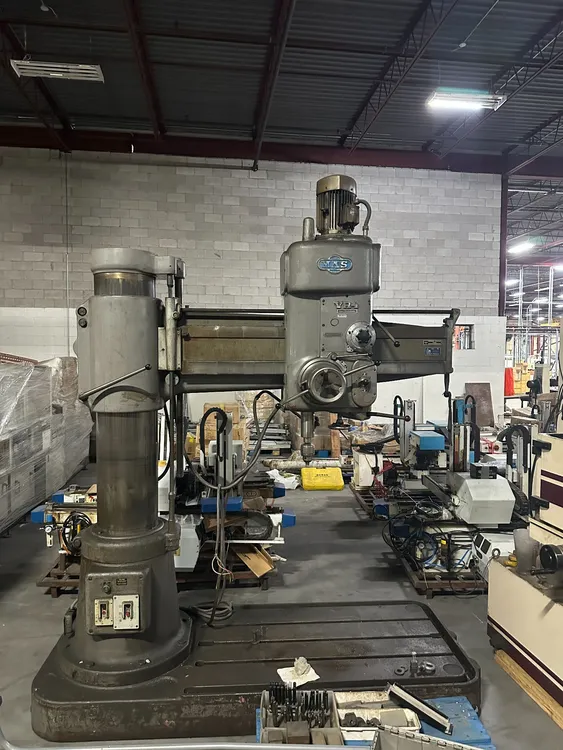

1971 MAS VR4 RADIAL DRILLING MACHINE 50MM CAPACITY, 1470MM ARM, 2000 RPM, 575V 60HZ 3PH

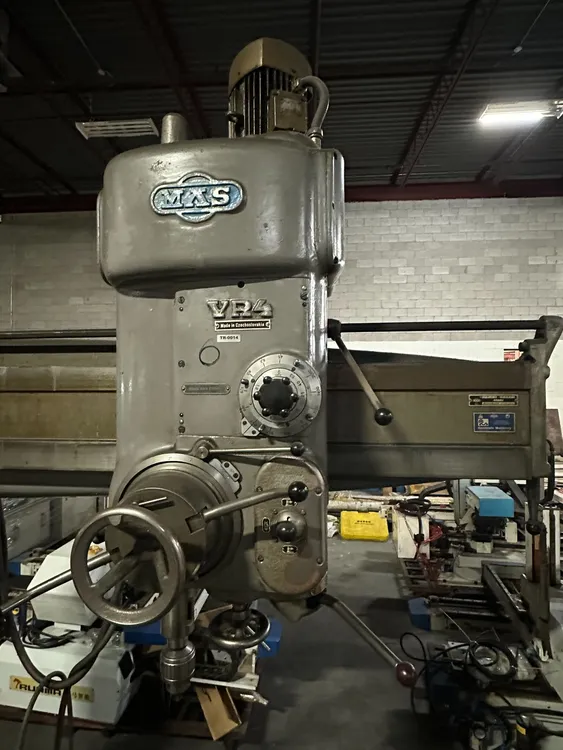

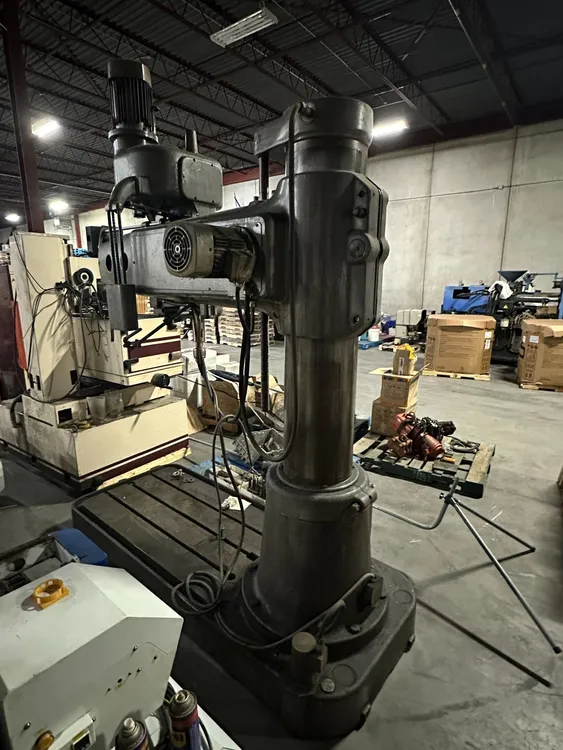

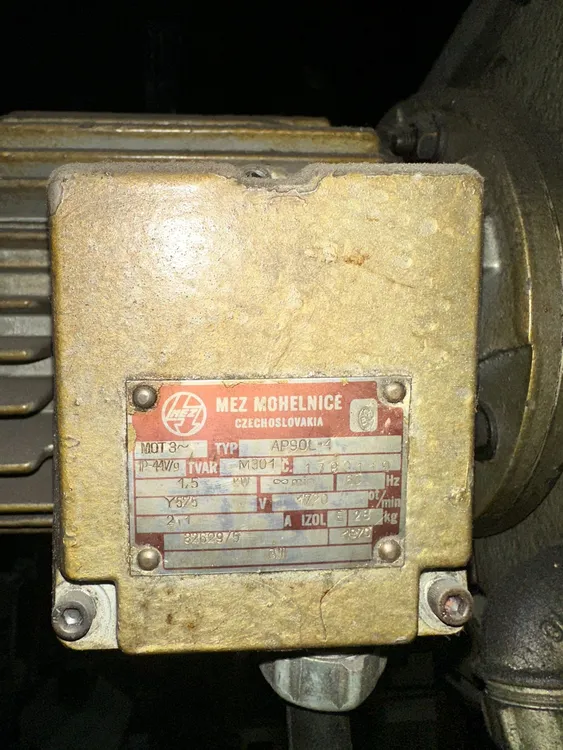

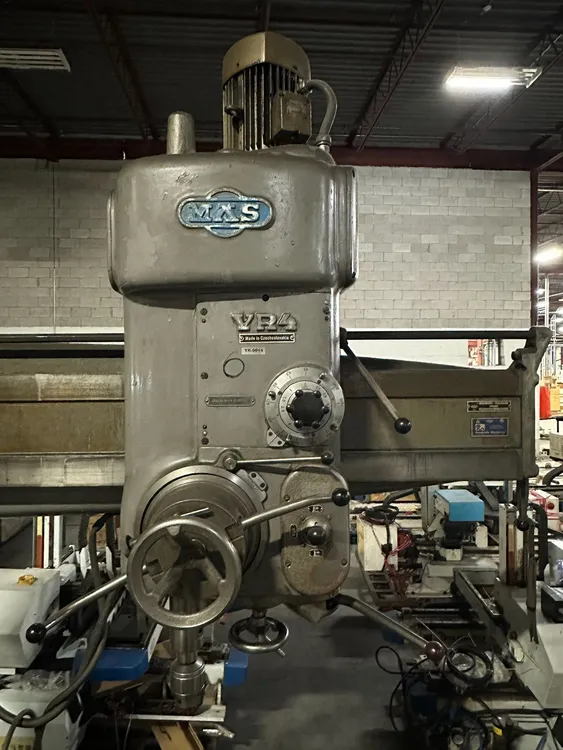

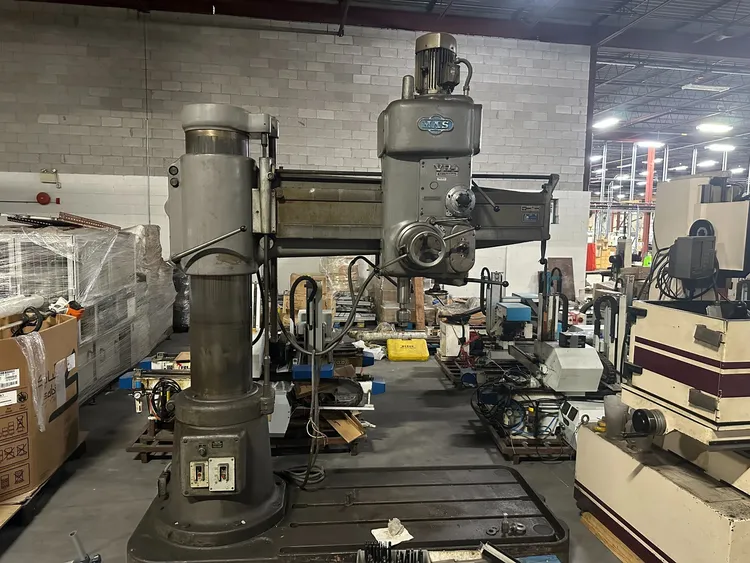

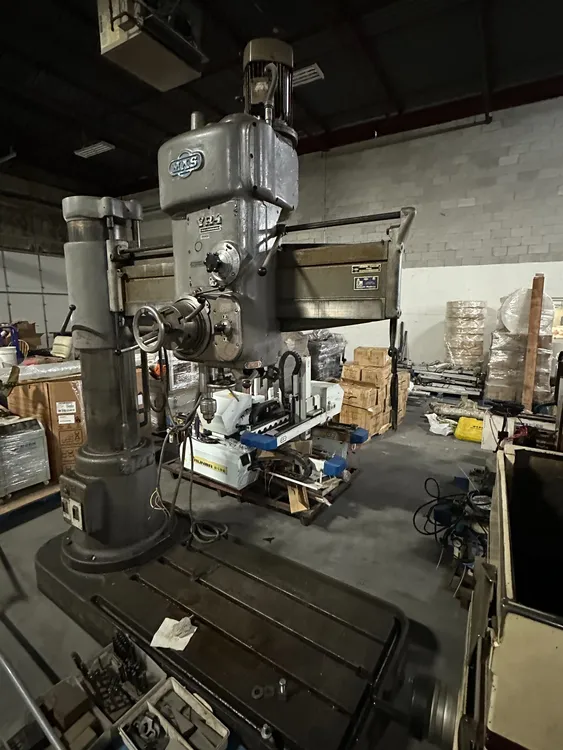

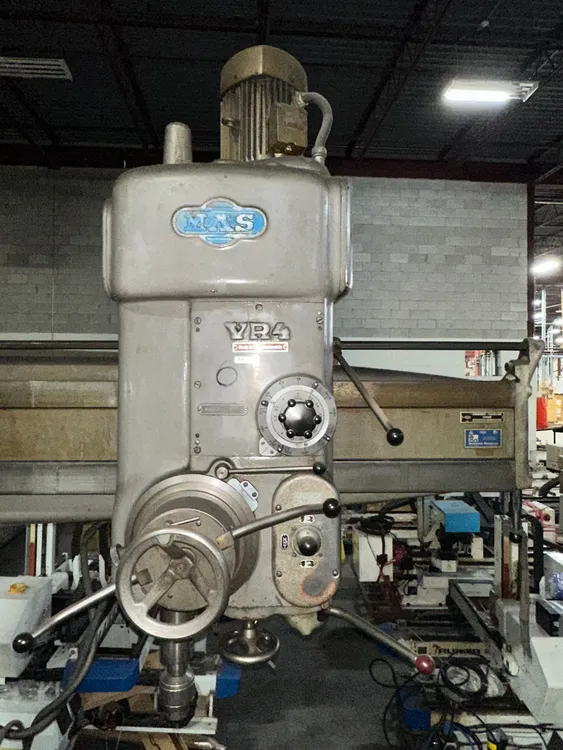

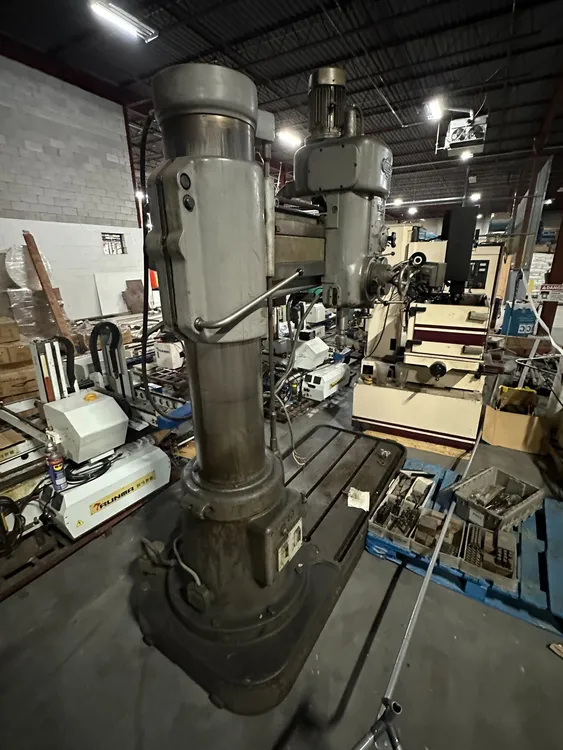

THIS IS A 1971 MAS VR4 RADIAL DRILLING MACHINE WITH A DRILLING CAPACITY OF 50MM AND AN ARM LENGTH OF 1470MM (78" TOTAL RADIAL ARM LENGTH). IT FEATURES A 75 MM SPINDLE DIAMETER WITH AN MT4 TAPER AND SPINDLE SPEEDS UP TO 2000 RPM. SPINDLE FEED TRAVEL IS 310 MM, WITH A FEED RATE OF 1.58 MM/REV. THE VERTICAL TRAVEL OF THE ARM IS 675 MM. POWER REQUIREMENTS ARE 575V, 60HZ, 3PH, DRAWING 1.5KW AND 2.1A. THE MACHINE INCLUDES A CLAMPING TYPE THAT IS MANUAL, AND THE TILTING ANGLE OF THE TABLE RANGES FROM 0 TO 90 DEGREES. THE T-SLOT FLOOR DIMENSIONS ARE 55" X 35". THE OVERALL MACHINE DIMENSIONS ARE 36" X 88" X 116".
