1974 SURFACE COMBUSTION OIL TEMPERING LINE

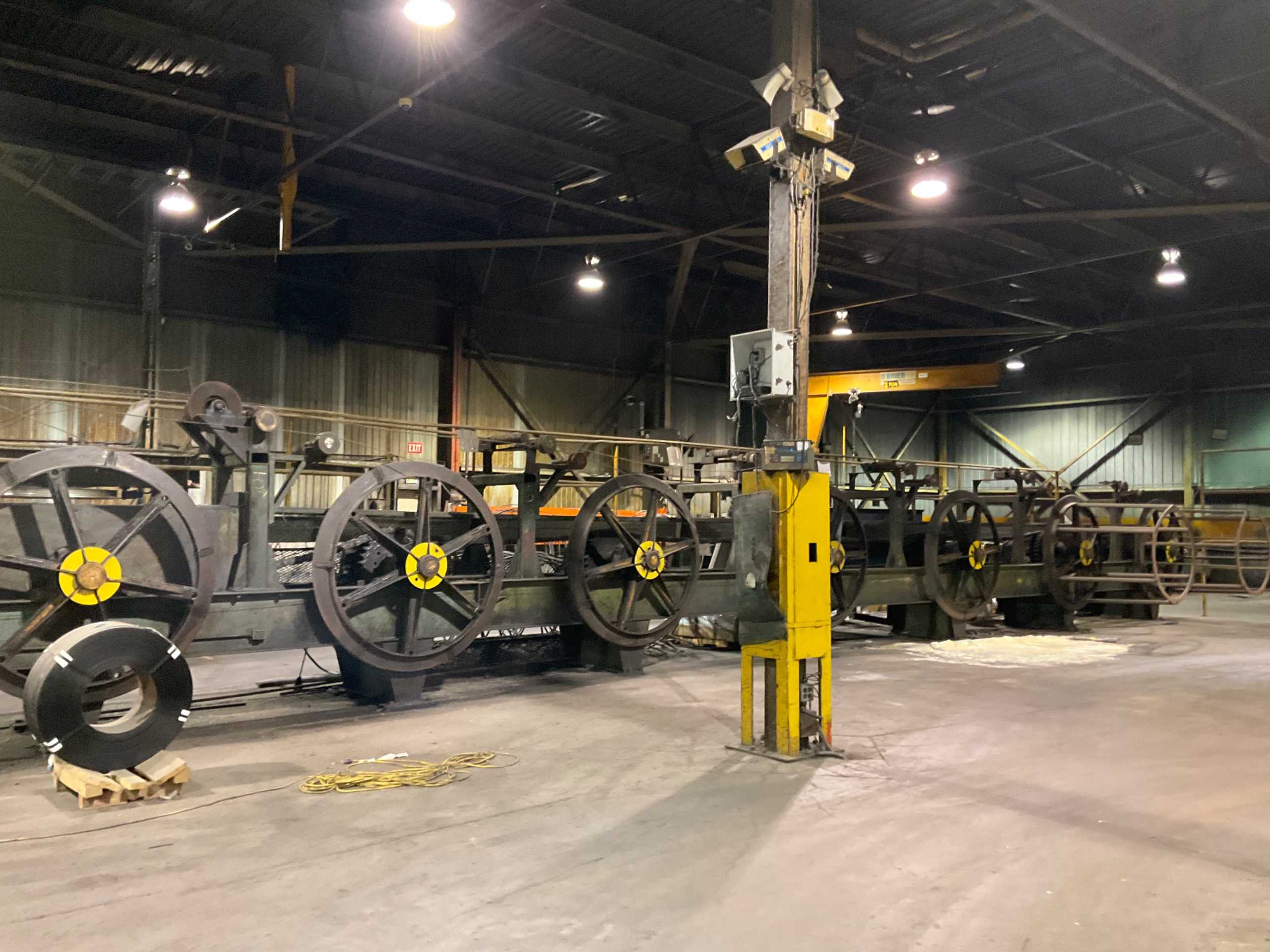

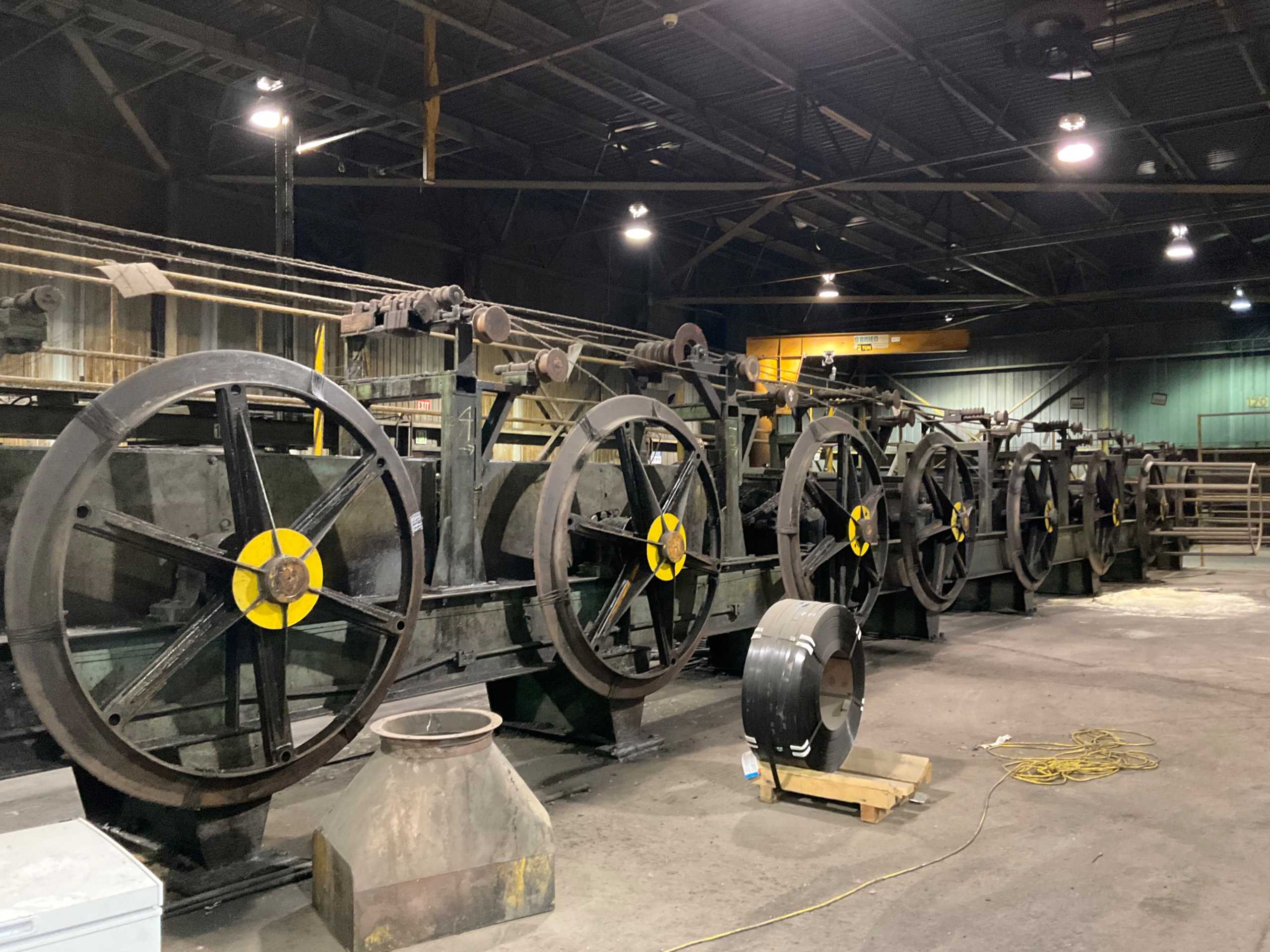

THE SURFACE COMBUSTION CONTINUOUS STRAND ANNEALING FURNACE LINE WITH MULTI-STATION WIRE HANDLING SYSTEM INCLUDES PREHEAT FURNACE AND HARDENING FURNACE SECTIONS WITH REFRACTORY-LINED CHAMBERS AND INSULATED ENCLOSURES. EQUIPPED WITH MULTIPLE DRIVEN PULLEY WHEELS, GUIDE ROLLERS, AND INLINE MATERIAL TRANSPORT STRUCTURE FOR CONTINUOUS PROCESSING. COMBUSTION-BASED HEATING SYSTEM WITH GAS AND AIR SUPPLY LINES. MAXIMUM FUEL DEMAND UP TO 2,500,000 BTU/HR (HARDENING FURNACE) AND 2,000,000 BTU/HR (PREHEAT FURNACE). OPERATING TEMPERATURES UP TO APPROXIMATELY 1650°F (898°C) AND 2300°F (1260°C) DEPENDING ON FURNACE SECTION. SYSTEM INCLUDES CENTRALIZED CONTROL PANELS AND ELECTRICAL CABINETS. ELECTRICAL REQUIREMENTS: 575V, 3-PHASE, 60HZ.
