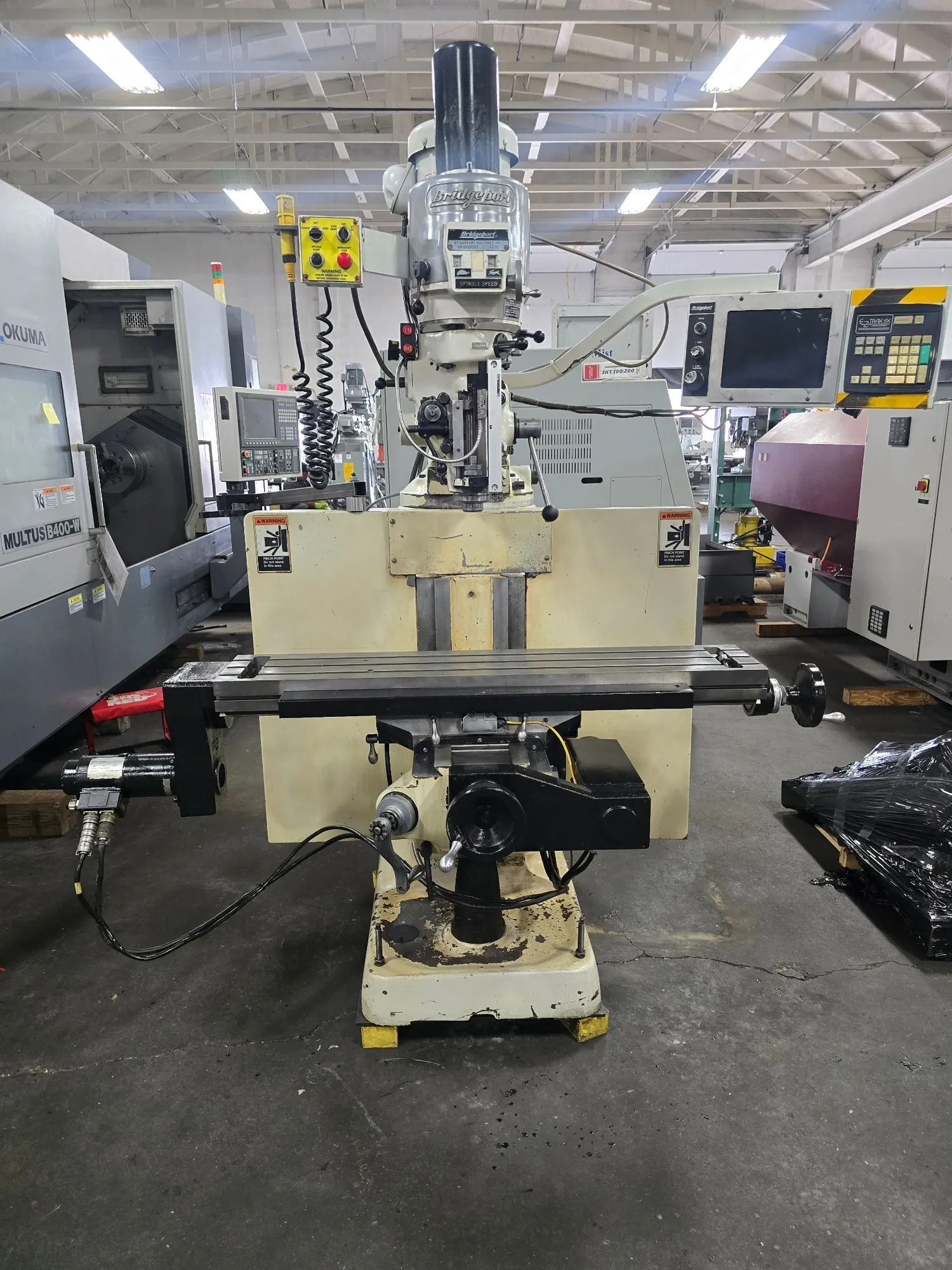

1978 BRIDGEPORT EZ TRAK SX VERTICAL MILL 9X48" TBL 2HP 33.5"X 12"Y 60-4200 RPM R8

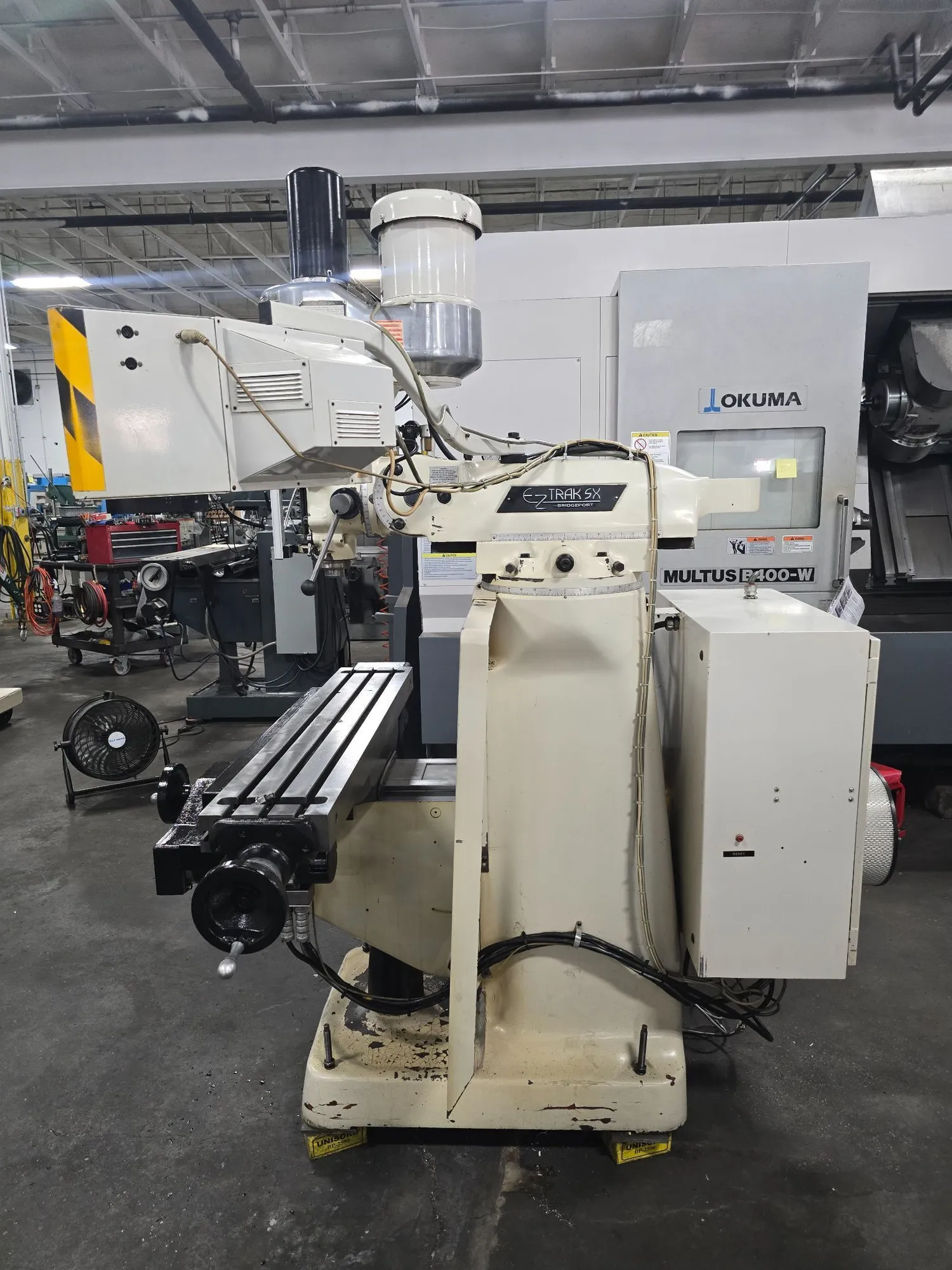

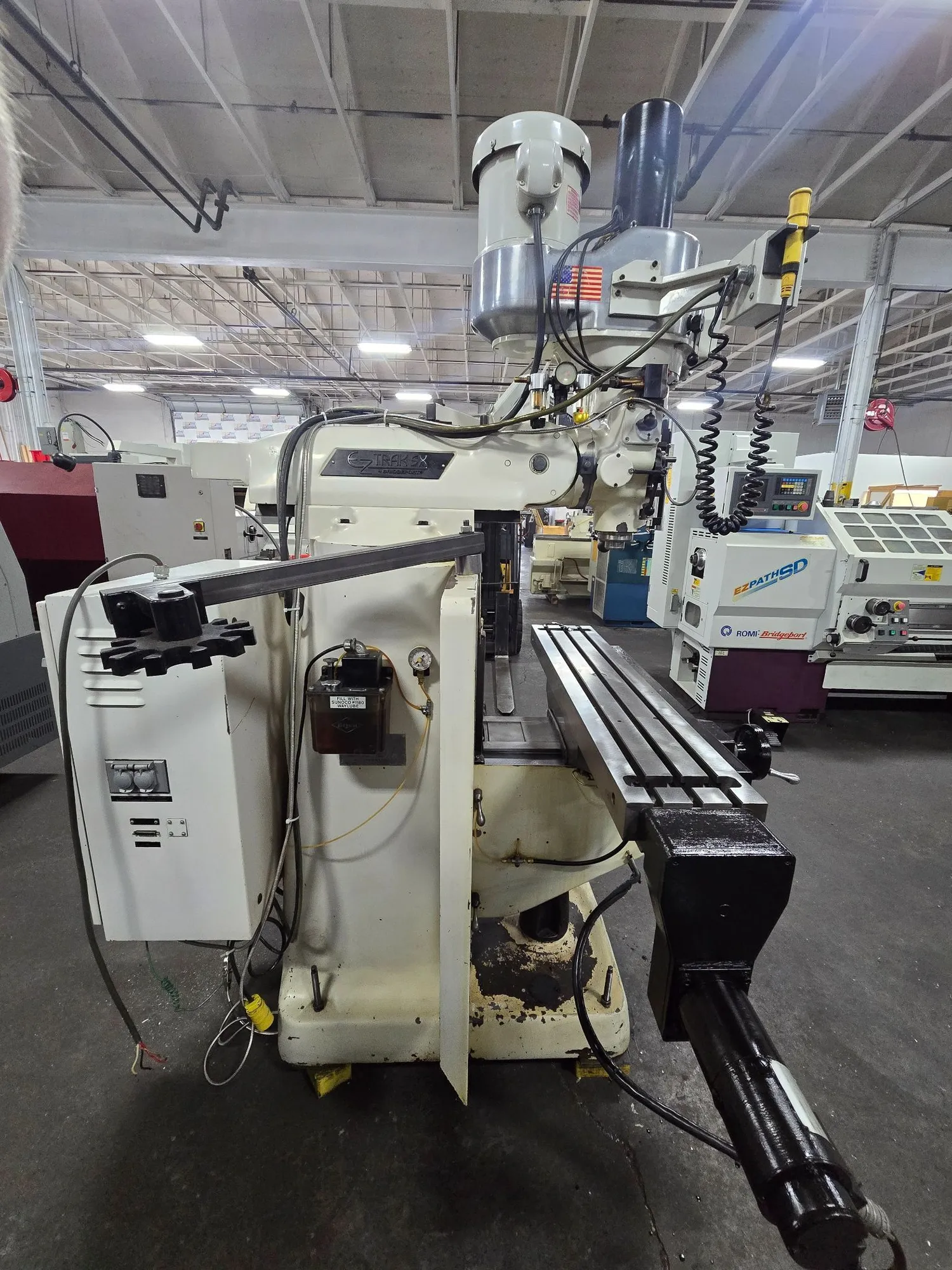

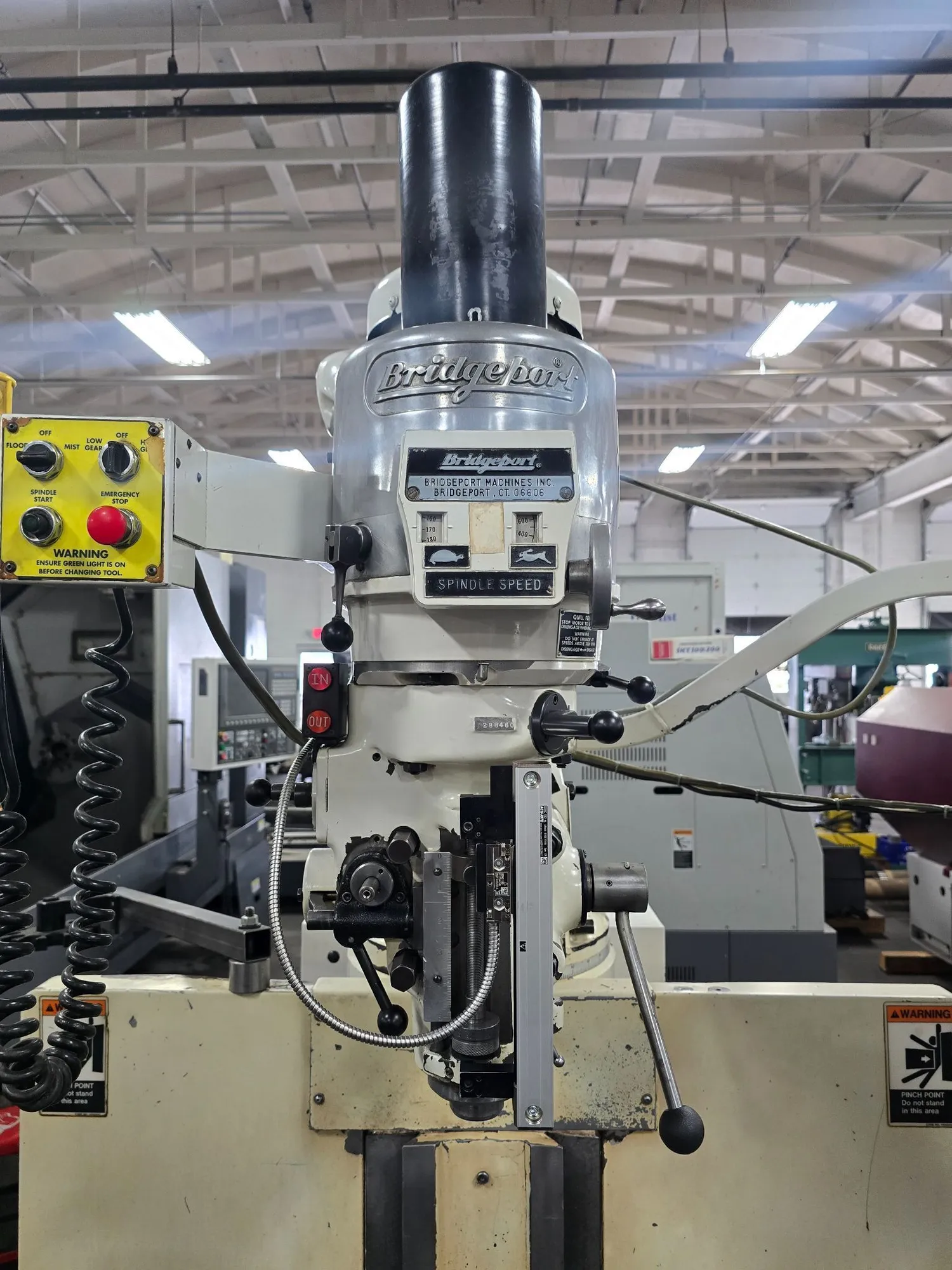

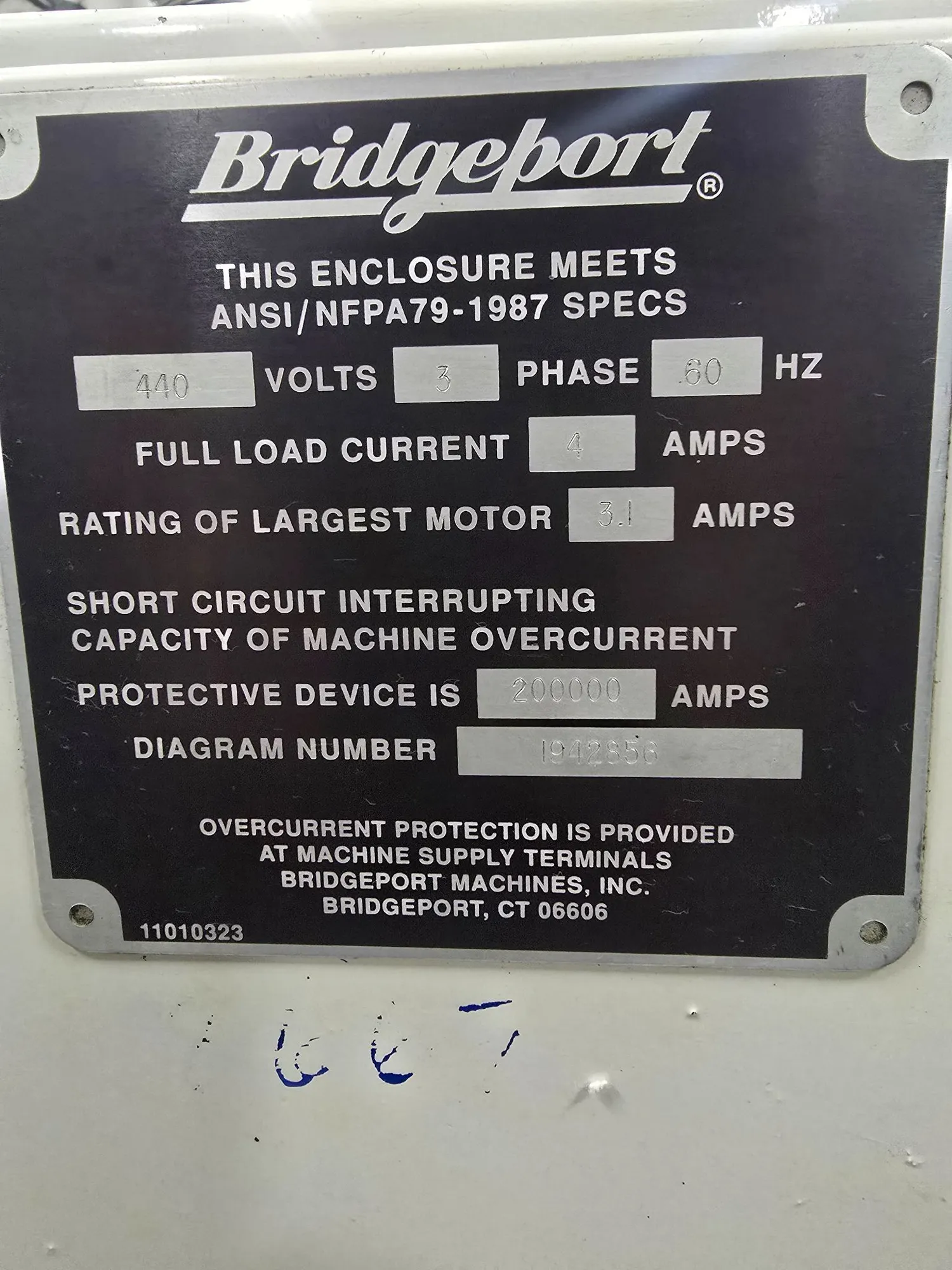

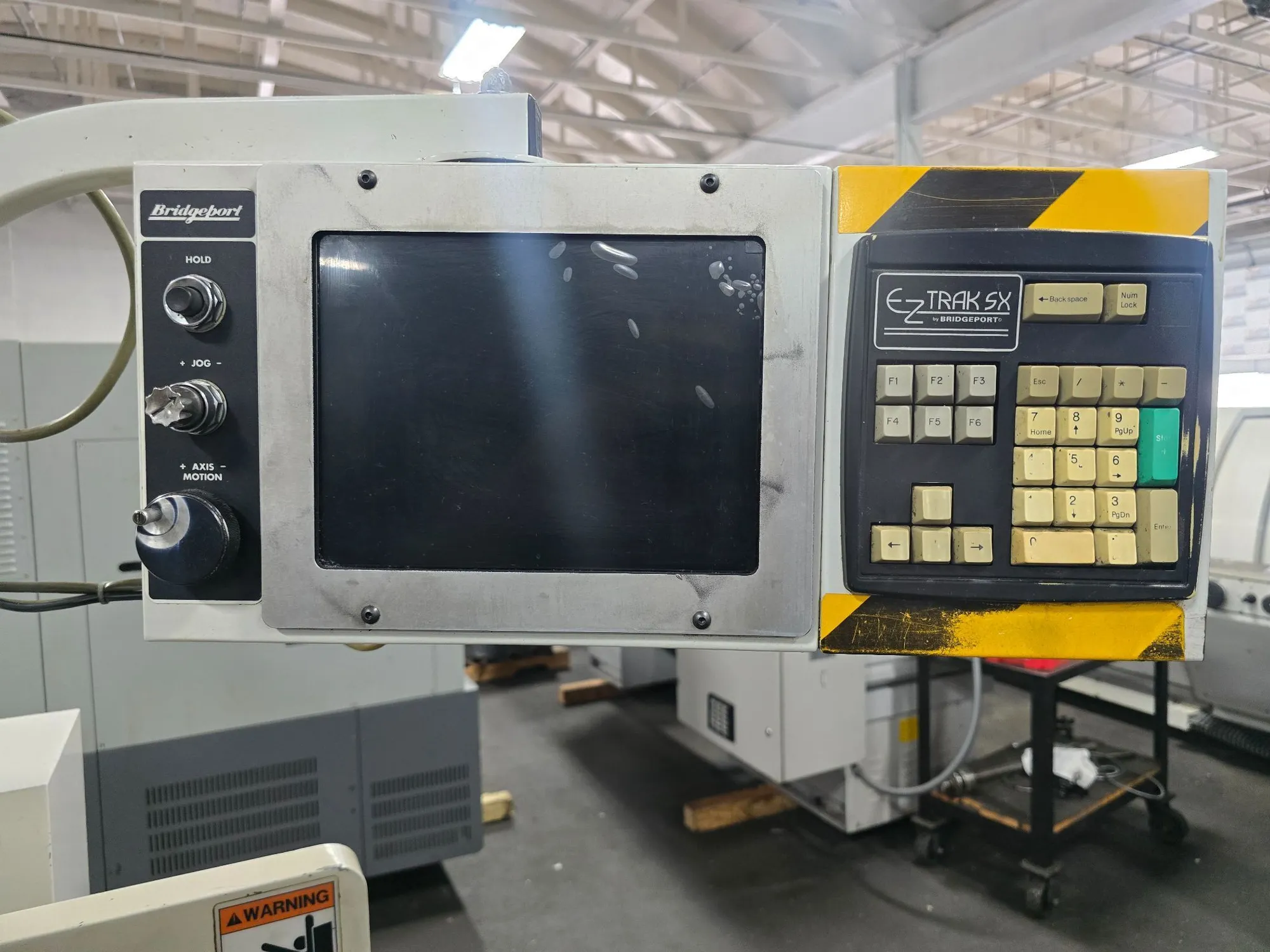

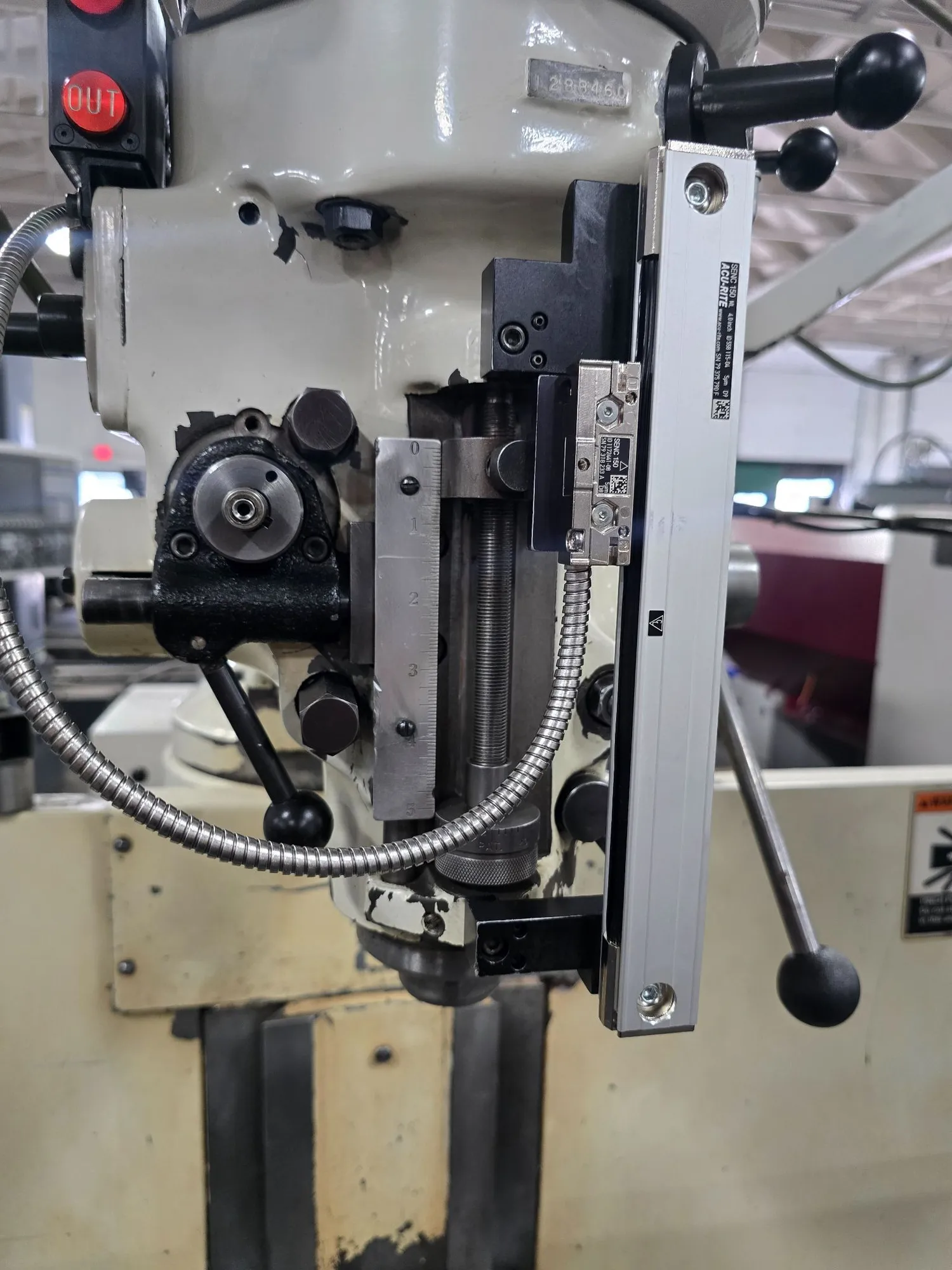

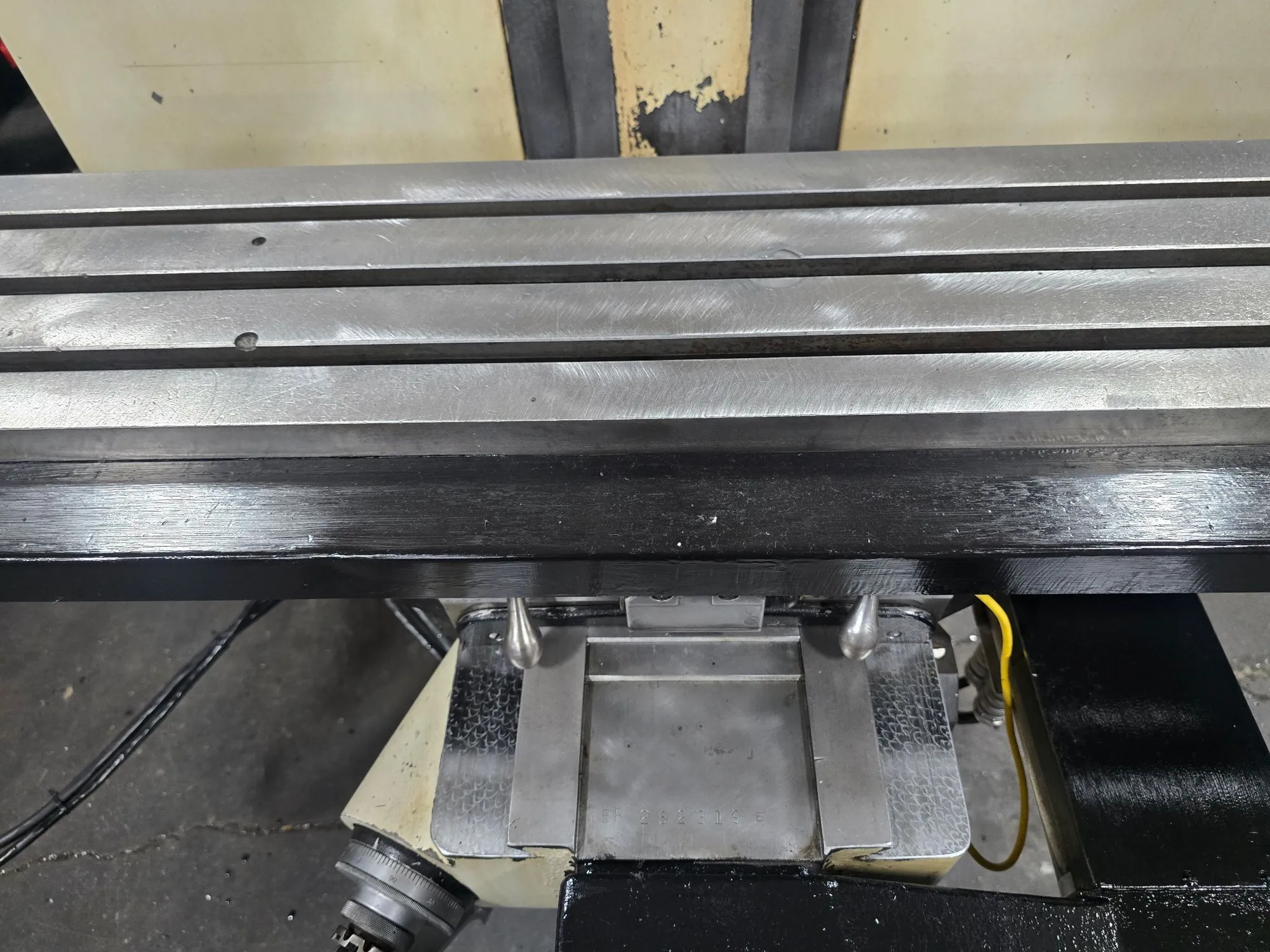

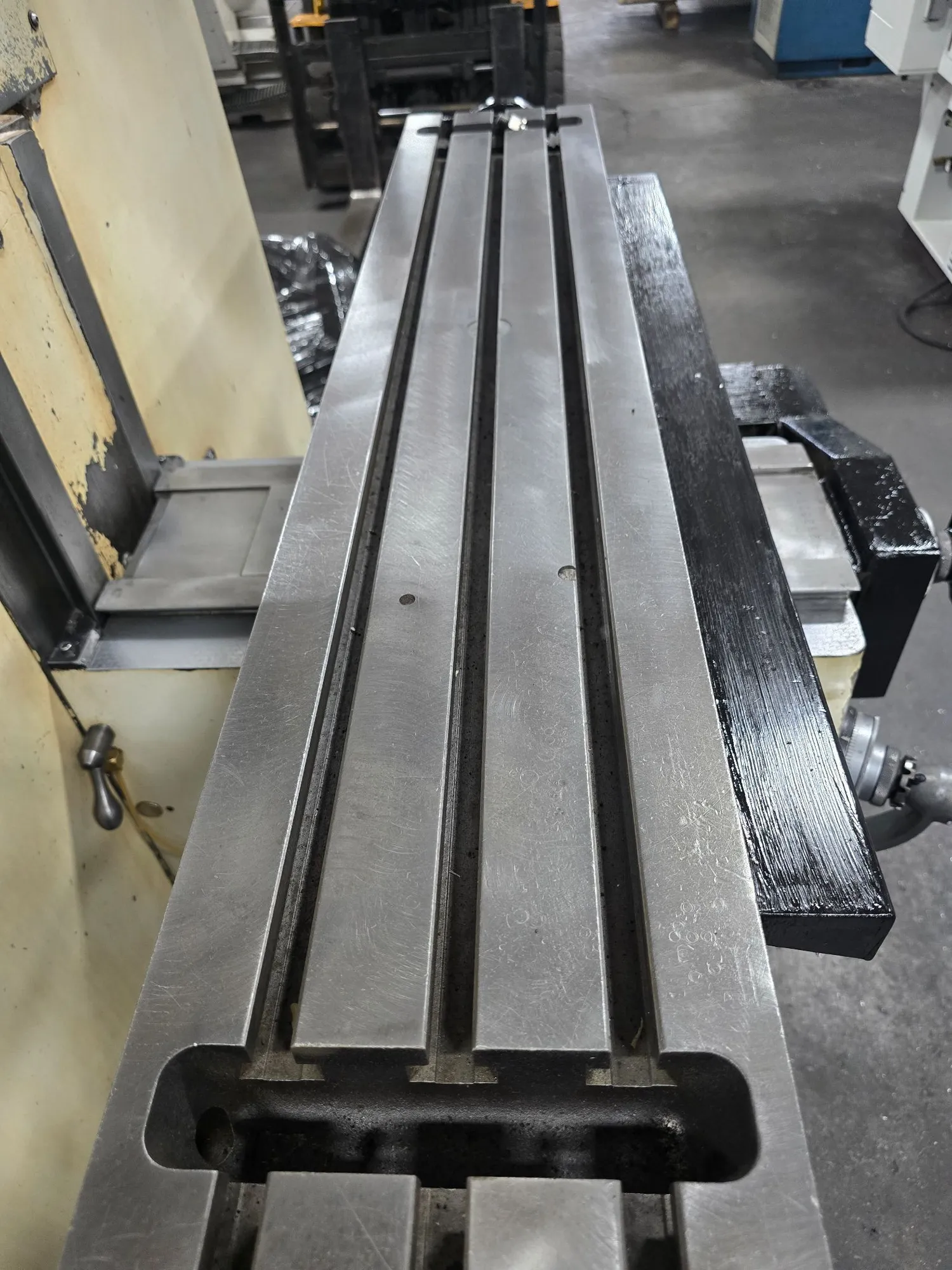

THIS BRIDGEPORT SERIES 1 EZ TRAK SX VERTICAL MILL FEATURES A CNC (BRIDGEPORT) CONTROL AND A TABLE SIZE OF 9" X 48". THE TRAVELS INCLUDE 33.5" LONGITUDINAL, 12" CROSS, 14" VERTICAL OF THE KNEE, AND 5" QUILL TRAVEL, WITH 12" OF RAM TRAVEL. THE R8 SPINDLE PROVIDES INFINITELY VARIABLE SPEEDS FROM 60 TO 4200 RPM, AND SPINDLE QUILL FEEDS ARE SET AT 0.0015", 0.003", AND 0.006". THE POSITIONING SPEED FOR THE X AND Y AXES IS 100 INCH/MINUTE, AND THE FEED RATE RANGE FOR THESE AXES IS 0.1 TO 100 INCH/MINUTE. IT IS POWERED BY A 2 HP/1735 RPM MOTOR, WITH VOLTS RATED AT 230/460, AND IS CURRENTLY WIRED FOR 230V 3 PHASE AT 60 CYCLES WITH FULL LOAD AMPS OF 6.2/3.1. THE THROAT RANGES FROM 6-3/4" TO 18-3/4", AND THE DISTANCE FROM THE TABLE TO THE SPINDLE NOSE RANGES FROM 2-1/2" TO 18-1/4". APPROXIMATE DIMENSIONS ARE 70" X 77" X 87" HIGH, WITH AN APPROXIMATE WEIGHT OF 3,000 LBS. THE MILL ALSO INCLUDES AN AUTO LUBE SYSTEM, A KURT POWER DRAWBAR, AND CHROME WAYS.
