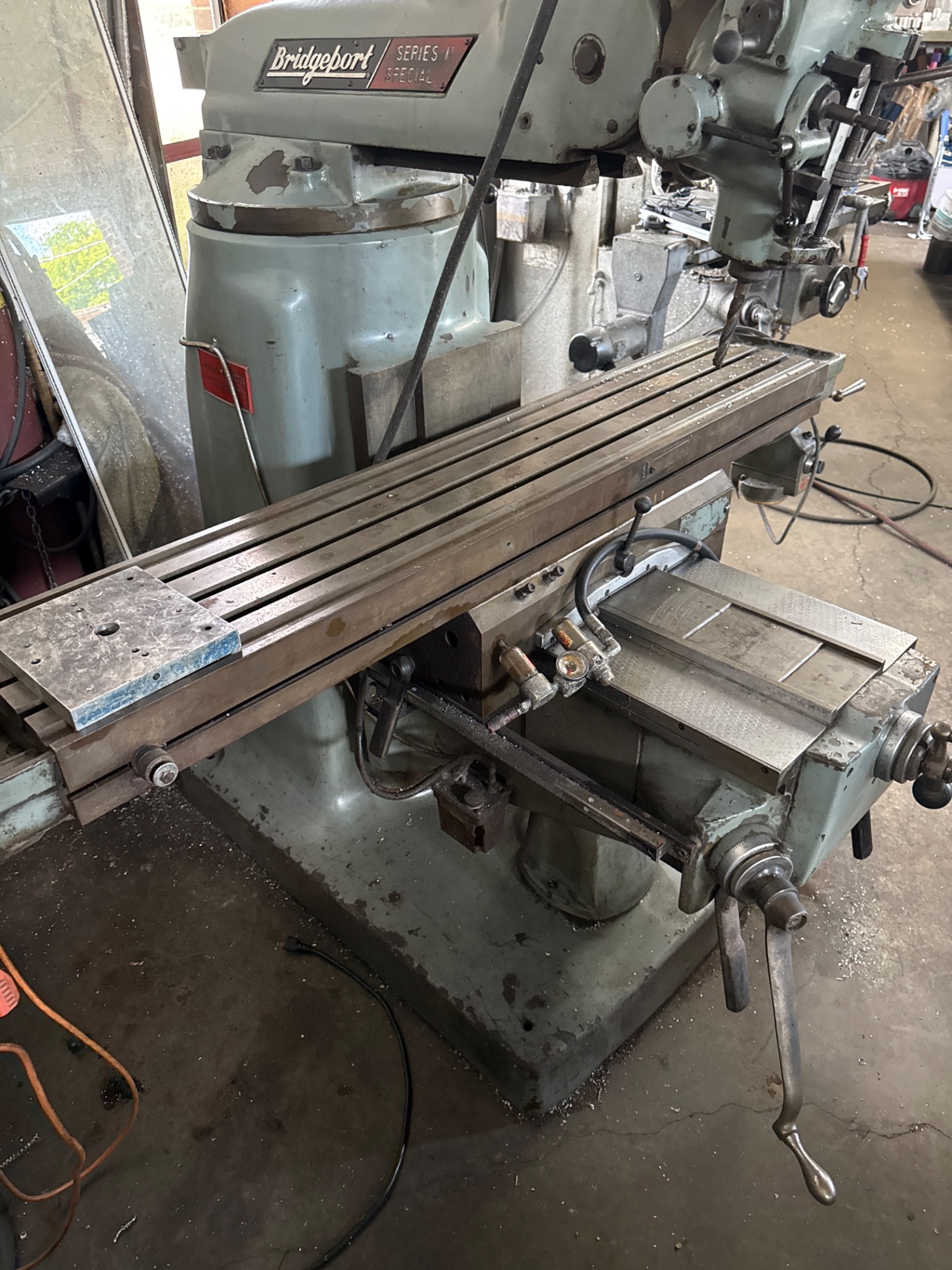

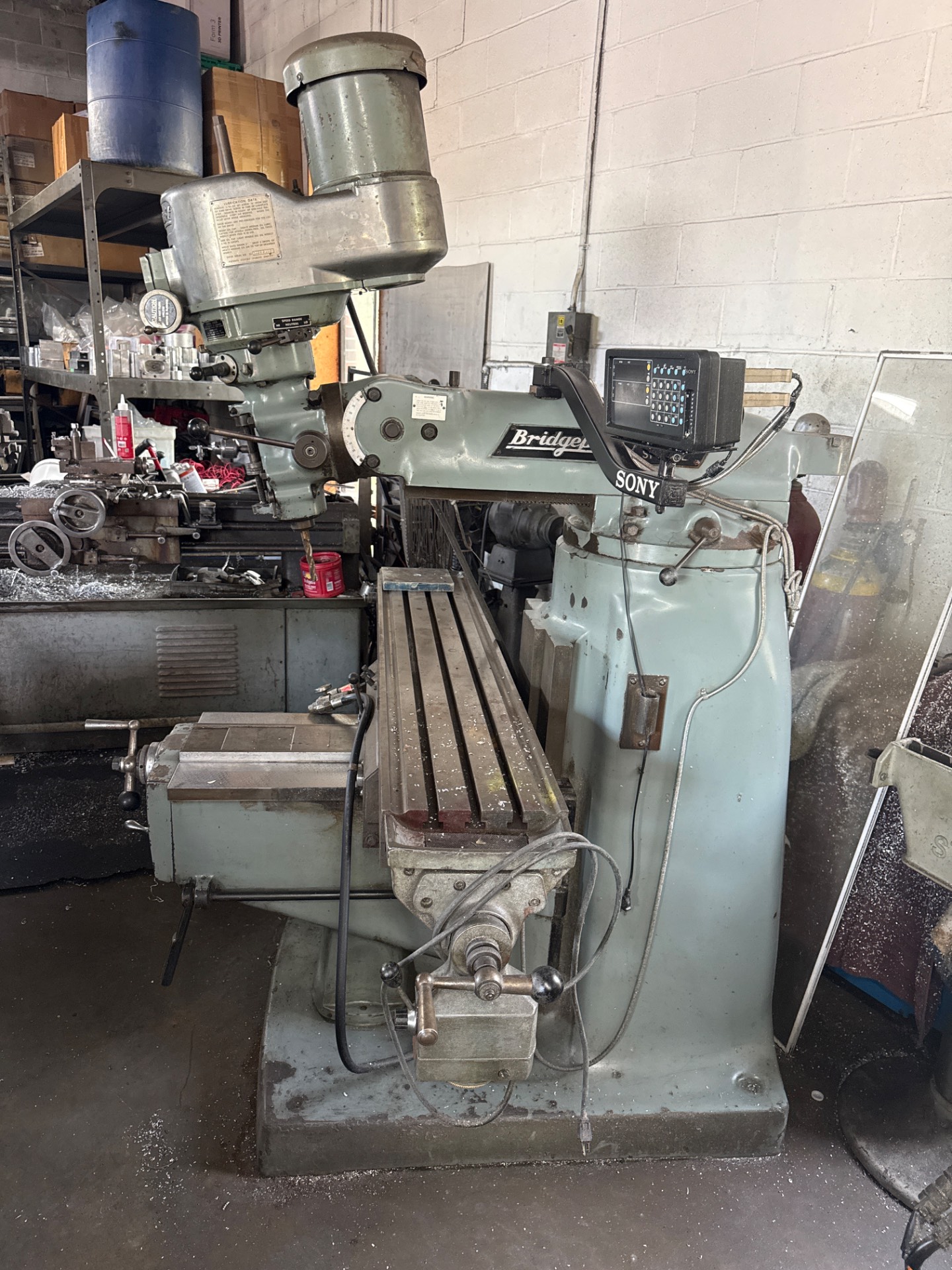

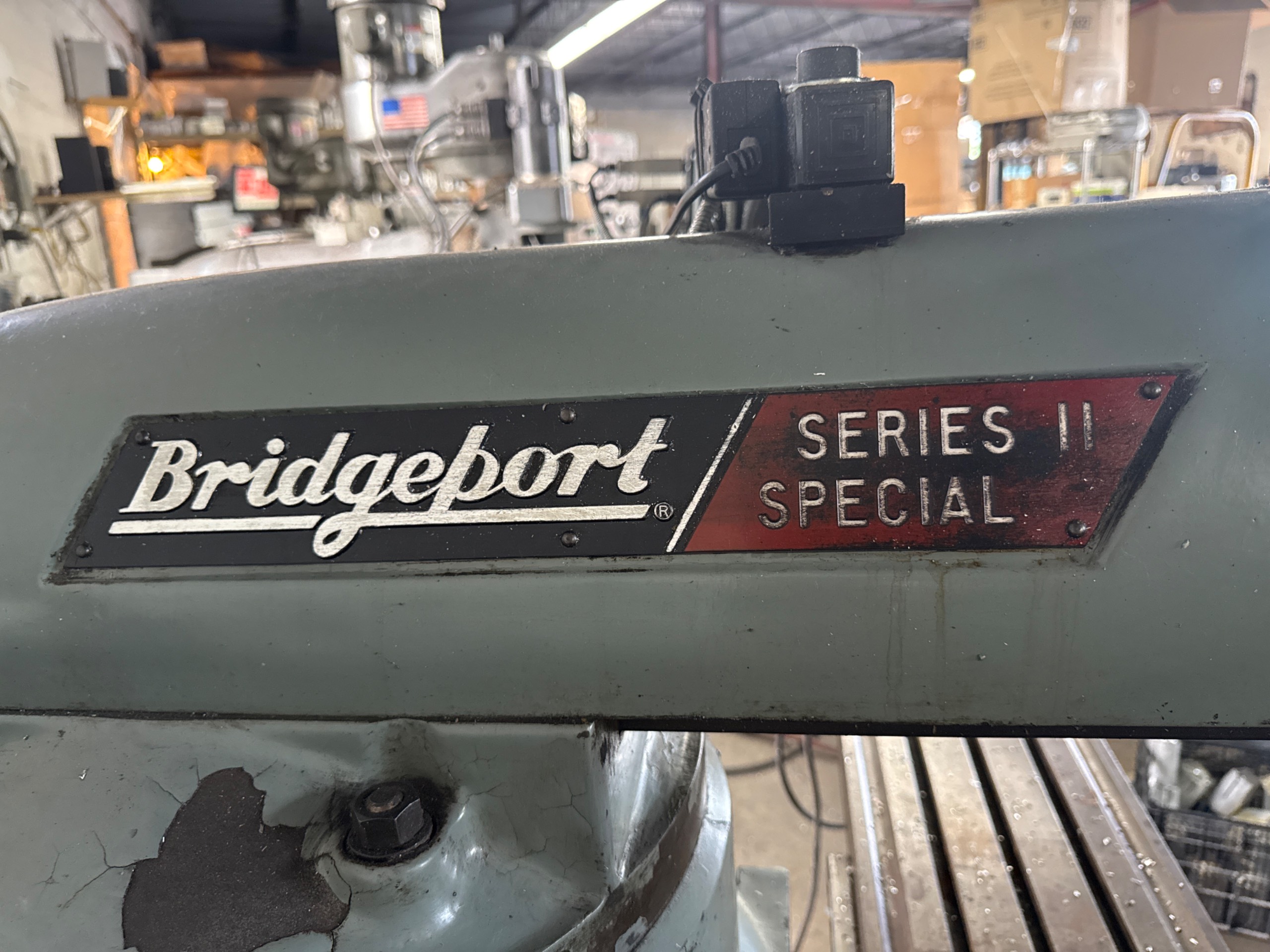

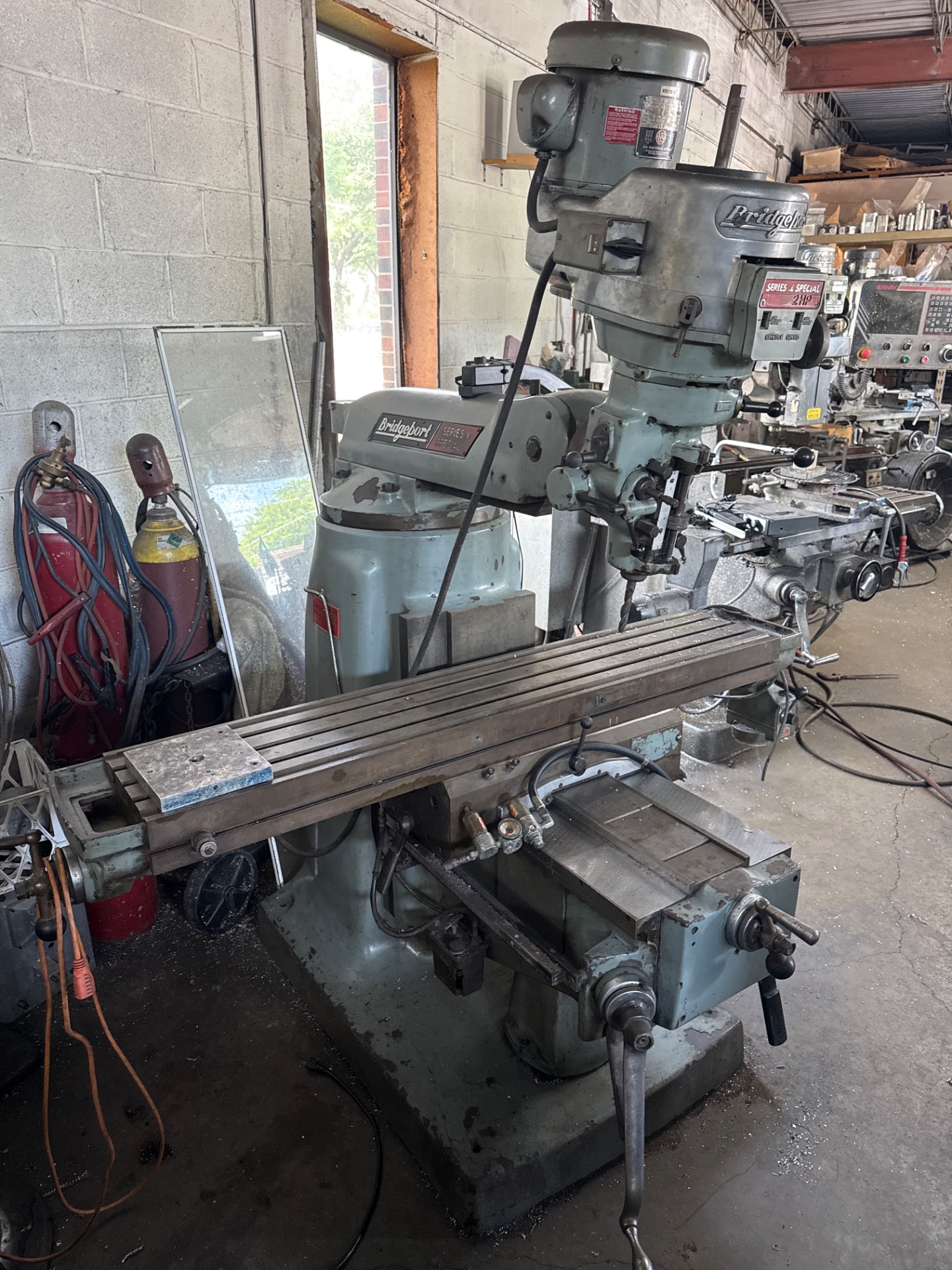

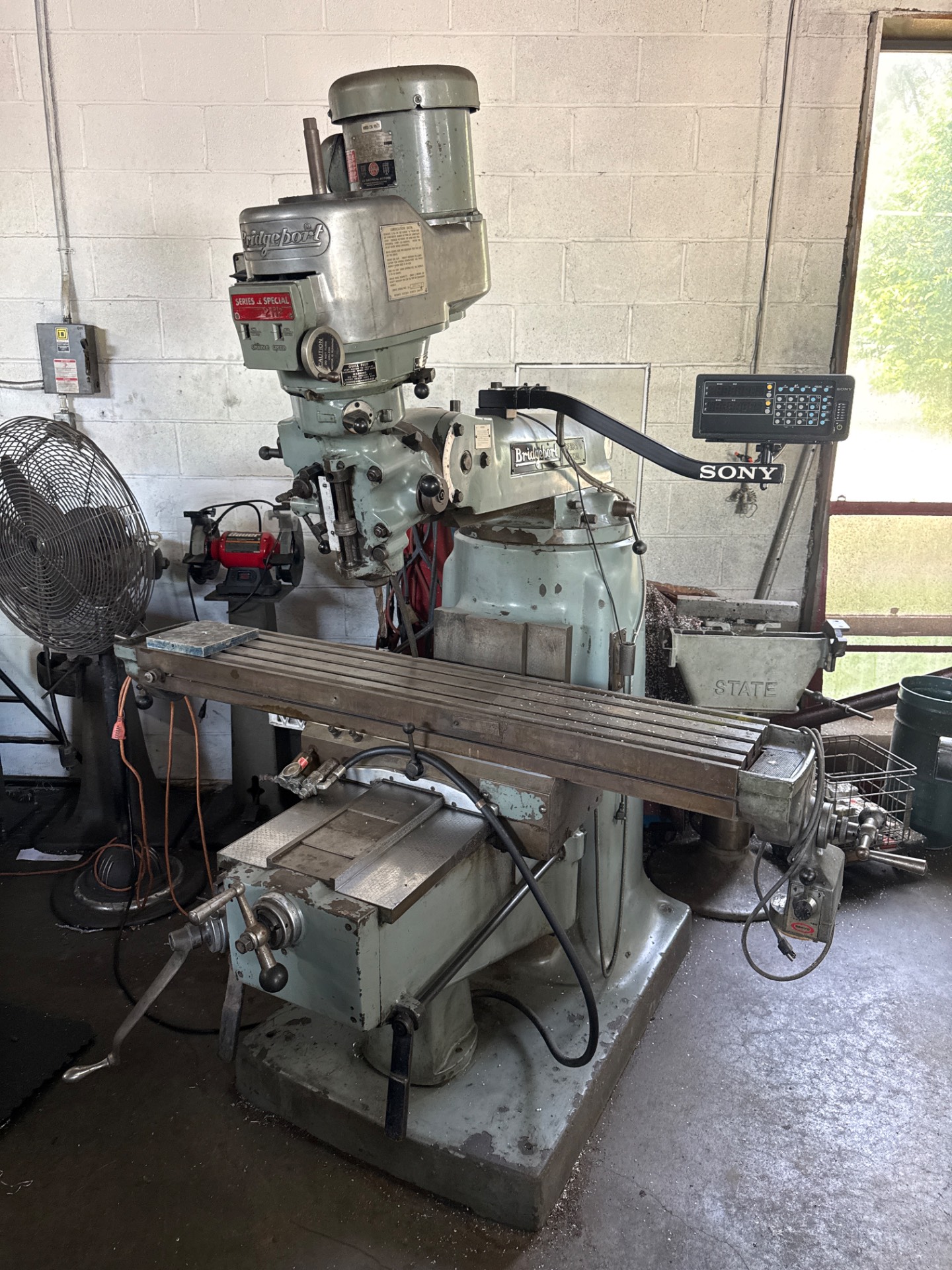

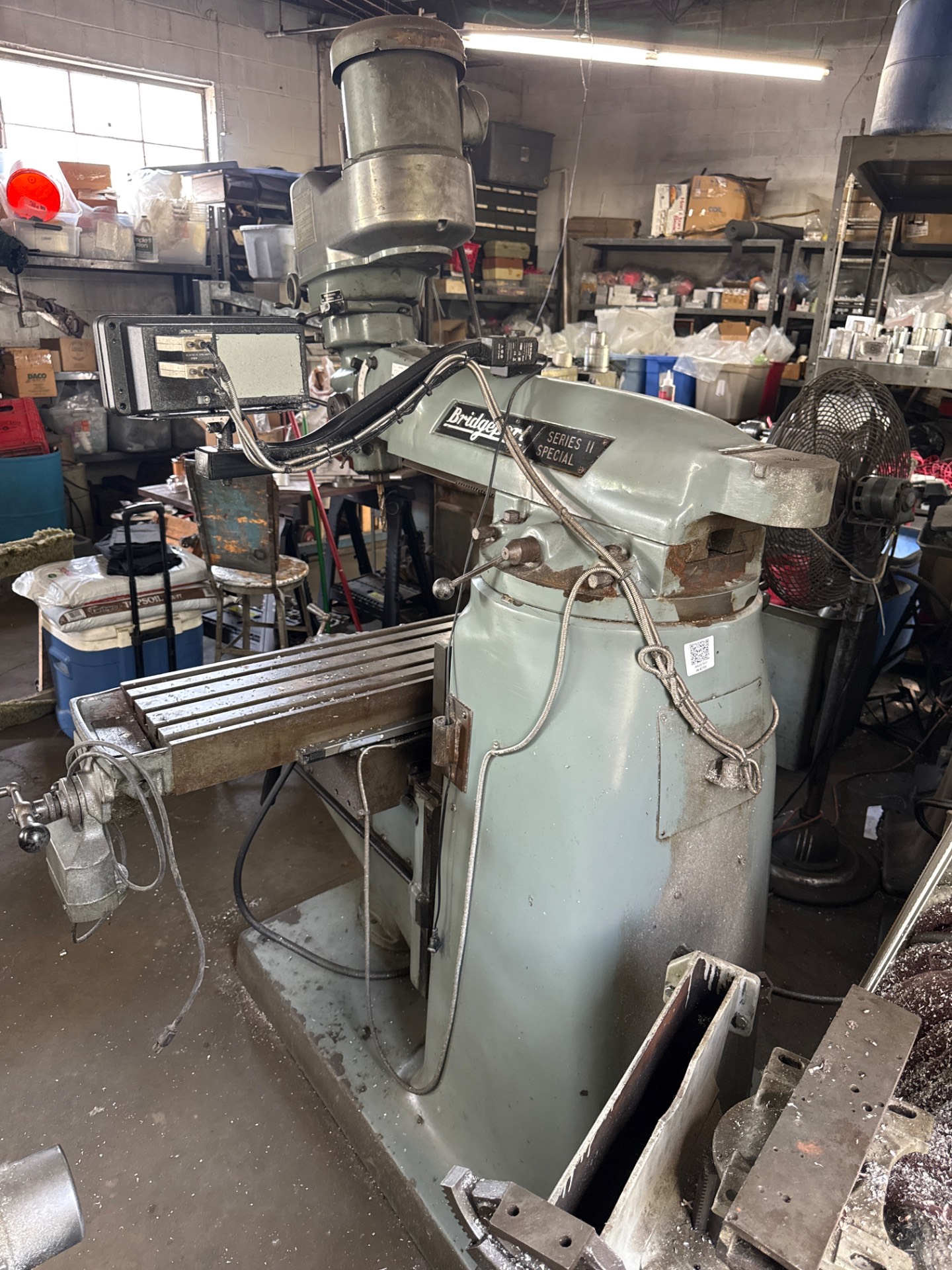

1980 BRIDGEPORT SERIES II SPECIAL VERTICAL MILLING MACHINE

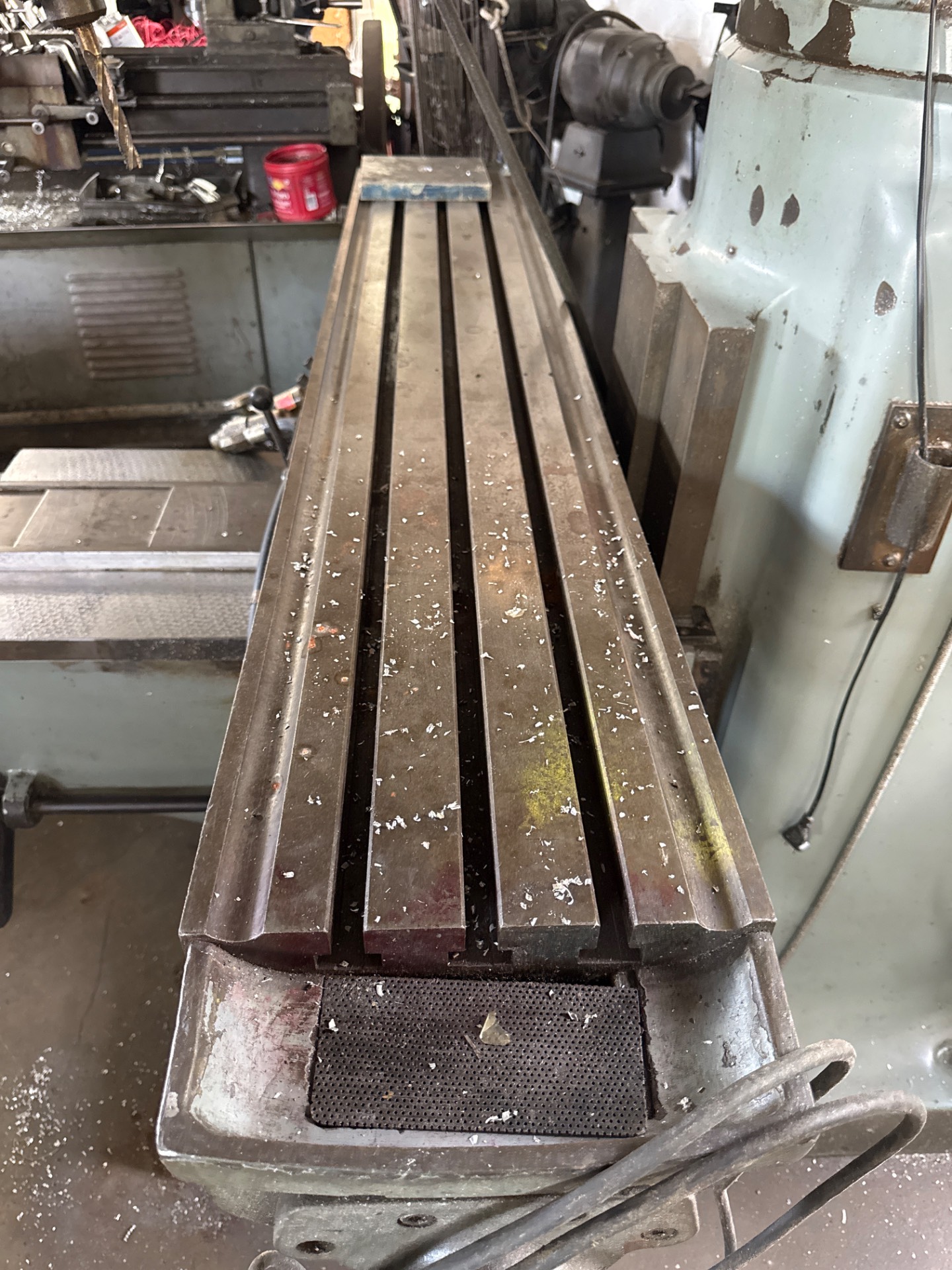

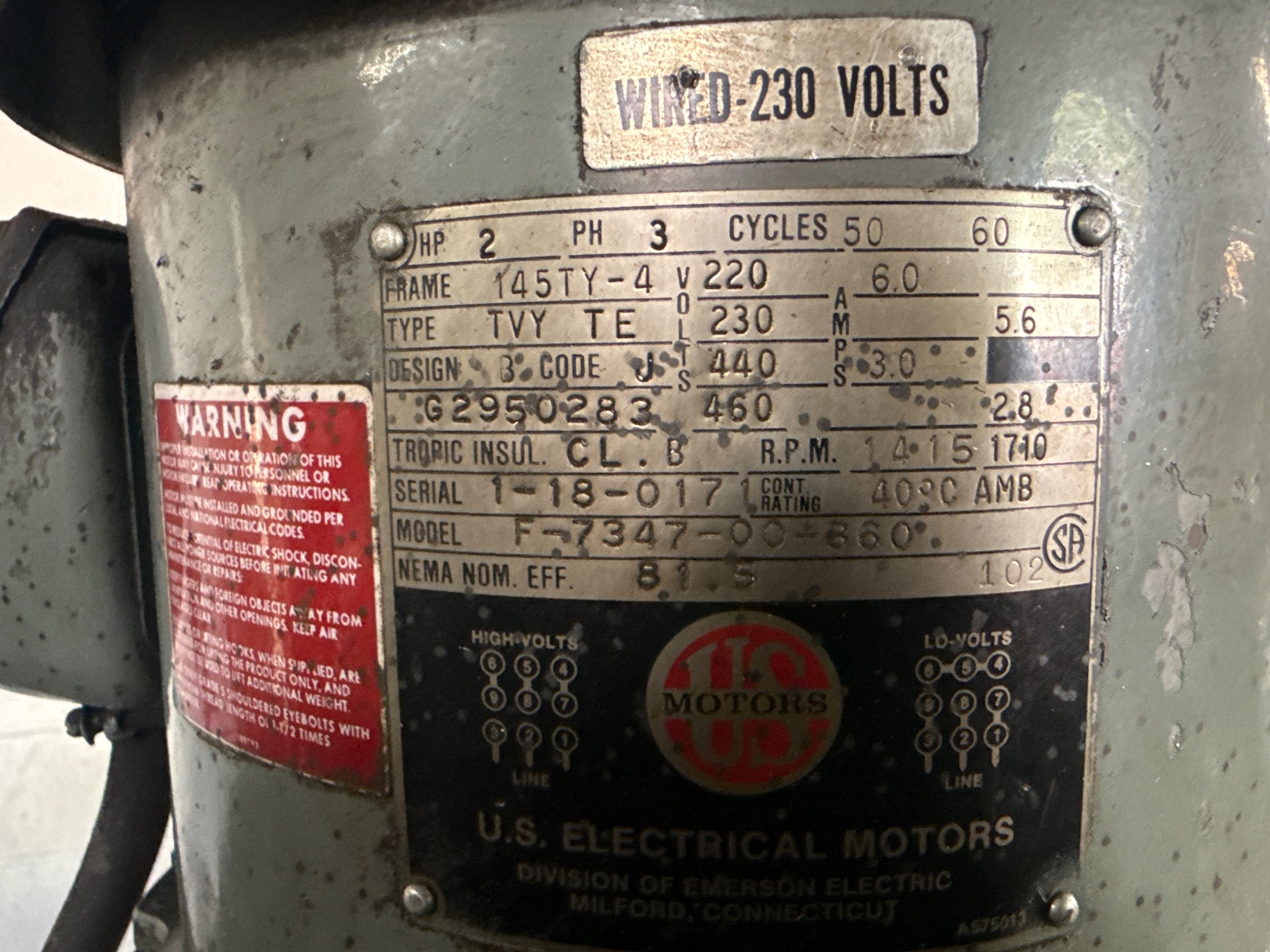

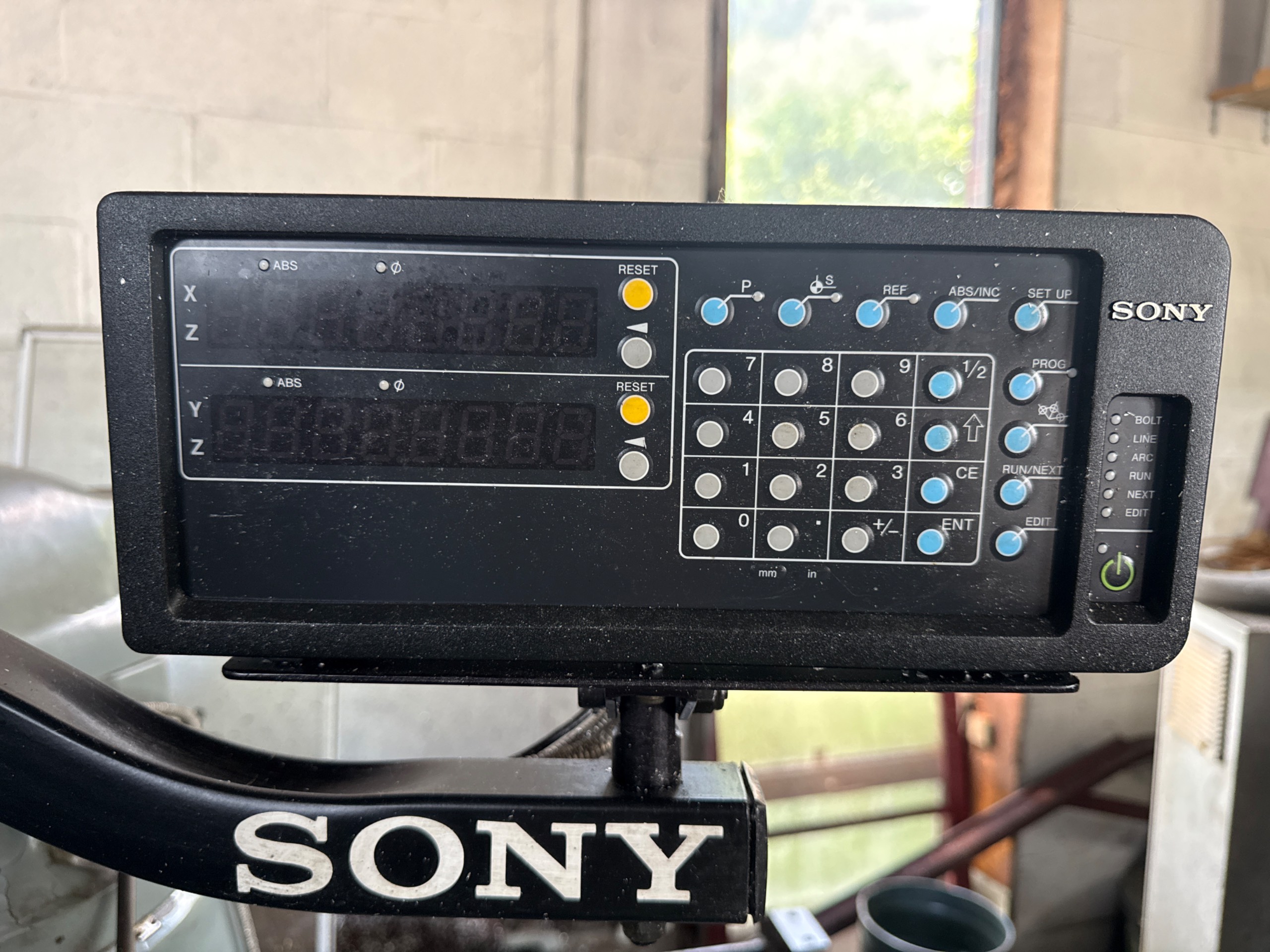

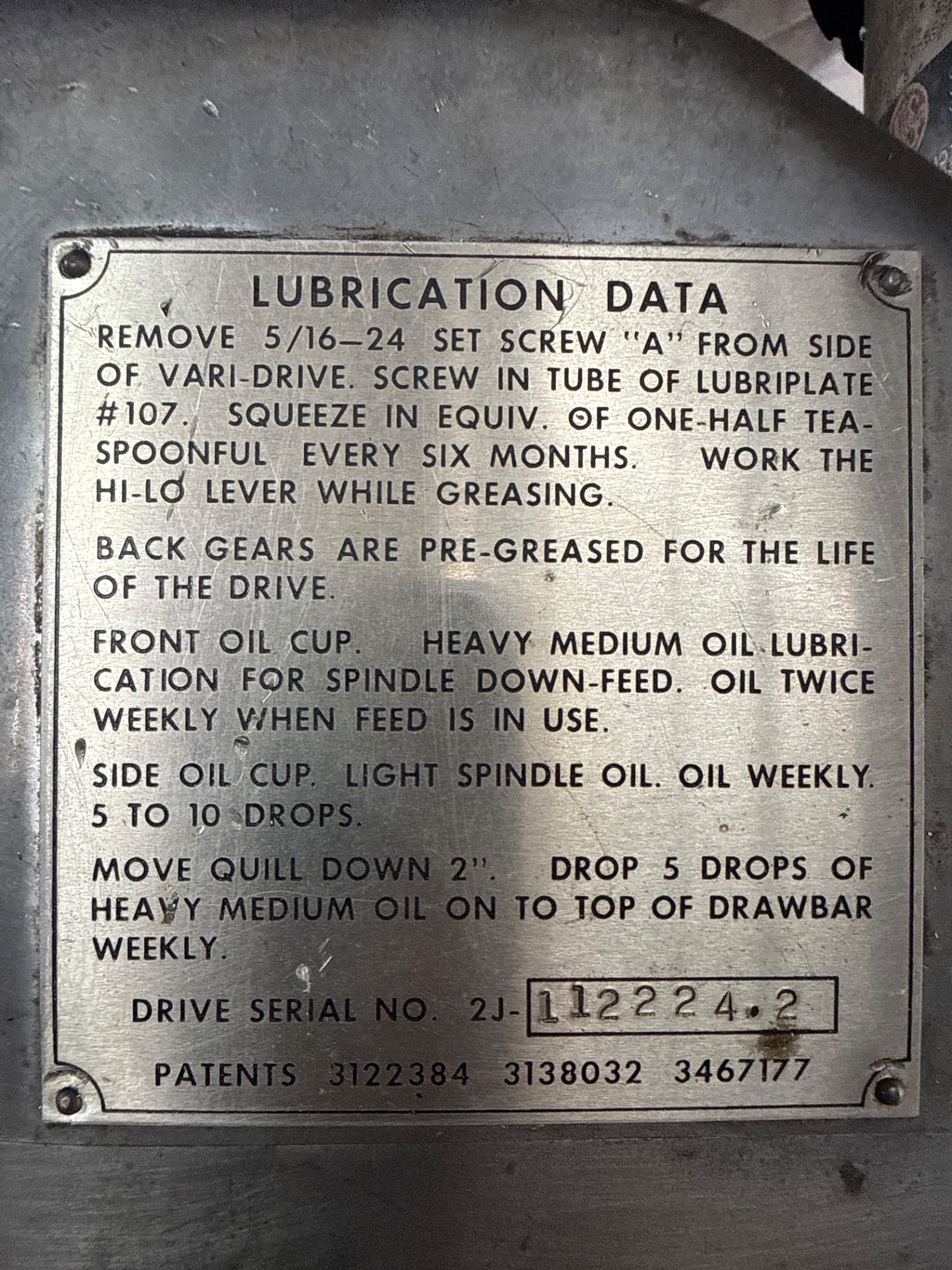

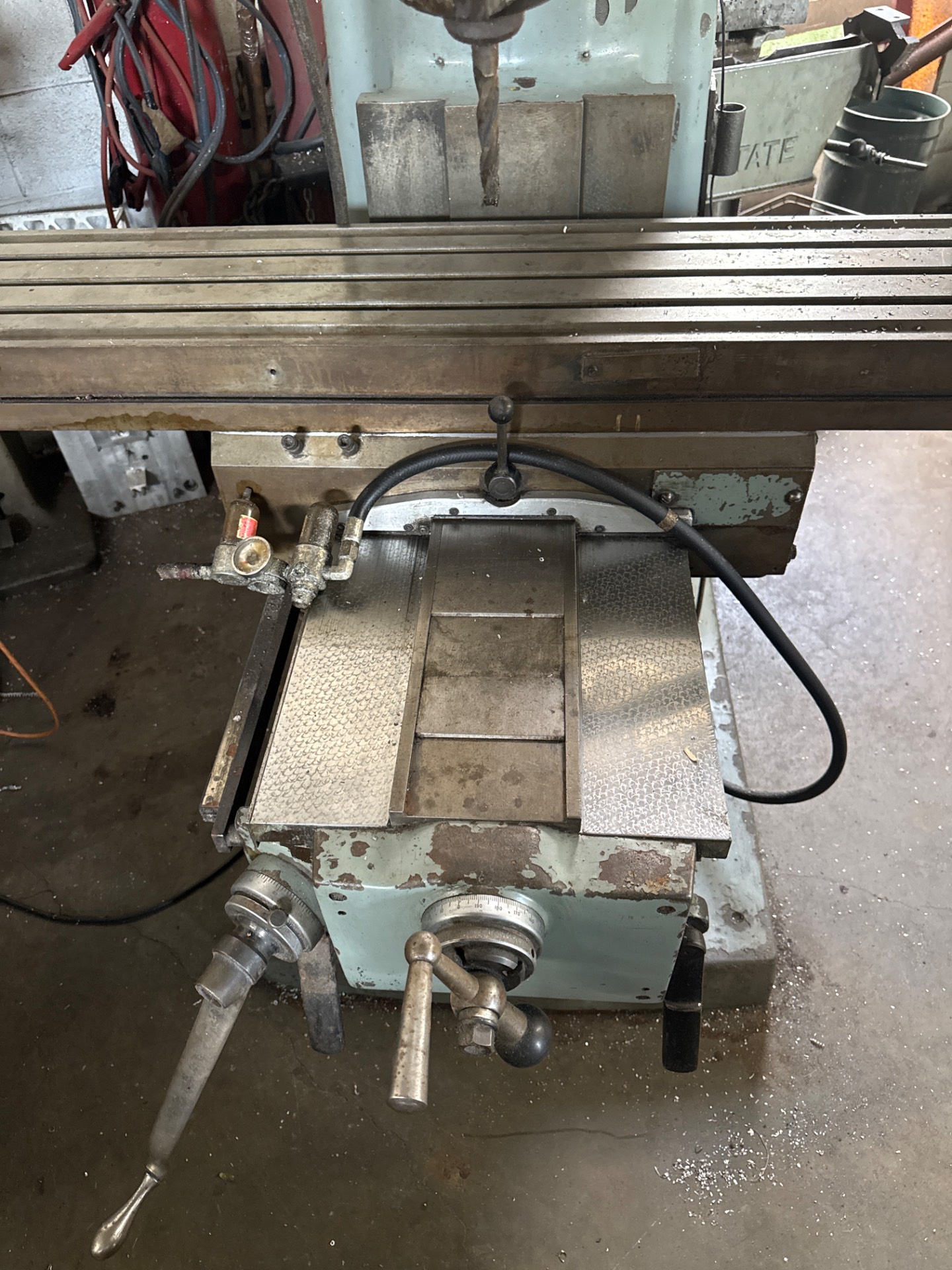

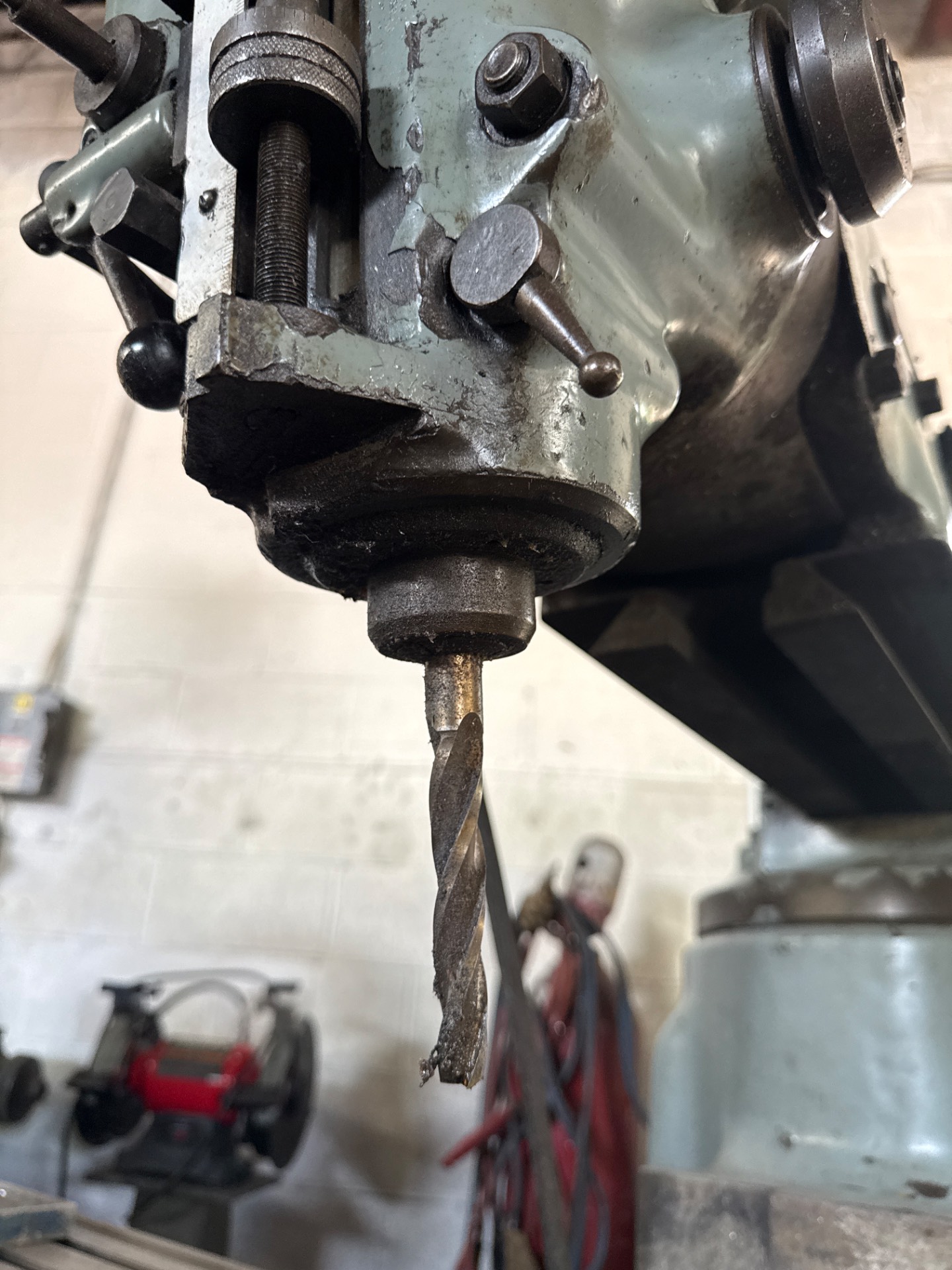

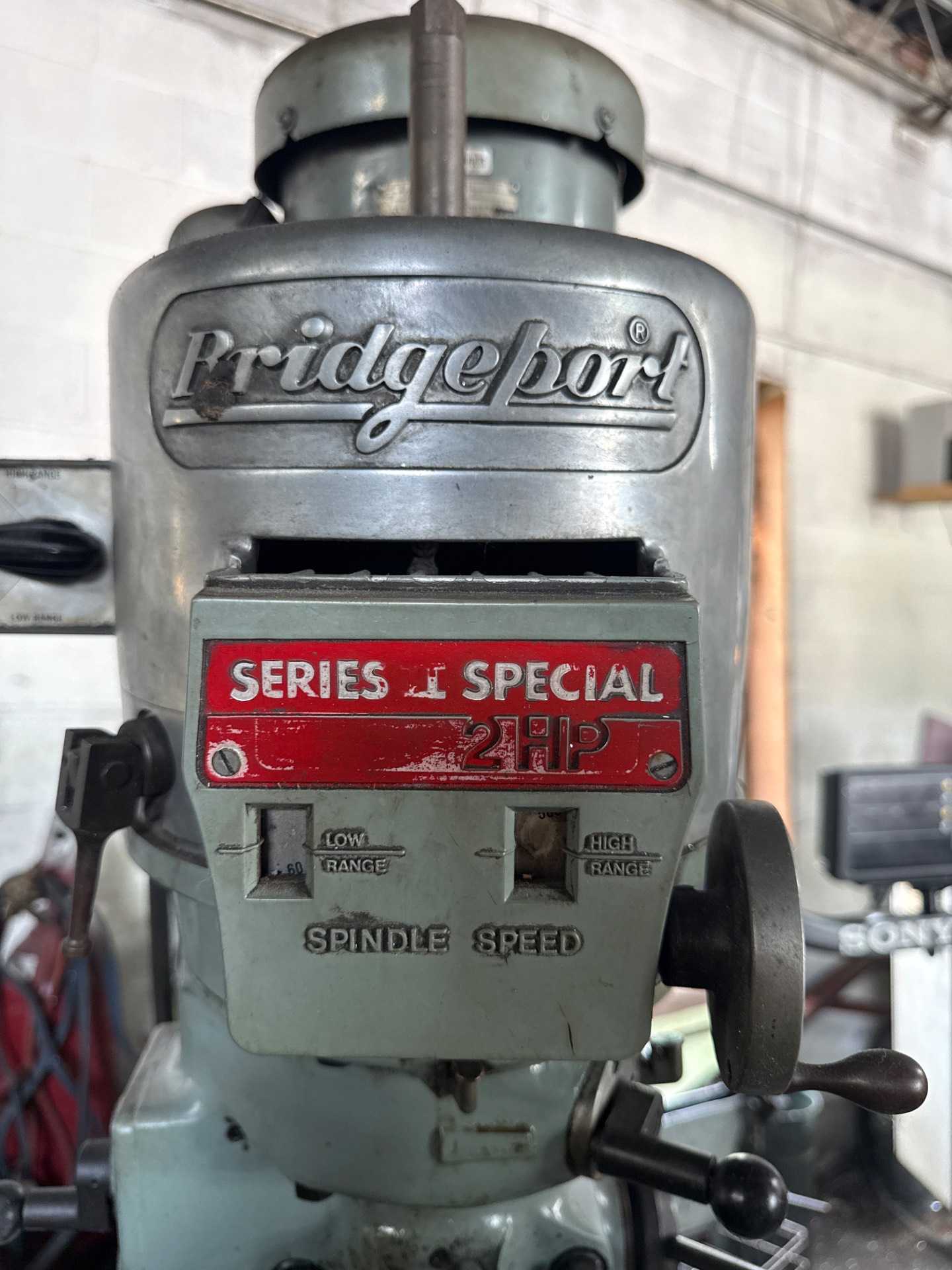

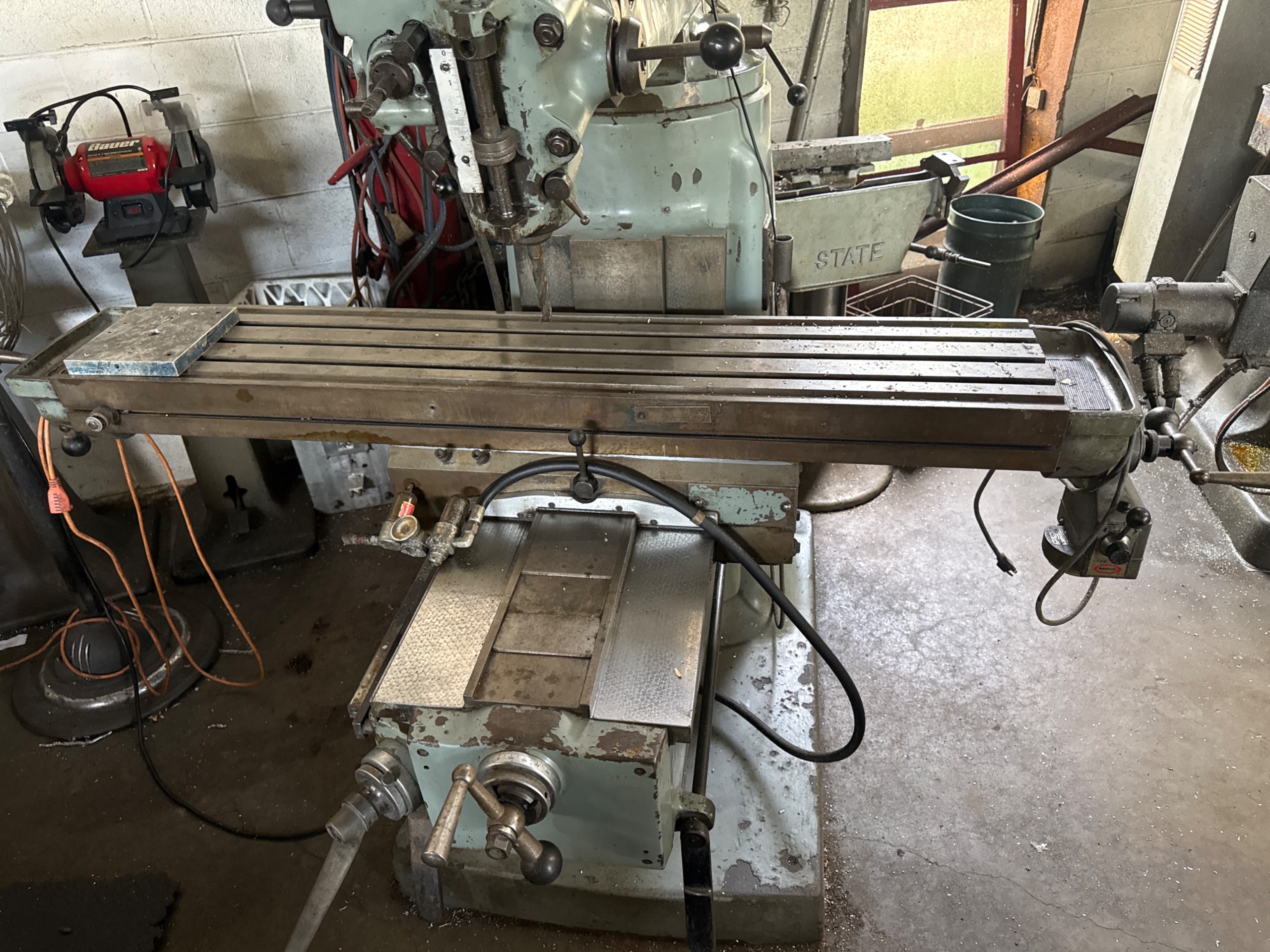

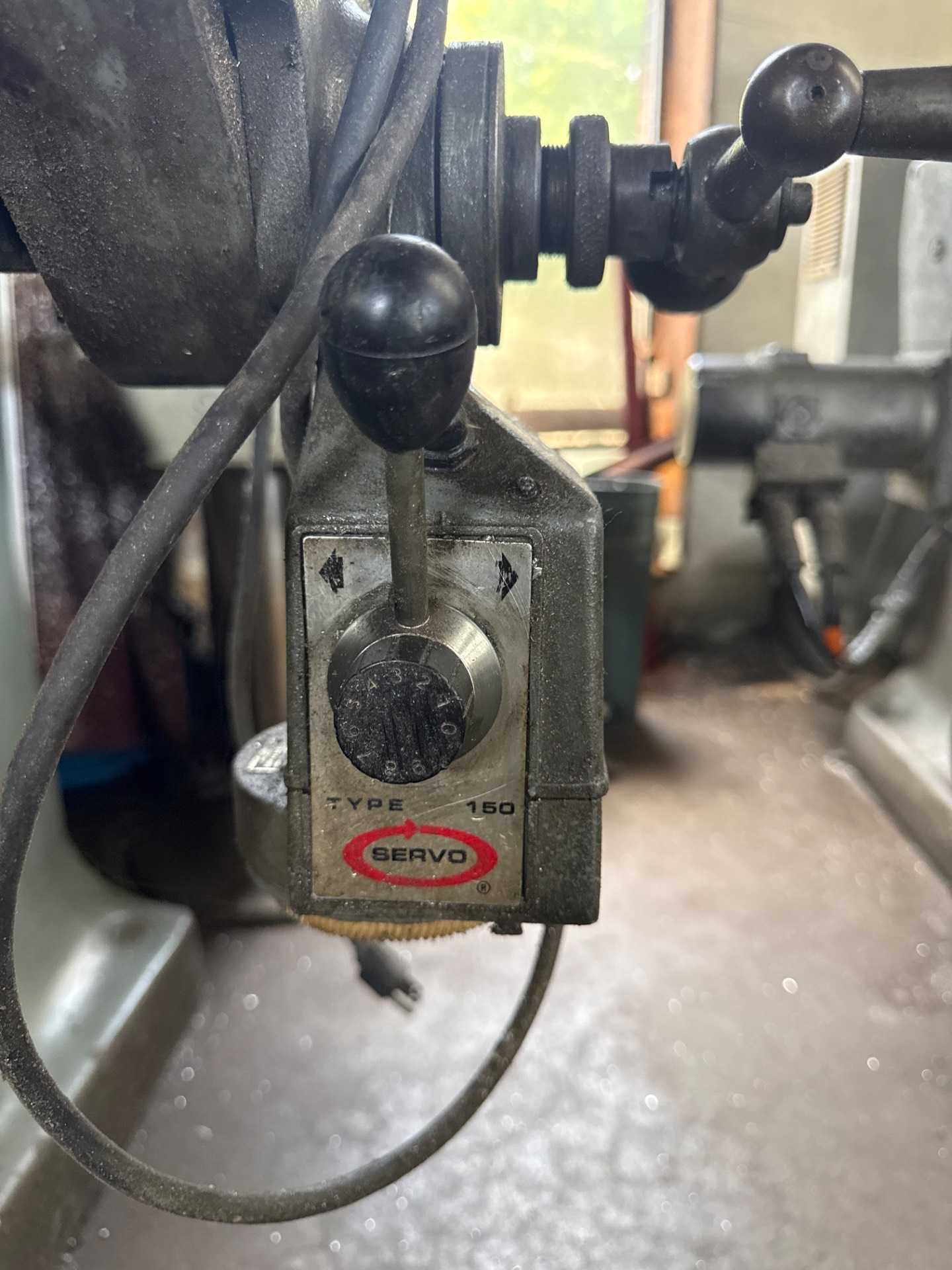

THE BRIDGEPORT SERIES II SPECIAL VERTICAL MILL IS EQUIPPED WITH A 2 HP VARIABLE SPEED HEAD, OFFERING A SPINDLE SPEED RANGE OF 60 TO 4200 RPM, AND UTILIZING AN R8 TAPER. THE MACHINE FEATURES AN 11" X 58" TABLE WITH A GENEROUS LONGITUDINAL TRAVEL OF 33.5" AND A CROSS TRAVEL OF 15". QUILL TRAVEL IS 5", AND POWERED KNEE TRAVEL IS 12". PRECISION OPERATION IS ENHANCED BY A 2-AXIS ACURITE III DRO SYSTEM AND A SERVO BRAND X-AXIS POWER FEED. THE MILL IS CONSTRUCTED WITH CHROME BOX WAYS AND INCLUDES A BIJUR ONE SHOT LUBE SYSTEM AND A SPRAY MASTER MISTER. MAIN UNIT DIMENSIONS ARE 84.00" IN LENGTH, 72.00" IN WIDTH, AND 85.00" IN HEIGHT.
