1980 WMW FRITZ HECKERT FQW 400 UNIVERSAL MILLING MACHINE, 1050X460X540MM, ISO 50, 1800 RPM

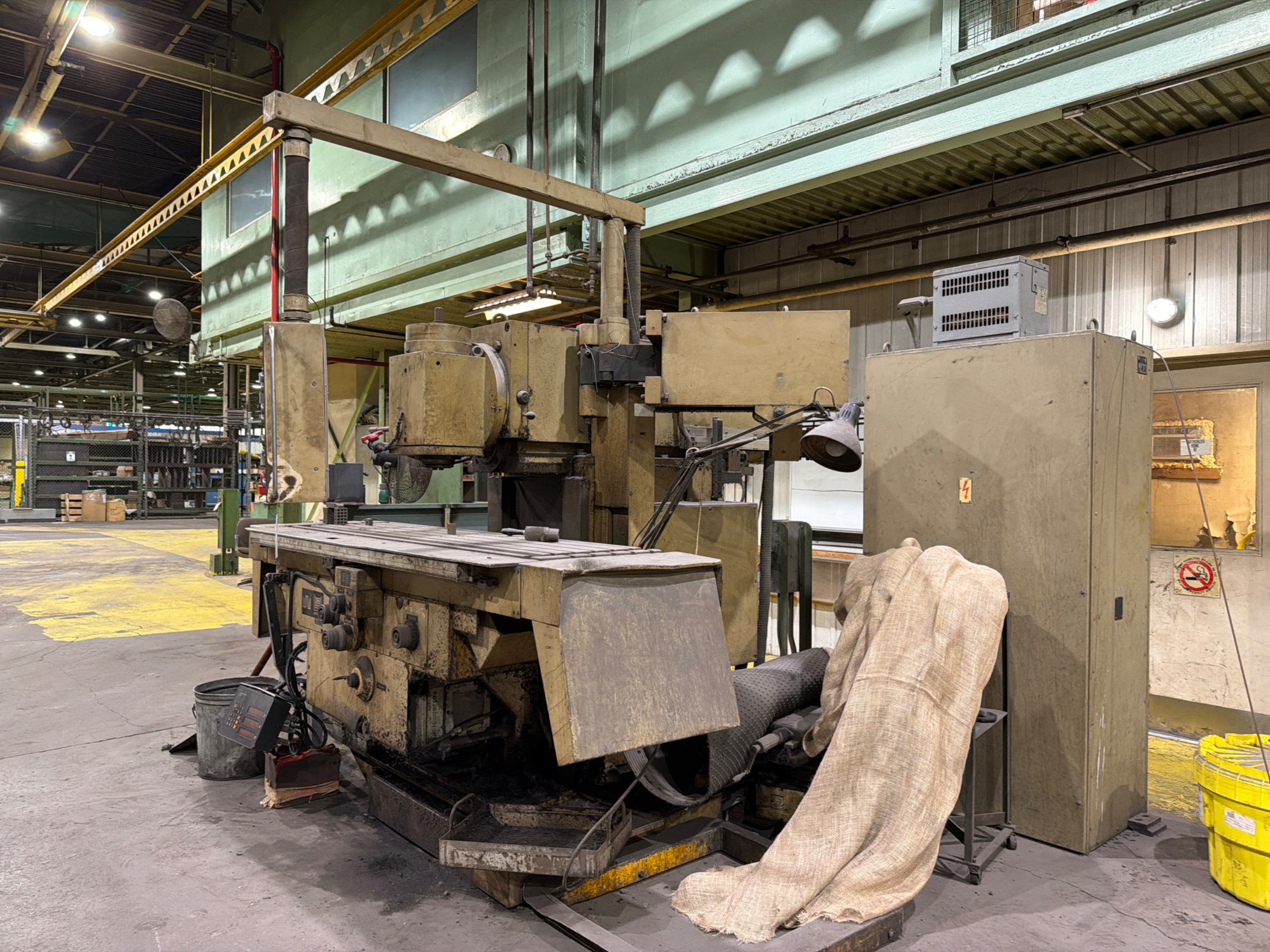

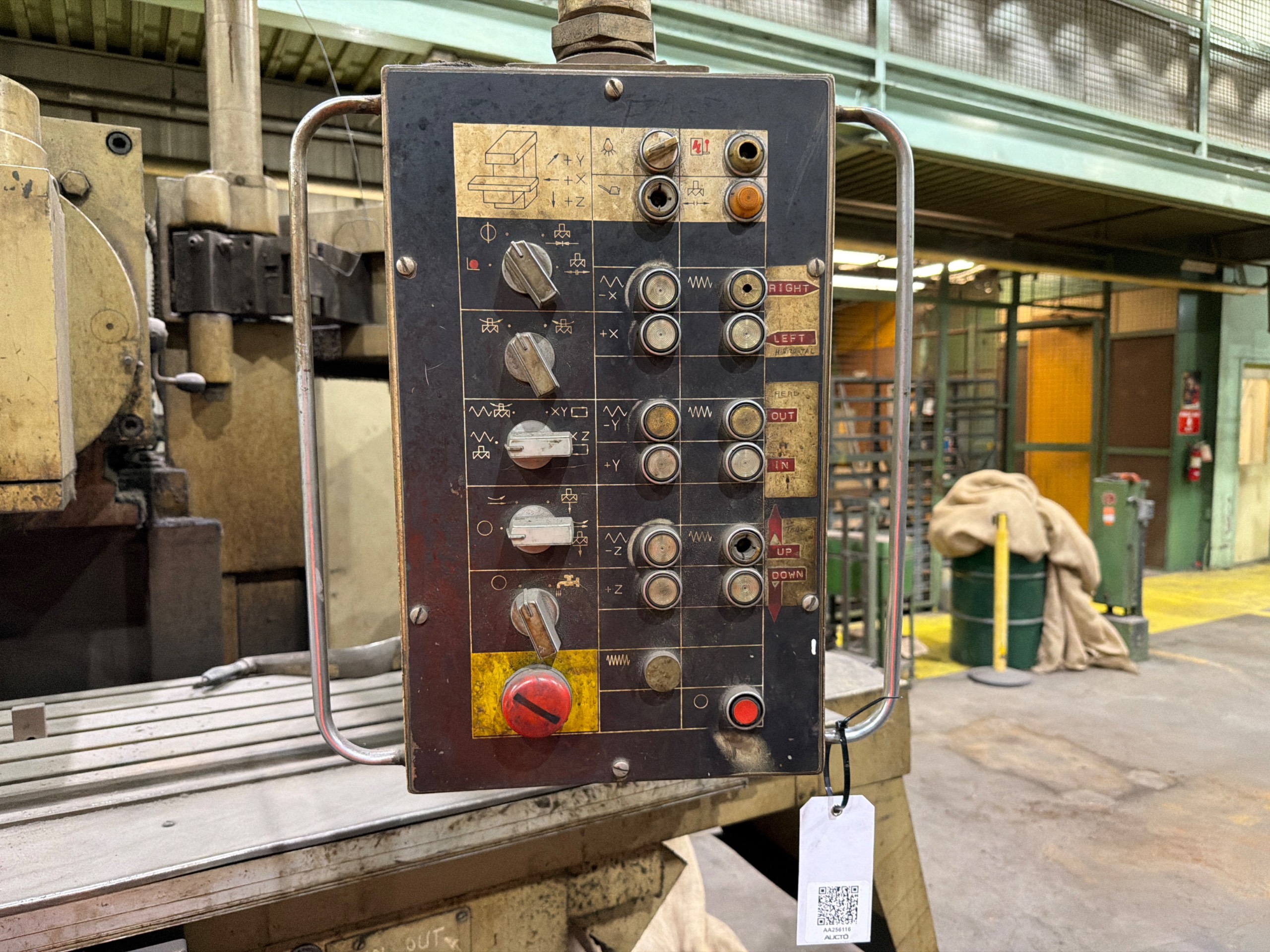

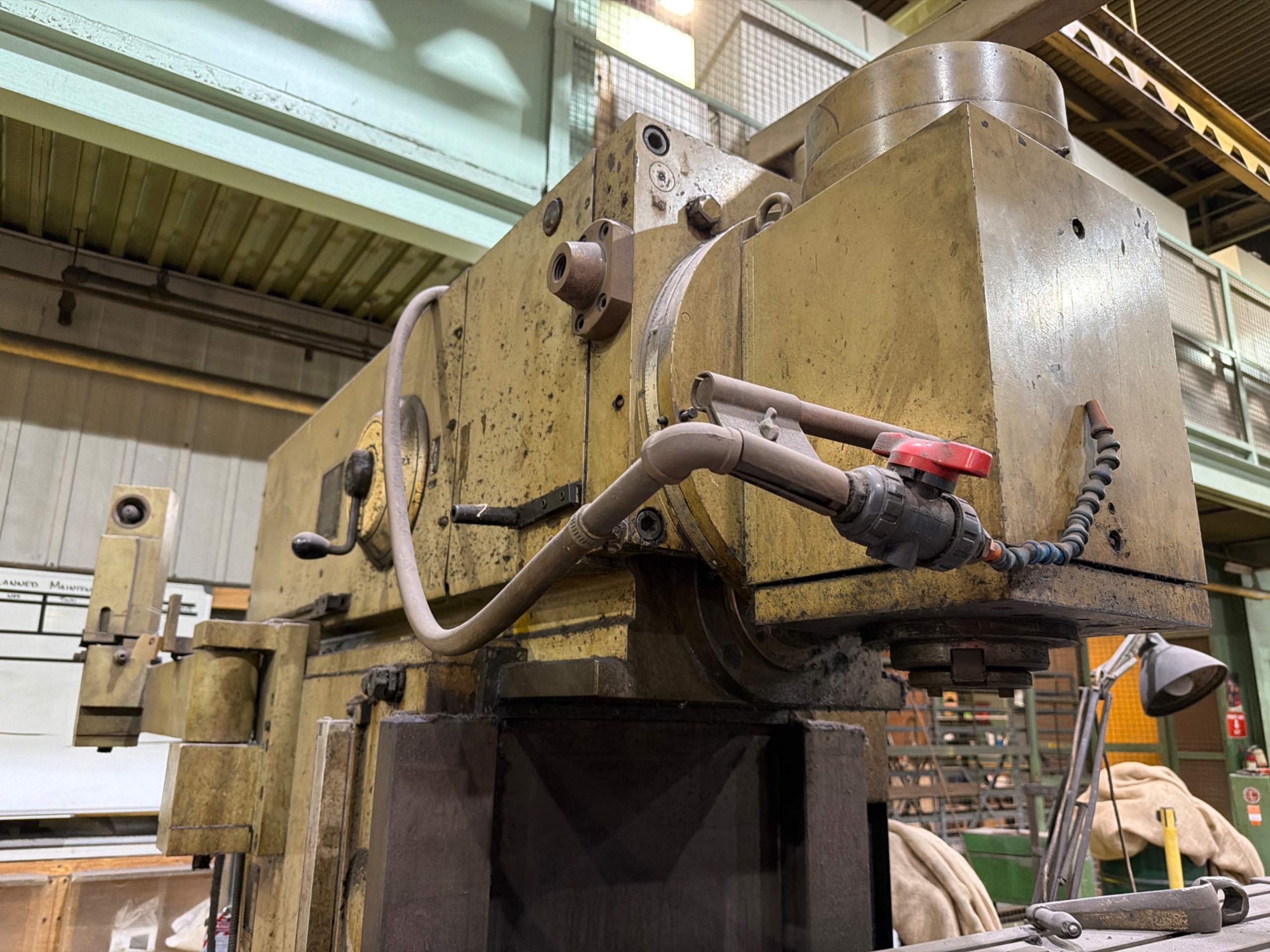

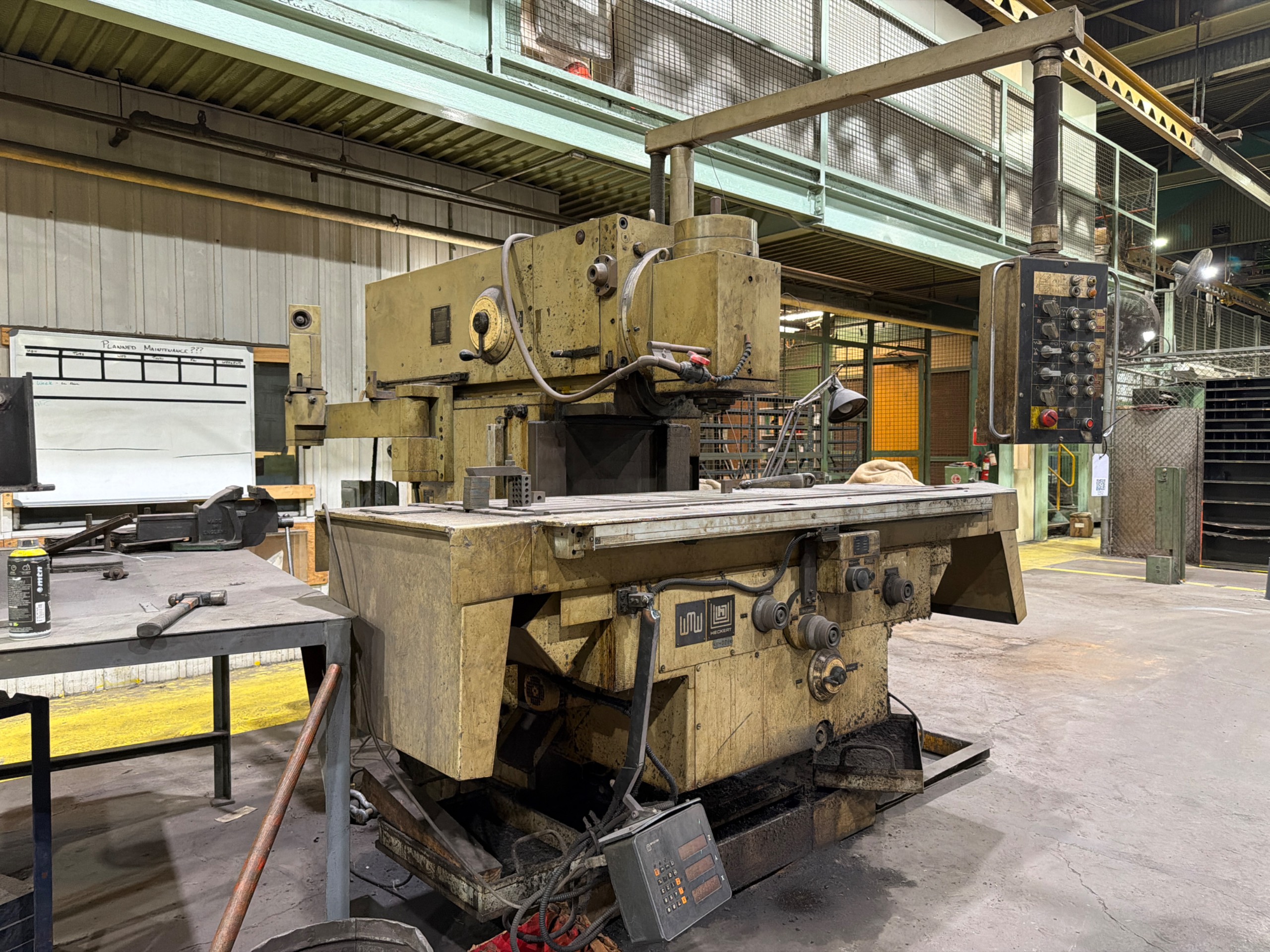

THE 1980 WMW FRITZ HECKERT FQW 400 IS A HEAVY-DUTY UNIVERSAL MILLING MACHINE ENGINEERED FOR VERSATILE MECHANICAL PROCESSING. IT FEATURES A TABLE CLAMPING AREA OF 1600 X 560 MM AND SUPPORTS A MAXIMUM TABLE LOAD OF 0.7 T. THE MACHINE PROVIDES A LONGITUDINAL X-AXIS TRAVEL OF 1050 MM, A VERTICAL Y-AXIS TRAVEL OF 460 MM, AND A TRANSVERSE Z-AXIS TRAVEL OF 540 MM. EQUIPPED WITH AN ISO 50 OR SK 50 TOOL TAPER, THE SPINDLE CENTER TO TABLE DISTANCE RANGES FROM 100 TO 640 MM. THE SPINDLE OPERATES ACROSS 18 STEPS WITH SPEEDS RANGING FROM 35.5 TO 1800 RPM. FEED RATES FOR THE X, Y, AND Z AXES ARE ADJUSTABLE BETWEEN 16 AND 800 MM/MIN OVER 18 STEPS, WITH RAPID POWER TRAVERSE SPEEDS REACHING 5000 MM/MIN IN THE X AND Z DIRECTIONS AND 2500 MM/MIN IN THE Y-AXIS. THE UNIVERSAL MILLING HEAD IS SWIVABLE UP TO 45 DEGREES TO THE LEFT OR RIGHT AND INCLUDES A 90 MM AXIAL ADJUSTMENT FOR THE MILLING SPINDLE. POWERED BY A TOTAL REQUIREMENT OF APPROXIMATELY 21 KW, THE MACHINE TYPICALLY WEIGHS AROUND 5.2 T AND HAS PHYSICAL DIMENSIONS OF 2.5 X 2.4 X 2.6 M. STANDARD EQUIPMENT INCLUDES A 40-LITER COOLANT SYSTEM AND A CONTROL PANEL MOUNTED ON A JIB LENGTH ARM FOR IMPROVED OPERATOR ACCESS.
