1982 KOMATSU OBI 45-2 45 TON STRAIGHT SIDE PRESS

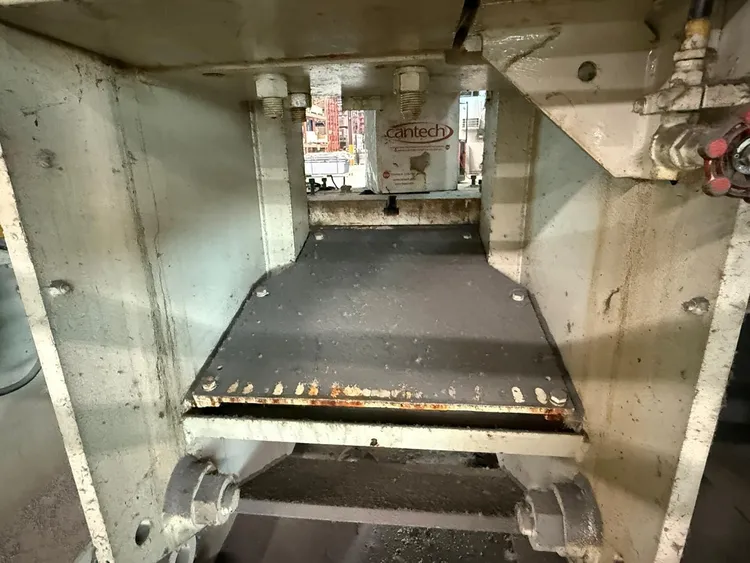

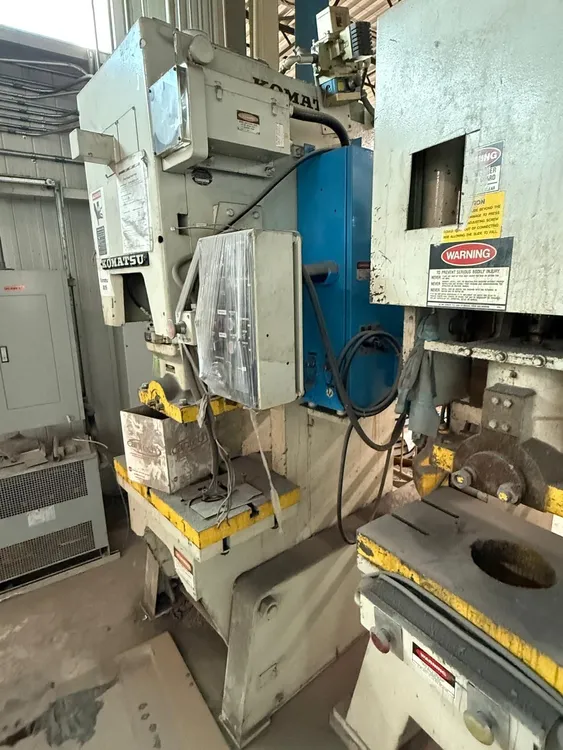

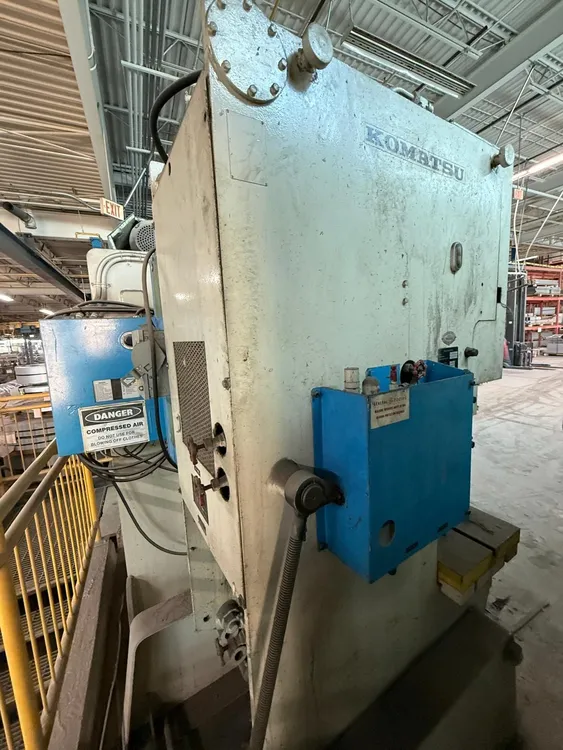

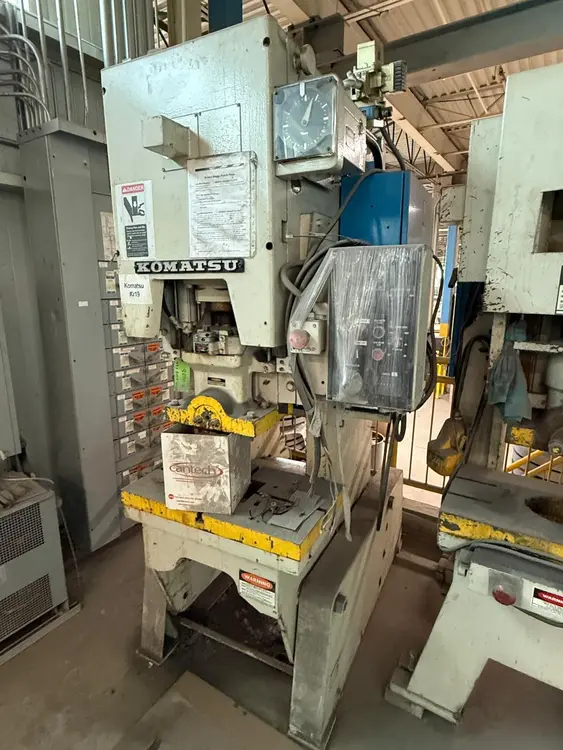

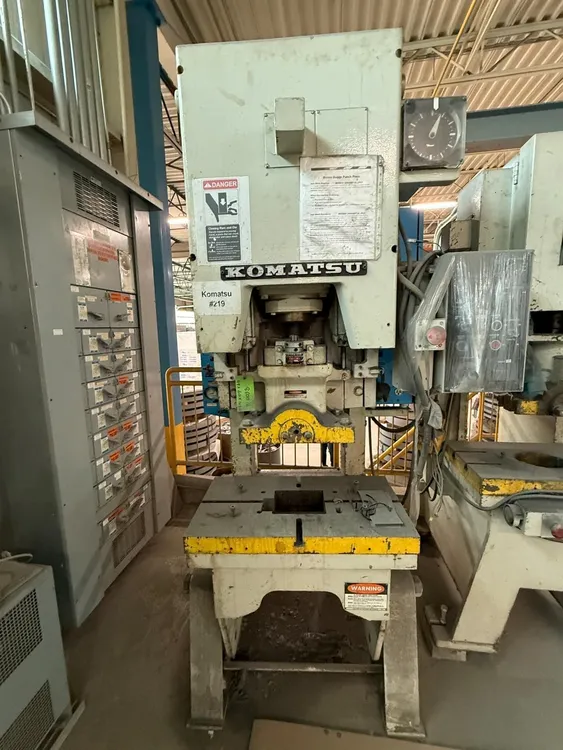

THIS IS A 1982 KOMATSU OBS45-2 OBI MECHANICAL PRESS WITH A CAPACITY OF 45 TONS. THIS PUNCH PRESS FEATURES A 3.93-INCH STROKE AND OPERATES AT 80 STROKES PER MINUTE (SPM). THE SHUT HEIGHT, SLIDE DOWN ADJUSTMENT UP (S.D.A.U.) TO THE TOP OF THE BED, IS 9.84 INCHES. THE BED AREA MEASURES 29-1/2 INCHES LEFT-TO-RIGHT BY 16-3/4 INCHES FRONT-TO-BACK, WITH A BOLSTER THICKNESS OF 2-1/2 INCHES. THE AREA OF THE SLIDE IS 15.74 INCHES LEFT-TO-RIGHT BY 11.81 INCHES FRONT-TO-BACK AND IS T-SLOTTED. THIS MACHINE IS CHARACTERIZED AS A GAP FRAME SINGLE CRANK PRESS.
