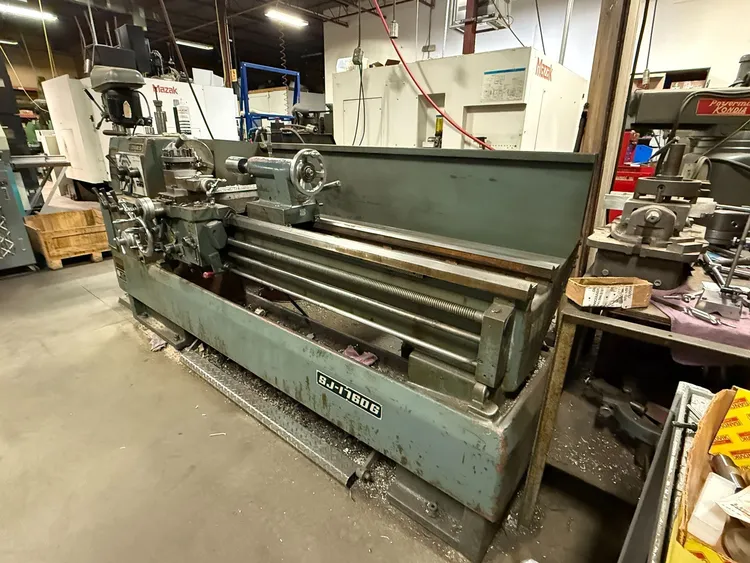

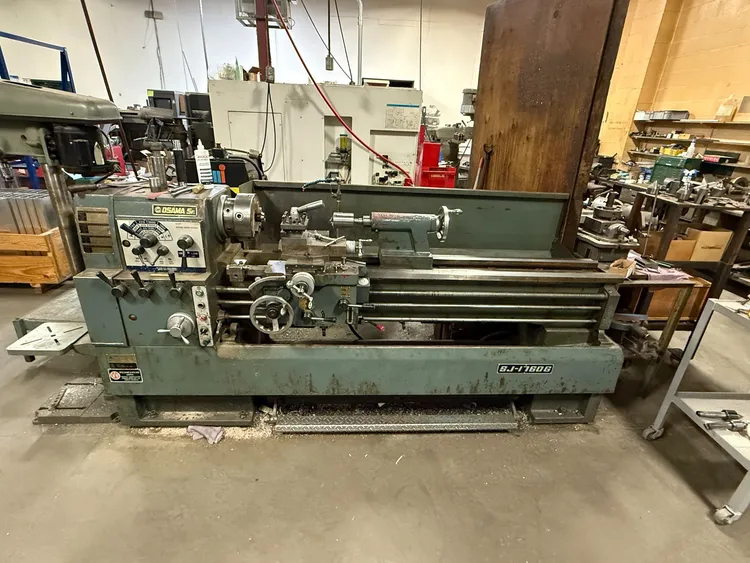

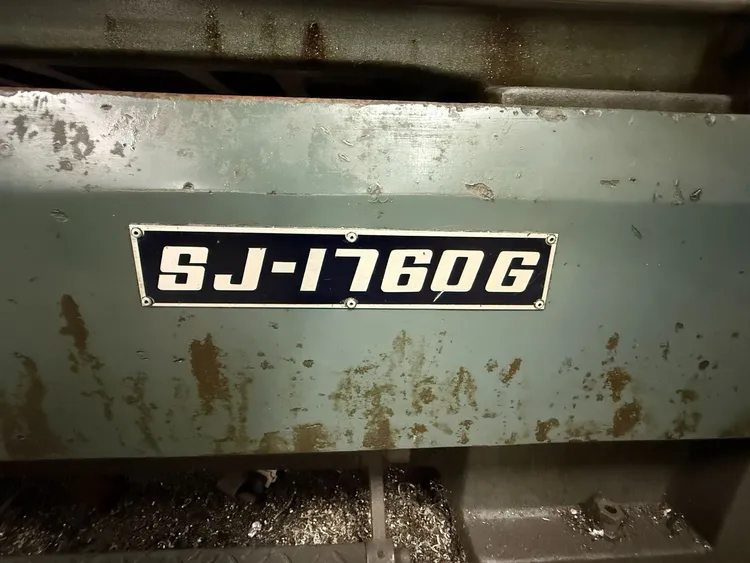

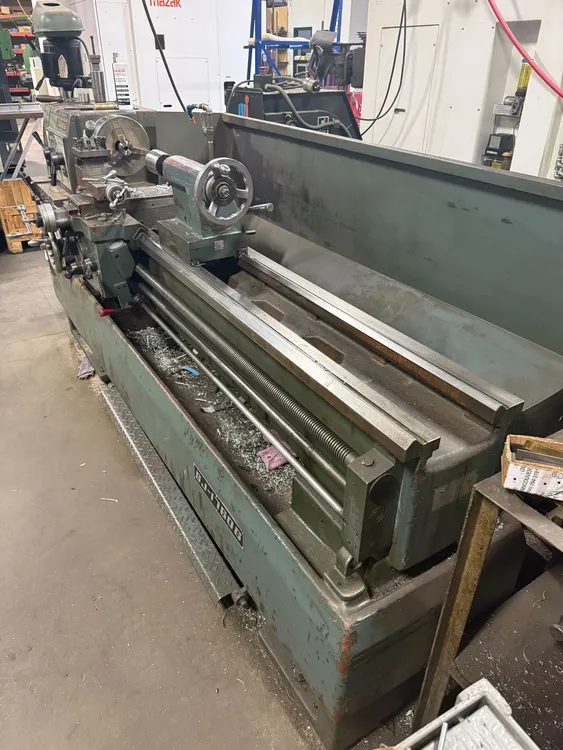

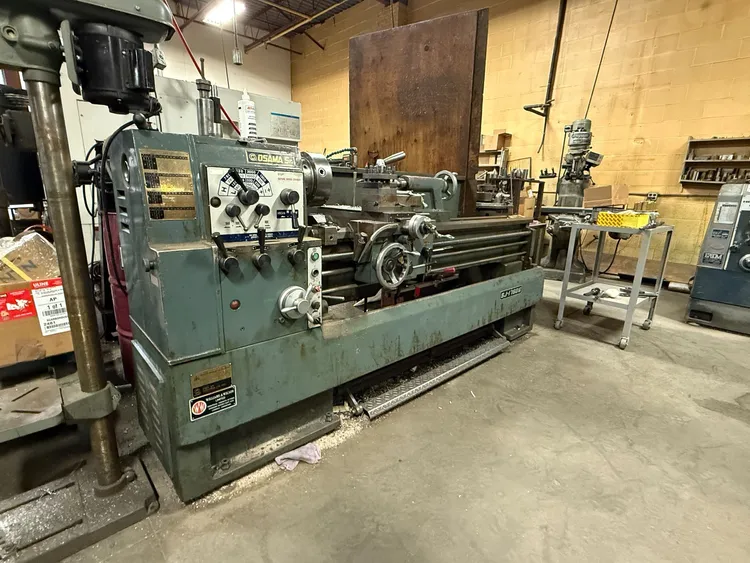

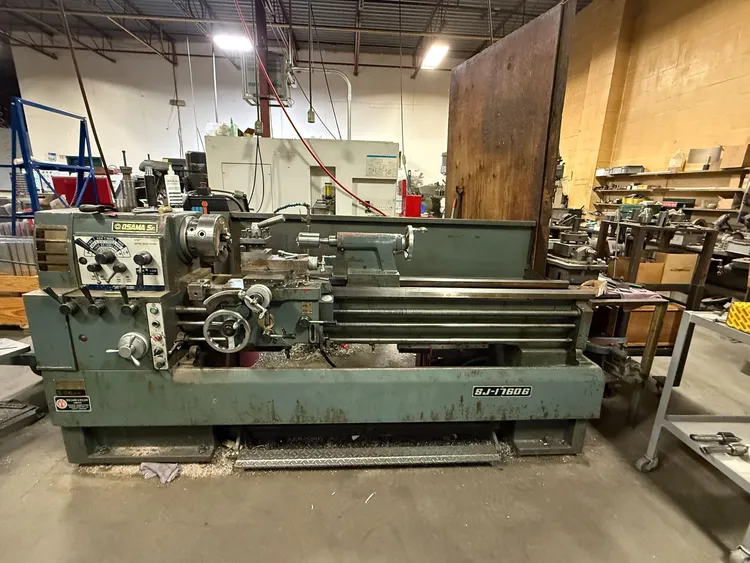

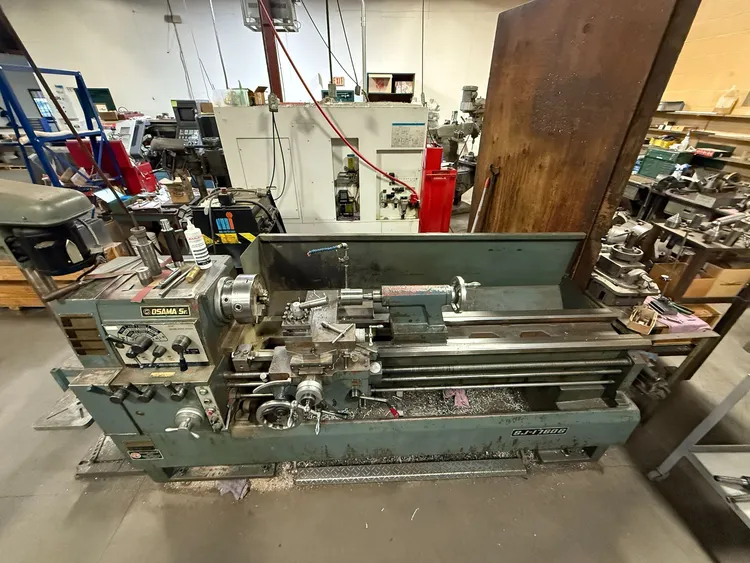

1984 OSAMA SJ-1760-G LATHE 17'' X 60''

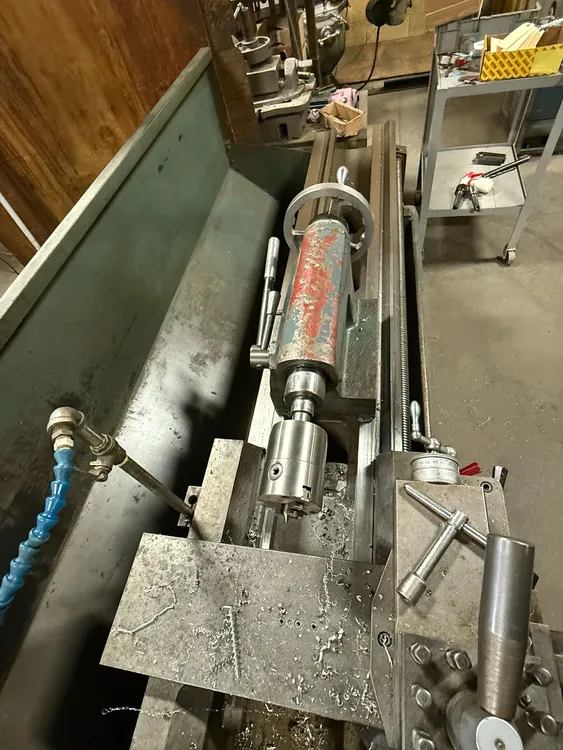

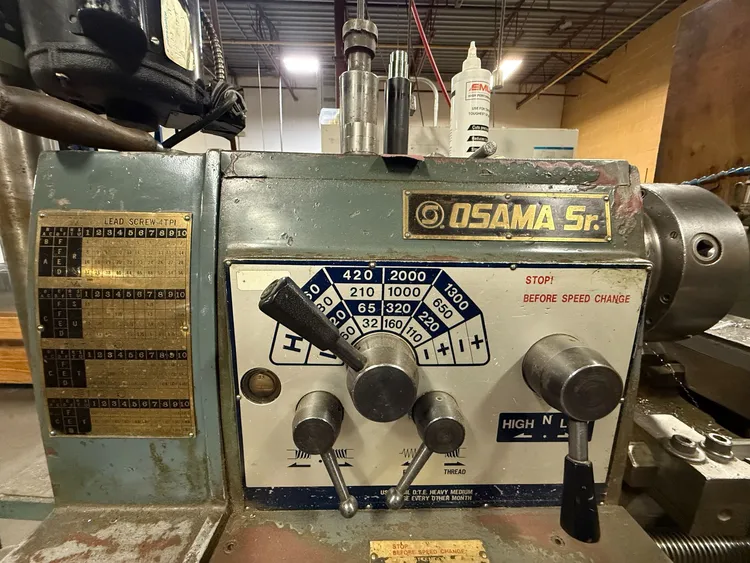

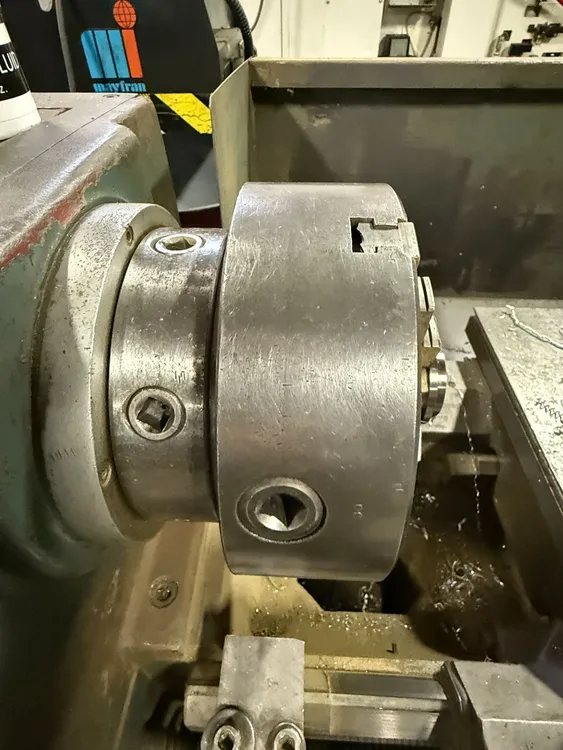

THE 1984 OSAMA SR SJ-1760G LATHE IS A HEAVY-DUTY ENGINE LATHE. KEY SPECIFICATIONS INCLUDE A 17-INCH SWING OVER THE WAYS, A 9-INCH SWING OVER THE CROSS SLIDE, AND A 25-5/8-INCH SWING IN THE GAP. THE DISTANCE BETWEEN CENTERS IS 60 INCHES. THE SPINDLE FEATURES A 2-9/32-INCH THRU-HOLE AND A D1-6 NOSE. SPINDLE SPEEDS RANGE FROM 20 TO 2000 RPM, SELECTABLE ACROSS 12 STEPS. THE MACHINE IS POWERED BY A 5 HP SPINDLE MOTOR. IT SUPPORTS BOTH INCH AND METRIC THREADING, WITH INCH THREADS FROM 4 TO 56 TPI AND METRIC THREADS FROM P0.5 TO P97. LONGITUDINAL FEEDS RANGE FROM 0.088 TO 0.618, AND CROSS FEEDS FROM 0.032 TO 0.222. THE TAILSTOCK QUILL TRAVEL IS 4 INCHES. THE APPROXIMATE WEIGHT OF THE MACHINE IS 5,500 LBS, WITH DIMENSIONS OF 108 INCHES BY 44 INCHES BY 51 INCHES.
