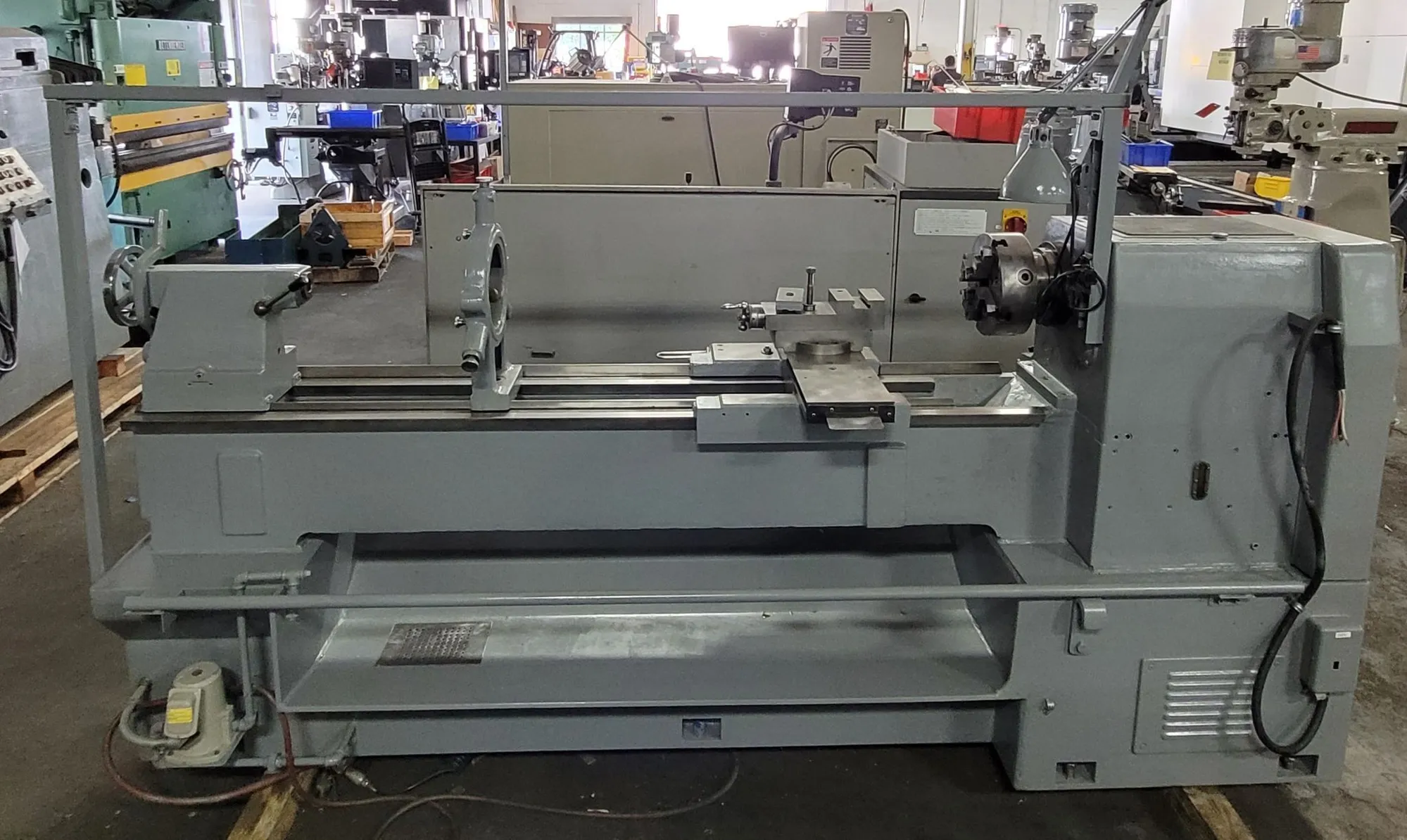

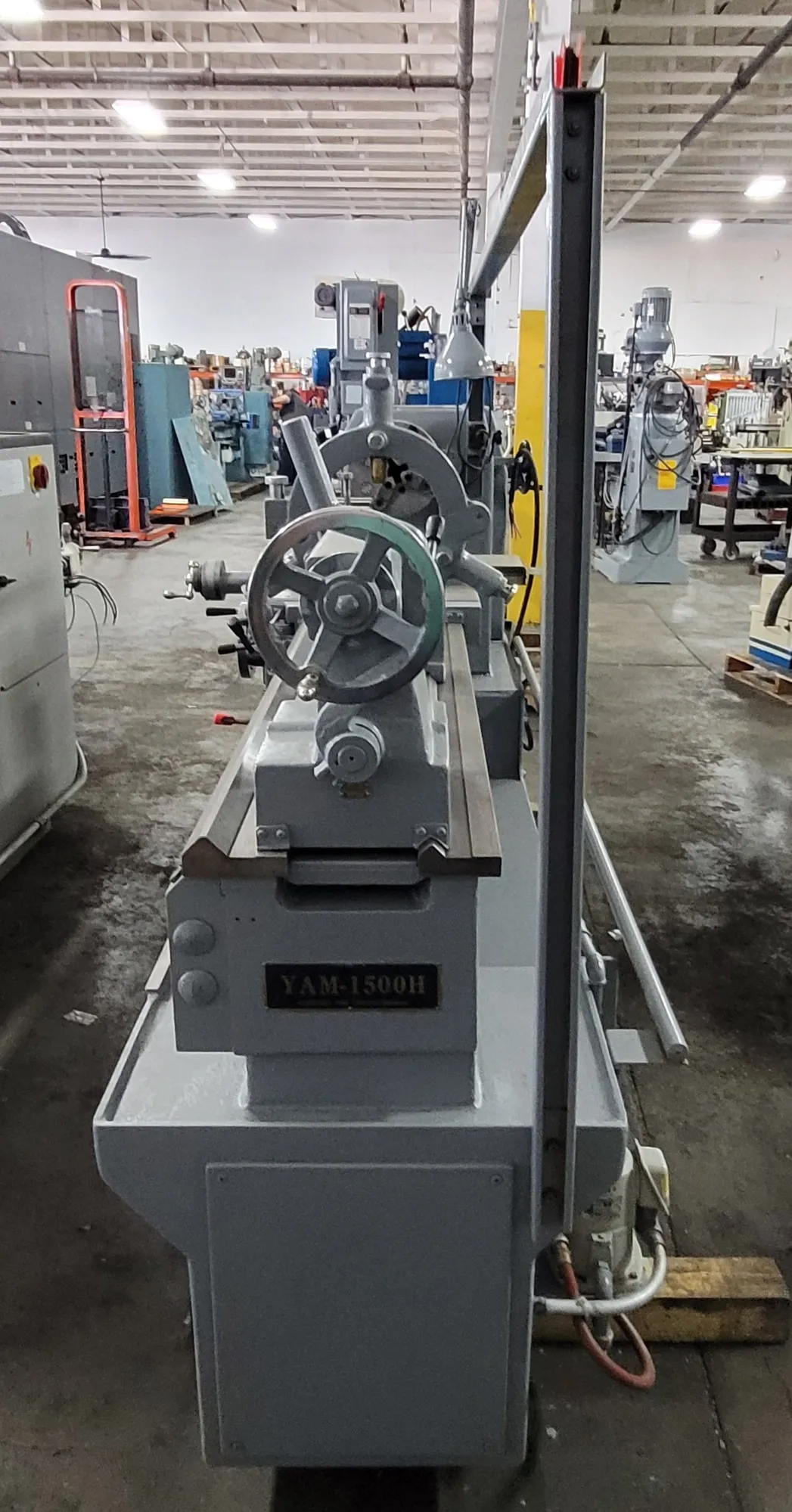

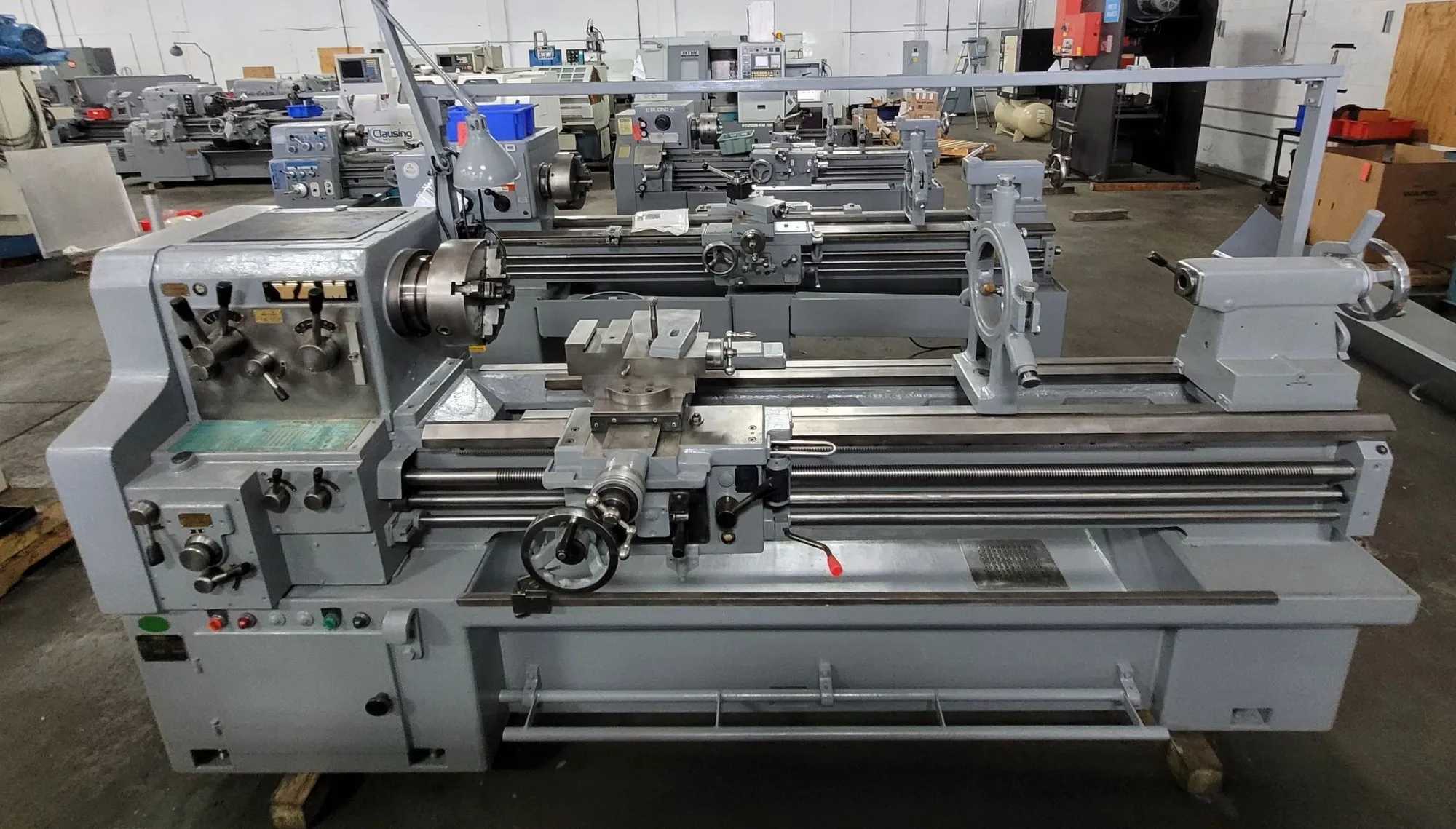

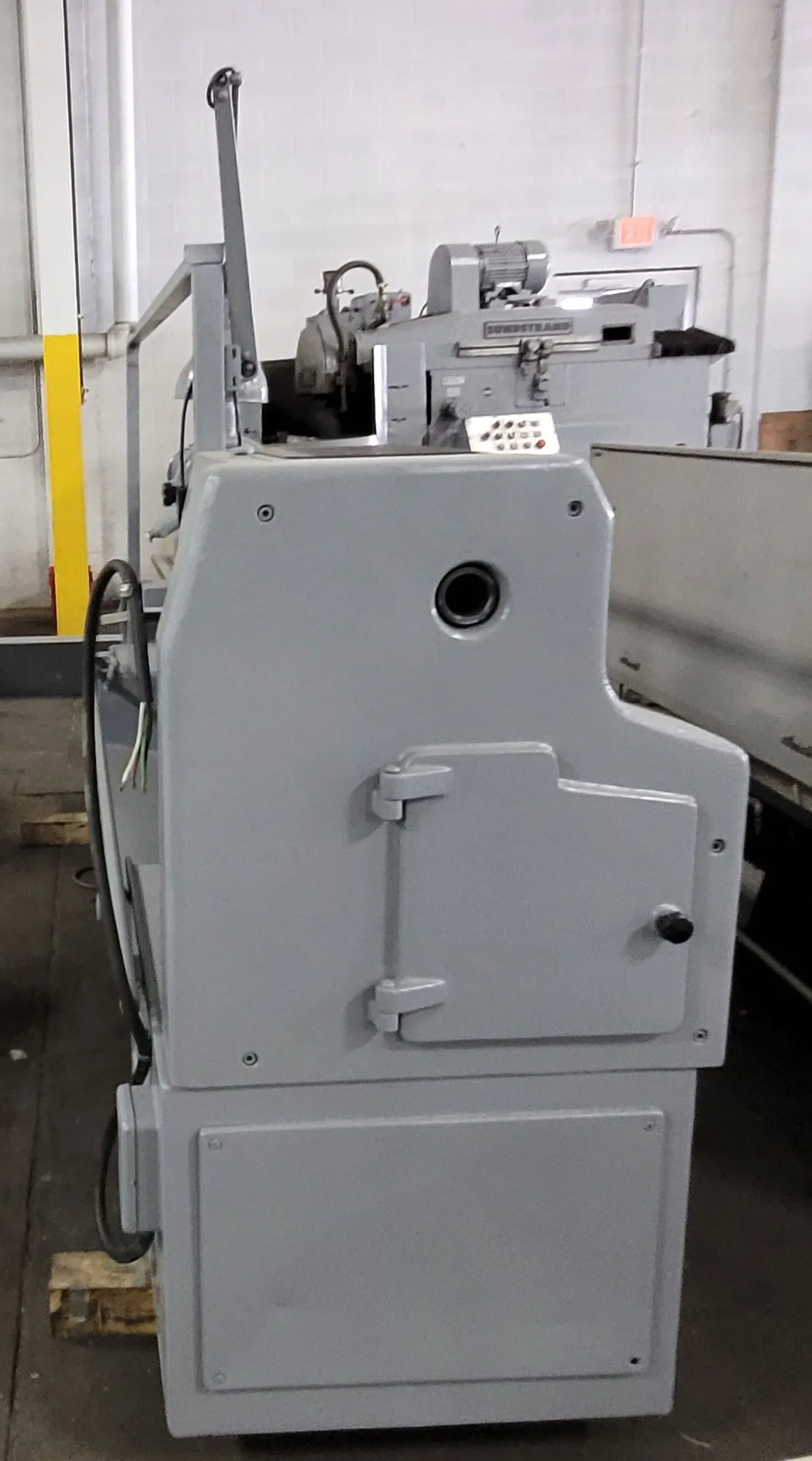

1984 Yang Iron Works 1500H Lathe - 60" Bed, 1500 RPM, 10 HP, 22" Swing

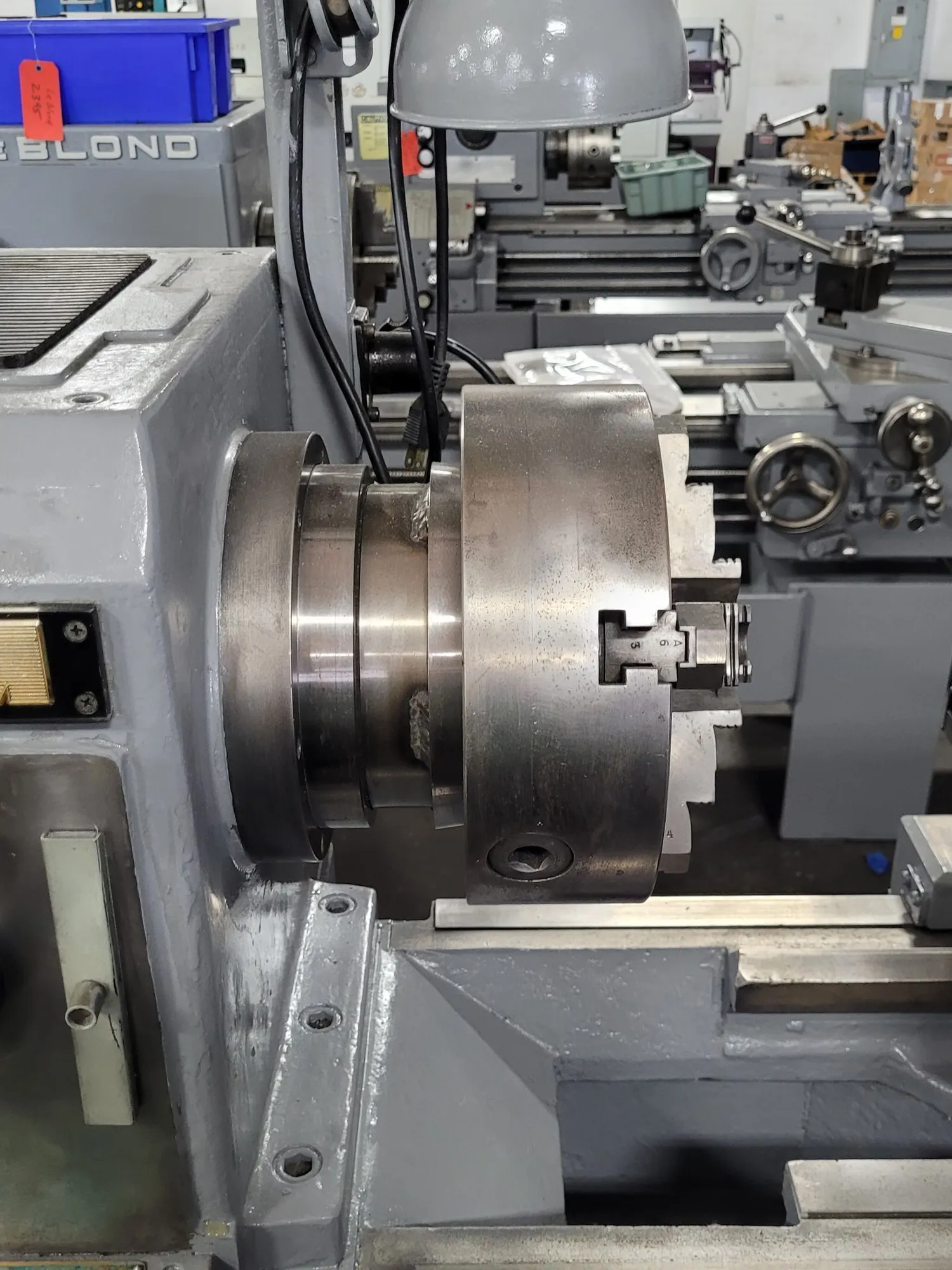

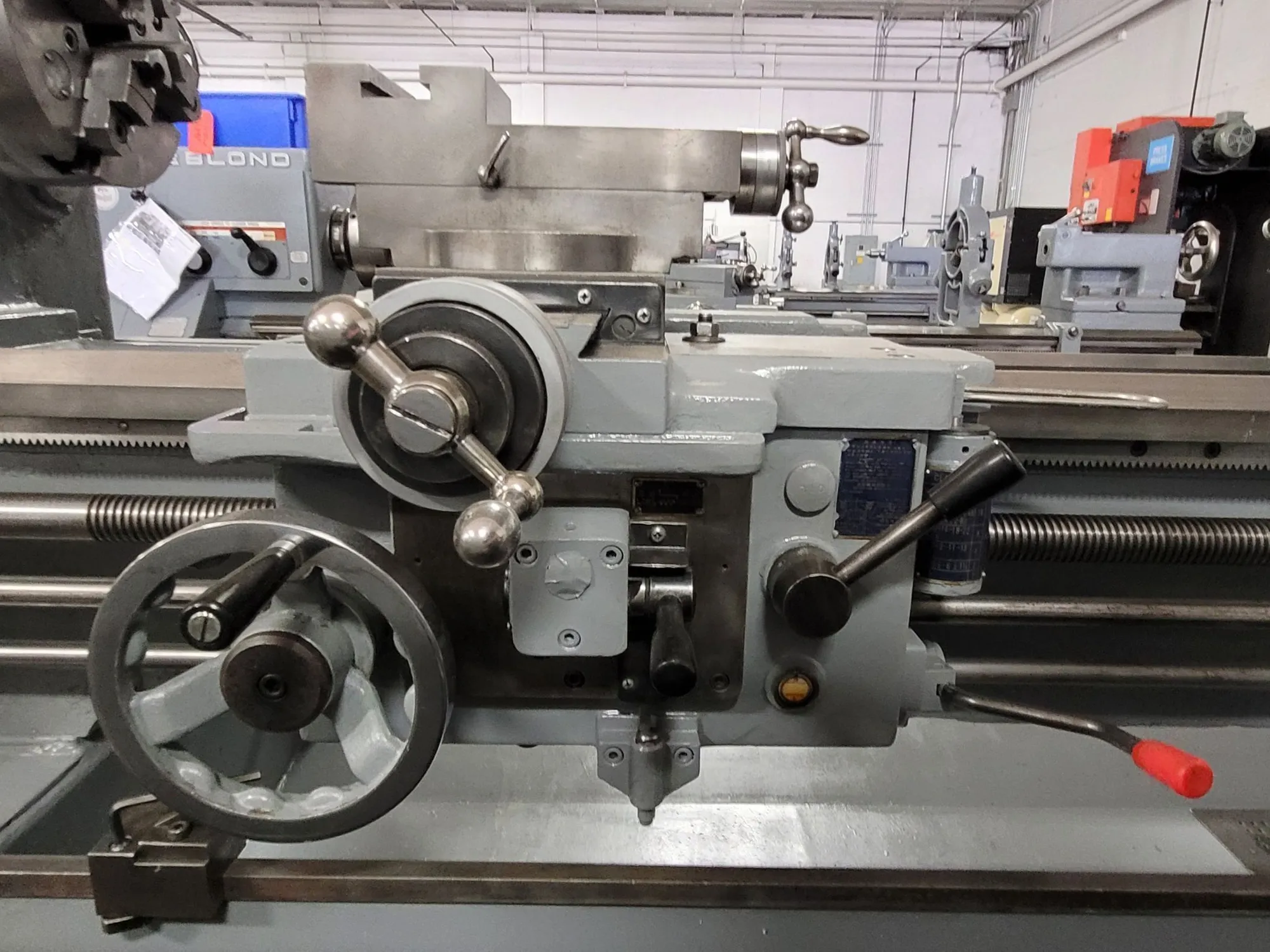

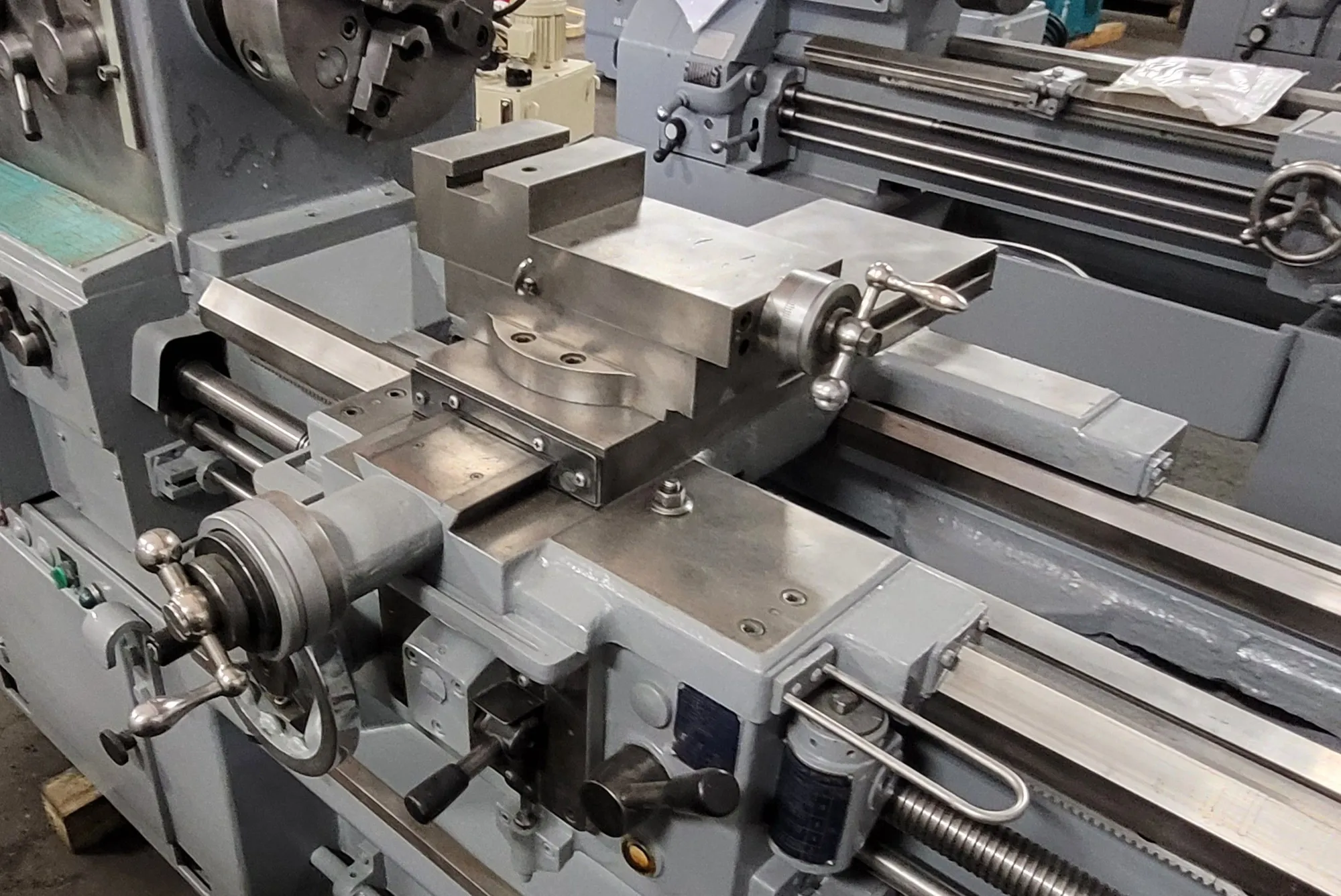

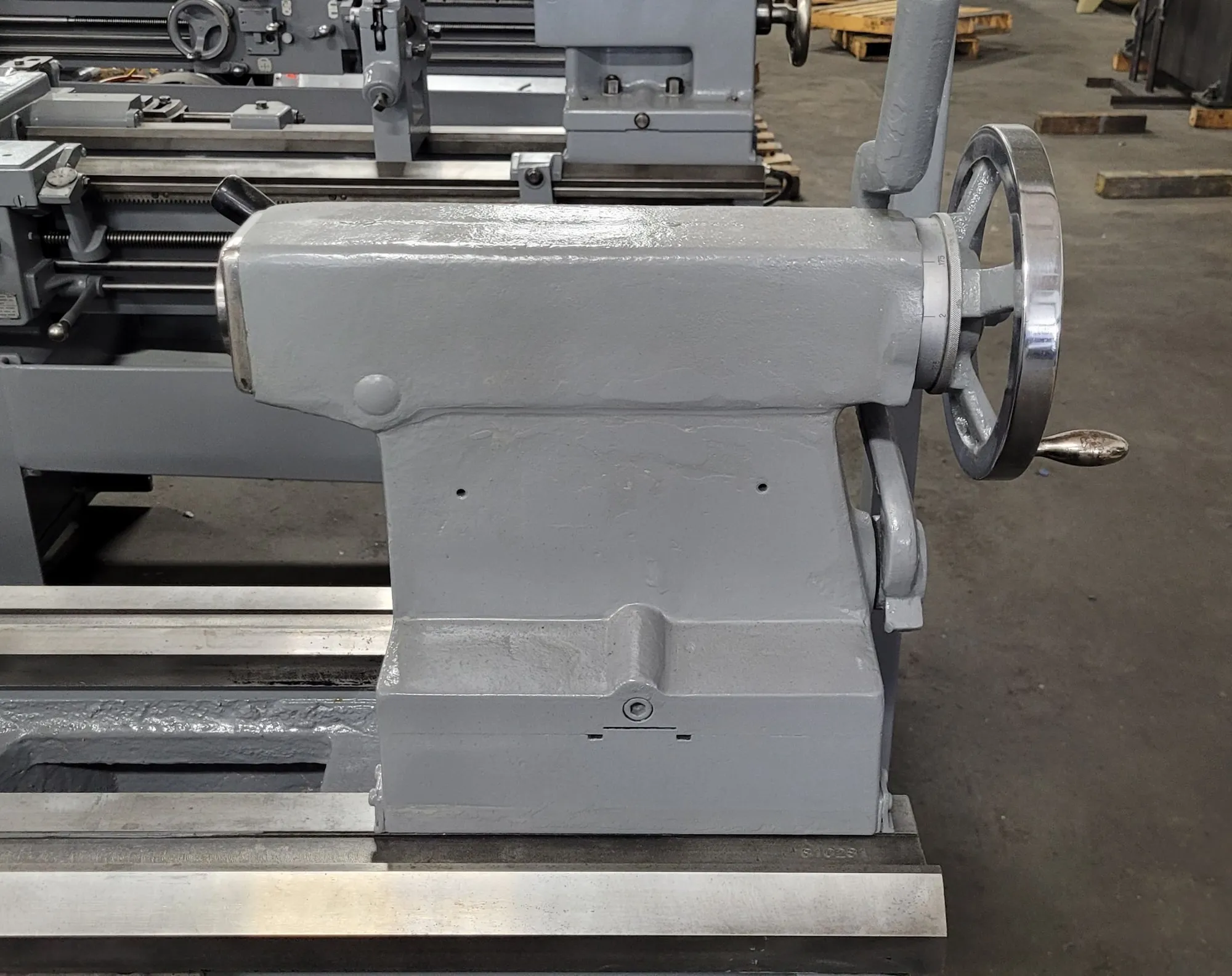

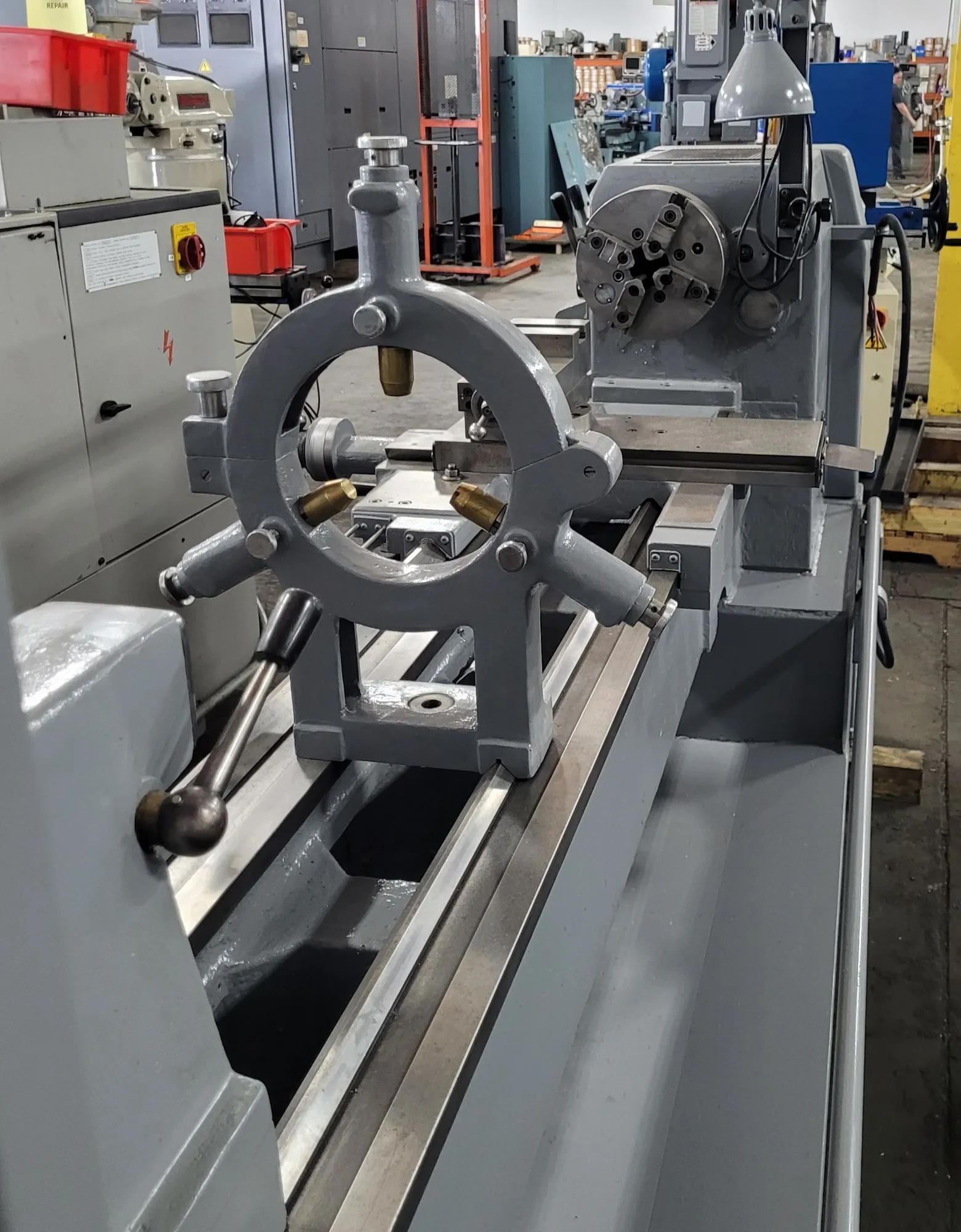

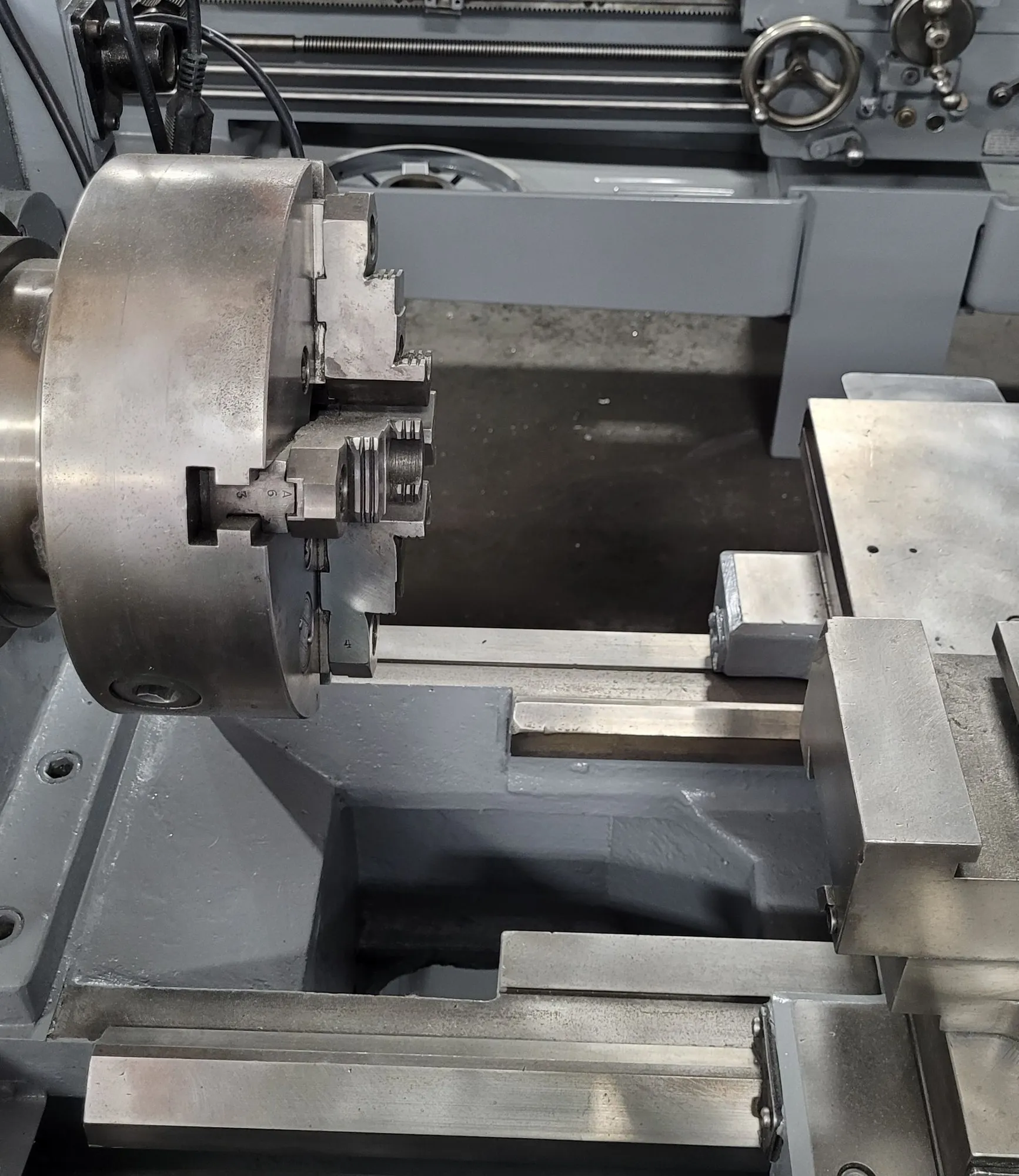

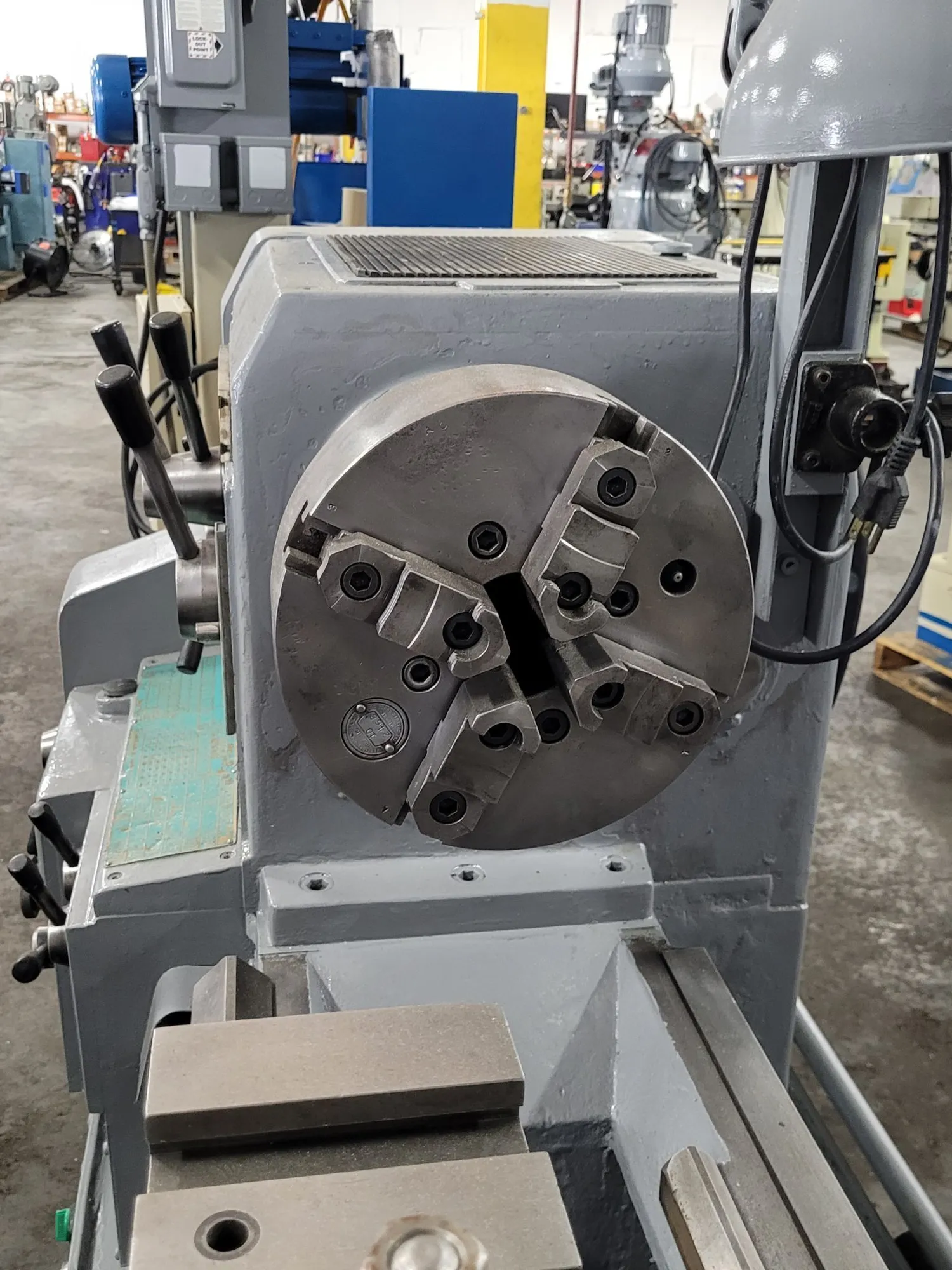

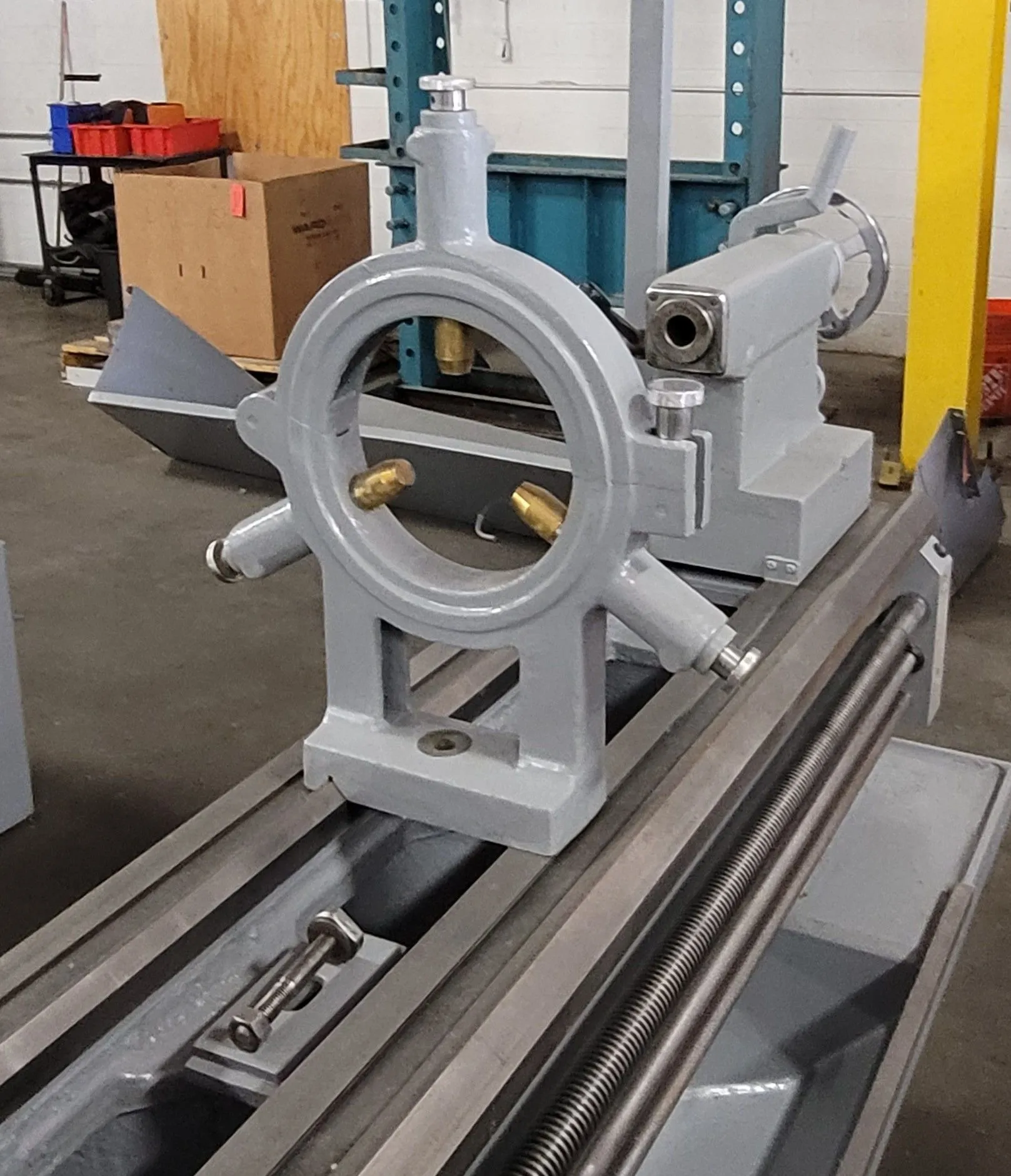

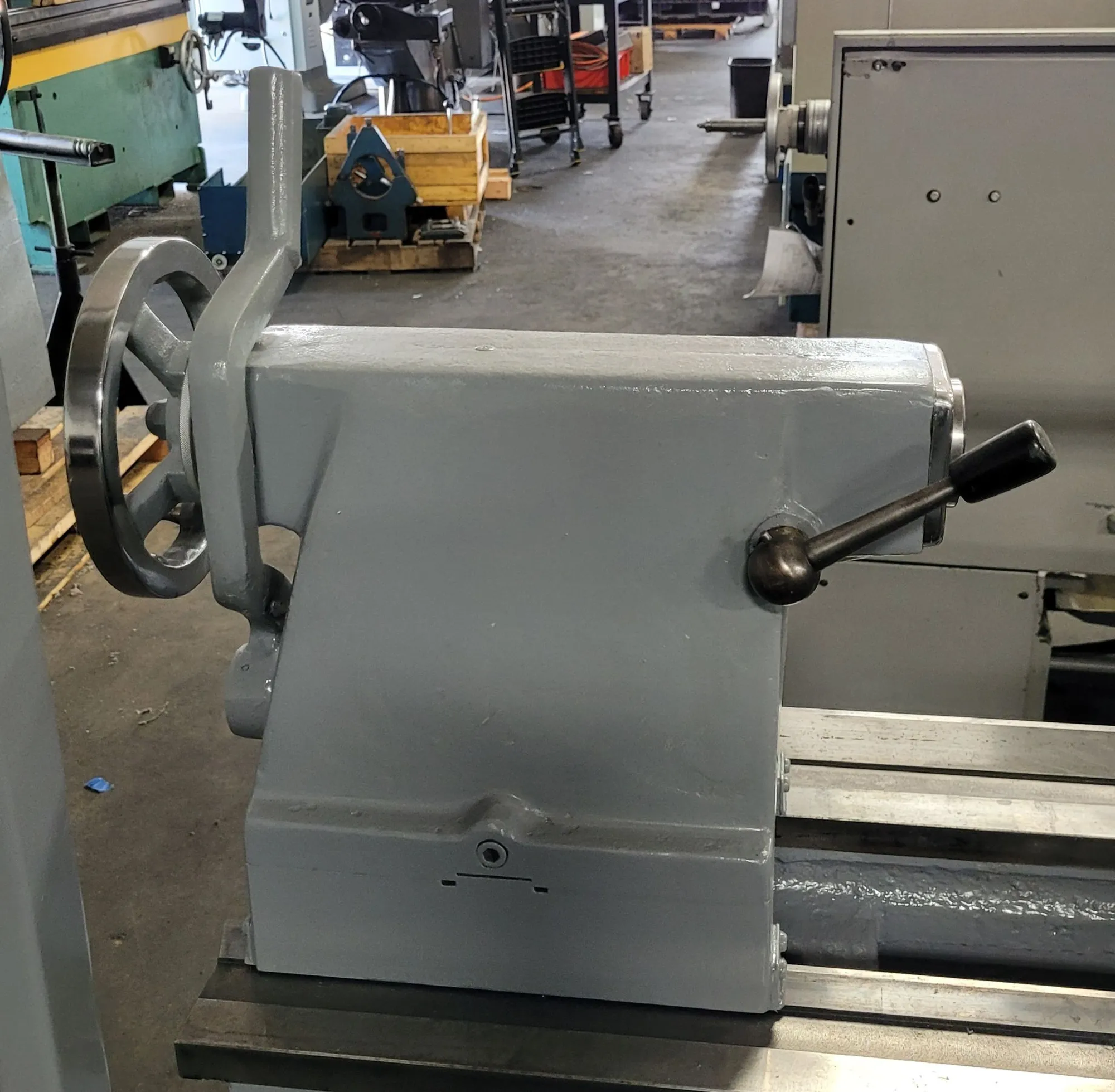

The 1984 Yang Iron Works 1500H heavy duty geared engine lathe features a 22 in swing over bed (558.8 mm), 60 in distance between centers, and 10.5 in swing over cross slide. It is equipped with a 2.3 in spindle bore (1500 series: 2.0–2.3 in / 50.8–58.4 mm), twelve spindle speeds ranging from 25 to 1,500 RPM, and a 10 HP (7.5 KW) main motor. The tailstock is fitted with a #4 Morse taper quill. Included with the machine are a carriage, tailstock, 10 in diameter 4-jaw chuck, and steady rest. The lathe has an approximate operating weight of 3,700 lb.
