1986 ITE K-1600S POWER CIRCUIT BREAKER 1600A, 600V AC, DRAWOUT TYPE

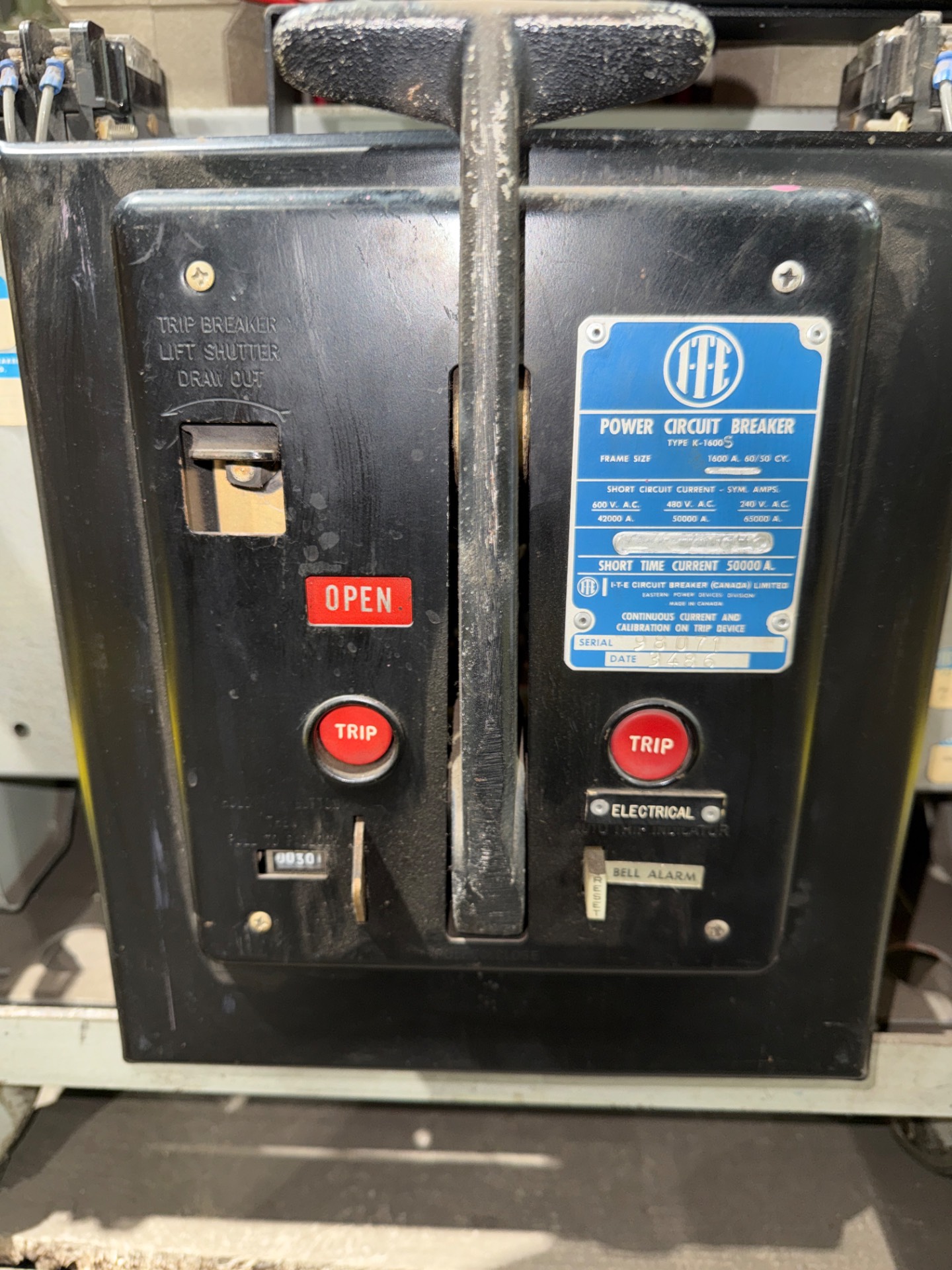

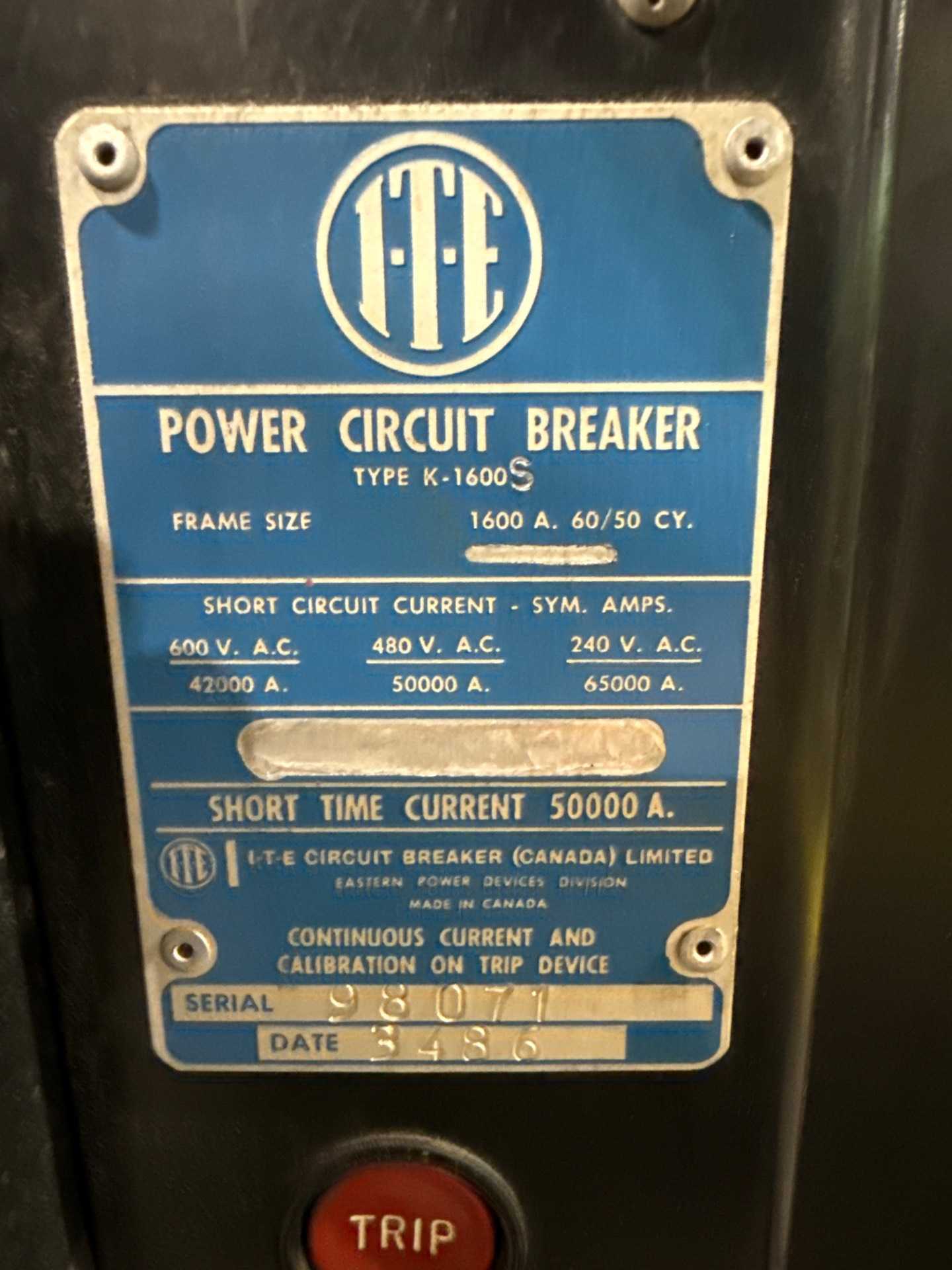

THE ITE K-1600S IS A LOW-VOLTAGE AIR CIRCUIT BREAKER FROM THE K-LINE FAMILY DESIGNED FOR POWER DISTRIBUTION APPLICATIONS. IT FEATURES A 1600A FRAME SIZE AND IS RATED FOR OPERATION AT UP TO 600V AC. THE UNIT HAS A SHORT-CIRCUIT INTERRUPTING CAPACITY OF 42,000A AT 600V AC, 50,000A AT 480V AC, AND 65,000A AT 240V AC, WITH A SHORT-TIME CURRENT RATING OF 50,000A. THIS THREE-POLE BREAKER IS AVAILABLE IN BOTH MANUALLY AND ELECTRICALLY OPERATED CONFIGURATIONS AND TYPICALLY UTILIZES A DRAW-OUT MOUNTING STYLE FOR USE IN SWITCHGEAR. THE SPECIFIC UNIT DESCRIBED IS EQUIPPED WITH A WESTRIP RMS-2012AF TRIP UNIT, PROVIDING LSIG (LONG TIME, SHORT TIME, INSTANTANEOUS, AND GROUND FAULT) PROTECTION FUNCTIONS. THE ESCUTCHEON FACEPLATE INCLUDES VISIBLE CONTROLS AND INDICATORS SUCH AS AN AMPTAP SETTING, AN OPEN/CLOSED INDICATOR, AND A RACKING SHUTTER.
