1987 STANDARD INDUSTRIAL AB200-12 HYDRAULIC PRESS BRAKE - 200 TON, 12' BED/RAM

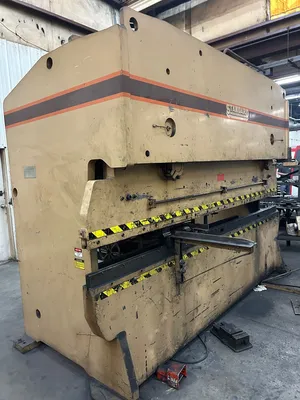

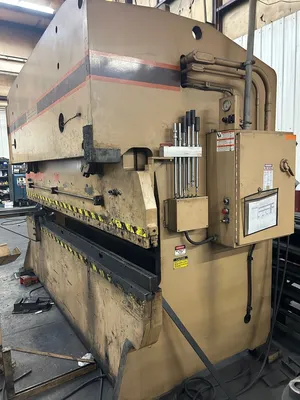

THE 1987 STANDARD INDUSTRIAL AB200-12 IS A HYDRAULIC PRESS BRAKE DESIGNED FOR HEAVY-DUTY FABRICATING APPLICATIONS. IT FEATURES A FORMING TONNAGE OF 200 TONS AND A PUNCHING TONNAGE OF 133 TONS. THE MACHINE HAS A BED RAM LENGTH OF 12 FEET AND A DISTANCE BETWEEN HOUSINGS OF 10 FEET 5 INCHES, ALLOWING FOR SUBSTANTIAL MATERIAL HANDLING CAPACITY. THE PRESS BRAKE OFFERS AN OPEN HEIGHT OF 14 INCHES, A STROKE LENGTH OF 8 INCHES, AND A CLOSED HEIGHT OF 6 INCHES, PROVIDING VERSATILITY IN FORMING OPERATIONS. THE THROAT DEPTH IS 10 INCHES, AND THE BED WIDTH IS 5 INCHES, ACCOMMODATING VARIOUS WORKPIECE SIZES. THE MACHINE IS POWERED BY A MOTOR WITH A CAPACITY OF 20-25 HORSEPOWER, OPERATING ON 230/460 VOLTS AND A 3-PHASE ELECTRICAL SUPPLY. THE APPROACH, PRESS, AND RETURN FUNCTIONS ARE DRIVEN BY A 20 HORSEPOWER MOTOR WITH SPECIFICATIONS OF 107-20-139. THE PRESS BRAKE WEIGHS APPROXIMATELY 32,000 POUNDS, ENSURING STABILITY AND DURABILITY DURING OPERATION. THIS EQUIPMENT IS SUITABLE FOR INDUSTRIAL ENVIRONMENTS REQUIRING ROBUST AND RELIABLE METAL FORMING CAPABILITIES.
