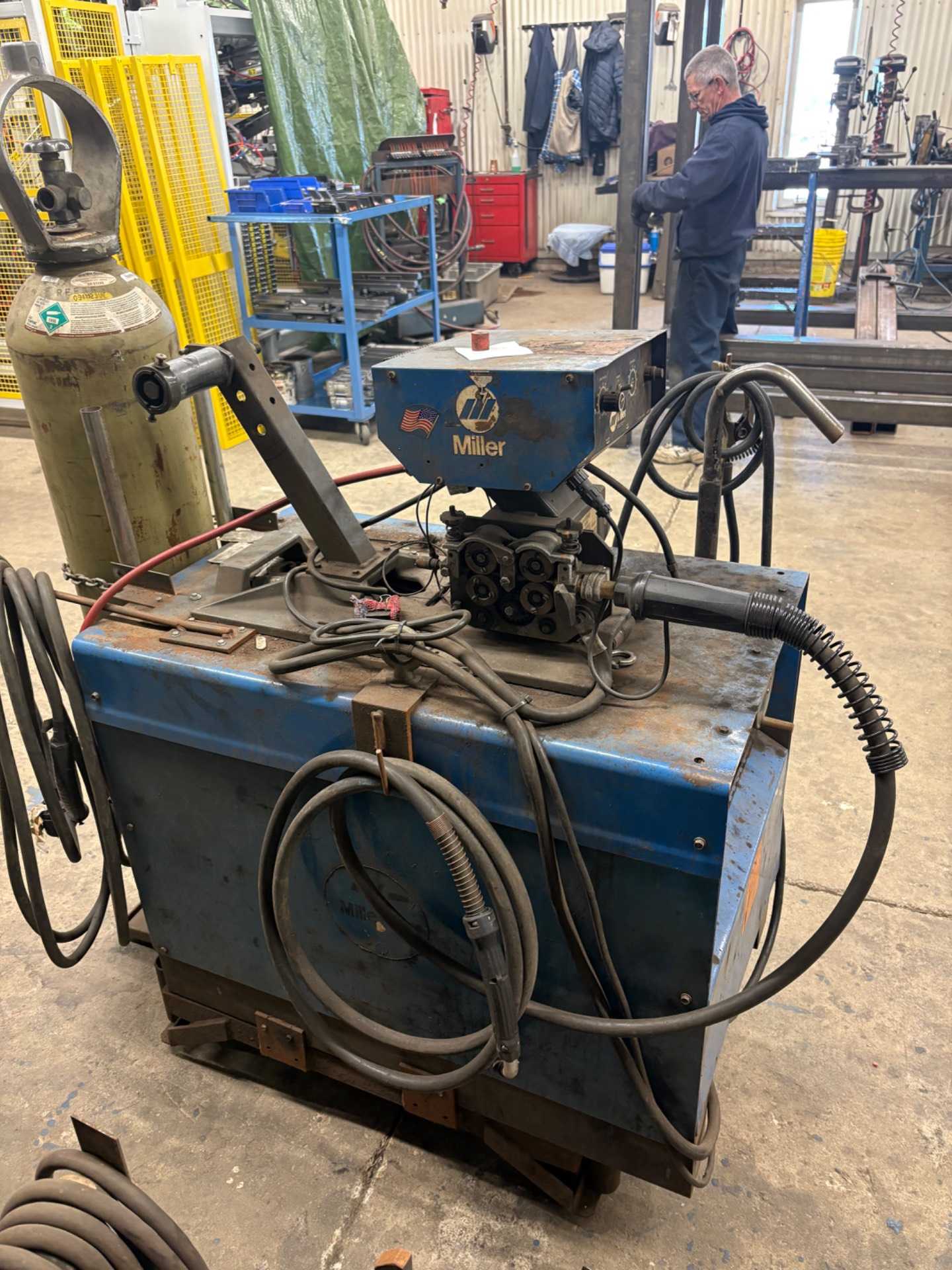

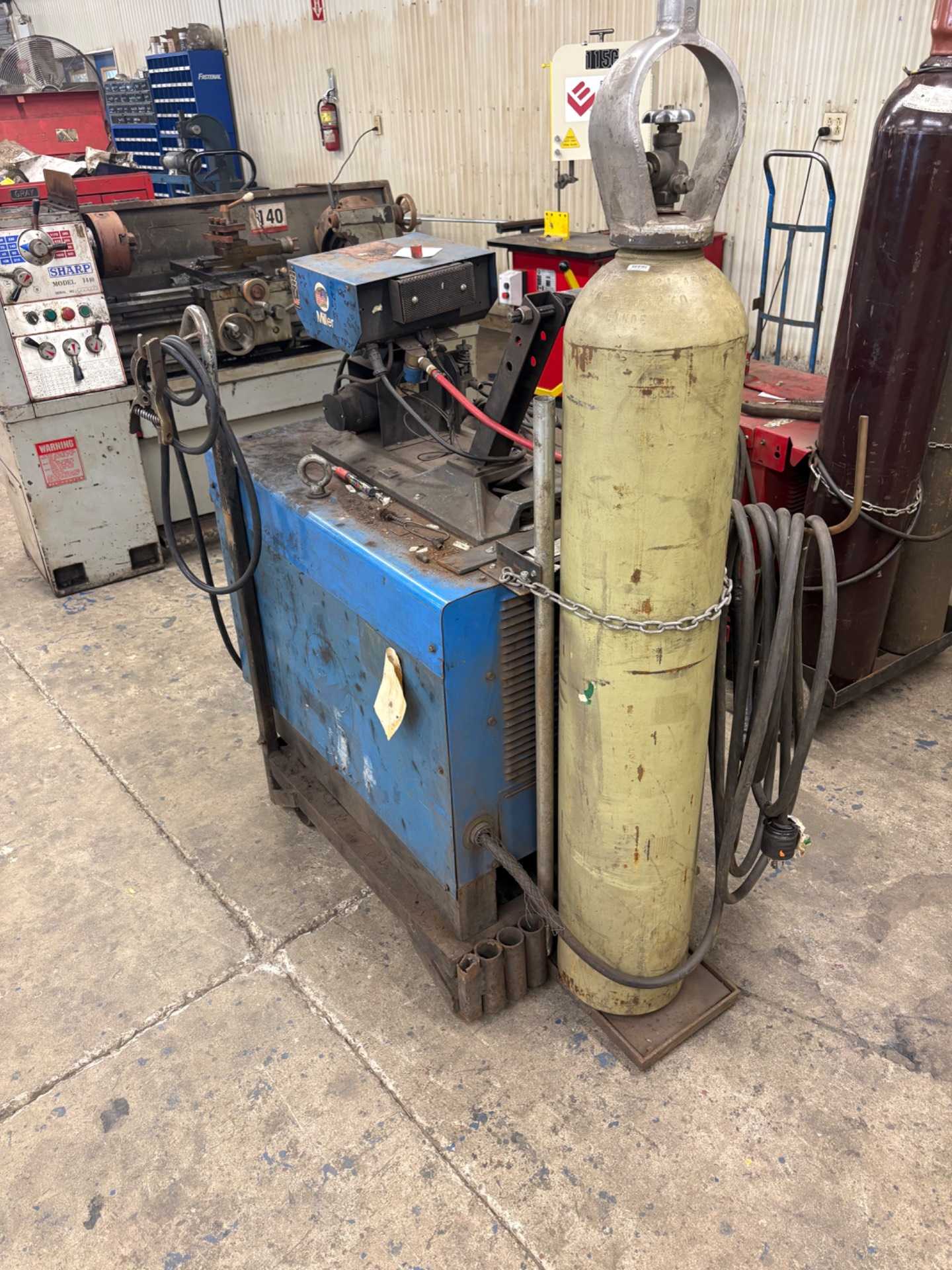

1990 Miller CP-250TS Welder 250A, 35V, 100% Duty Cycle, 3PH, 208/230/460V

THE MILLER CP-250TS IS A CONSTANT POTENTIAL DC ARC WELDING POWER SOURCE DESIGNED FOR MIG WELDING APPLICATIONS. THIS INDUSTRIAL MACHINE OPERATES ON A THREE-PHASE, 60 HERTZ POWER SUPPLY WITH INPUT VOLTAGE OPTIONS OF 208, 230, AND 460 VOLTS. IT PROVIDES A RATED WELDING OUTPUT OF 250 AMPERES AT 35 VOLTS WITH A 100% DUTY CYCLE, ALLOWING FOR CONTINUOUS OPERATION IN HEAVY-DUTY ENVIRONMENTS. THE OPEN-CIRCUIT VOLTAGE RANGES FROM 15 TO 44 VOLTS. AT THE RATED LOAD, THE UNIT DRAWS APPROXIMATELY 33 AMPERES AT 208V, 30 AMPERES AT 230V, AND 15 AMPERES AT 460V, FEATURING A POWER RATING OF 11.4 KW AND 11.9 KVA.
