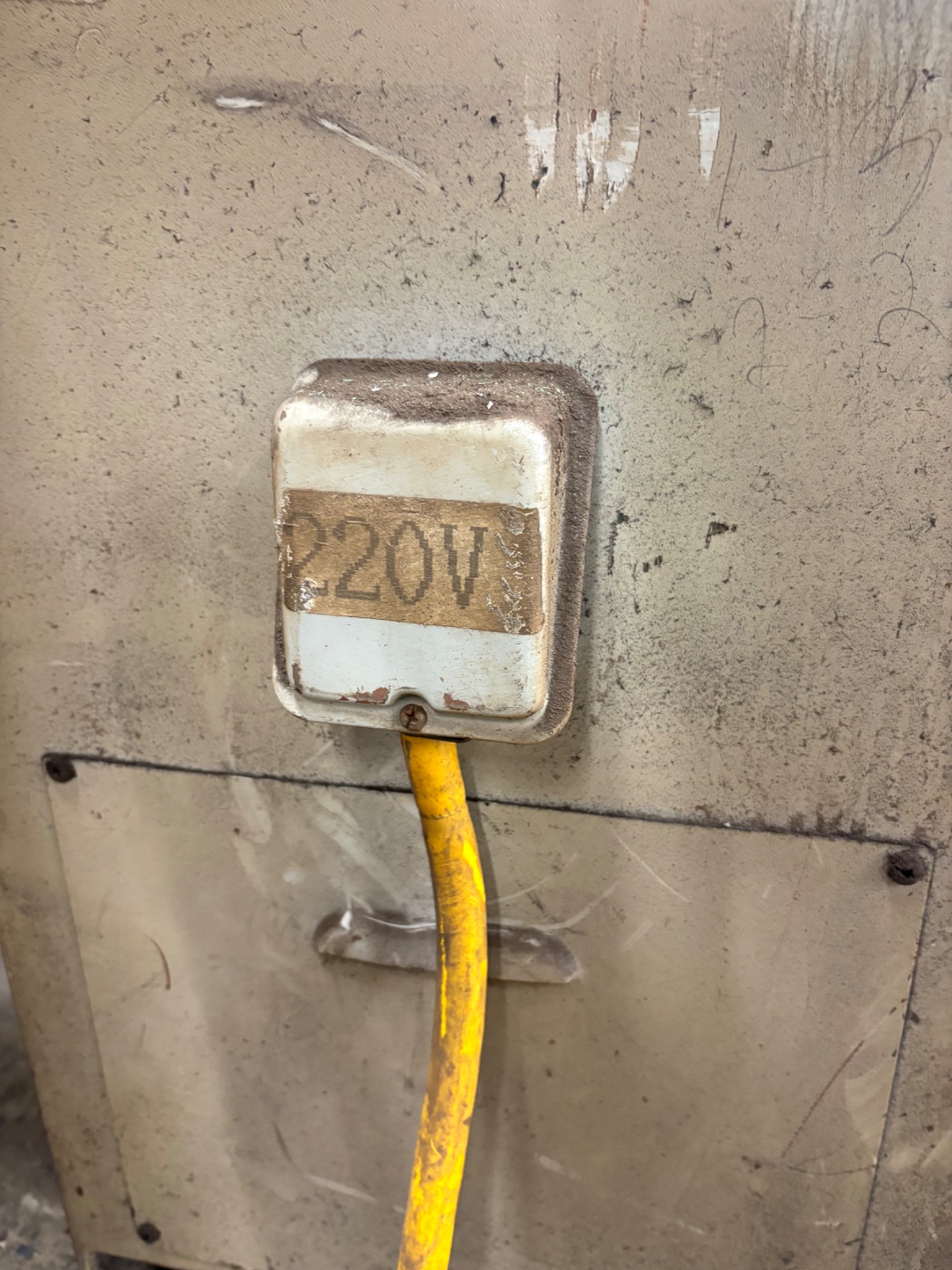

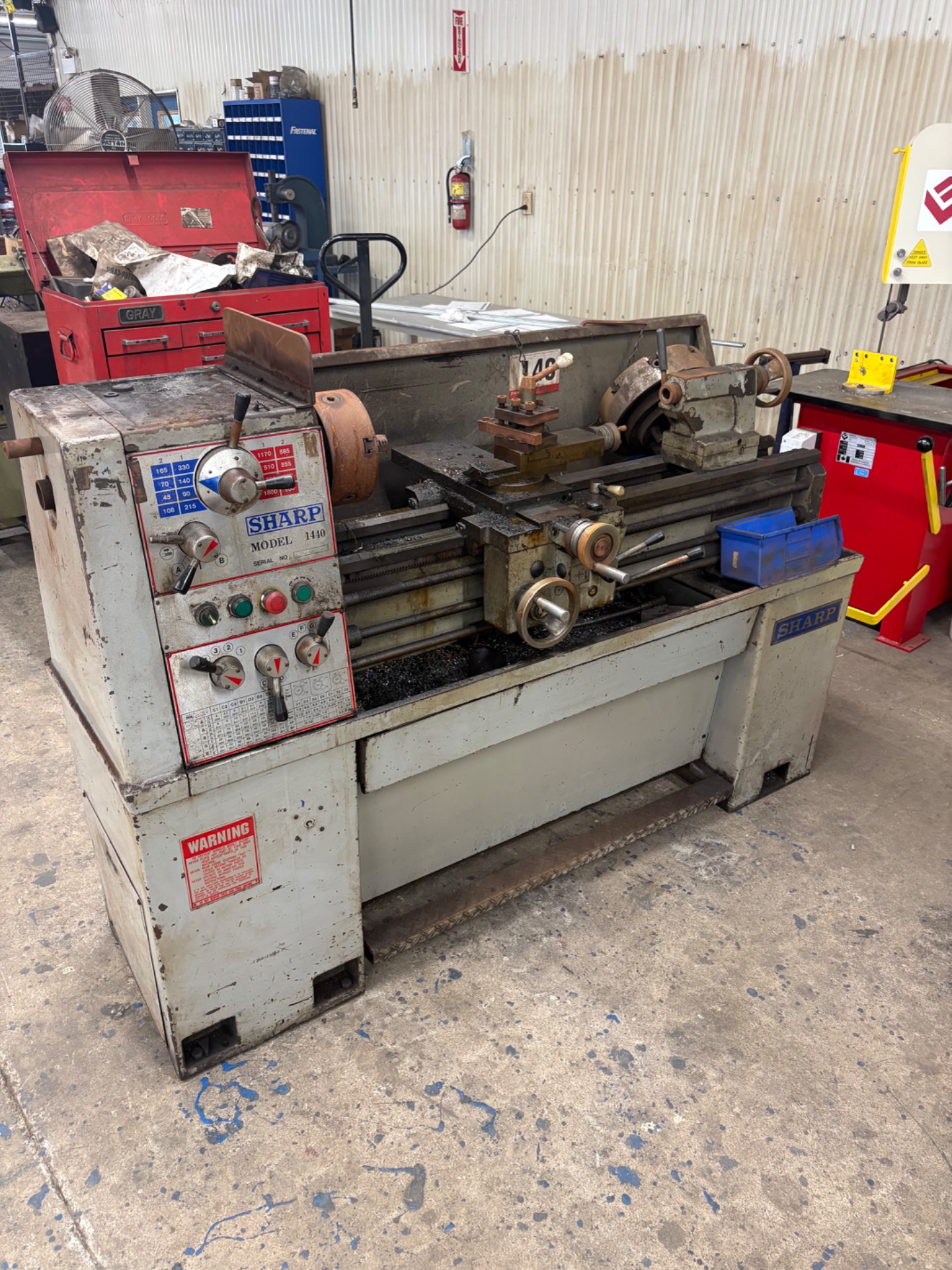

1990 SHARP 1440 MANUAL LATHE, 14IN SWING, 40IN CC, 3HP, 1.5IN BORE, 220/440V

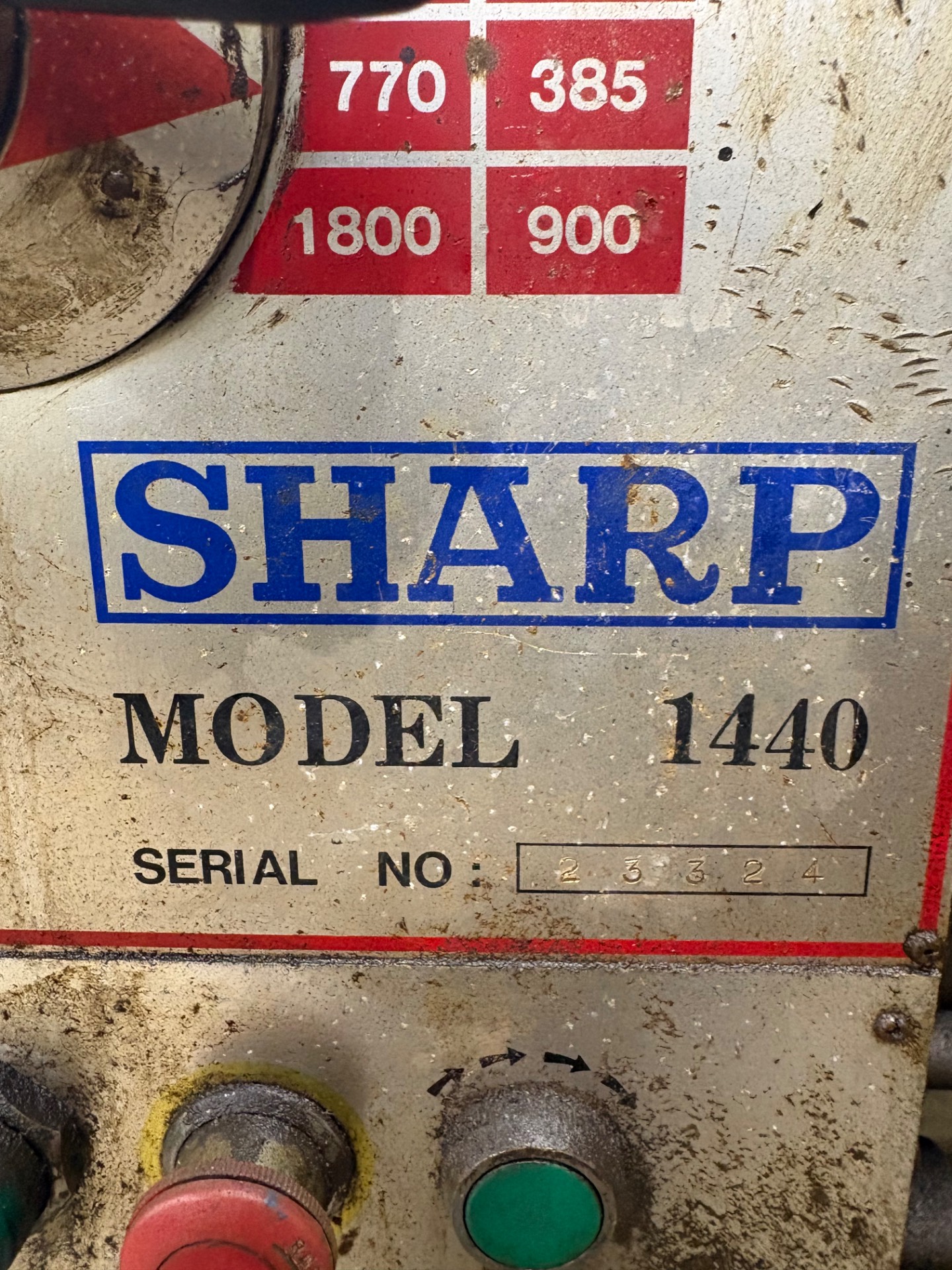

THE SHARP 1440 MANUAL PRECISION LATHE FEATURES A 14 INCH SWING OVER BED, 8.62 INCH SWING OVER CROSS SLIDE, AND 40 INCH DISTANCE BETWEEN CENTERS. THE UNIT IS EQUIPPED WITH A 3 HP MOTOR AND A D1-4 CAMLOCK SPINDLE WITH A 1.5 INCH BORE. THE HEADSTOCK PROVIDES MULTIPLE SPINDLE SPEEDS UP TO 1,800 RPM. THE MACHINE INCLUDES A REMOVABLE GAP BED WITH EXTENDED SWING CAPACITY UP TO 20 INCHES. CONSTRUCTION CONSISTS OF A CAST IRON BASE WITH HARDENED AND GROUND BEDWAYS FOR RIGIDITY. THE QUICK-CHANGE GEARBOX SUPPORTS A WIDE RANGE OF THREADING OPERATIONS. THE TAILSTOCK FEATURES 4.5 INCH QUILL TRAVEL WITH MT3 TAPER.
