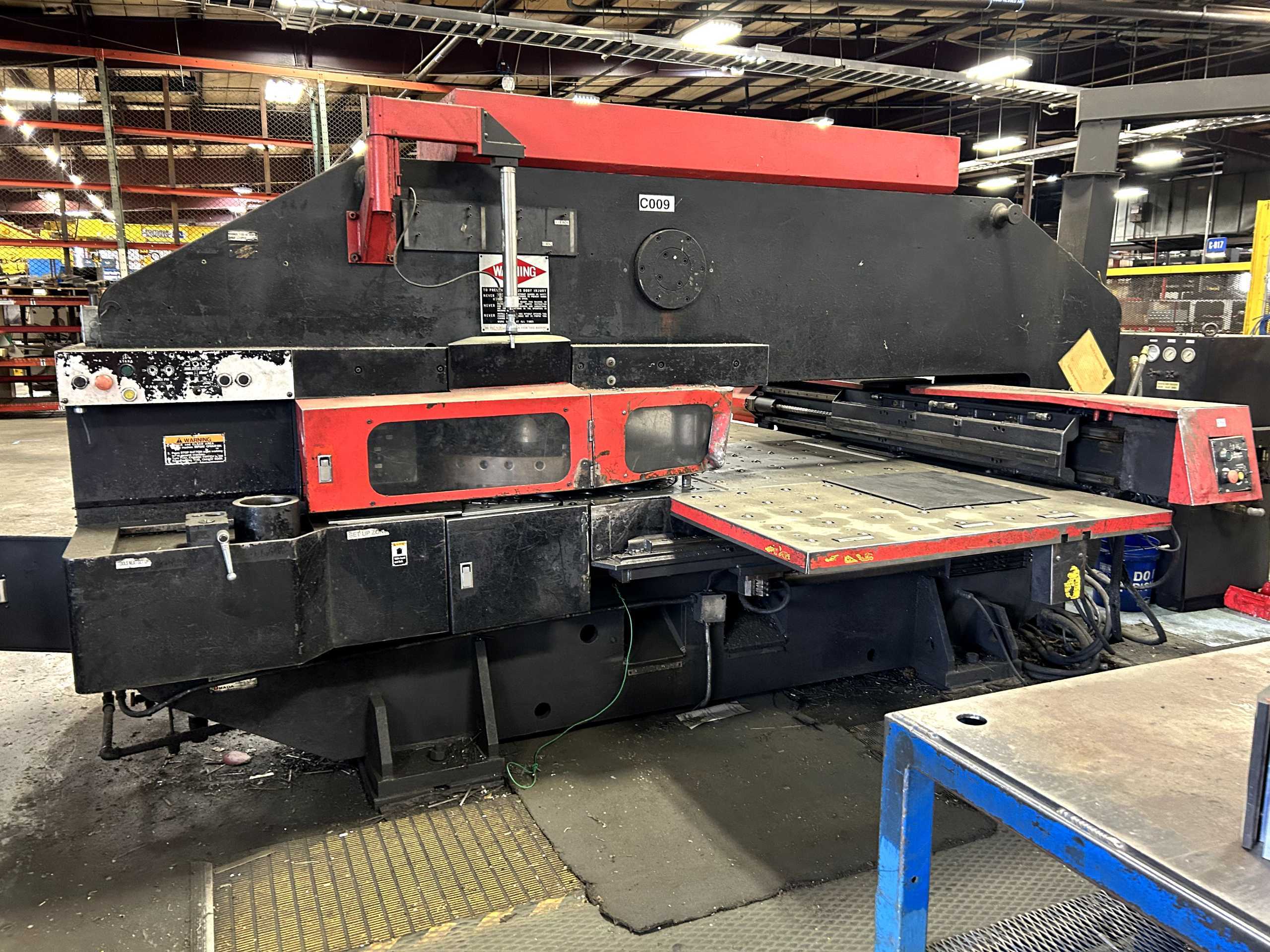

1993 AMADA VP 304050 CNC TURRET PUNCH PRESS, 30-TON, 58-STATION, 40"X50" TABLE, 35KVA

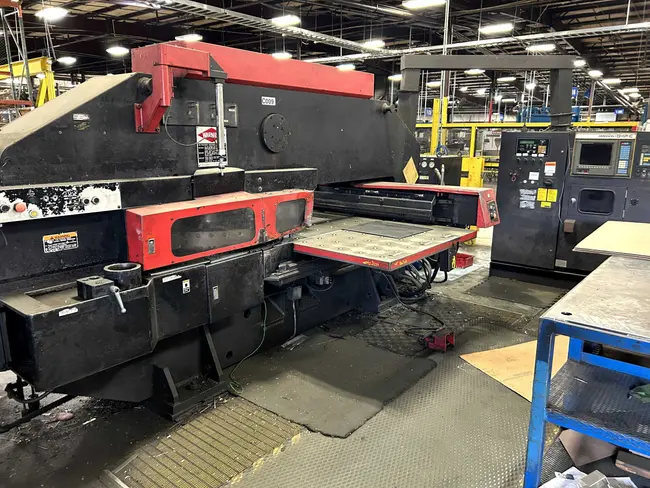

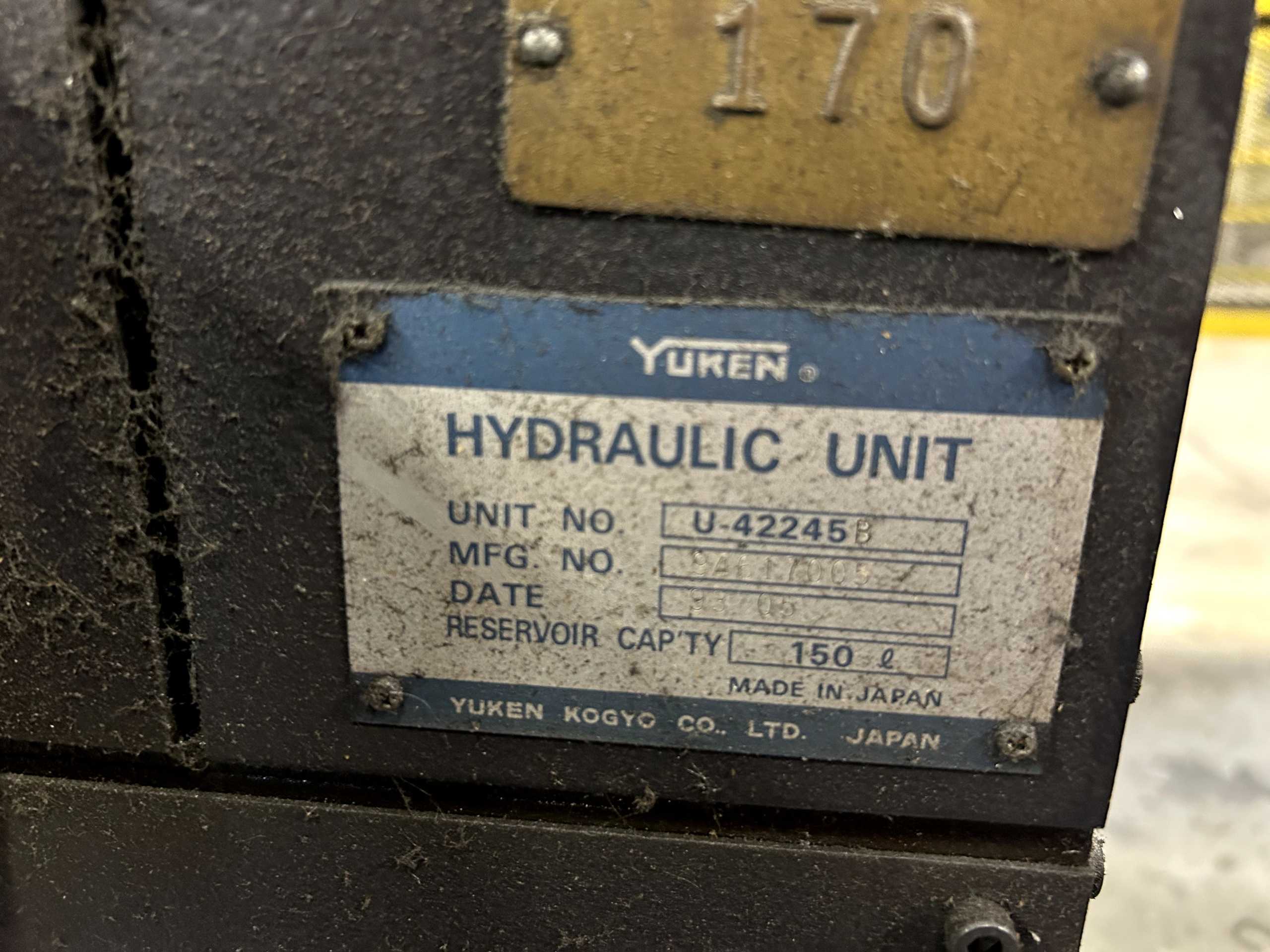

THE 1993 AMADA VP 304050 IS A CNC TURRET PUNCH PRESS FEATURING A 30-TON PUNCHING CAPACITY AND A 58-STATION TURRET CONFIGURATION. THIS MACHINE IS DESIGNED FOR PRECISION FABRICATION WITH A TABLE SIZE CAPABLE OF HANDLING 40-INCH BY 50-INCH SHEETS, EXTENDABLE TO 40 INCHES BY 100 INCHES WITH REPOSITIONING. IT OPERATES WITH A POWER REQUIREMENT OF 35 KVA AND AN AIR REQUIREMENT OF 80 PSI. THE SYSTEM INCLUDES A DEDICATED CONTROL PANEL AND A HYDRAULIC UNIT TO MANAGE PUNCHING FORCE. TECHNICAL SPECIFICATIONS FOR THIS MODEL SERIES TYPICALLY INCLUDE A HIT RATE OF APPROXIMATELY 275 TO 350 STROKES PER MINUTE AND A TURRET SPEED OF 30 RPM. THE BRIDGE FRAME DESIGN ENSURES STABILITY DURING HIGH-SPEED OPERATIONS, WHILE THE 58-STATION TURRET ALLOWS FOR A WIDE VARIETY OF TOOLING TO BE HOUSED SIMULTANEOUSLY, REDUCING SETUP TIMES FOR COMPLEX PARTS. THE MACHINE HAS AN APPROXIMATE WEIGHT OF 22,000 TO 26,000 LBS AND DIMENSIONS OF ROUGHLY 107 INCHES BY 163 INCHES BY 97 INCHES. TYPICAL MAXIMUM MATERIAL THICKNESS FOR MILD STEEL IS 0.236 INCHES.
