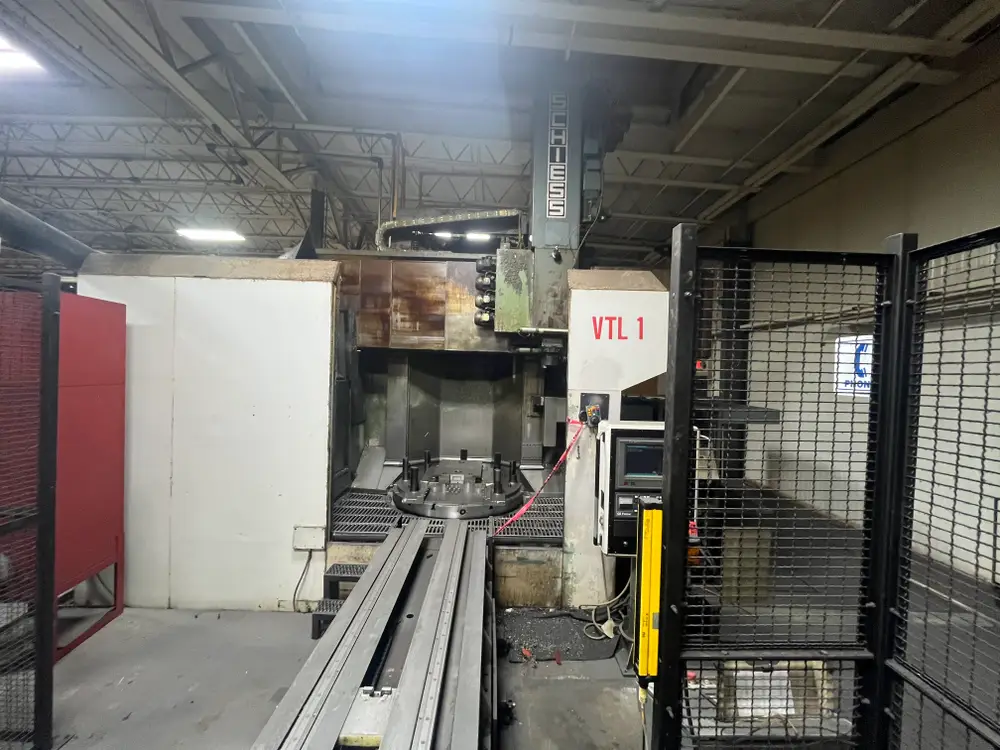

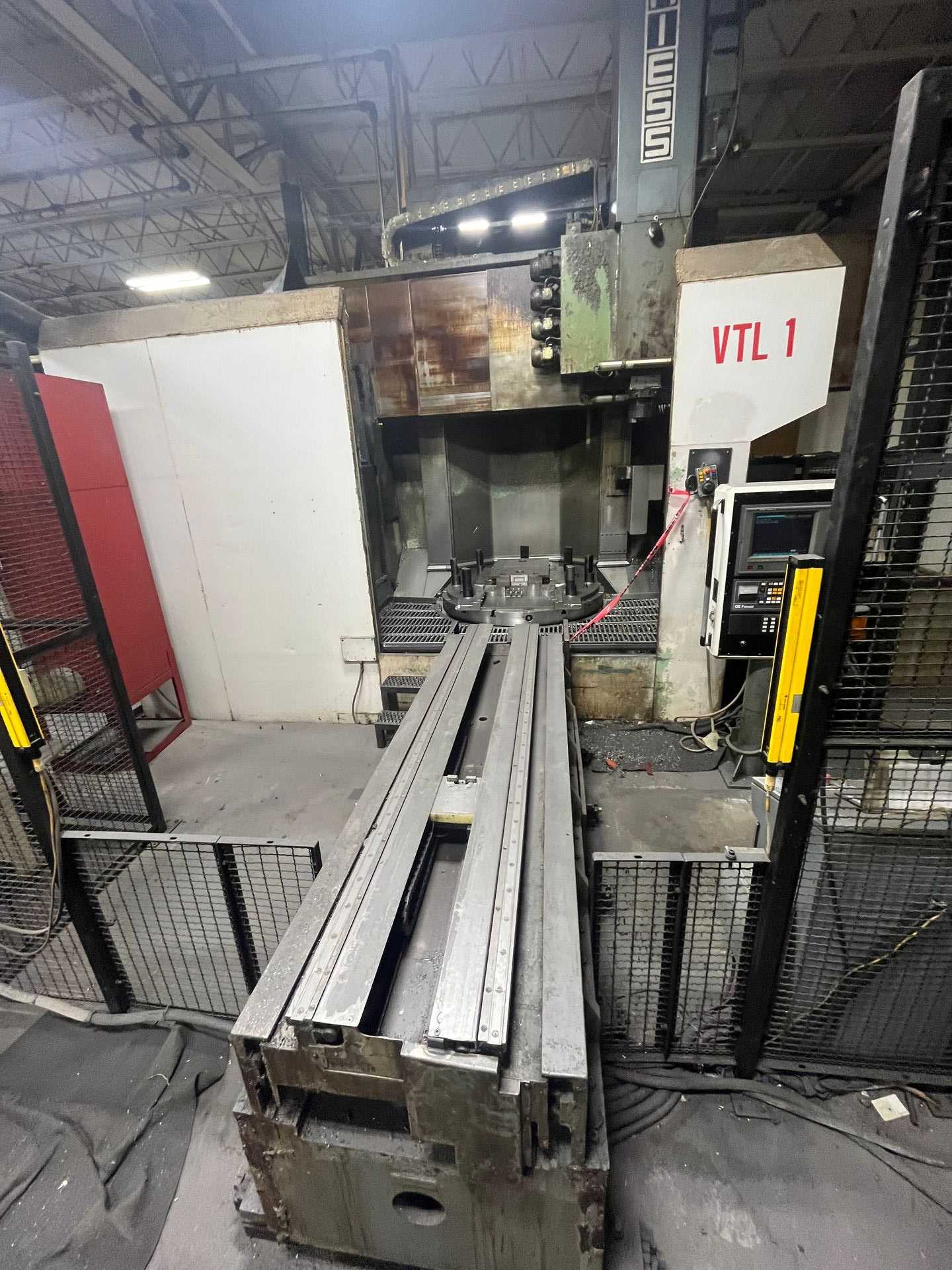

1993 Schiess Vertimaster 20 DSC 160 Vertical Turning Machine w/Fanuc 15TB Control w/Live Spindle

Condition: Fair Condition details: LAST ASSESSMENT ON 12/17/21 LINEAR POSITIONING ERROR IN X, ROUGHLY 0.0015 PER FOOT. RETROFIT TO FANUC CONTROLS IN 1998 Max Swing and Turning Dia 78.75". Working height, top of table to bottom of cross rail 76". Table Dia 63". Cross rail head vertical travel 53.15". Cross rail horizontal travel 46" from center of rotation to the right from center of rotation to the left 46". Cross rail travel range 31.5". Table drive . two gear ranges . speed of gear range 1-- 3.15-80 rpm. speed of gear range 2-- 12-315 rpm. table load cap 11200kg. boring milling drive ranges 2. speed of gear range 1 --16-500. speed of gear range 2 --50-1600. Cross rail feed range 0.004-78 inch/min. Cross rail traves rate .12-236 inch/min. Rotary table feed rate 1.44-1440 Degrees /min . Cutting force 50 KN. Power Requirement . Three Phase 460 VAC +/- 10%. 60 hz +/- 2%. 230kVa total connected load . Boring head . Right angle head . Coolant tank with flood and through spindle . chip conveyor. mist collector . Tool changer with 40 pockets . max tool weight 200lbs. Max tool length 12". Max tool Dia 5". Takes ISO 50 tools. Chiller for oil . Pallet transfer and receiver.
