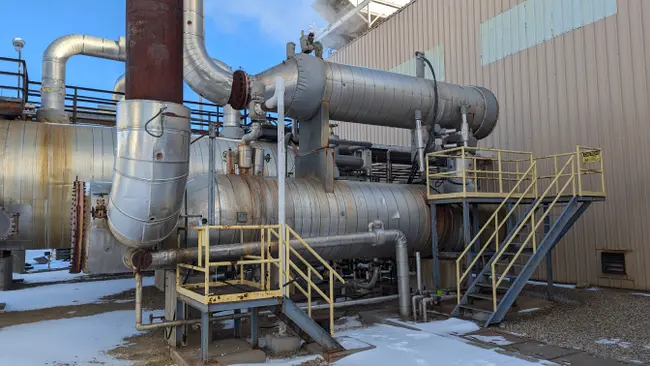

1994 FABSCO SULFUR CONDENSER

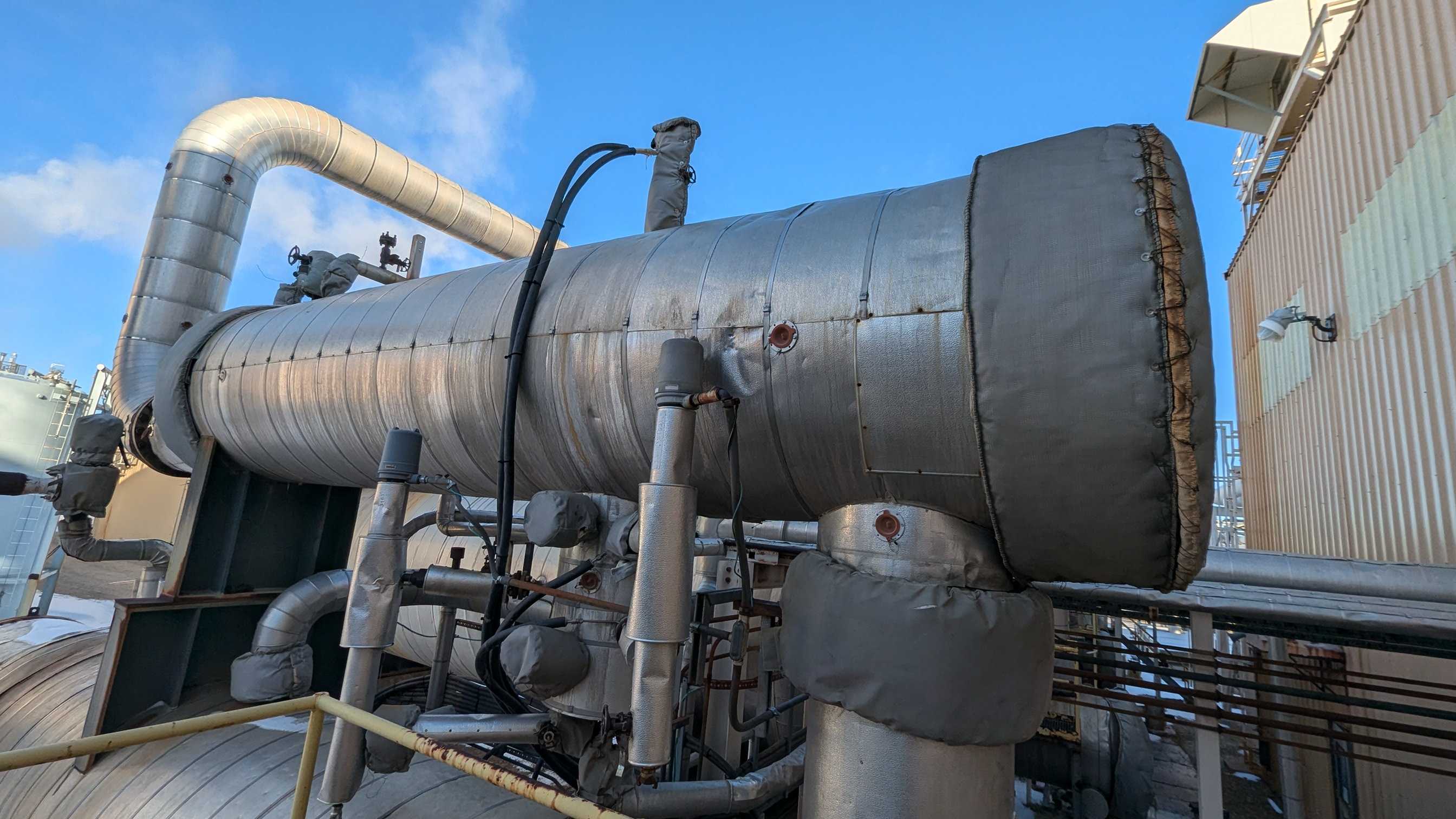

THE UNIT IS A SHELL AND TUBE SULFUR CONDENSER CONFIGURED WITH A SHELL SIDE MAWP OF 80 PSI AND A SHELL SIDE MDMT OF -18 °F, WITH A TEST PRESSURE OF 120 PSI. THE TUBE SIDE IS RATED AT 25 PSI MAWP WITH AN MDMT OF -18 °F AND A TEST PRESSURE OF 38 PSI. THE DESIGN TEMPERATURE IS 350 °F, AND THE HEATING SURFACE AREA IS 4,994 SQ FT. THE VESSEL IS CONSTRUCTED IN A HORIZONTAL SHELL-AND-TUBE CONFIGURATION AND IS TAGGED FOR SULFUR CONDENSER SERVICE.
