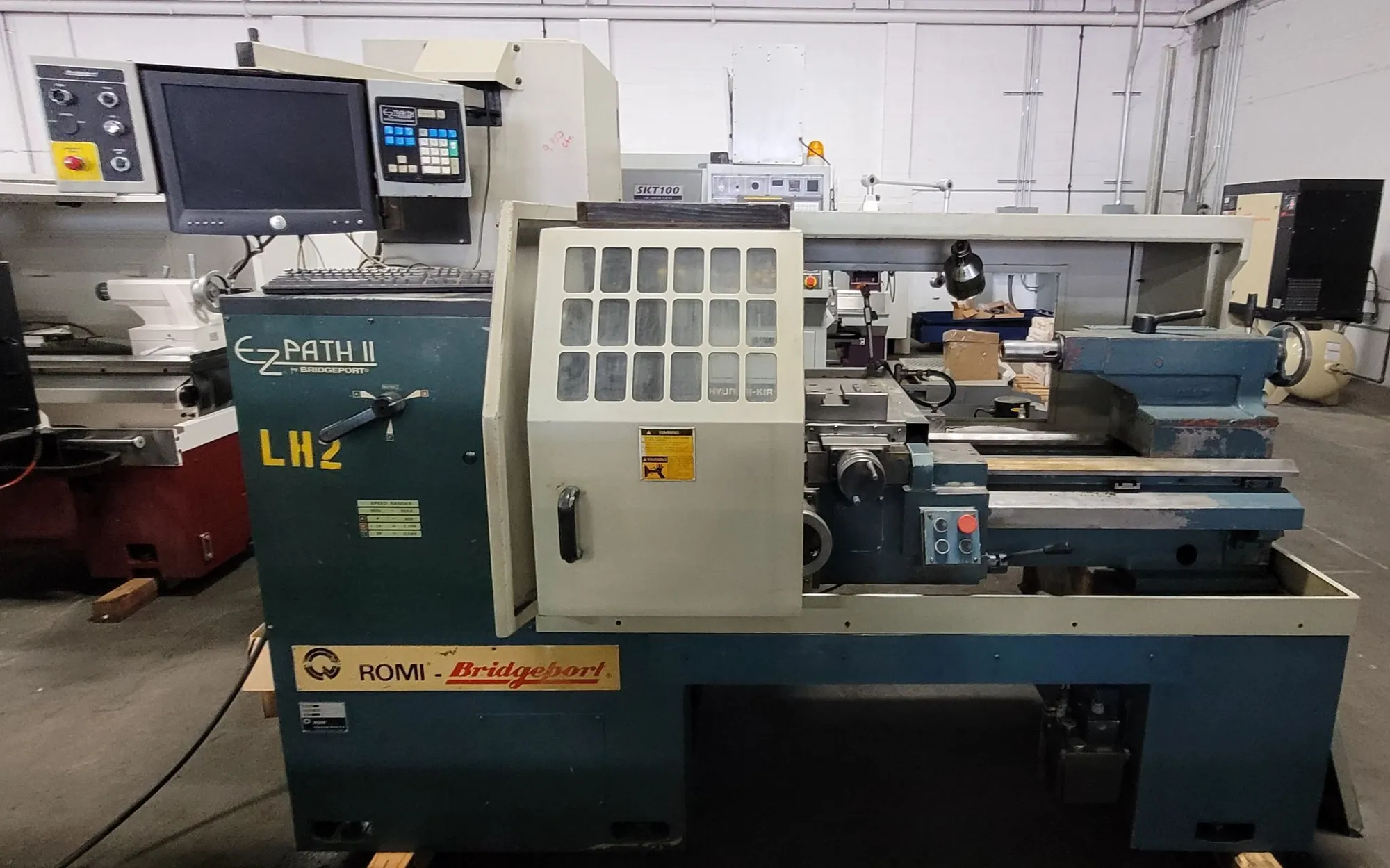

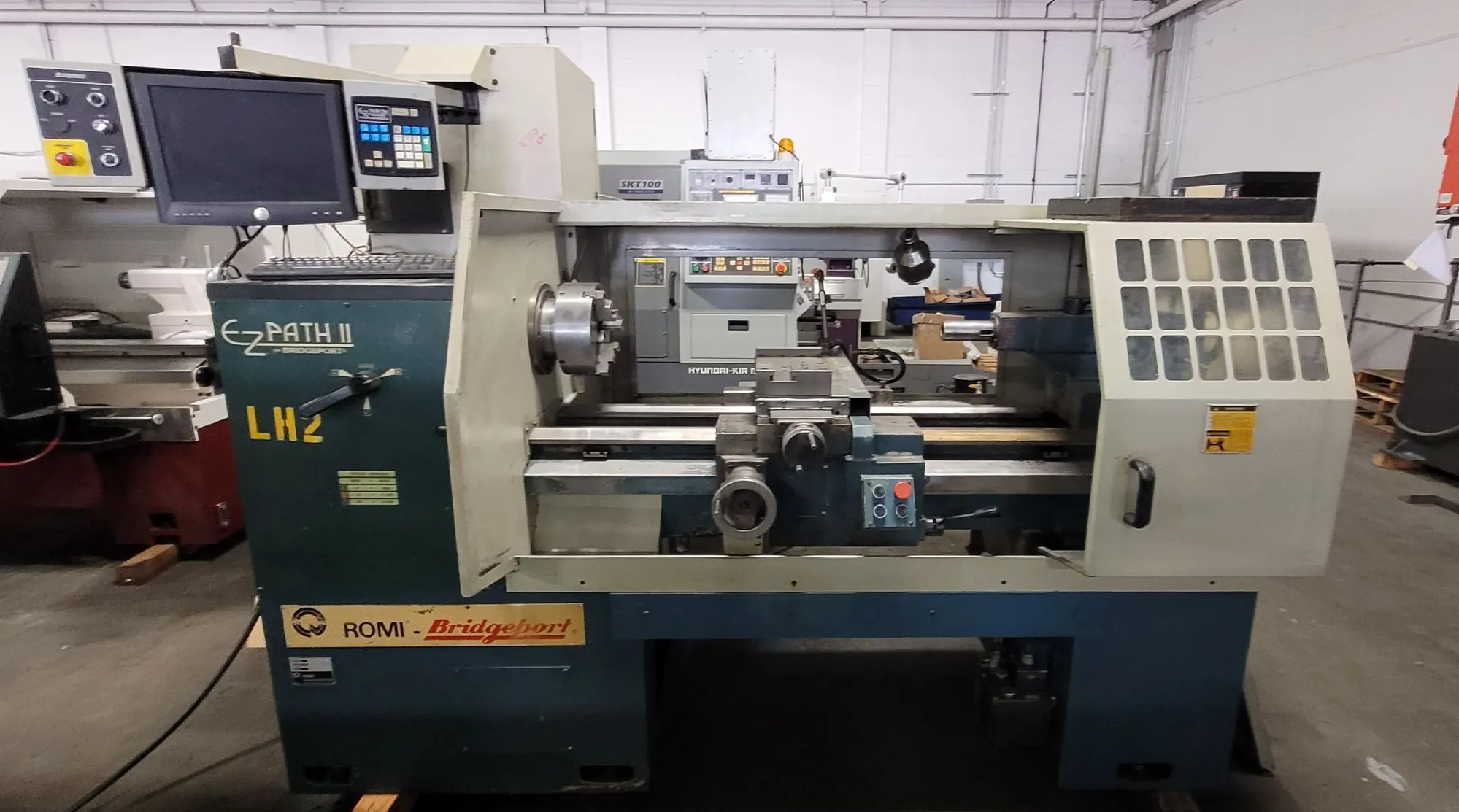

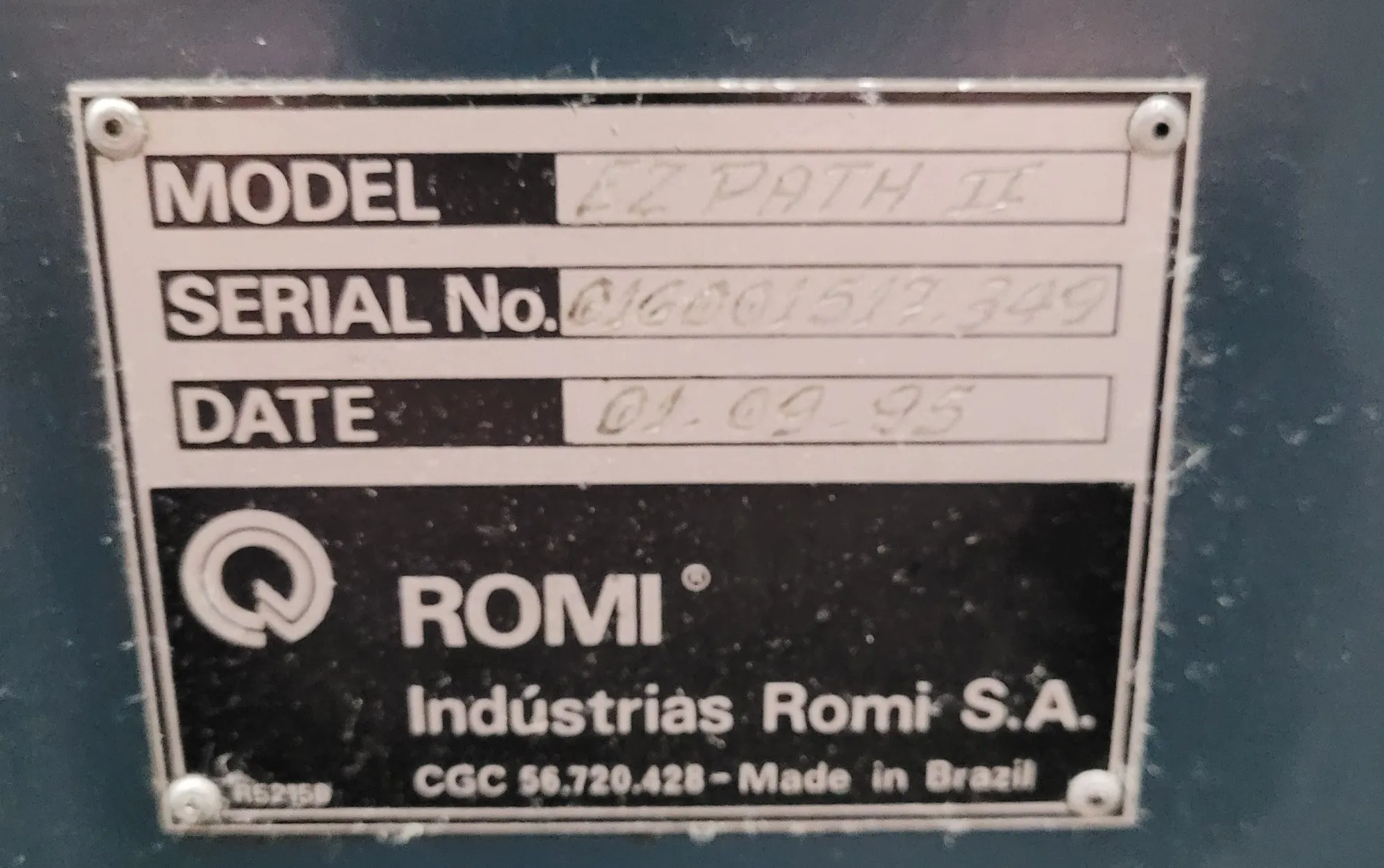

1995 BRIDGEPORT ROMI EZ PATH II CNC LATHE, 20" X 40", 10 HP, 3,500 RPM

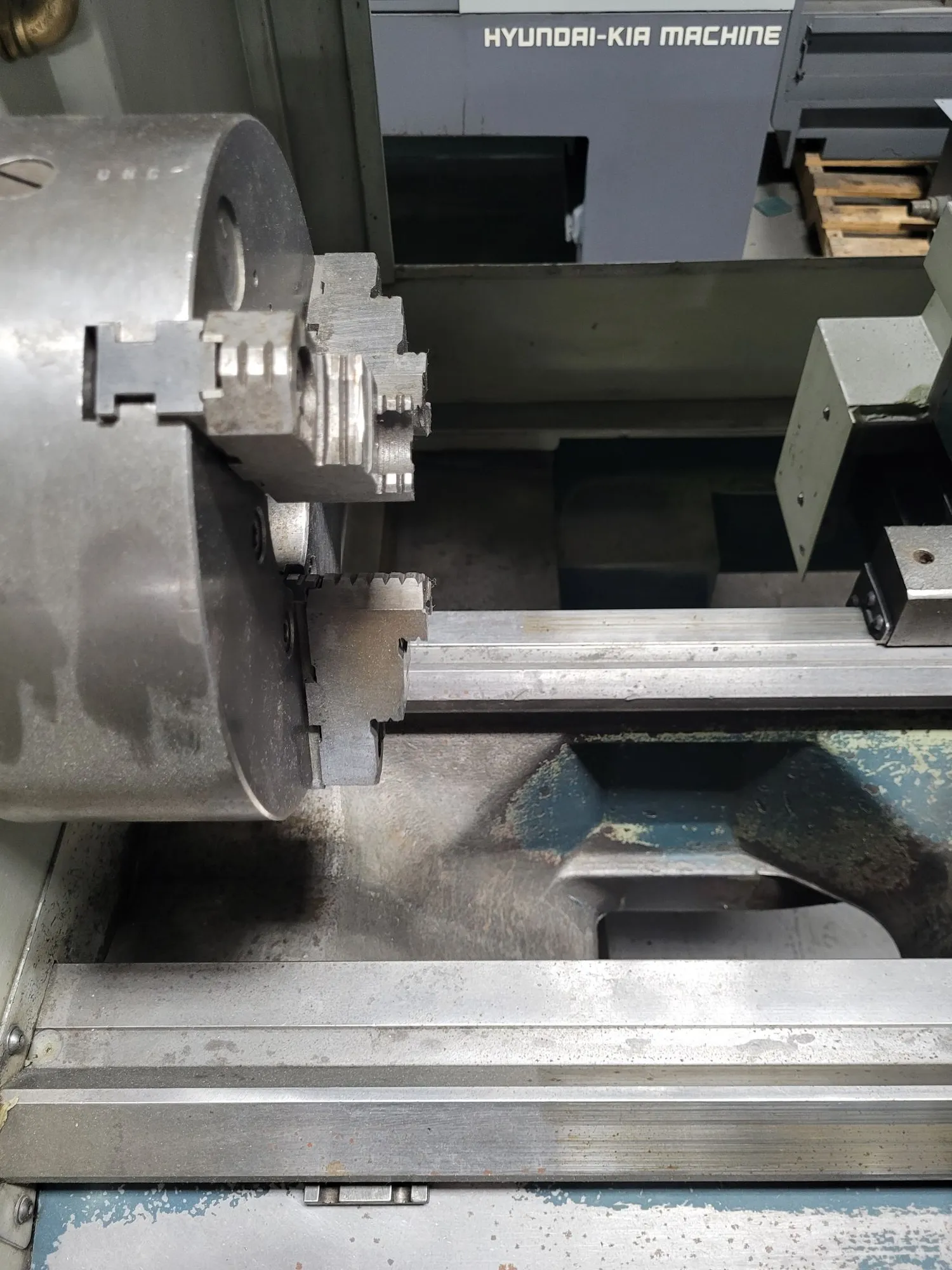

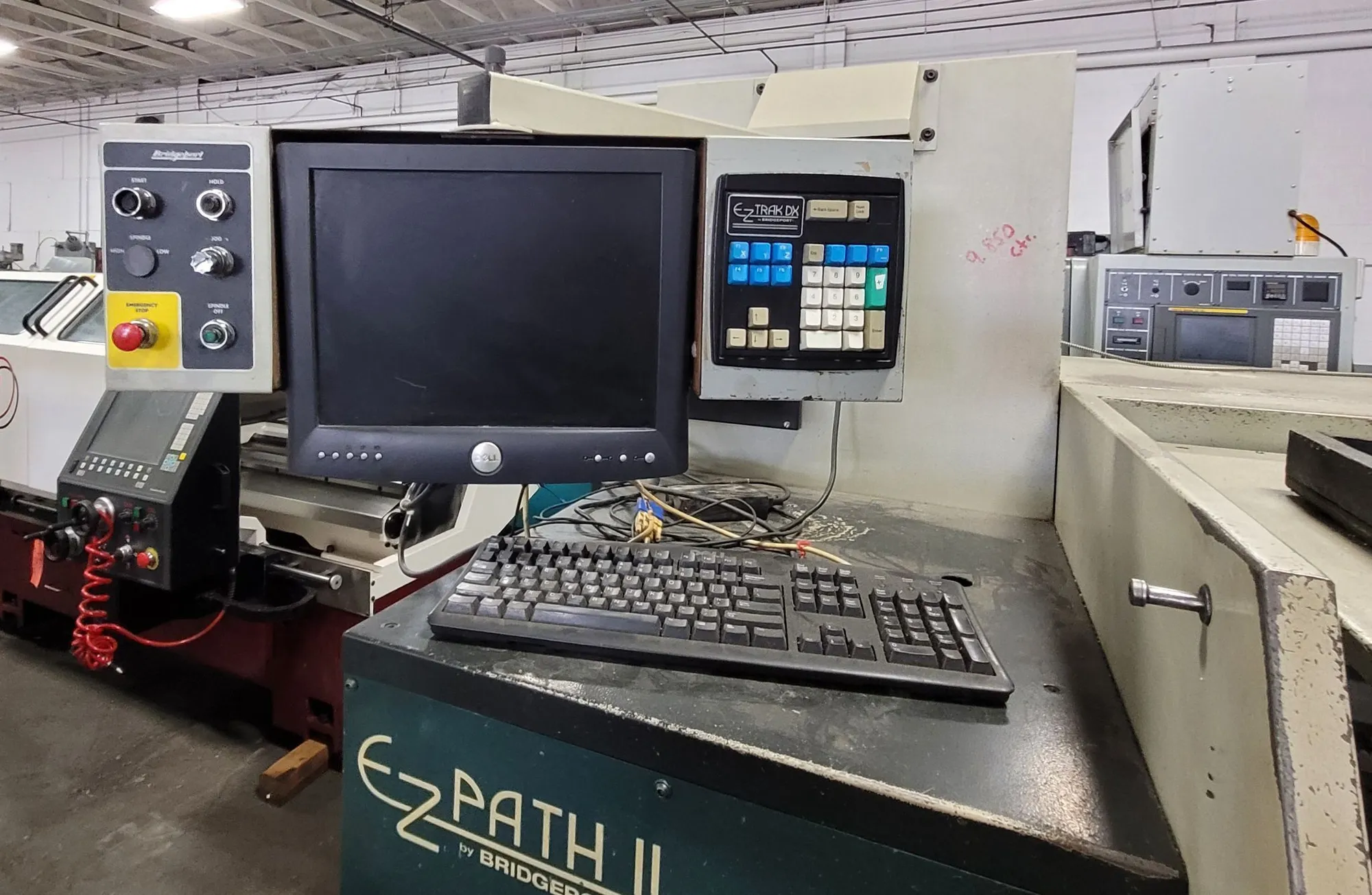

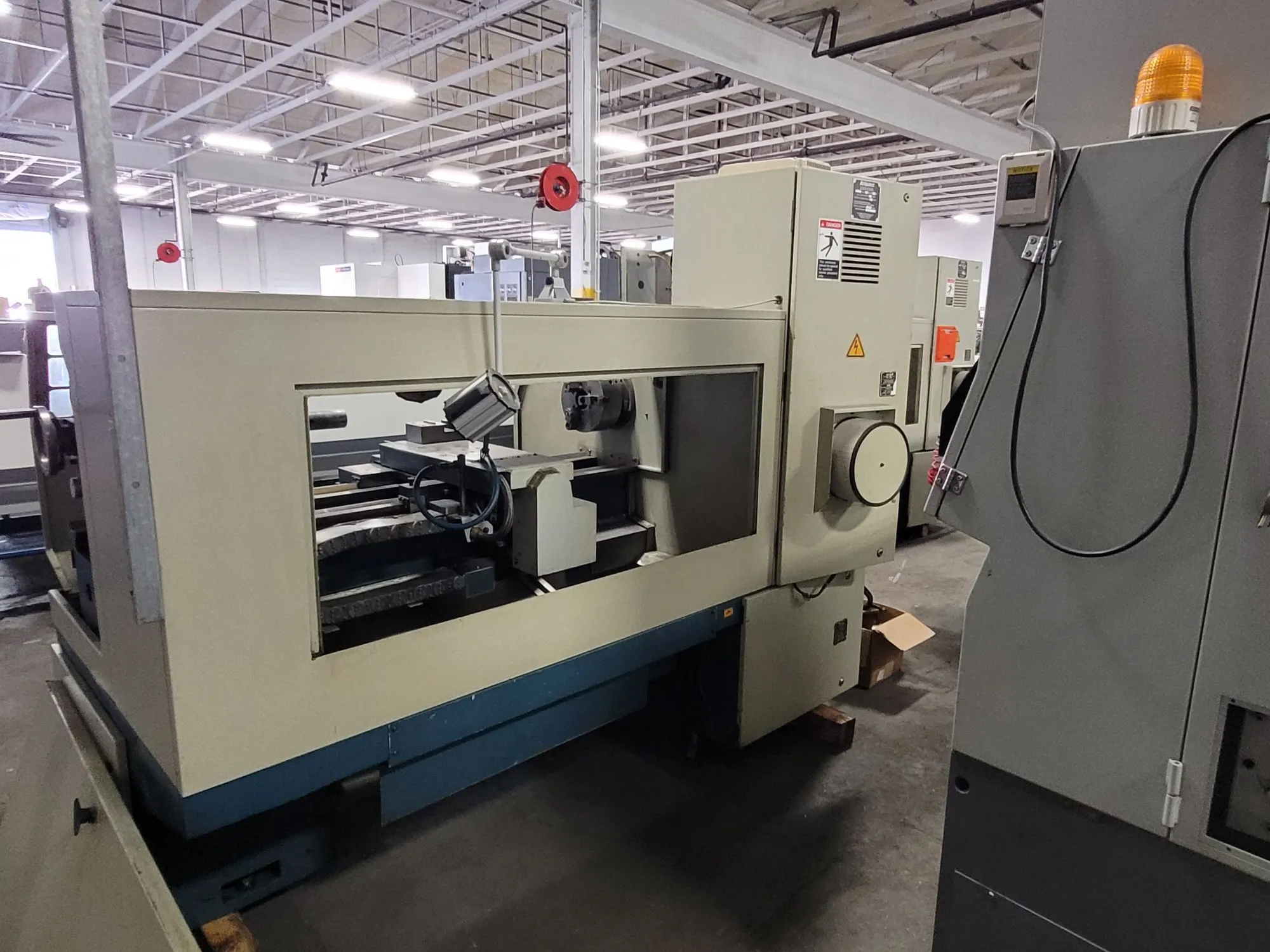

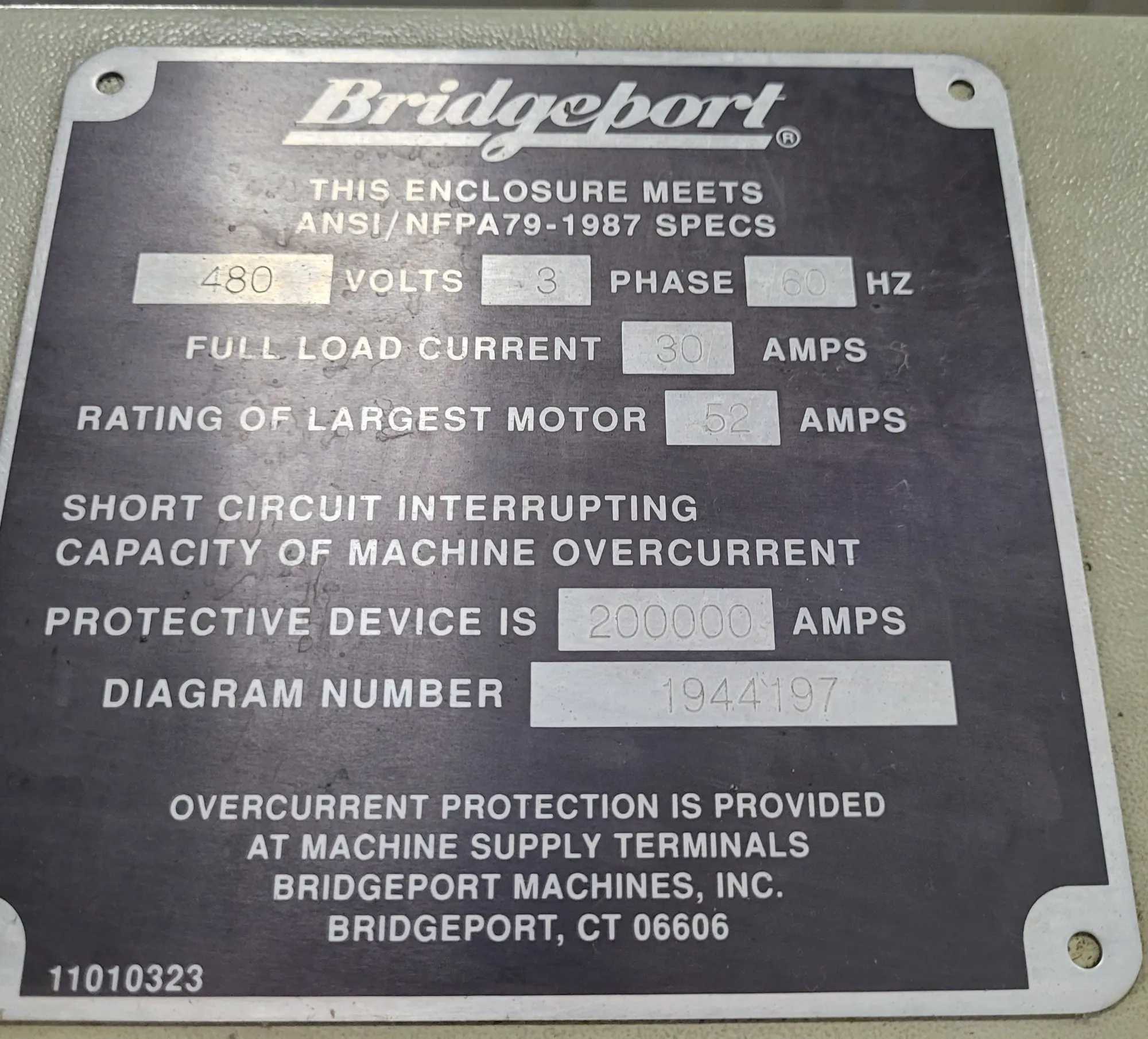

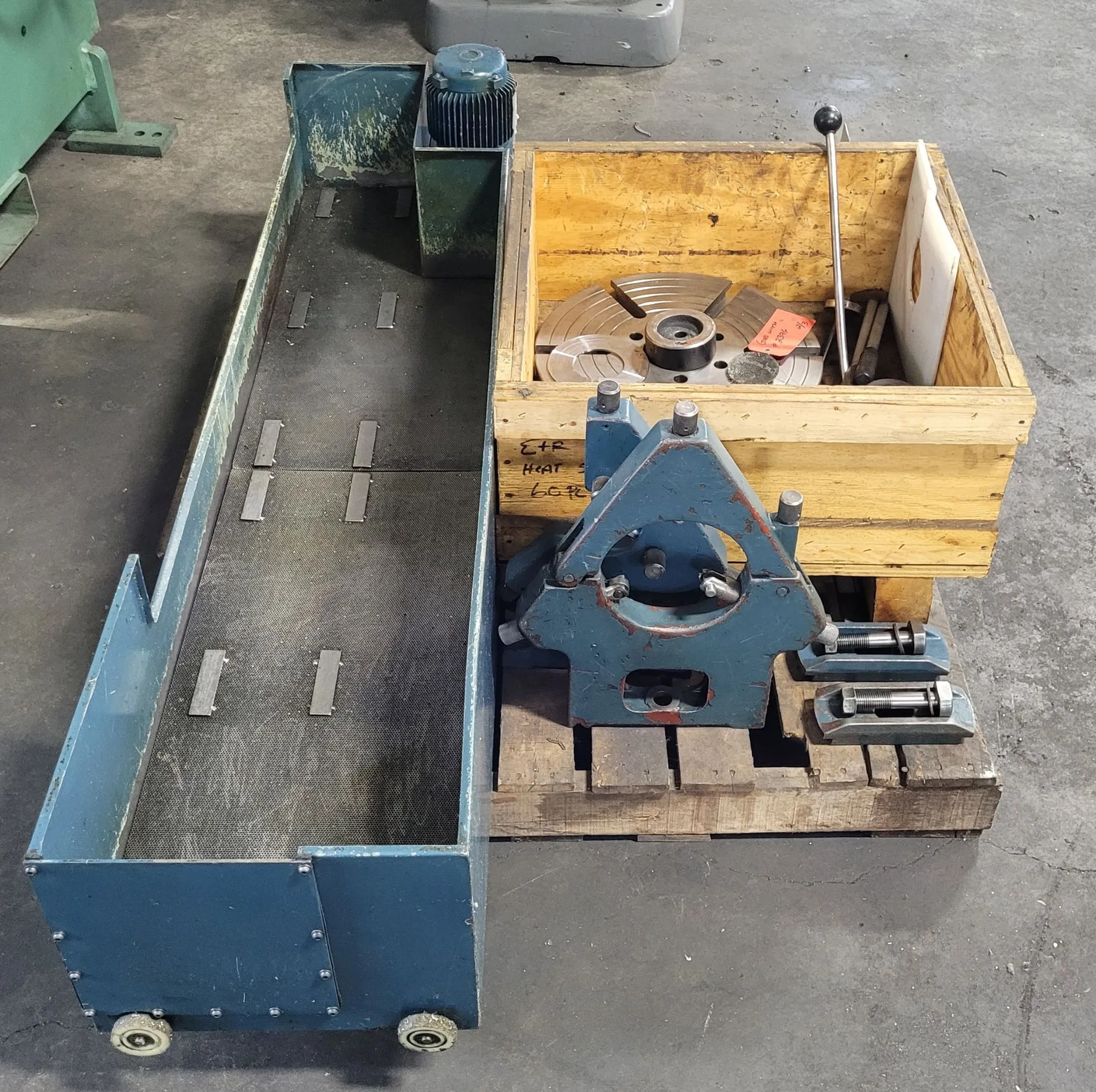

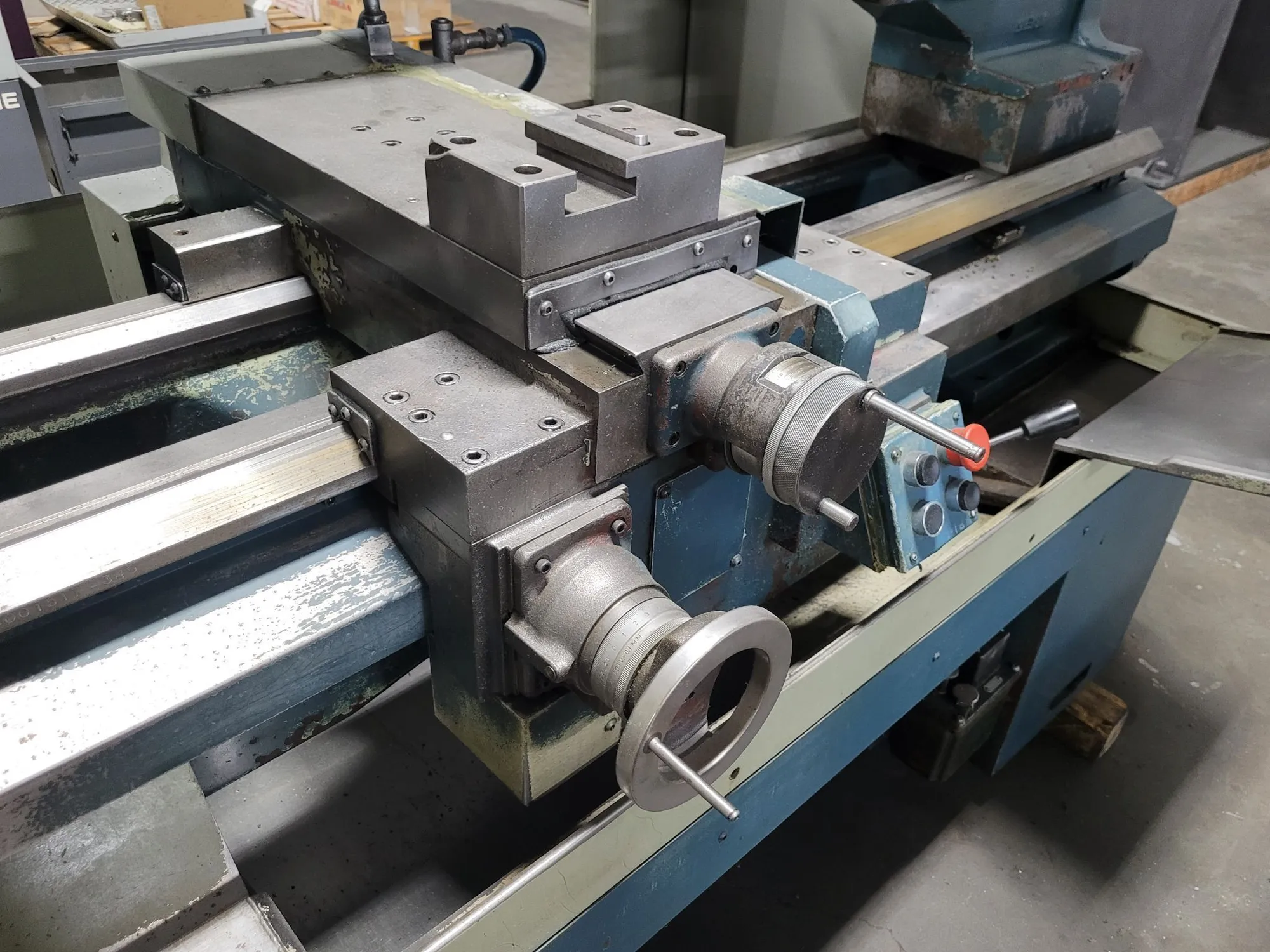

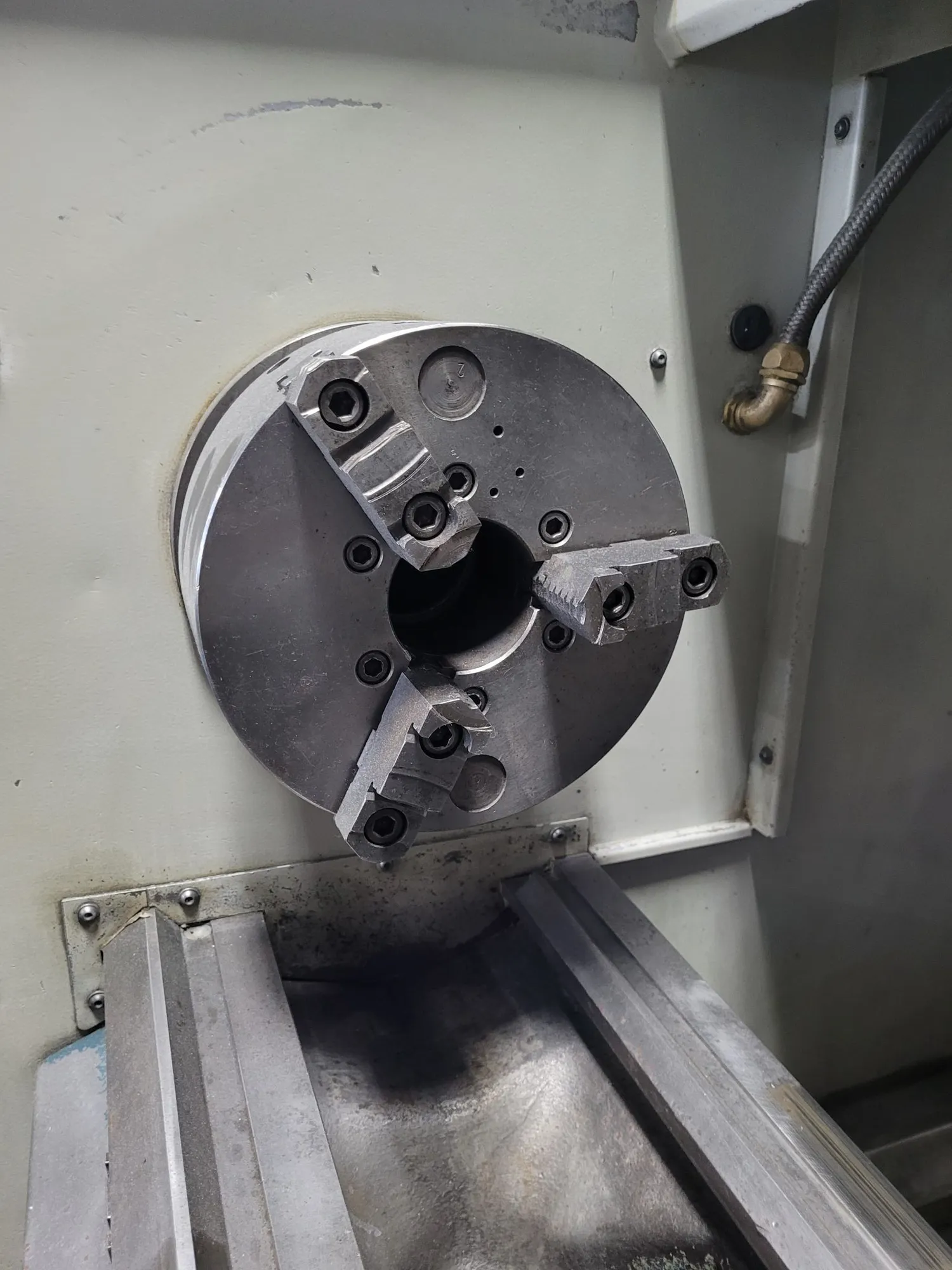

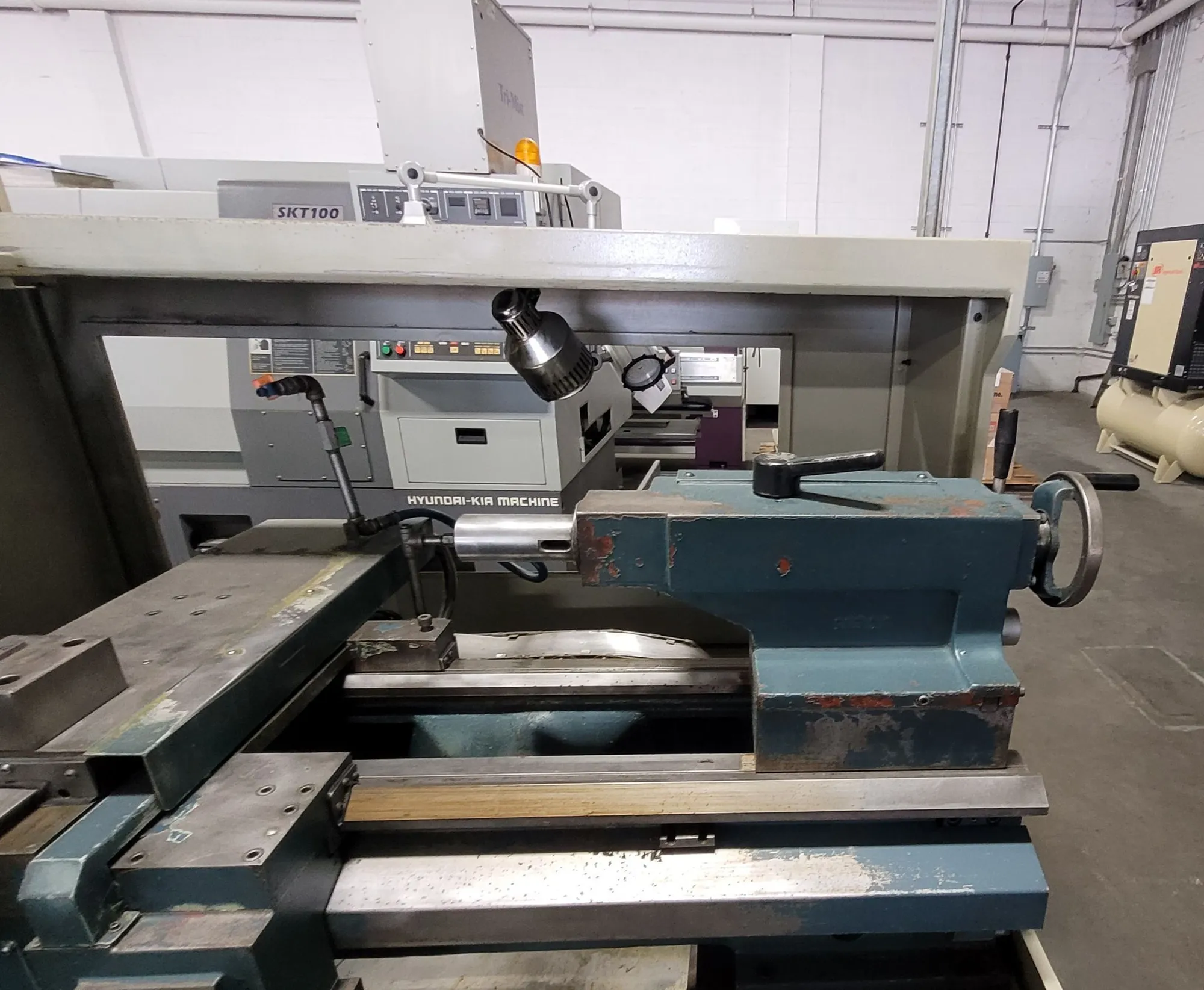

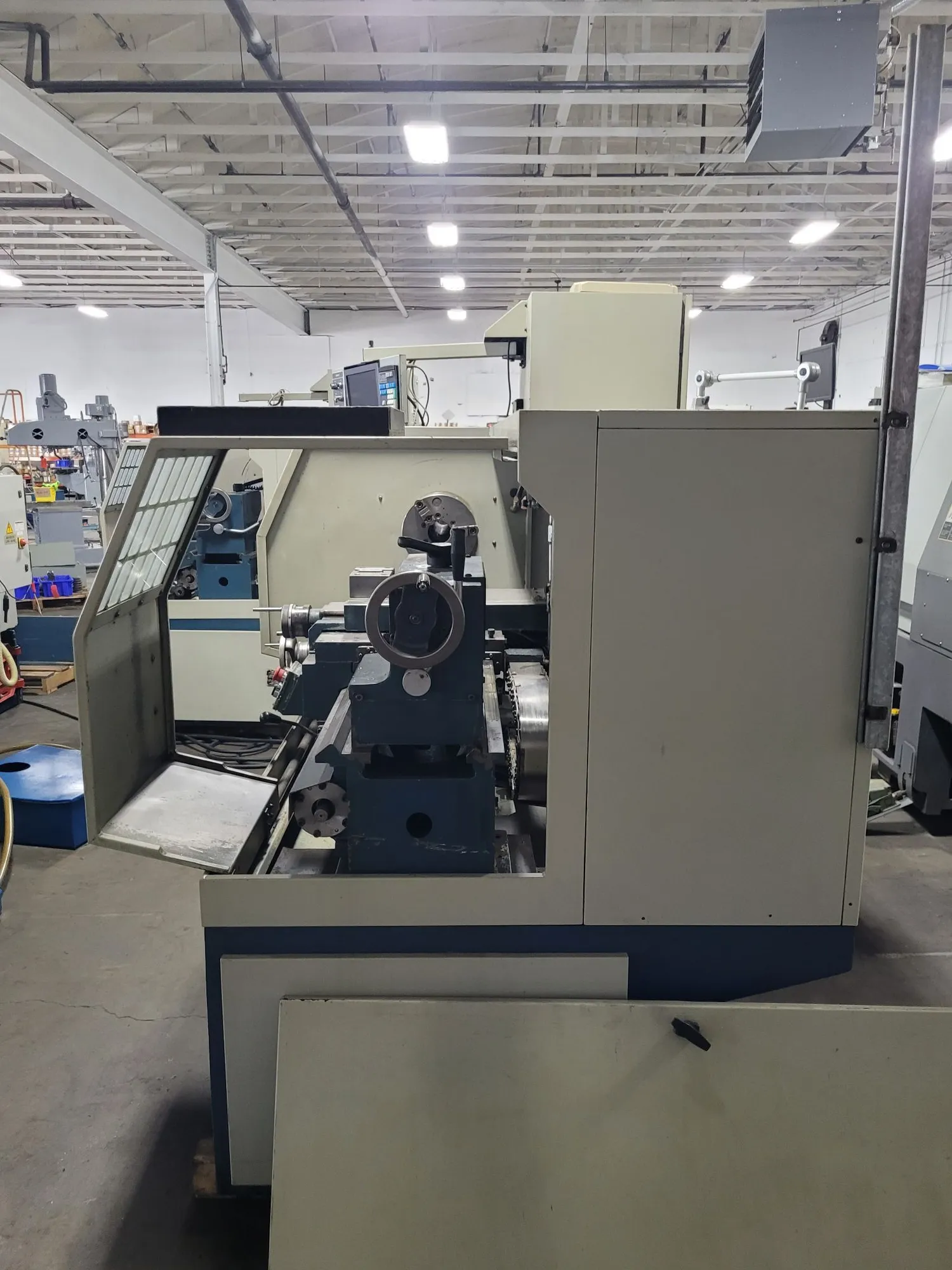

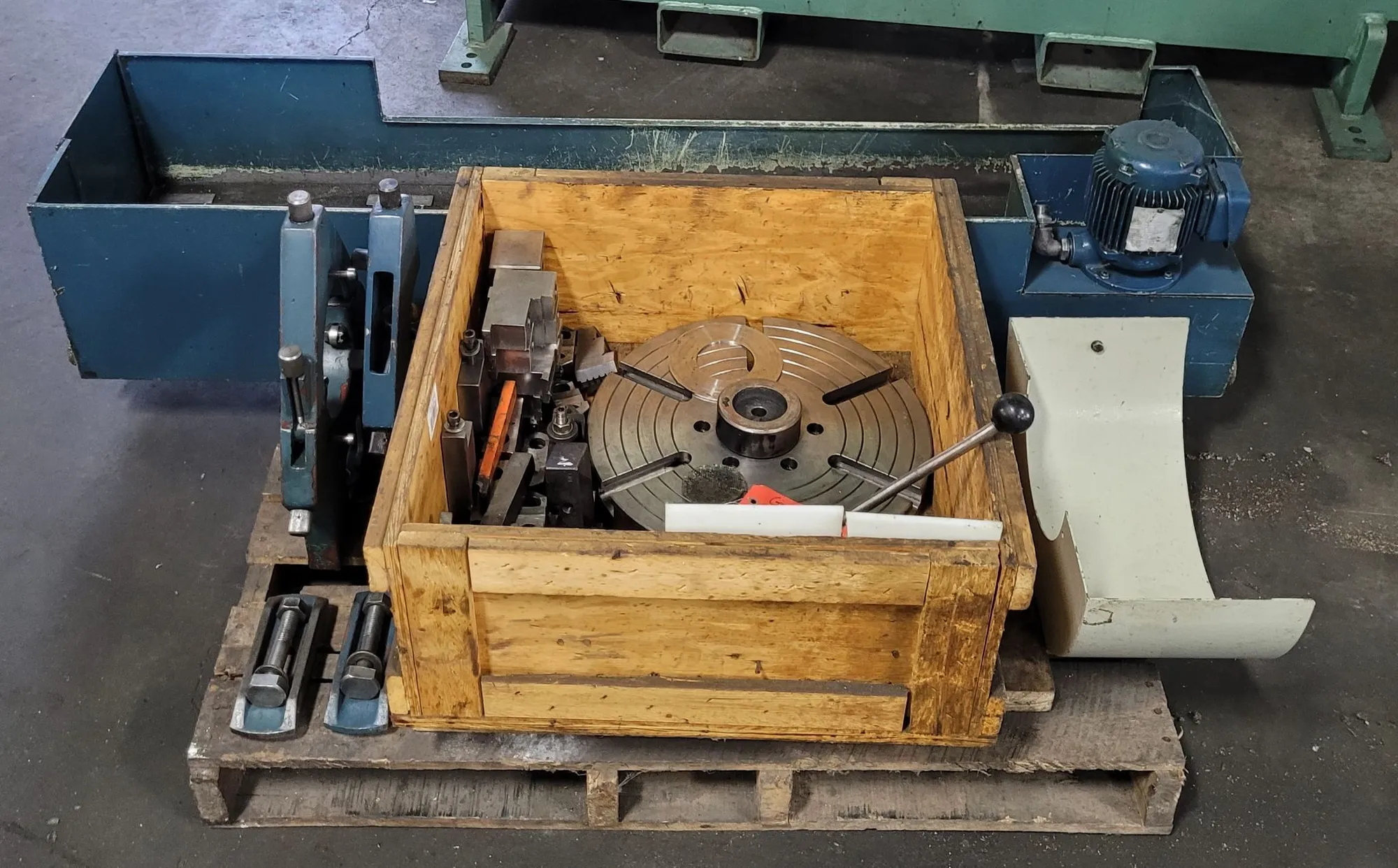

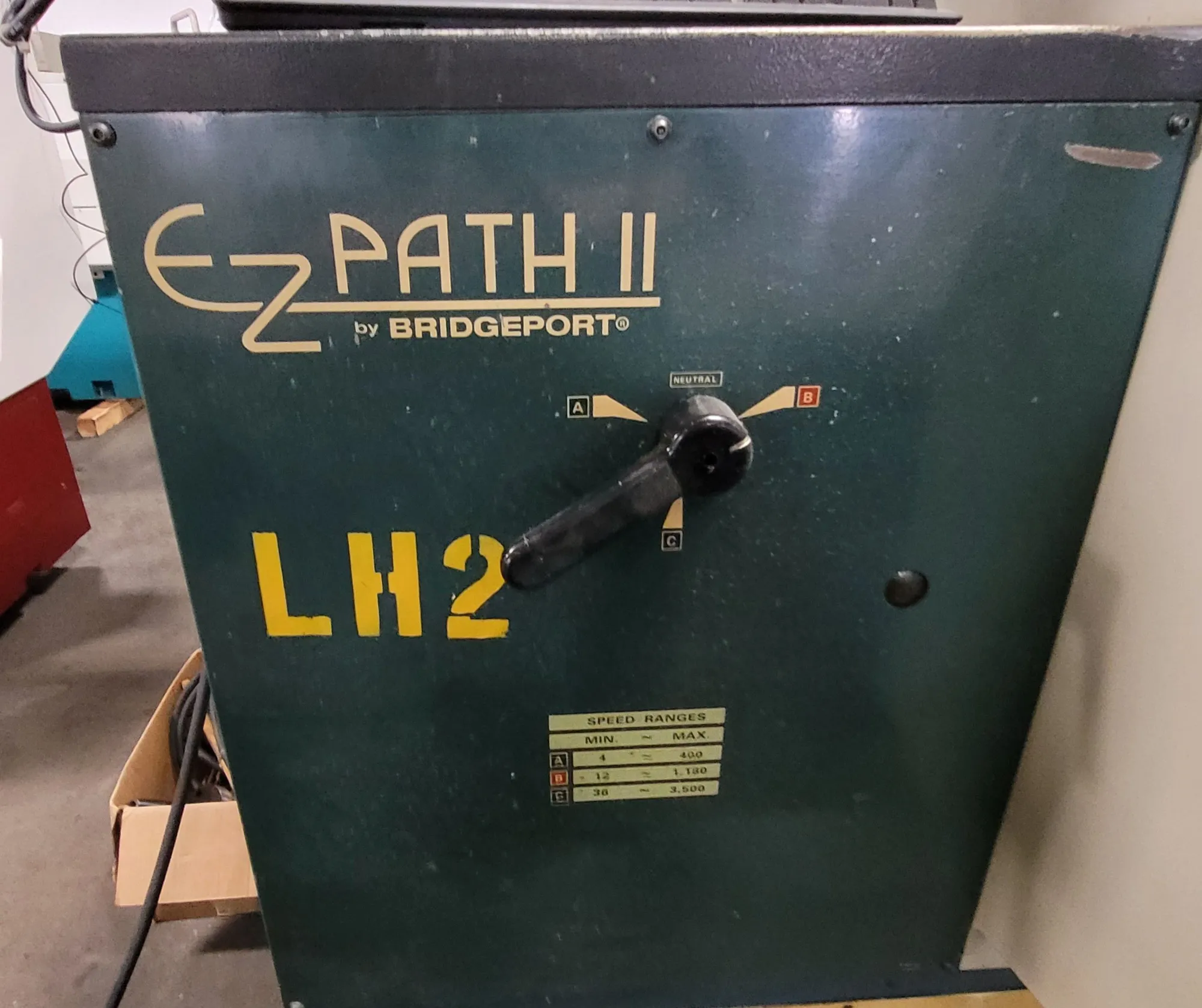

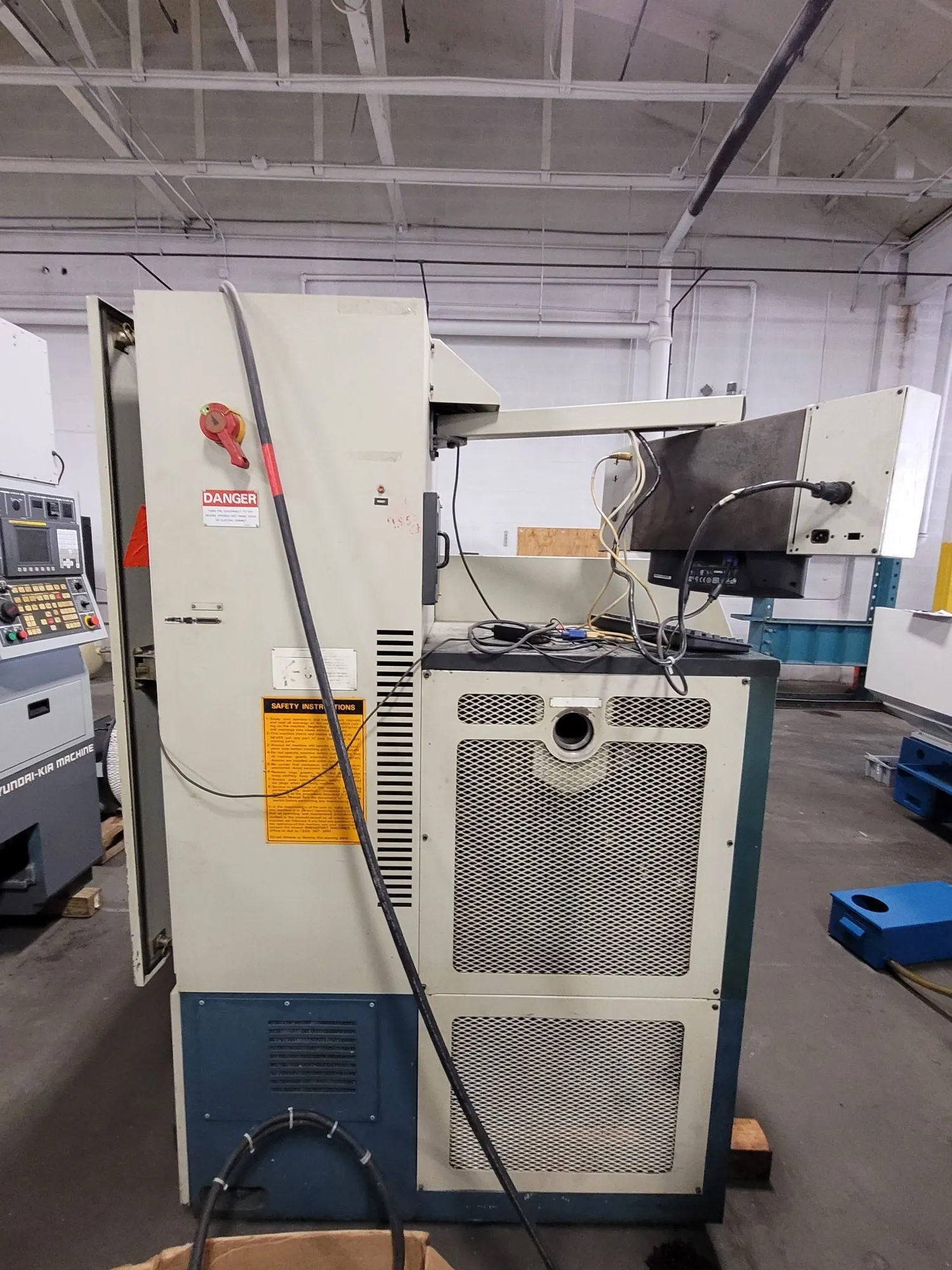

THE BRIDGEPORT ROMI EZ PATH II IS A CNC TEACH LATHE DESIGNED TO BRIDGE THE GAP BETWEEN MANUAL AND CNC OPERATIONS, FEATURING A 20 INCH SWING OVER BED AND A 40 INCH DISTANCE BETWEEN CENTERS. DRIVEN BY A 10 HP MAIN MOTOR, THE SPINDLE OFFERS VARIABLE SPEEDS RANGING UP TO 3,500 RPM AND IS TYPICALLY EQUIPPED WITH A 10 INCH 3-JAW CHUCK AND AN A2-5 SPINDLE NOSE. THE MACHINE PROVIDES A 10 INCH SWING OVER THE CROSS SLIDE AND A BAR CAPACITY OF APPROXIMATELY 2 INCHES. AXIS TRAVELS ARE DEFINED BY 10 INCHES IN THE X-AXIS AND 40 INCHES IN THE Z-AXIS, WITH RAPID TRAVERSE RATES REACHING UP TO 295 IPM AND 394 IPM RESPECTIVELY. THE CONTROL SYSTEM IS THE PROPRIETARY BRIDGEPORT EZ-PATH CNC, WHICH SUPPORTS CONVERSATIONAL PROGRAMMING, MDI, AND AN INTELLIGENT DRO MODE FOR VERSATILE MACHINING OF COMPLEX PARTS, INCLUDING THREADING, GROOVING, AND FACING. ADDITIONAL HARDWARE INCLUDES A TAILSTOCK WITH A MT #4 TAPER, A BIJUR LUBRICATION SYSTEM, A QUICK-CHANGE TOOL POST, AND A SLIDING CHIP ENCLOSURE. THE MACHINE OPERATES ON 230V, 3-PHASE POWER AT 60HZ. ITS PHYSICAL FOOTPRINT MEASURES APPROXIMATELY 107 INCHES IN LENGTH, 56 INCHES IN WIDTH, AND 66 INCHES IN HEIGHT, WITH A TOTAL MACHINE WEIGHT OF ROUGHLY 5,000 LBS.
