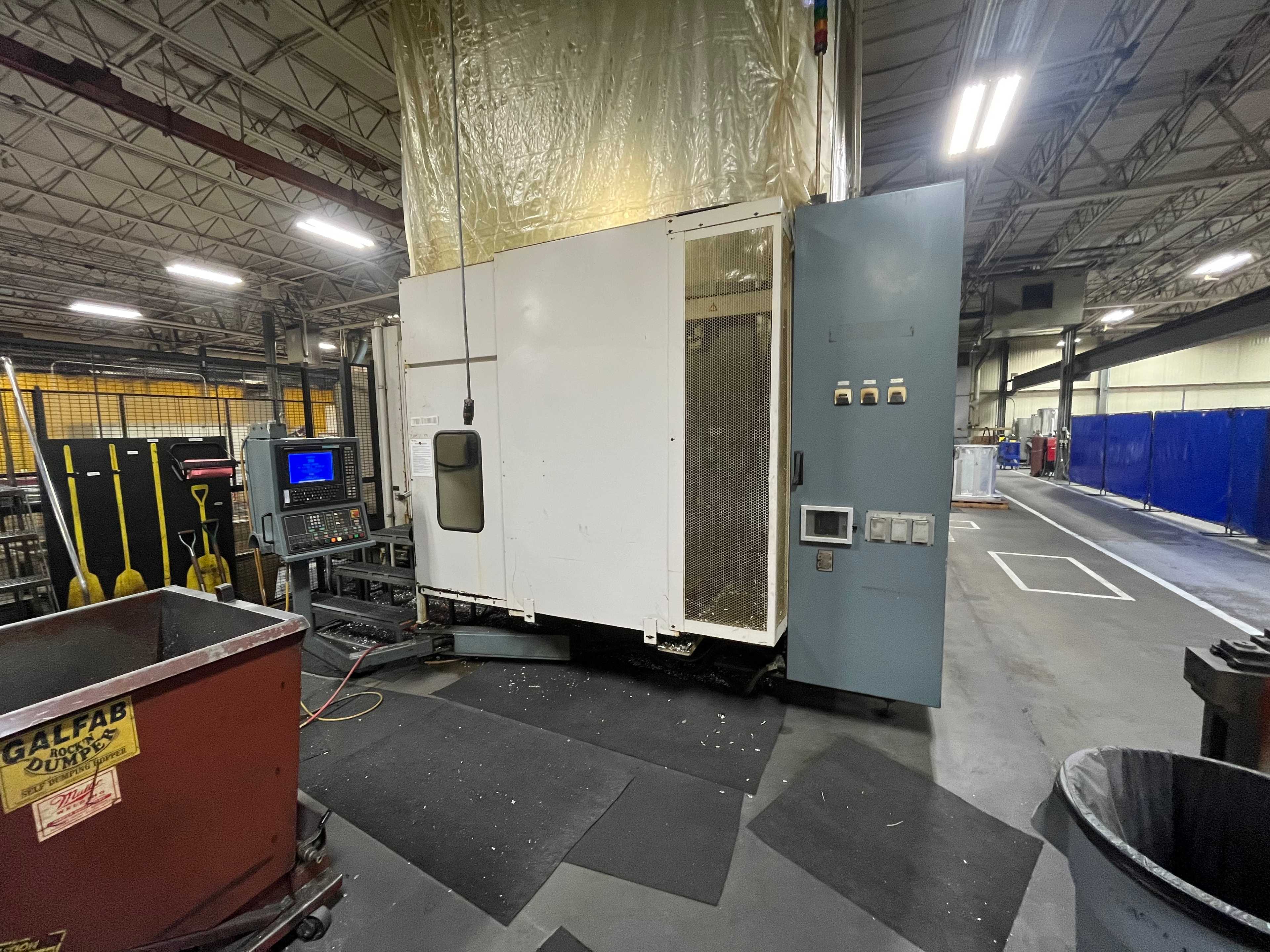

1995 Cincinnati Milacron T-35 5 Axis Horizontal Machining Center w/Siemens Acramatic 950 Control

Condition: Fair Condition details: APPX SPINDLE RUN 12010 HR APPX IN CYCLE 27995 HR ASSESSMENT ON 6/7/23 XY CIRCULARITY 0.0014 TRUE POSITION 0.0025 YZ CIRCULARITY 0.0014 TRUE POSITION 0.0038 ZX CIRCULARITY 0.0012 TRUE POSITION 0.0034 Axis Travel /Ranges . X Axis (Column) 60"-Range CL of B to CL of Spindel +/- 30". Y Axis (Spindle Carrier) 60"-Range Top of pallet to CL of Horizontal Spindel 60". Z Axis (Table) Range CL of B Axis to Horizontal spindle Gage Line -12.5" to 49.5" . Range CL of B Axis to CL of Vertical Spindle 0 to 62". Spindle. 40 hp motor. Speed 0-4000 RPM. Draw Bar Clamping Force 9000 lbs. . Cat 50 taper . Pallet Work Surface. 31.5" Sq. Max work piece Dia 50". Max Work Piece height 50". Max Weight 4500 lbs. Linear Axis Feed Rates and Thrust. Feed Rates X, Y,Z .5-150 ipm. Rapid Traverse Rates 300 ipm. Max Continuous Thrust X, Y 3000 lbs. Z 5000 lbs.. A Axis Contouring Spindle Feed Rates. 2_/min to 800_/min. B-Axis Contouring Table Fed Rates. 5_/min to 550_/min. Accuracy. Linear +/- .0004". Angular +/- 5 arc seconds . Automatic tool changer . Storage 65 tools . Max tool weight 75 lbs. Max tool length 25". Max tool dia with full pockets 4" with adjacent pocket empty 12". Chip Conveyor. Coolant . flood coolant and through the spindle (49 gal res ). Automictic work changer . The AWC is floor mounted and tied to the front base and is used to move pallets on and off of Z axis . RFID Tool Management . Voltage 460 +/- 10%. Current 112 amps. KVA 89 . 60 Hz . Air 10 scfm 90-60 psi.
