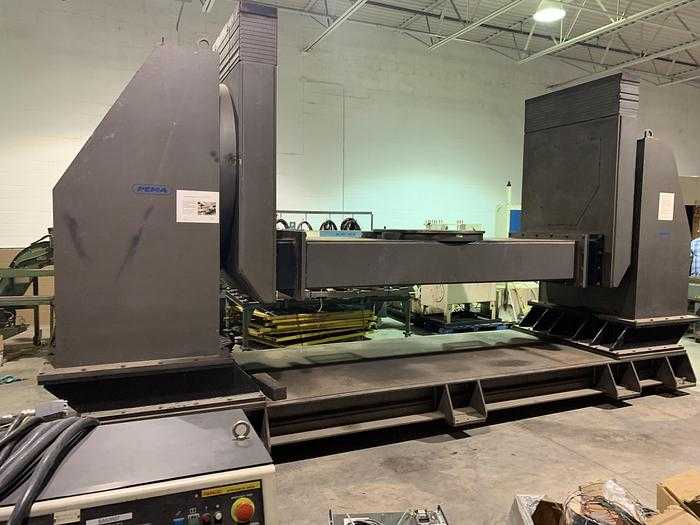

1995 Pemamek Pema 5000 Cr Welding Positioner, 11,240 lbs Capacity, 1,200 a, 4TH/5TH Axis

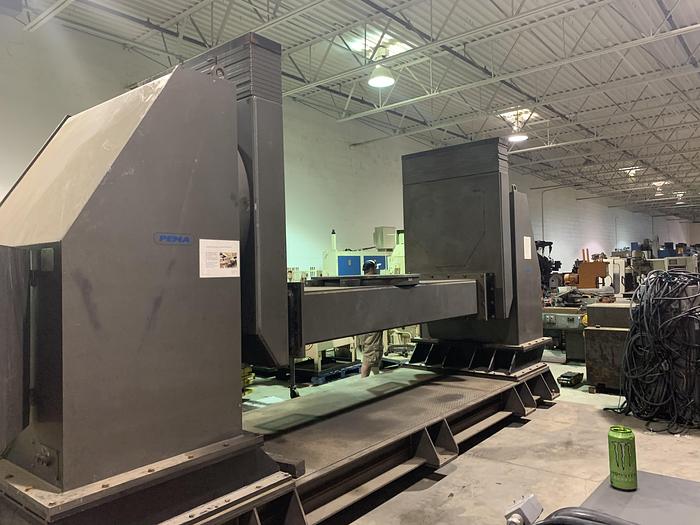

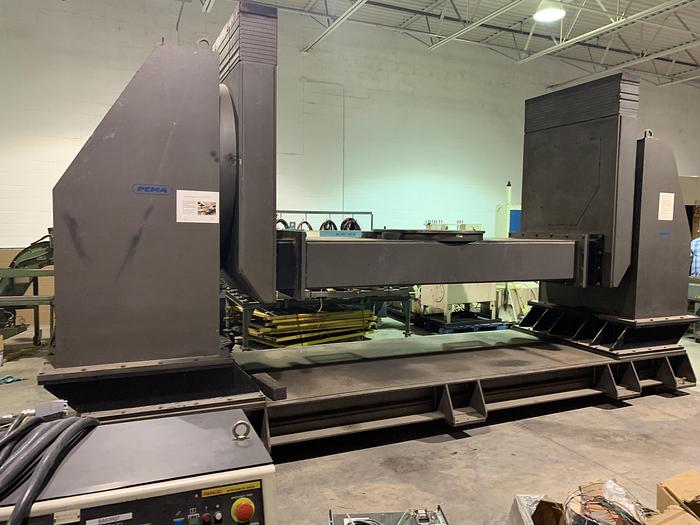

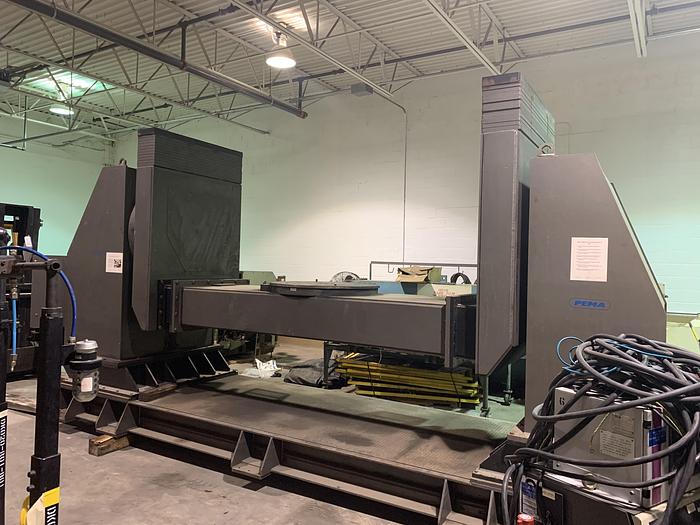

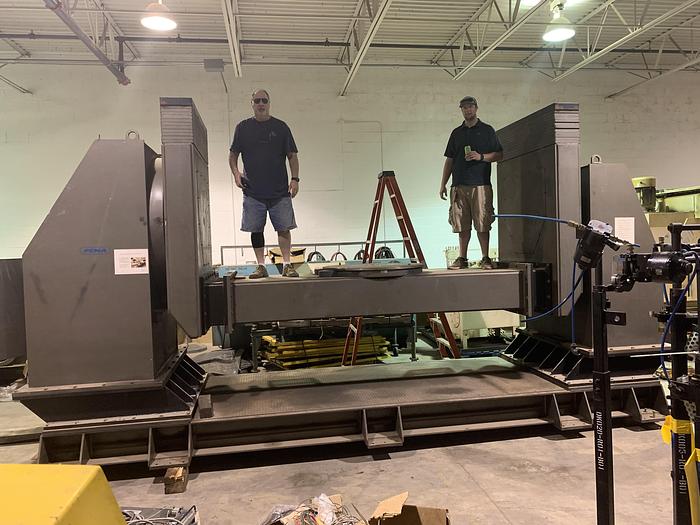

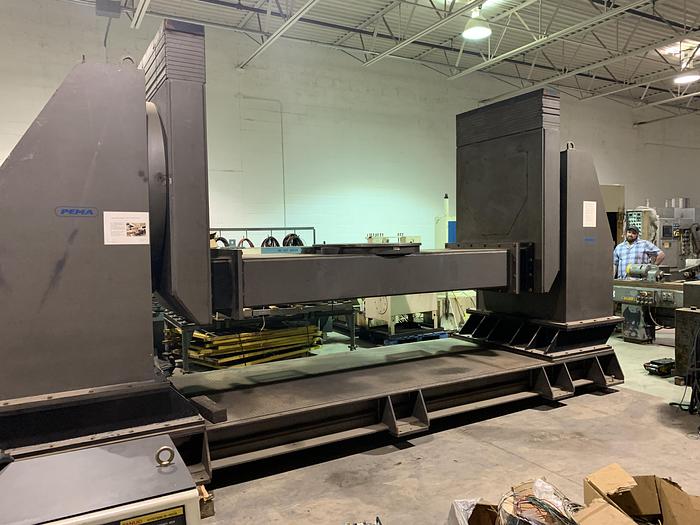

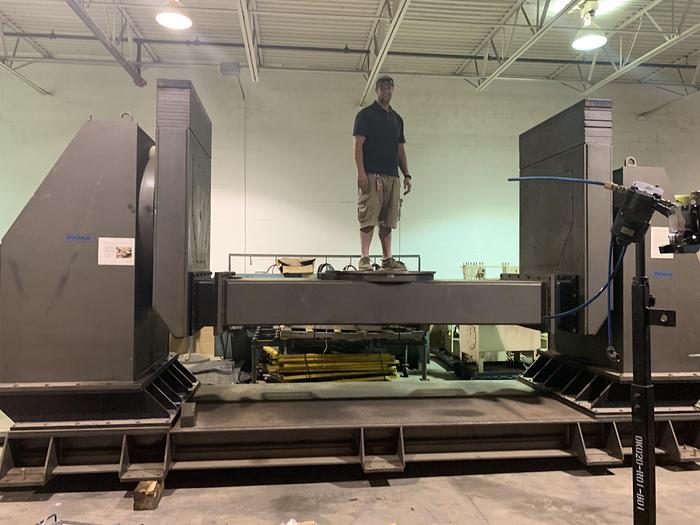

The 1995 Pemamek Pema 5000 CR is a 2-axis servo-driven drop center welding positioner designed for welding or machining applications. This equipment features a maximum loading capacity of 11,240 lbs and a rotating table diameter. The table rotation speed reaches a maximum of 15 degrees/second with a maximum rotation torque of 4,056 ft. lbs. The trunnion tilting system provides a maximum torque of 11,064 ft. lbs., a tilting speed of 6 degrees/second, and a tilting angle range of +/- 180 degrees. The unit supports a maximum welding current of 1,200 amps. Physically, the machine weighs 33,070 lbs and measures 111.22 inches in height, 74.01 inches in width, and 230.4 inches in length. Manufactured in Finland, it utilizes 4th and 5th axis positioning capabilities for precise component handling.
