Live Auction
Verified Seller
Auction Lot Ended

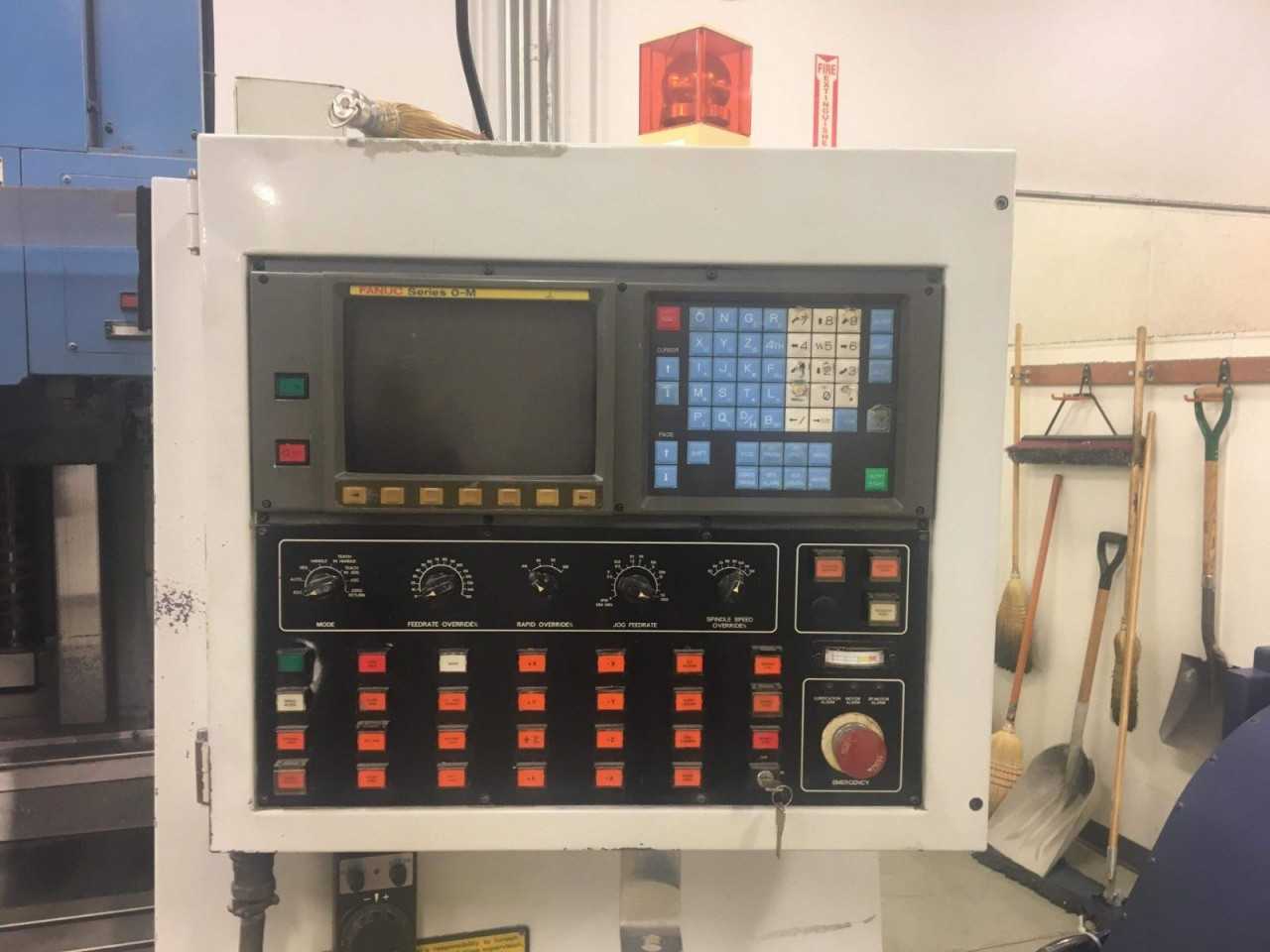

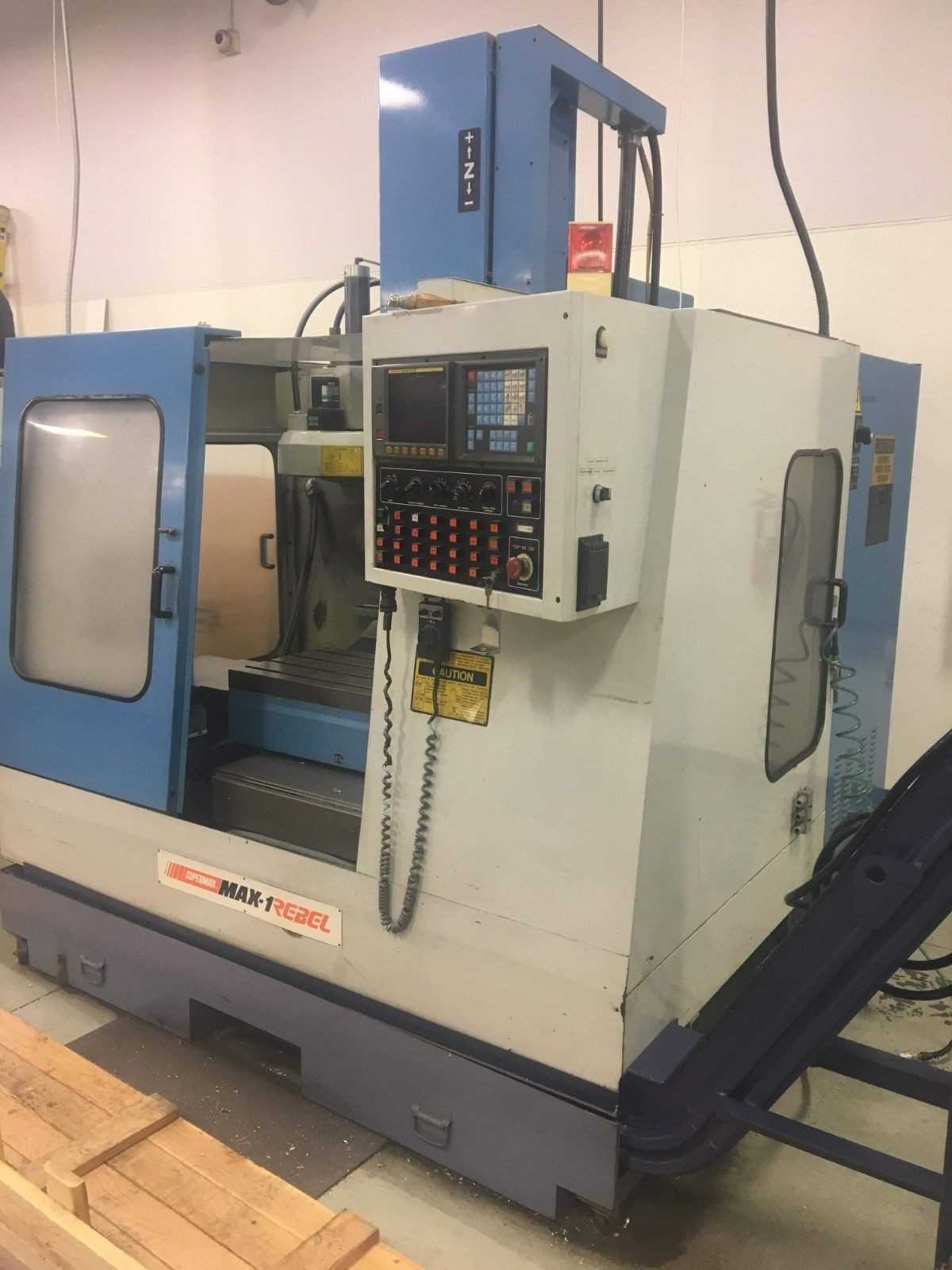

Name | 1995 Supermax Model Max 1 Rebel CNC Vertical Machining Center (Fanuc 0-M) |
---|---|
Aucto ID | 128 |
Manufacturer | Yeong Chin |
Model | Max-1 Rebel |
Additional Info | able Size 33.1"x16.5"
Table Load Capacity 770 lbs
Dist. Between Spdl & Table Top 3.9"-22.1"
Dist. Between Spdl Center & Column Front 16.1"
X-Axis Travel 25.6"
Y-Axis Travel 16.1"
Z-Axis Travel 24.2"
Spindle Speed 8,000 RPM
Spindle Taper CAT 40
Spindle Motor 30 Min. / Cont. 15HP
Tool Magazine Capacity 20 Position ATC
Rapid Traverse X,Y/Z 630/394 IPM
Machine Dimensions LxWxH 86.1"x83.0"x107.0"
Machine Weight 8400 lbs |
