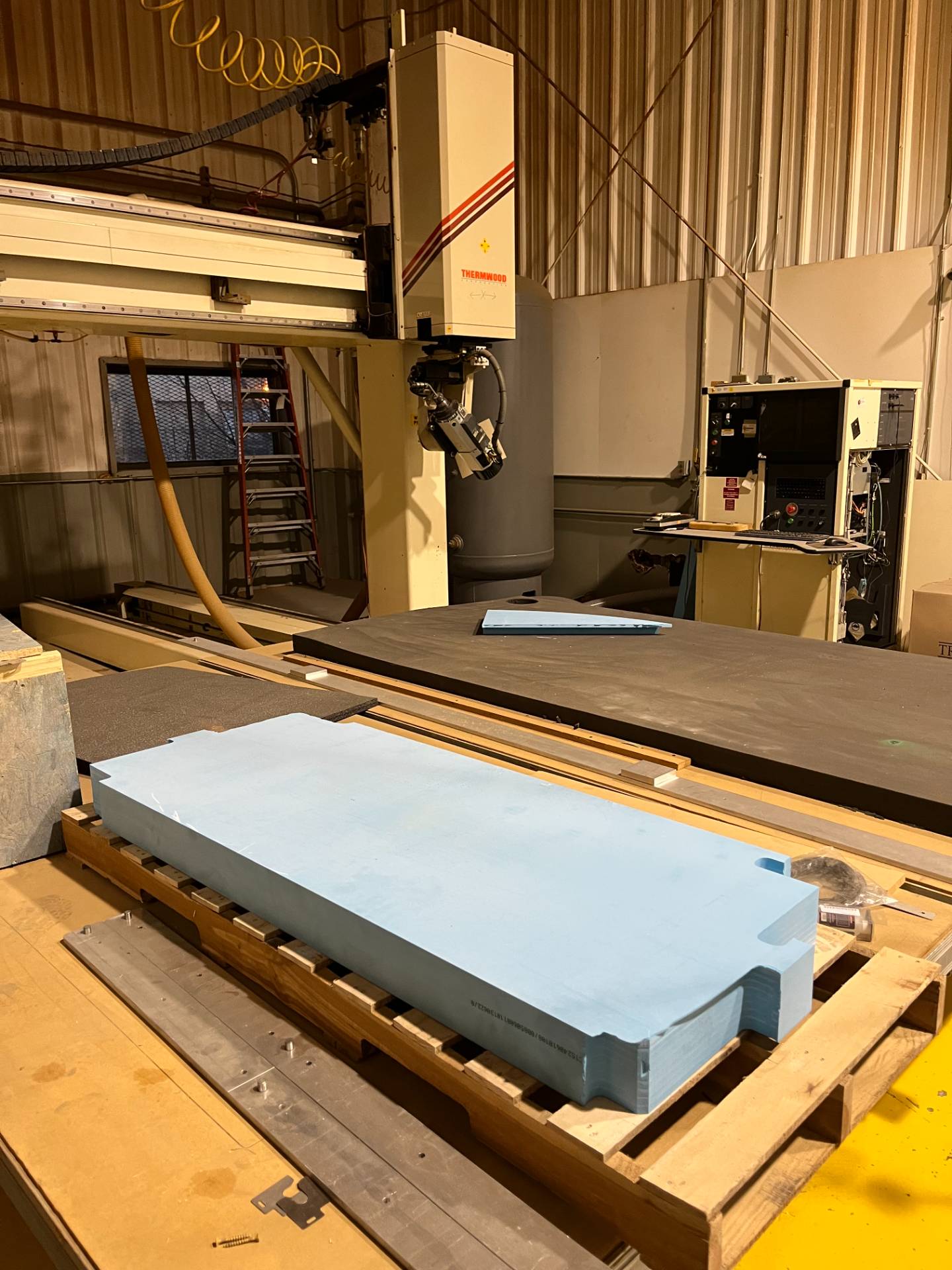

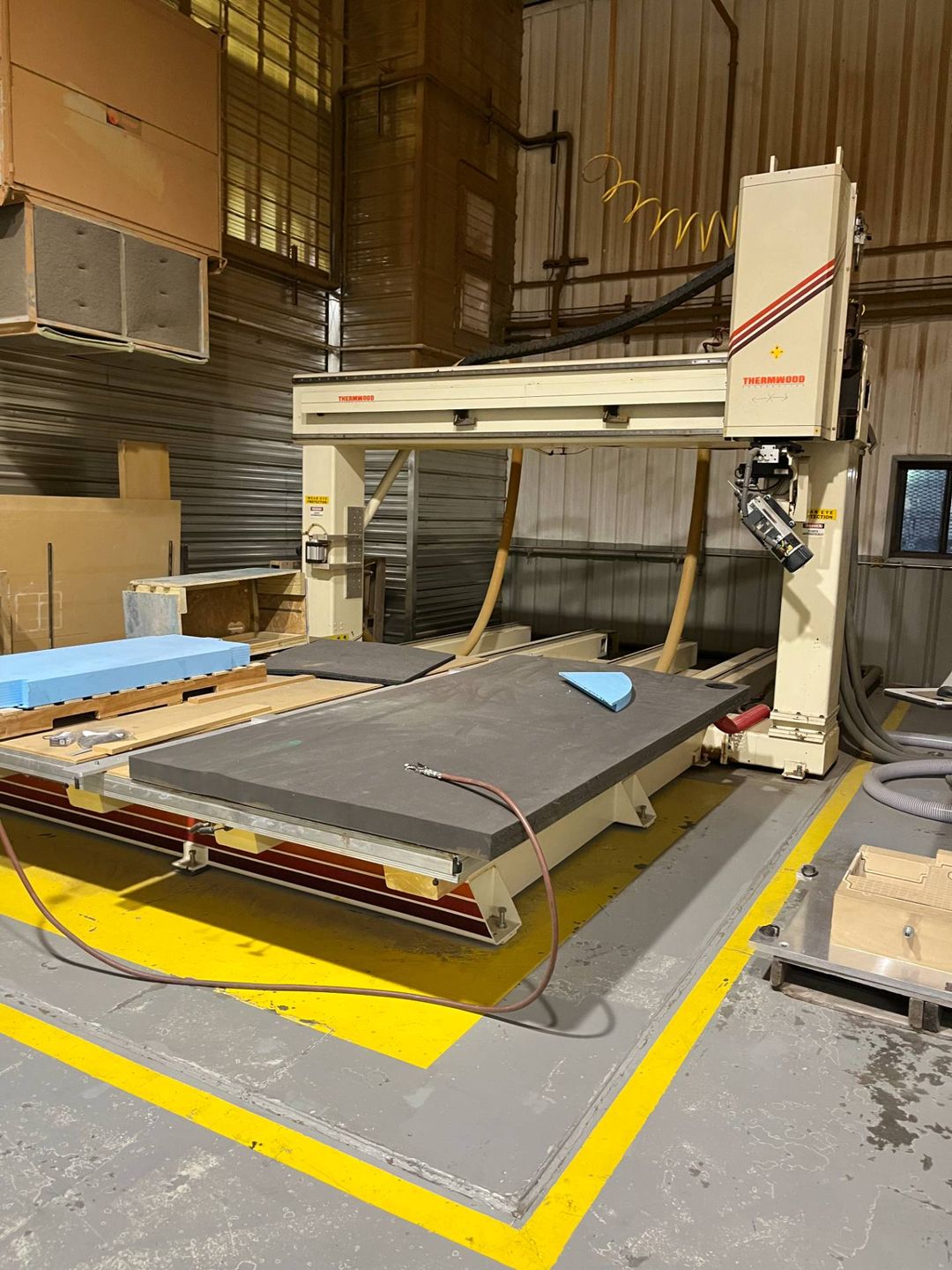

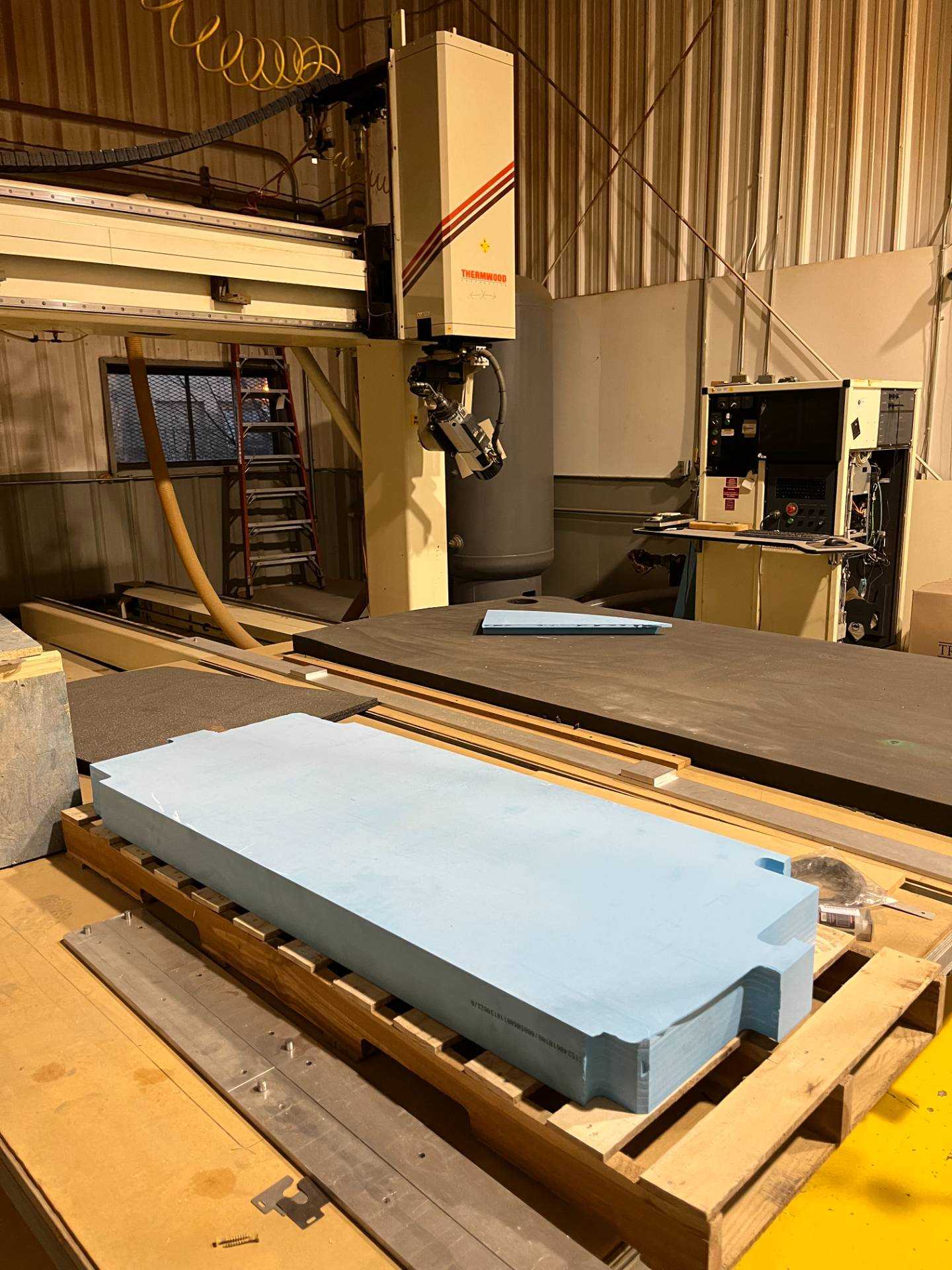

1995 THERMWOOD C67DT 5-AXIS CNC ROUTER

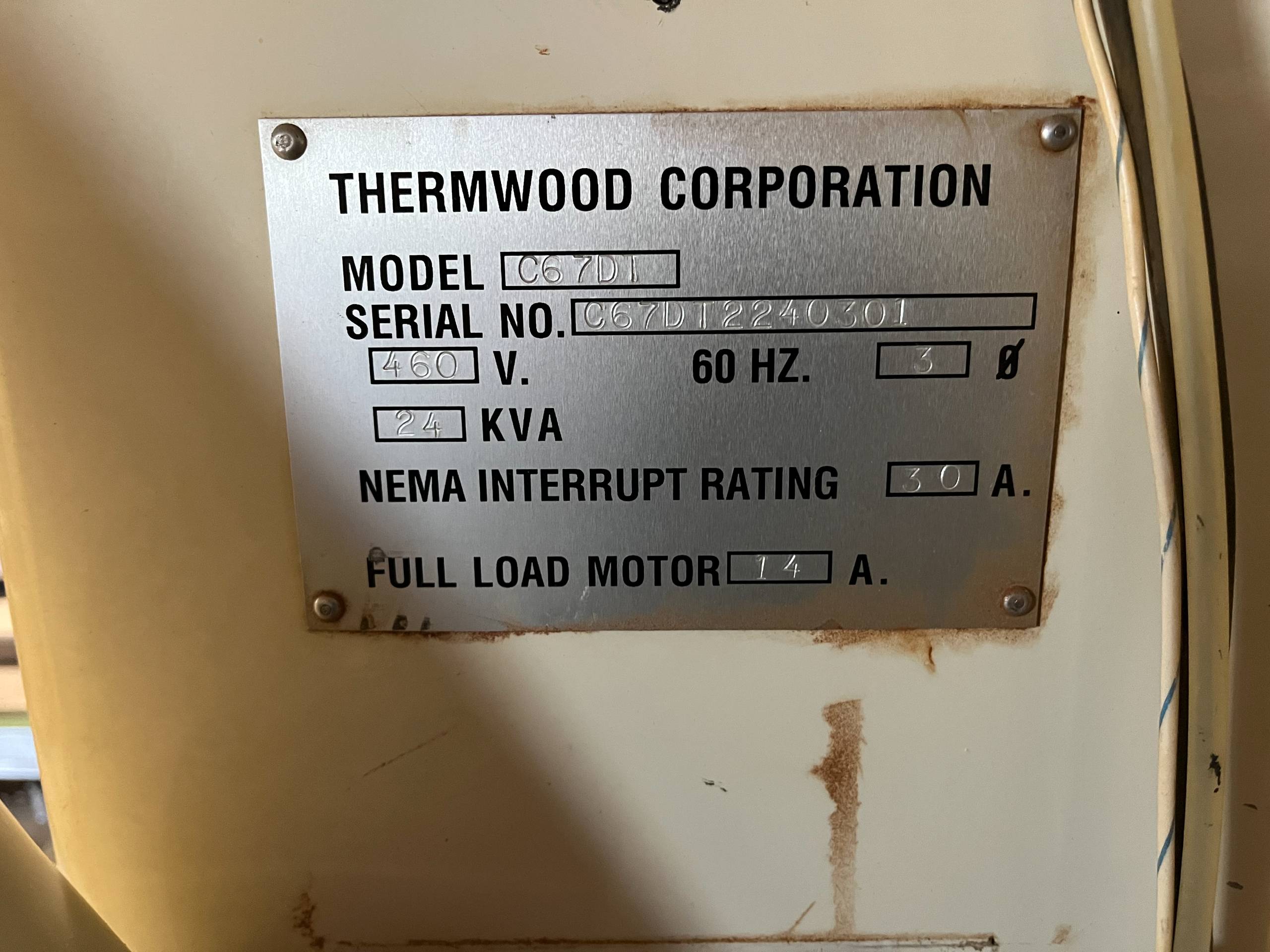

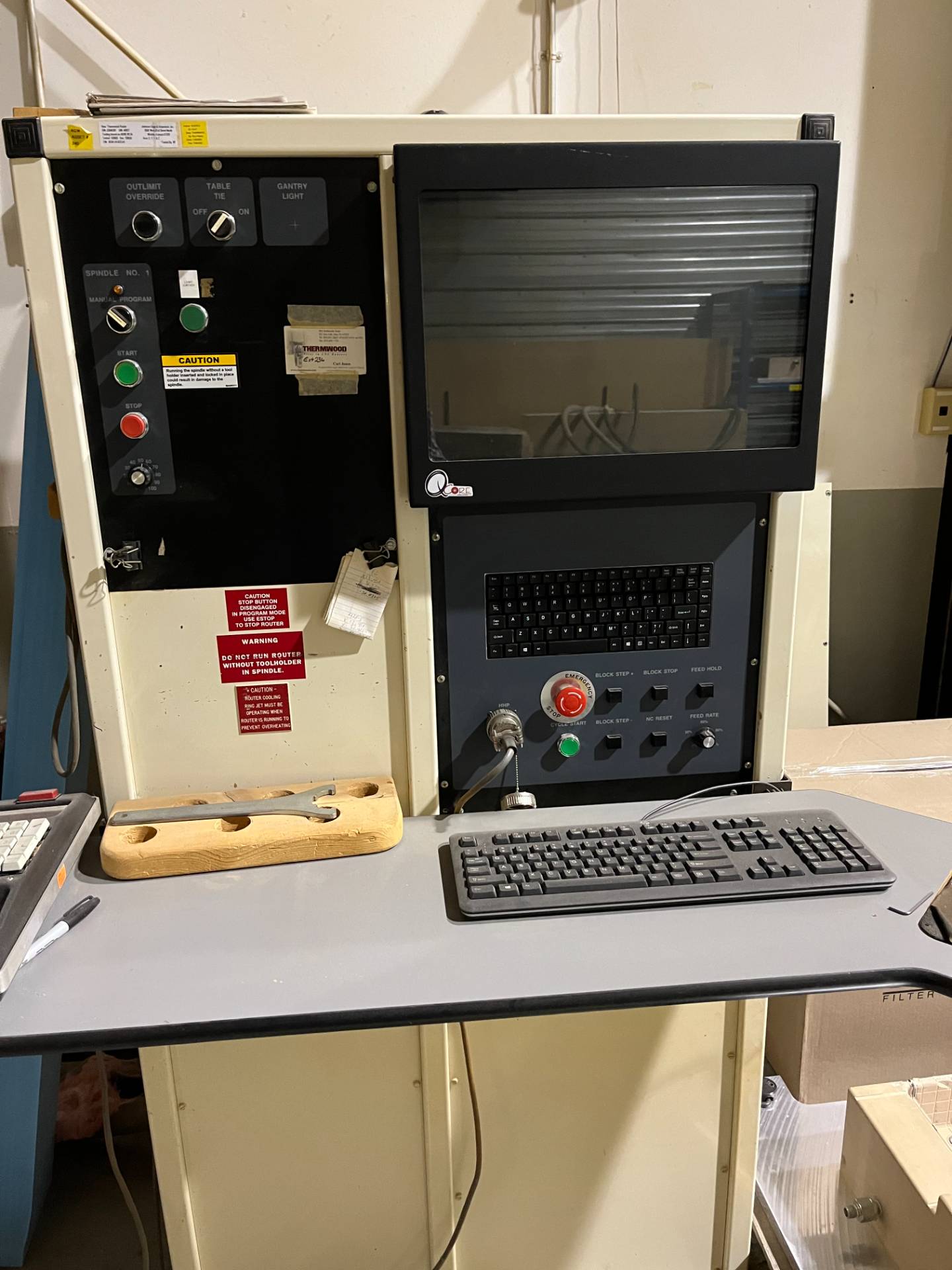

THE THERMWOOD C67DT IS A HEAVY-DUTY 5-AXIS CNC ROUTER DESIGNED FOR HIGH-PRECISION TRIMMING OF 3D PARTS, PATTERNS, AND MOLDS. THIS MOVING-TABLE STYLE MACHINE TYPICALLY FEATURES DUAL 60-INCH BY 60-INCH (5-FOOT BY 5-FOOT) ALUMINUM WORK TABLES, WHICH CAN OFTEN BE LOCKED TOGETHER TO CREATE A SINGLE 60-INCH BY 120-INCH (5-FOOT BY 10-FOOT) MACHINING AREA. TECHNICAL SPECIFICATIONS FOR THIS MODEL INCLUDE AN X-AXIS TRAVEL OF 120 INCHES, A Y-AXIS TRAVEL OF 60 INCHES, AND A Z-AXIS STROKE RANGING FROM 24 TO 36 INCHES, WITH SOME CONFIGURATIONS SUPPORTING UP TO 48 INCHES. THE ROTATIONAL AXIS (C-AXIS) PROVIDES 360-DEGREE MOVEMENT, WHILE THE TILT AXIS (A/B-AXIS) OFFERS 180 TO 270 DEGREES OF MOTION. THE MACHINE IS COMMONLY EQUIPPED WITH A 7.5 HP TO 10 HP DUAL-ENDED OR ATC SPINDLE, CAPABLE OF SPEEDS BETWEEN 3,000 AND 18,000 OR 24,000 RPM. CONTROL IS TYPICALLY MANAGED BY THE THERMWOOD 91,000 SUPERCONTROL OR UPGRADED Q-CORE CNC SYSTEMS RUNNING ON WINDOWS-BASED SOFTWARE. ADDITIONAL TECHNICAL FEATURES INCLUDE A 6-POSITION AUTOMATIC TOOL CHANGER, SIEMENS INTELLIGENT SERVO DRIVES, AND A MULTI-FUNCTION VACUUM TABLE WITH A MACHINED ALUMINUM GRID. ELECTRICAL REQUIREMENTS ARE GENERALLY 220V, 240V, OR 460V, 3-PHASE, 60 HZ. THE C67DT UTILIZES ALL-AXIS BALL SCREW DRIVES TO ACHIEVE FEED RATES UP TO 1,200 INCHES PER MINUTE AND INCORPORATES AN AUTOMATIC LUBRICATION SYSTEM FOR GANTRY RAIL AND BALL SCREW BEARINGS.
