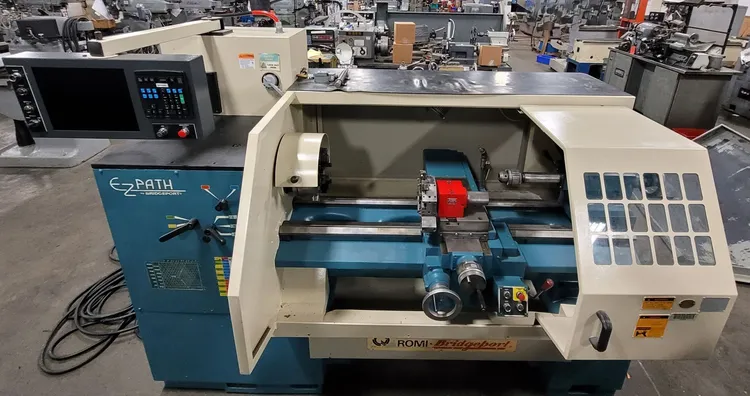

1996 BRIDGEPORT ROMI EZ PATH CNC LATHE, 16.5" SWING, 40" Z, 8 HP, 3000 RPM, 5000 LBS.

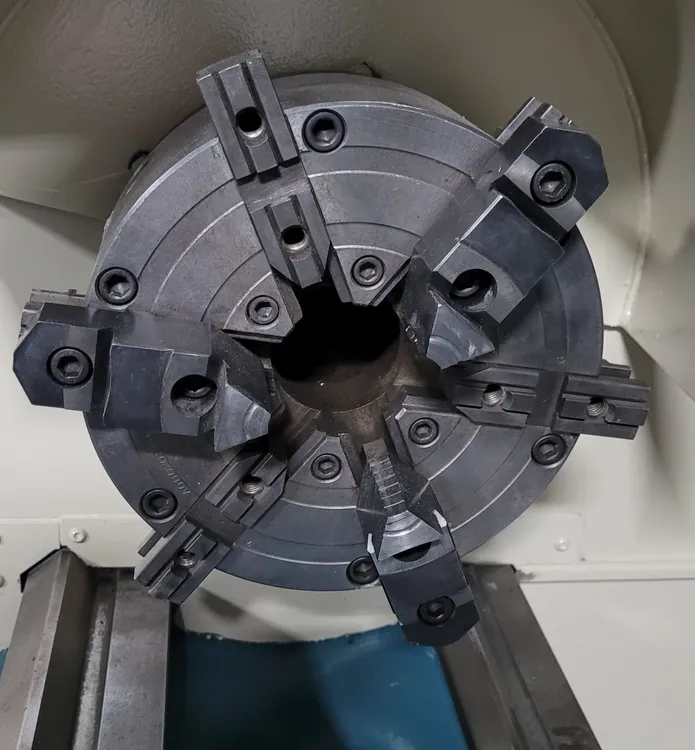

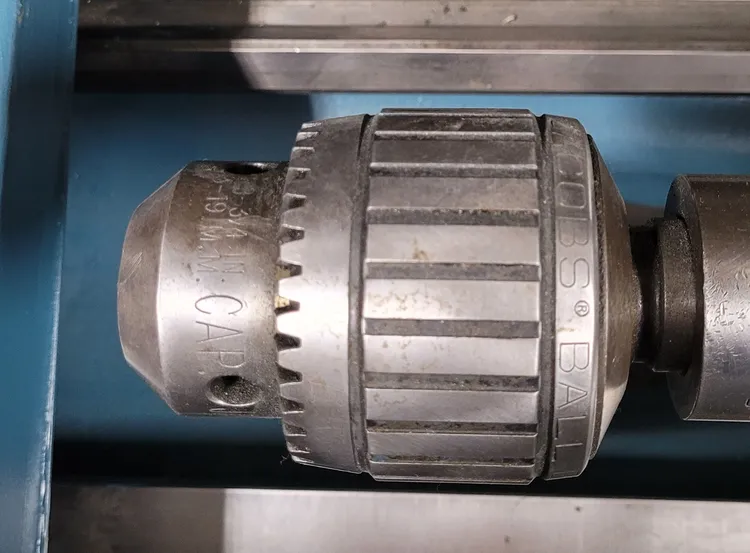

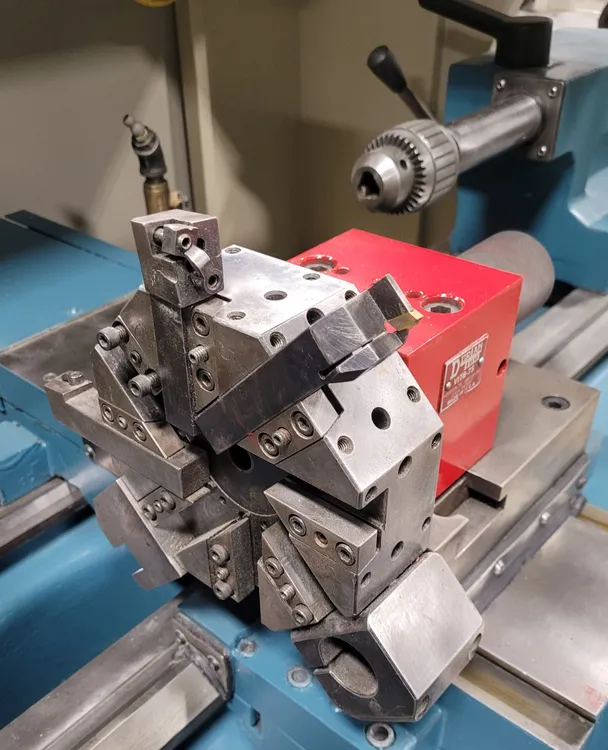

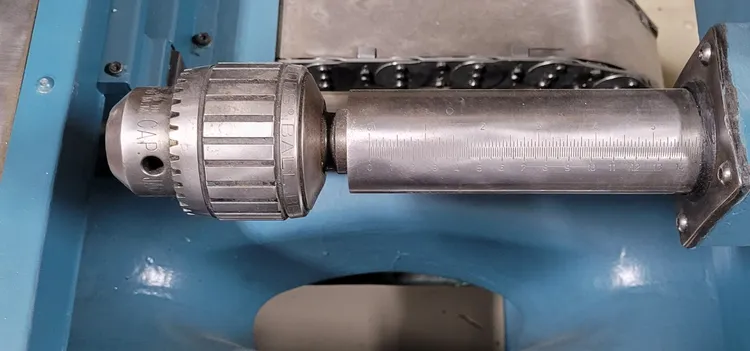

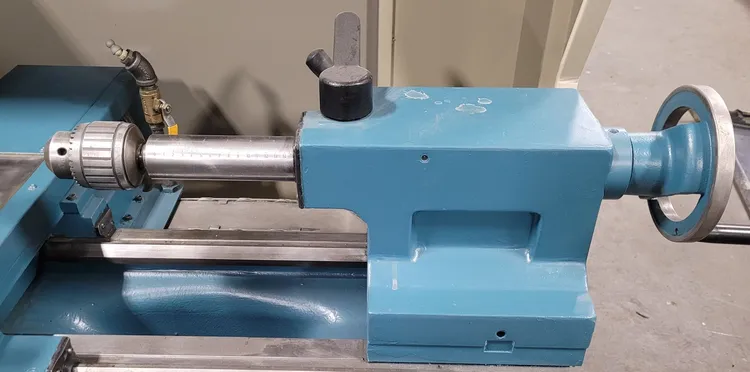

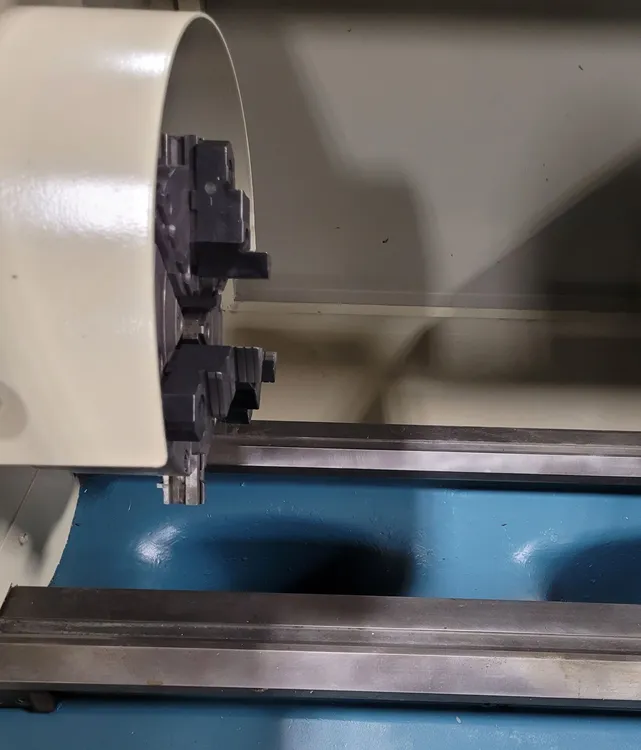

THIS BRIDGEPORT ROMI EZ PATH CNC LATHE FEATURES A MAXIMUM SWING OVER WAYS OF 16.5 INCHES AND A SWING OVER THE CROSS SLIDE OF 8.6 INCHES, WITH A MAXIMUM CENTER DISTANCE AND LONGITUDINAL (Z) TRAVEL OF 40 INCHES. THE CROSS-SLIDE (X) TRAVEL IS 8.6 INCHES. THE MACHINE IS EQUIPPED WITH AN 8 HP SPINDLE DRIVE MOTOR AND HAS SPINDLE SPEEDS RANGING FROM 37.5 TO 3,000 RPM THROUGH A (24) GEARED HEAD. IT INCLUDES AN 8-INCH CHUCK AND A JACOBS 18N DRILL CHUCK. THE SPINDLE HAS AN A2-5 NOSE AND A 1.97-INCH HOLE THROUGH THE SPINDLE. A TAILSTOCK IS PRESENT WITH A 4 MT QUILL TAPER AND 6.3 INCHES OF QUILL TRAVEL. THE ELECTRICAL REQUIREMENTS ARE 460V, 3 PHASE, 60 HERTZ, WITH A FULL LOAD CURRENT OF 15 AMPS. THE RATING OF THE LARGEST MOTOR IS 11.5 AMPS. THE APPROXIMATE WEIGHT OF THE MACHINE IS 5000 LBS. THIS MODEL IS CONFIGURED WITH A NEW CONTROLLER AND A DORIAN TURRET.
