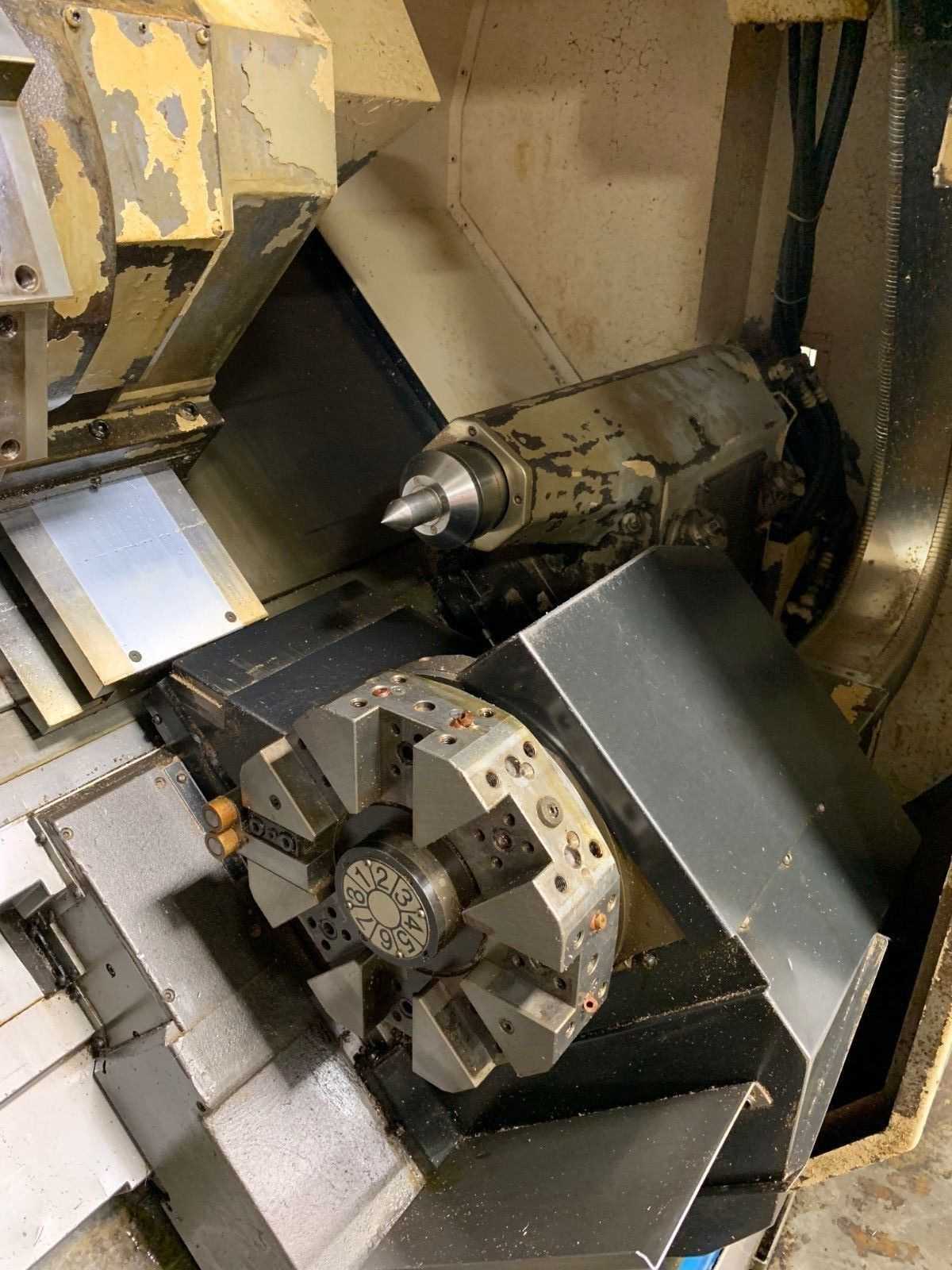

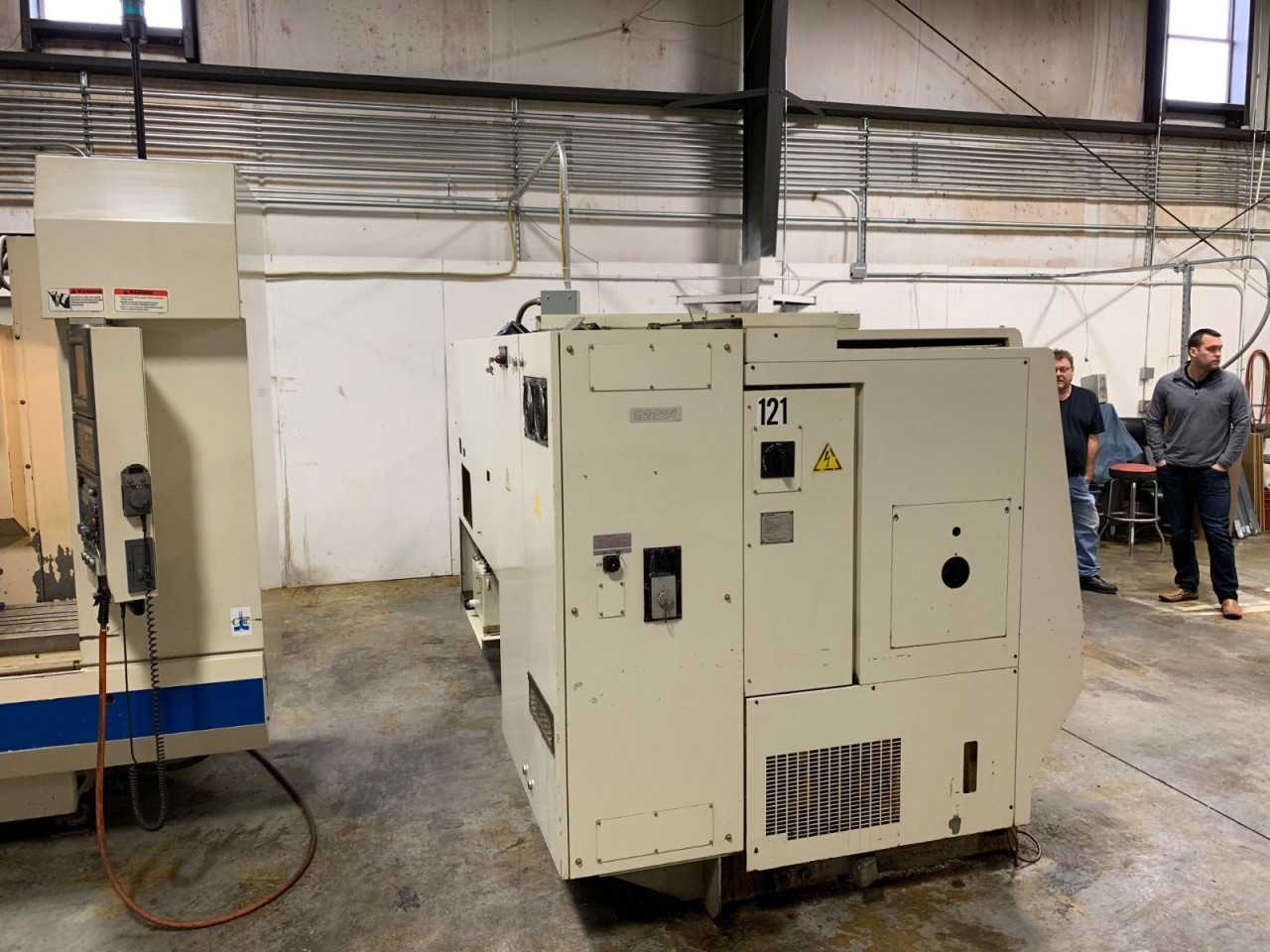

1996 Okuma LU-15 - Dual Turret

Chuck Size 8" Max Diameter Bar Capacity 2" Max Swing Over Bed / Carriage 20.87" / 14.96" Max Turning Diameter 14.17" Rapid Traverse Rates (X / Z) 591 / 787 IPM Spindle Bore 2.44" Spindle Motor 30 / 20 HP Spindle Nose A2-6 Spindle Speed 45 - 4500 RPM Tailstock Taper MT#4 Tools (Upper / Lower Turret) 12 / 8 Turret Index (Single Step) 0.2 Seconds X-Axis Travel (Upper / Lower) 10.23" / 5.51" Z-Axis Travel (Upper / Lower) 25.2" / 24.21" Machine Dimensions (L x W x H) 130.22" x 82.68" x 75.87" Machine Weight 11,000 lbs. Equipped with: OKUMA OSP-5020L CNC CONTROL 10.4" Color LCD Upper and Lower Turrets for Simultaneous 4-Axis Turning 3J Collet Chuck Programmable Tailstock Slant Bed Box Way Construction Chip Conveyor
