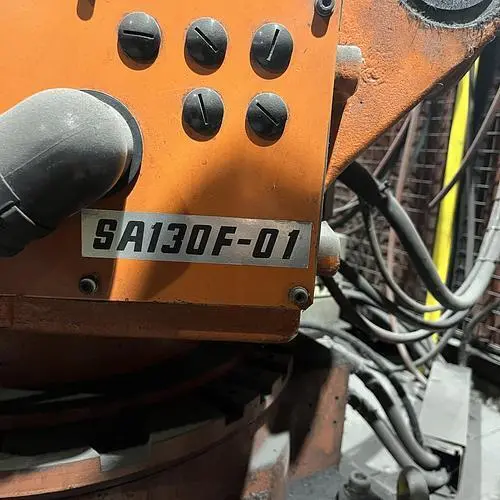

1997 NACHI SA130F-01 ROBOT SYSTEM, 130KG PAYLOAD, 2500MM REACH, ±0.2MM REPEATABILITY

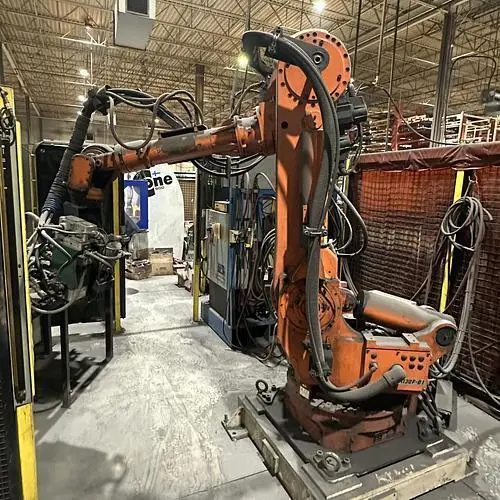

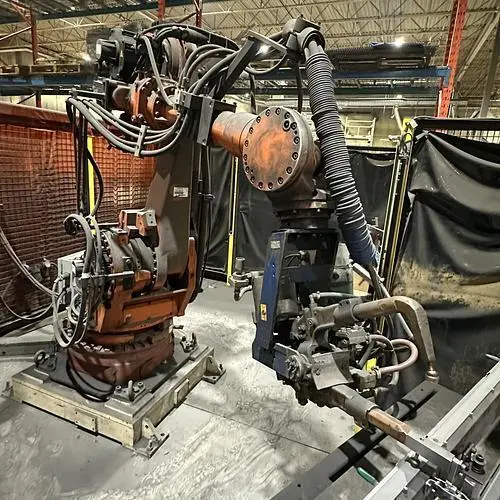

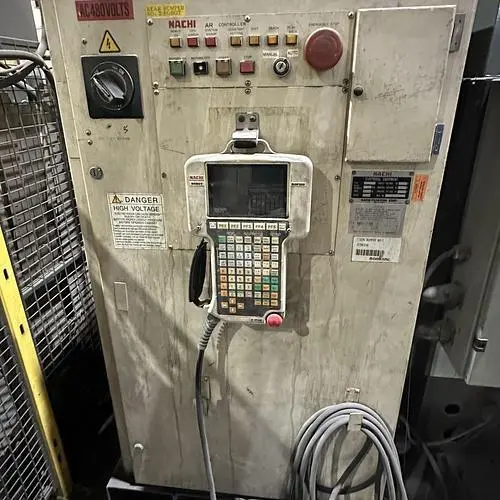

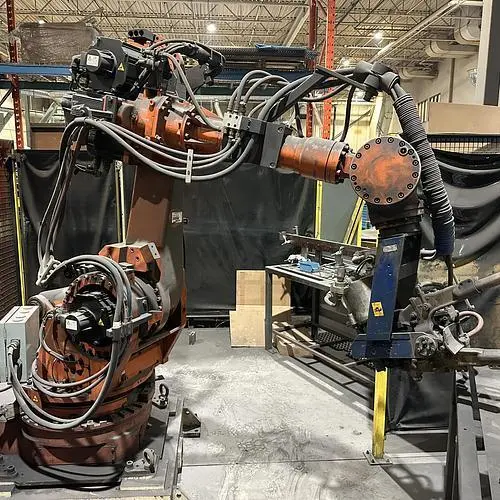

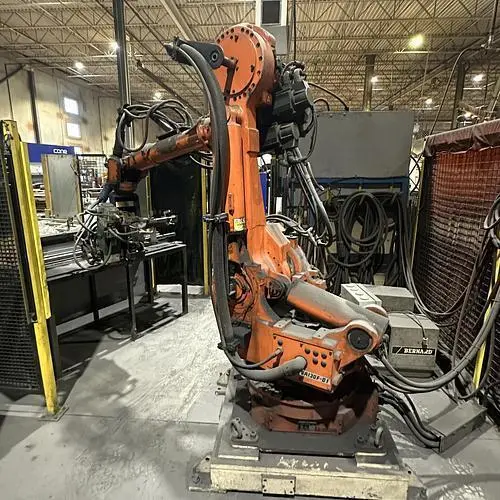

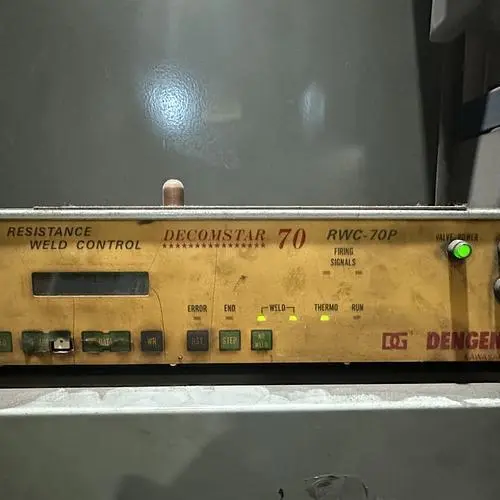

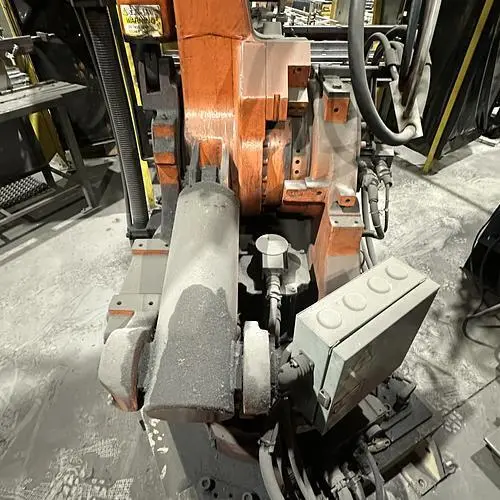

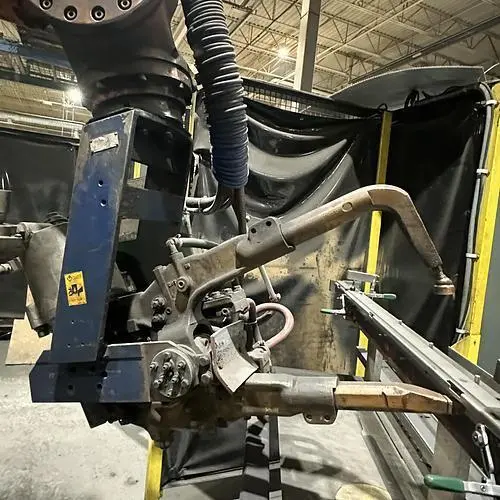

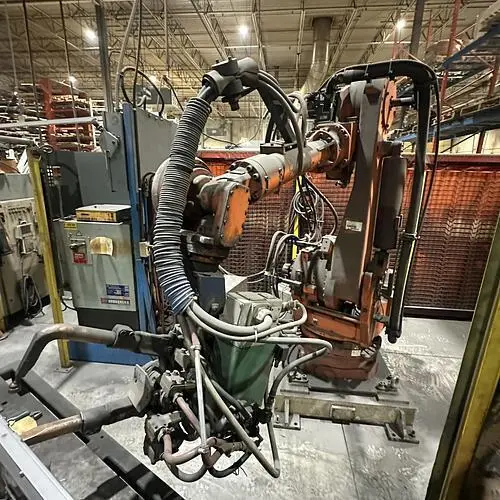

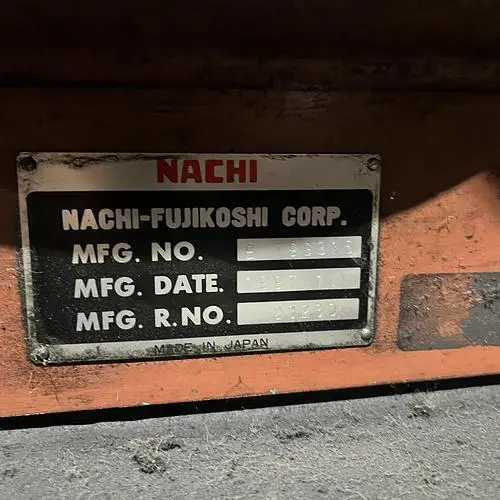

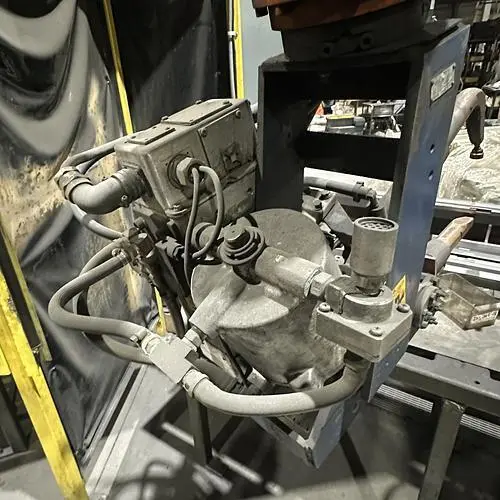

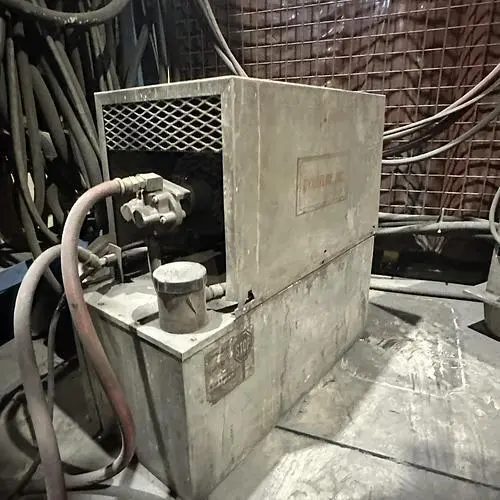

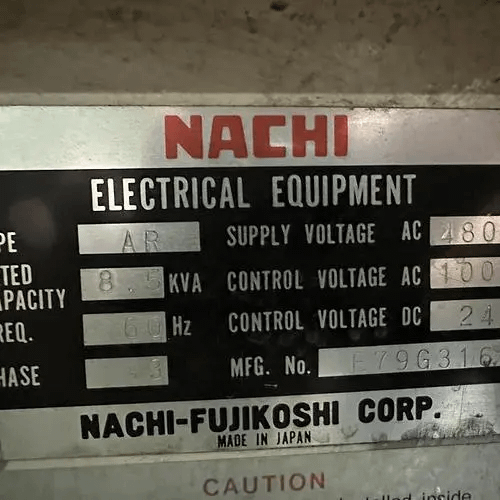

THIS LISTING FEATURES A 1997 NACHI SA130F-01 ARTICULATING ROBOT INTEGRATED WITH A DECOMSTAR 70 WELDING MACHINE. THE ROBOT IS AN ARTICULATED TYPE WITH TYPICALLY 6 DEGREES OF FREEDOM, POWERED BY 480 VAC 3-PHASE, AND WEIGHING 1280 KGS. IT OFFERS A PAYLOAD CAPACITY OF APPROXIMATELY 130 KG, AN ESTIMATED REACH OF 2,500 MM, AND A REPEATABILITY OF ±0.2 MM. MOTION SPEEDS RANGE FROM ~120°/S FOR AXES 1-3 TO ~180°/S FOR AXES 4-6, WITH MOTION RANGES UP TO ±180°. THE ROBOT OPERATES WITHIN AN AMBIENT TEMPERATURE OF 0-45°C. THE SYSTEM INCLUDES A NACHI ROP500 AR CONTROLLER, RATED FOR 480V, 8.5 KVA, 60HZ, 3PH, MANUFACTURED IN 1999. THE DENGENSHA DECOMSTAR 70 RWC-70P WELDING MACHINE, MANUFACTURED IN 1998, IS A RESISTANCE WELDING UNIT (DC INVERTER TYPE) POWERED BY 460V, 225A, 1PH, 50/60HZ, WITH A WELD CAPACITY UP TO 70KVA AND WELDING CURRENT UP TO 20,000A. IT WEIGHS 80 KG AND REQUIRES COOLING WATER AT 6L/MIN AT 30°C MAX. WELDING FORCE IS ADJUSTABLE UP TO 500KGF, WITH A 50% DUTY CYCLE AND WELDING TIME ADJUSTABLE FROM 1-99 CYCLES (1 CYCLE = 1/60 SECOND). BERNARD AND DYNAFLUX COOLERS ARE ALSO INCLUDED.
