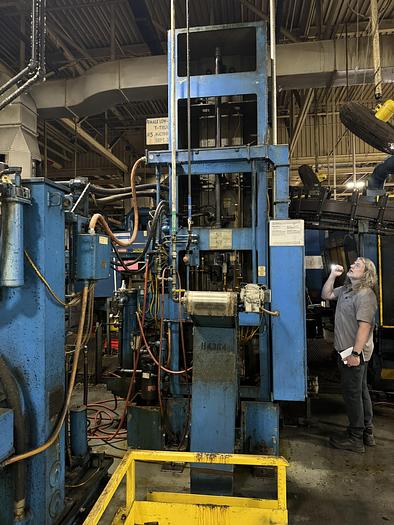

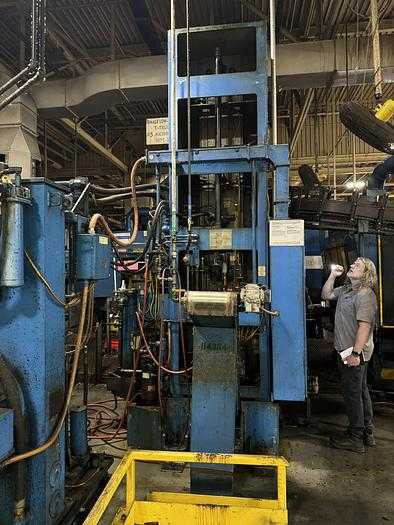

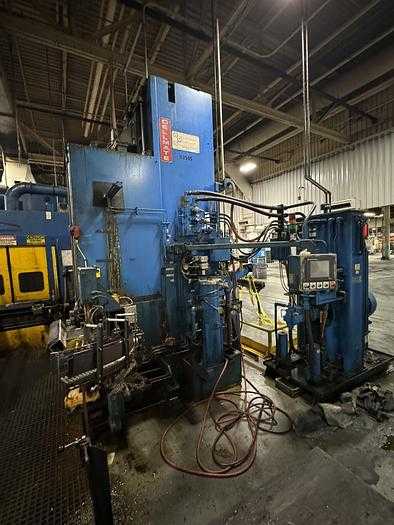

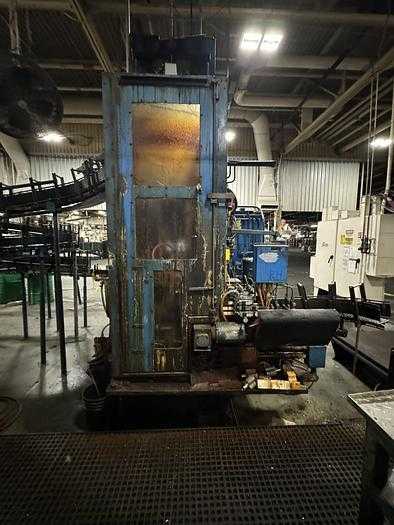

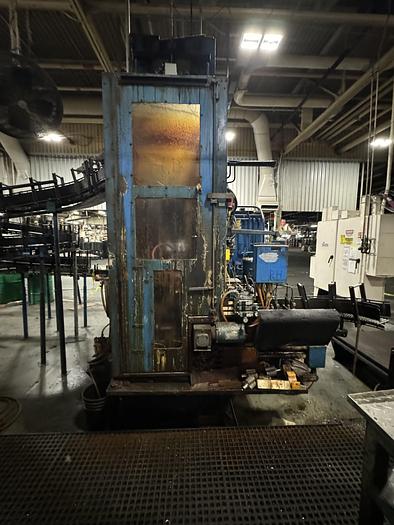

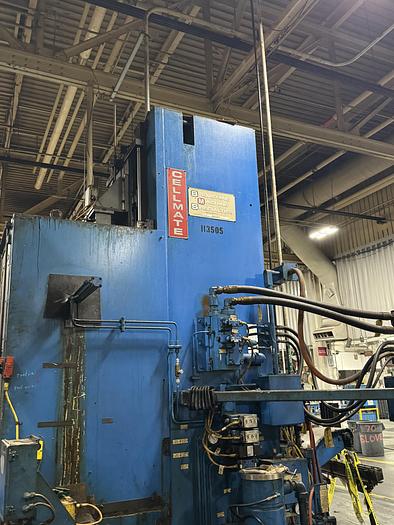

1998 Bms Cellmate BMCM15-48 Internal Broaching Machine, 15 Ton, 48" Stroke, Dual-Station

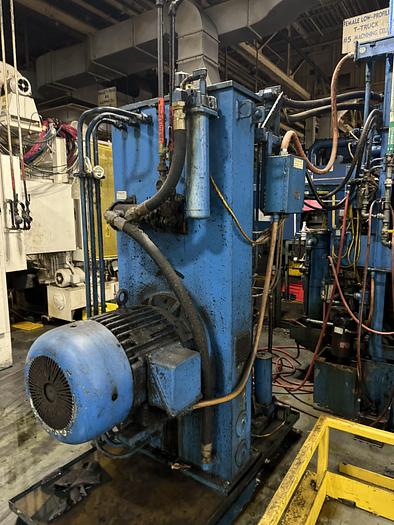

The 1998 Bms Cellmate BMCM15-48 is a dual-station vertical table-up internal broaching machine designed for high-production cell manufacturing environments. It features a pulling capacity of 30,000 lbs (15 tons) and a 48-inch stroke. The machine is engineered for floor-level loading to eliminate the need for pits or operator stands. Technical specifications include a maximum cutting speed of 30 FPM and a maximum return speed of 60 FPM. The hydraulic system is gravity-fed with an oil reservoir capacity of 200 gallons, while the coolant reservoir holds 175 gallons. Power is provided by a 40 HP main motor. The physical footprint of the unit is approximately 118 inches by 72 inches, with an overall height of 164 inches and a weight of 32,000 lbs. This model is equipped with a dual-station setup, an auto-loader, a chip conveyor, and an external hydraulic unit. Control is managed via a JLC controls panel and an operator's station. Its vertical table-up design facilitates internal broaching operations and offers flexibility for integration into various manufacturing cells.
