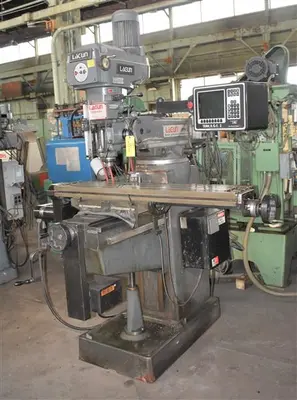

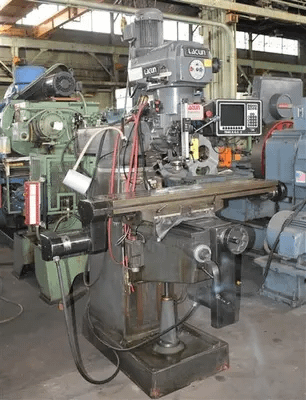

1998 LAGUN/REPUBLIC FTV-2 CNC VERTICAL MILL WITH SWI TRAK A.G.E. 2 CONTROLS (10" X 50" TABLE)

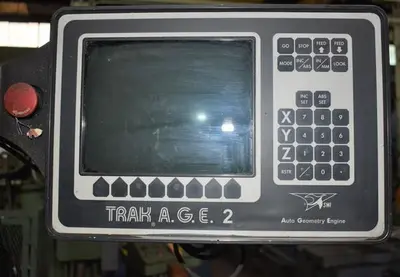

THE LAGUN/REPUBLIC MODEL FTV-2 CNC VERTICAL MILL, MANUFACTURED IN 1998, FEATURES SWI TRAK A.G.E. 2 CNC CONTROLS AND A 3 HP VARIABLE SPEED SPINDLE MOTOR, CAPABLE OF SPEEDS RANGING FROM 55 TO 4250 RPM. KEY SPECIFICATIONS INCLUDE AN OVERALL TABLE SIZE OF 10″ X 50″, SUPPORTING EXTENSIVE TRAVEL CAPABILITIES: 30″ LONGITUDINAL (X-AXIS), 16″ CROSS (Y-AXIS), AND 16″ VERTICAL (Z-AXIS/KNEE). THE MACHINE ALSO OFFERS A 5″ QUILL TRAVEL AND 22.19″ RAM TRAVEL. THE SYSTEM IS EQUIPPED WITH BALL SCREWS, POWER FEED TO THE TABLE, POWER DOWN-FEED TO THE QUILL, AND A ONE-SHOT LUBE SYSTEM. THE ELECTRICAL SYSTEM OPERATES ON 220-440/3/60 POWER. APPROXIMATE DIMENSIONS ARE 5’3″ X 4’11” (FLOOR SPACE) WITH AN OVERALL HEIGHT OF 5’10”, AND AN APPROXIMATE WEIGHT OF 2850 LBS.
