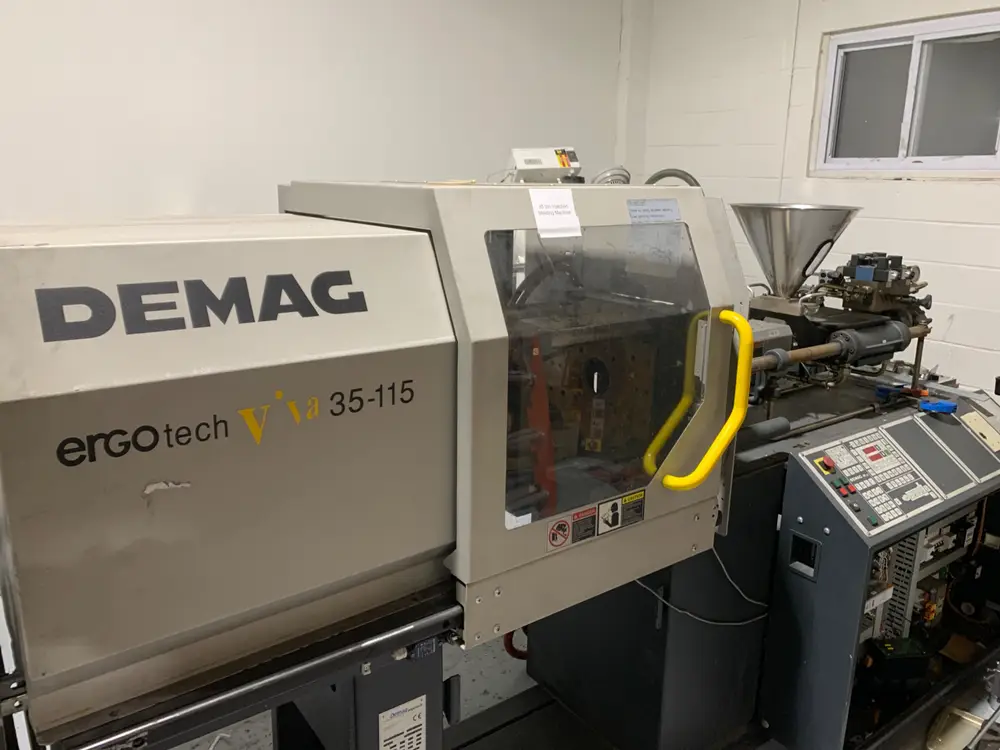

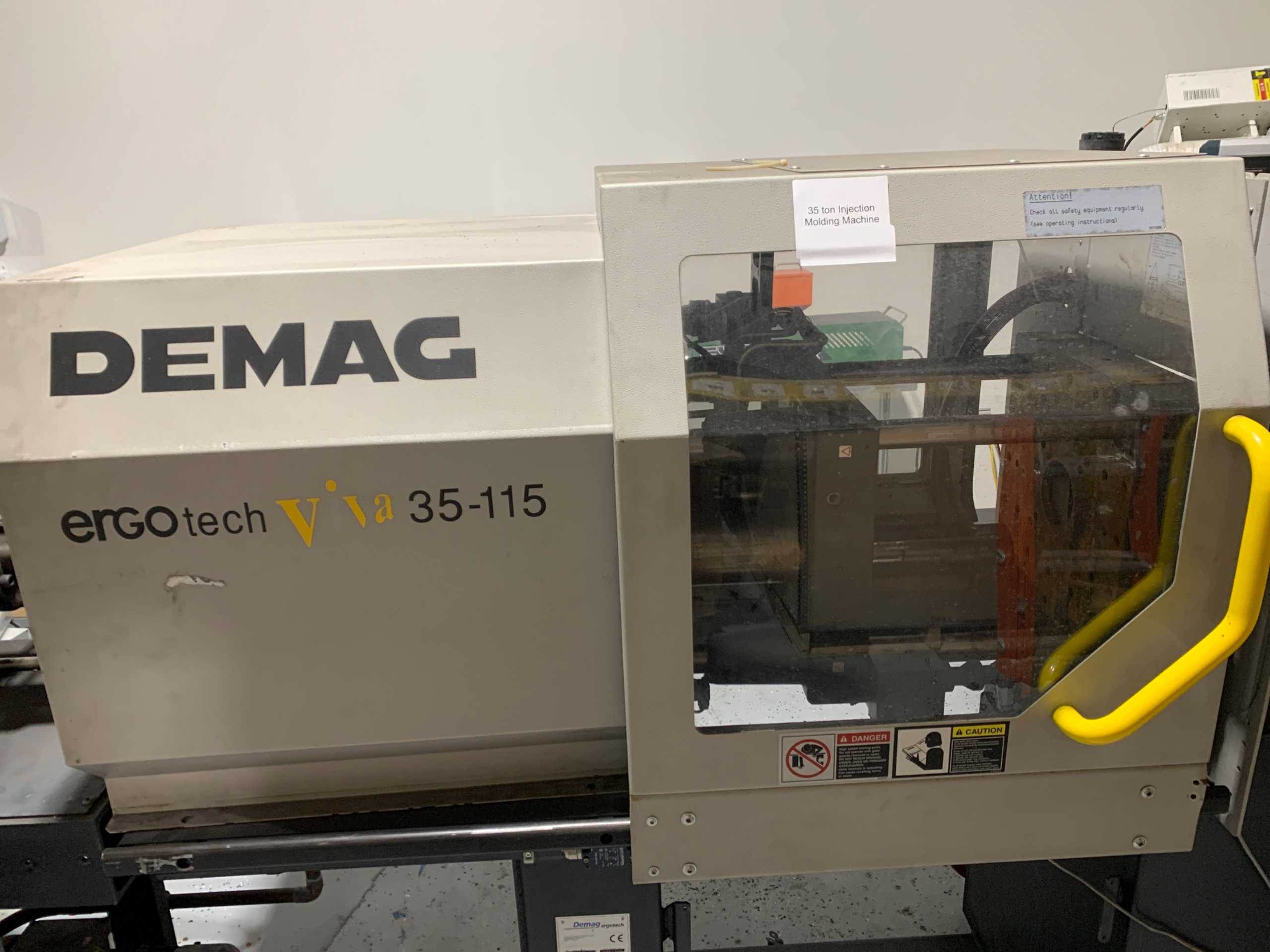

1999 DEMAG ERGOTECH PRO 35 TON INJECTION MOLDING MACHINE

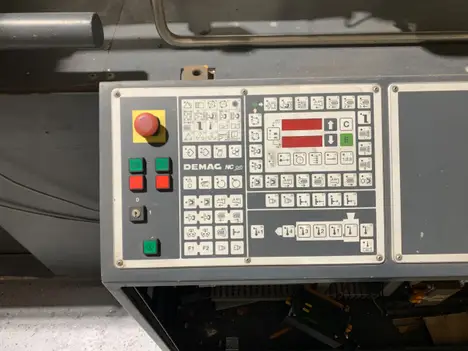

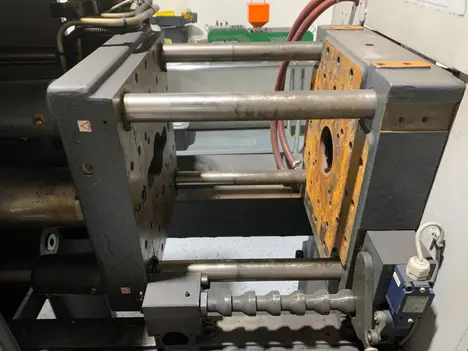

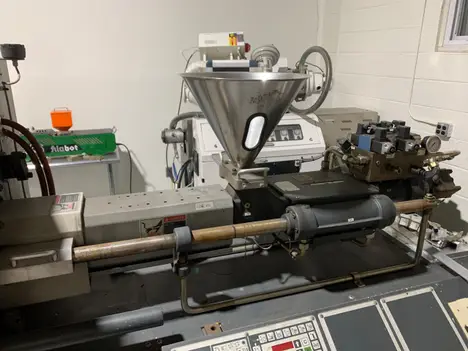

SPECIFICATIONS CLAMPING FORCE: 35 TONS (350 KN) TIE BAR SPACING: APPROXIMATELY 280–320 MM SHOT VOLUME: RANGES FROM 20 TO 61 CM³, DEPENDING ON CONFIGURATION INJECTION PRESSURE: ESTIMATED BETWEEN 1,400 AND 1,900 BAR SCREW DIAMETER: TYPICALLY BETWEEN 18 AND 30 MM PLATEN SIZE: APPROXIMATELY 410–460 MM IN LENGTH CONTROL SYSTEM: LIKELY EQUIPPED WITH NC4 OR A SIMILAR CONTROL SYSTEM FEATURES HYDRAULIC CLAMPING: PROVIDES CONSISTENT AND RELIABLE MOLD CLOSURE FORCE, ENSURING HIGH-QUALITY PRODUCTION. MODULAR DESIGN: ALLOWS FOR CUSTOMIZATION TO MEET SPECIFIC MANUFACTURING NEEDS AND APPLICATIONS. PRECISION INJECTION: OPTIMIZED FOR PRODUCING SMALL-SHOT, HIGH-DETAIL PARTS, MAKING IT IDEAL FOR INDUSTRIES REQUIRING INTRICATE COMPONENTS. ENERGY EFFICIENCY: FEATURES A COMPACT MOTOR DESIGN THAT REDUCES OPERATIONAL COSTS WHILE MAINTAINING PERFORMANCE.
