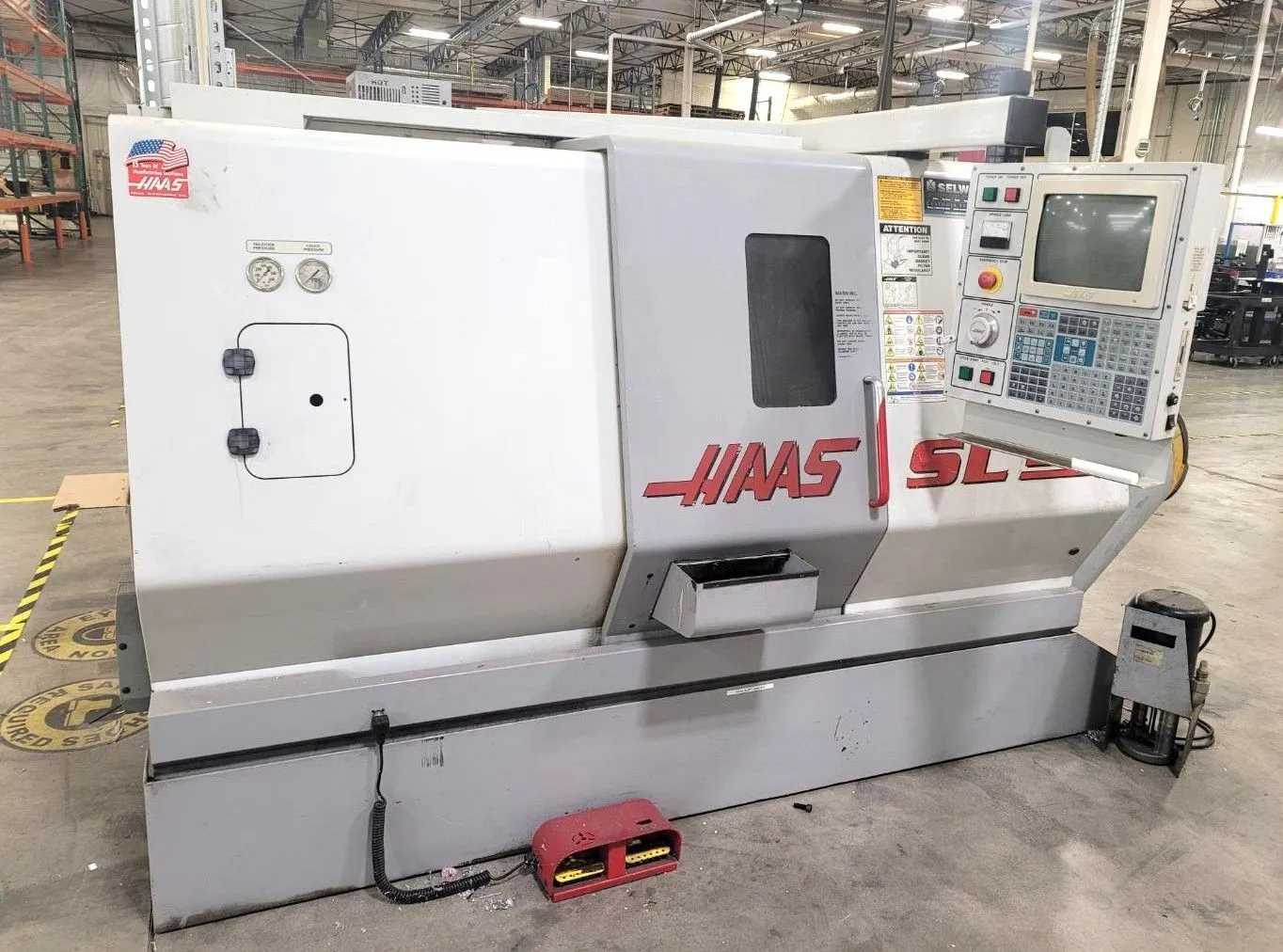

1999 Haas SL-20T CNC Lathe, 8-Inch Chuck, 10.3-in Diameter, 20-in Length, 20 HP, 4000 RPM

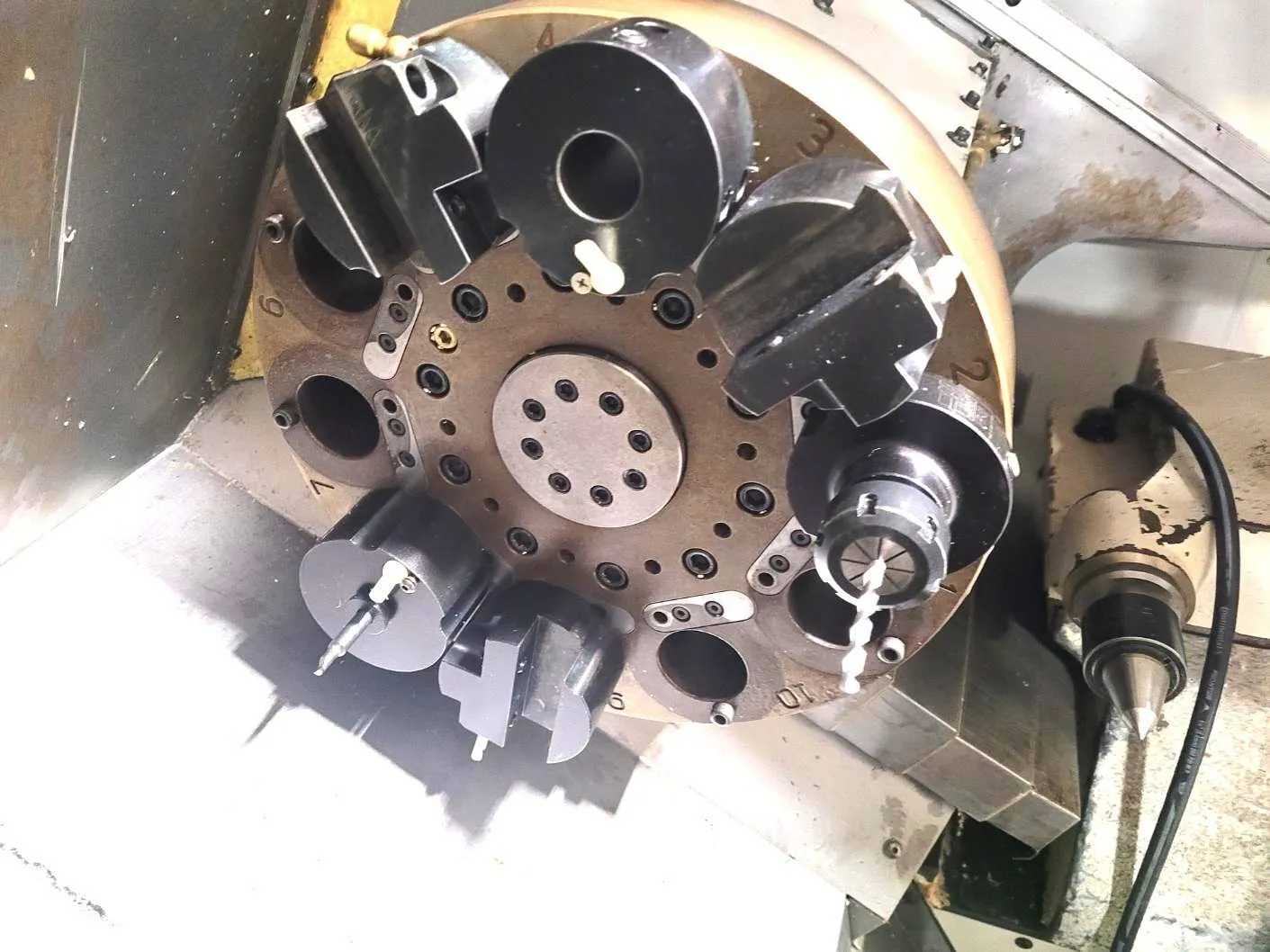

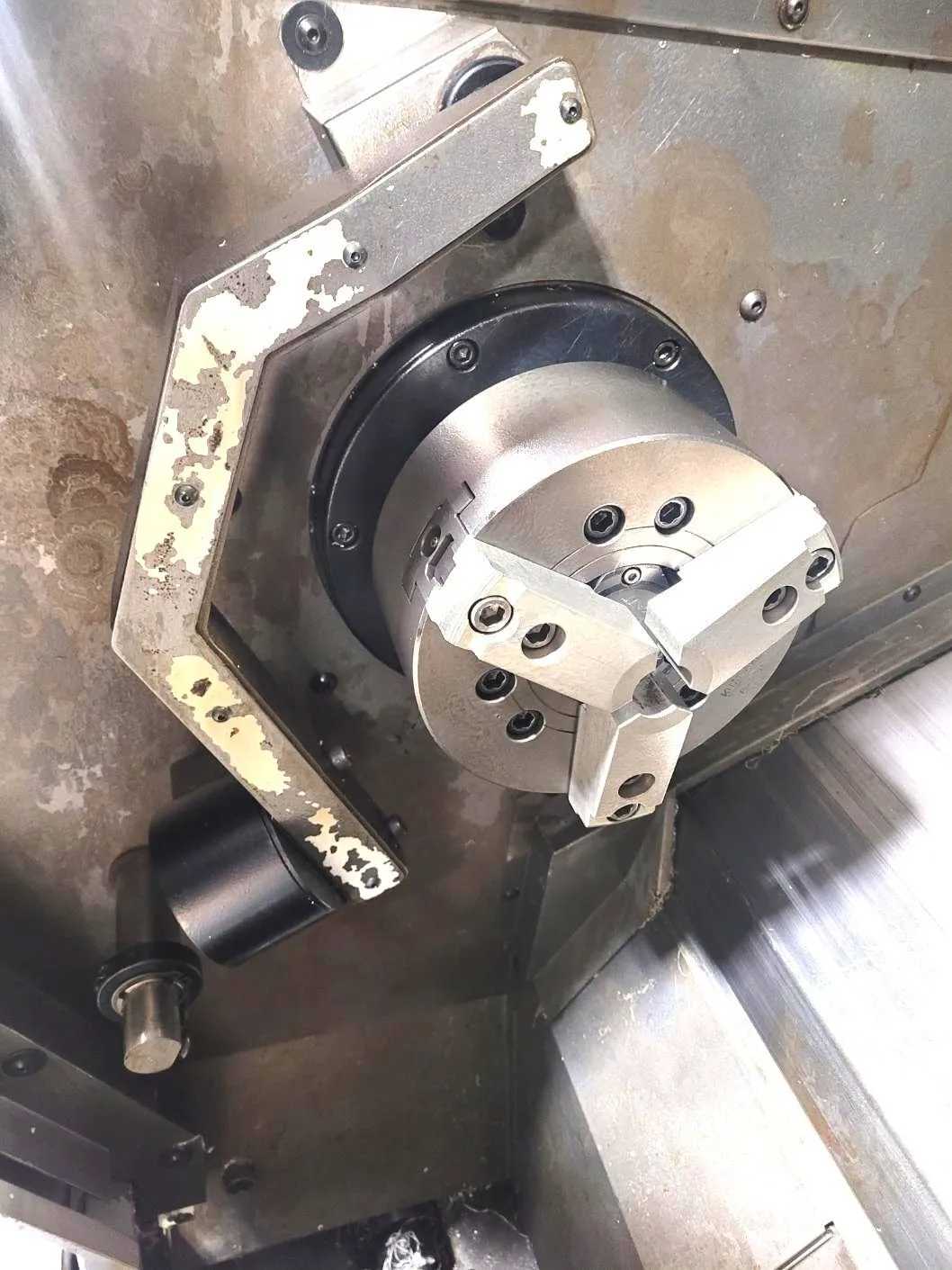

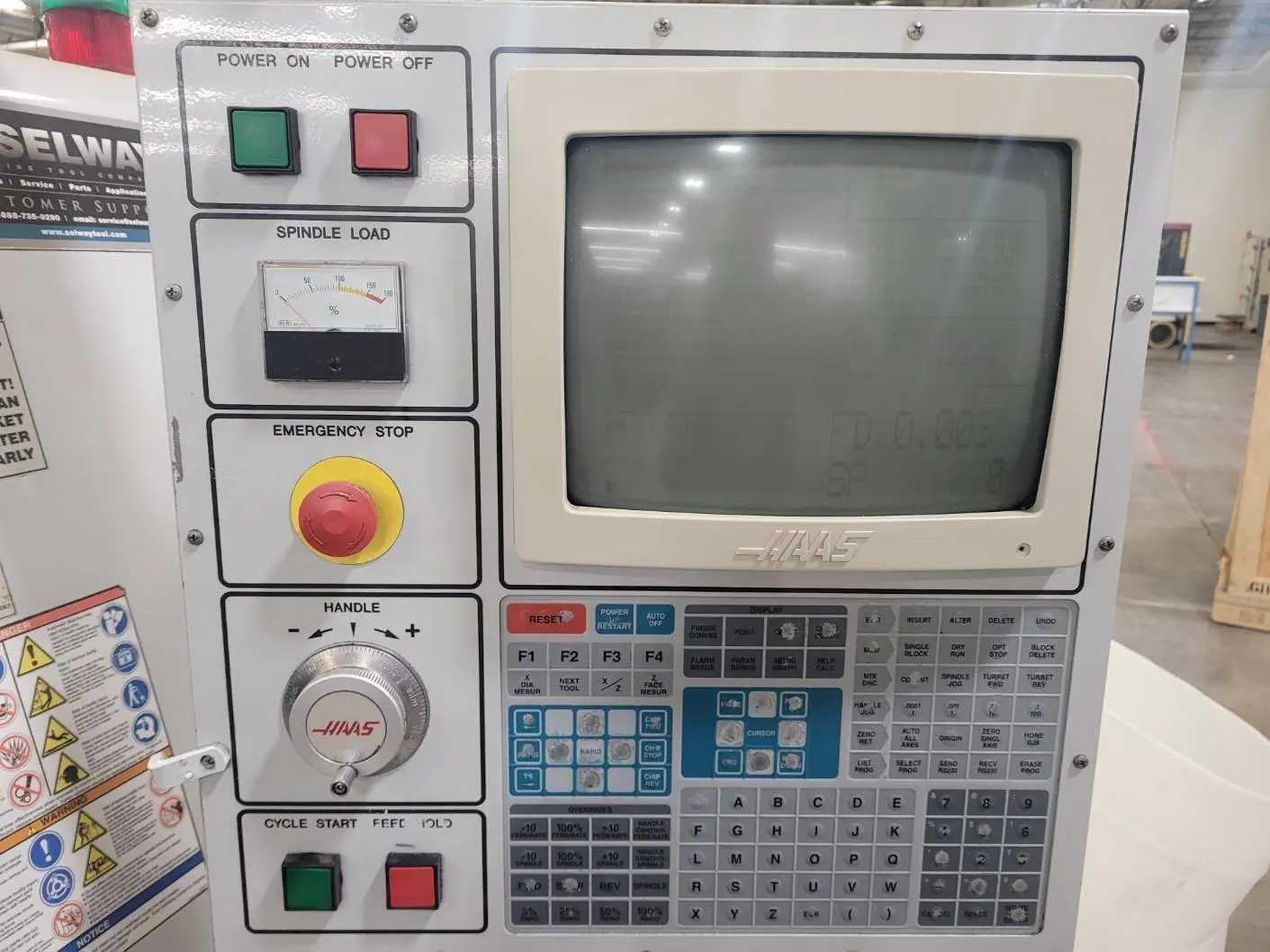

The Haas SL-20T is a CNC 2-axis lathe manufactured in 1999, featuring a Haas CNC control system and an 8-inch 3-jaw chuck. This machine provides a maximum turning diameter of 10.3 inches and a maximum turning length of 20 inches, with a maximum swing of 23 inches over the bed and 9.5 inches over the saddle. The spindle is powered by a 20 HP vector drive, reaching speeds up to 4,000 RPM, and is equipped with an A2-6 spindle nose. It features a 3.0-inch hole through the spindle and a 2.06-inch hole through the draw tube. The lathe includes a 10-station turret with a 1-second index time per station. Turret travels are 8.45 inches on the X-axis and 20 inches on the Z-axis, with rapid traverse rates of 710 IPM for both axes. Additional equipment includes a tailstock with 20 inches of travel and a #4 Morse taper quill, a tool setter, and a chip conveyor.
