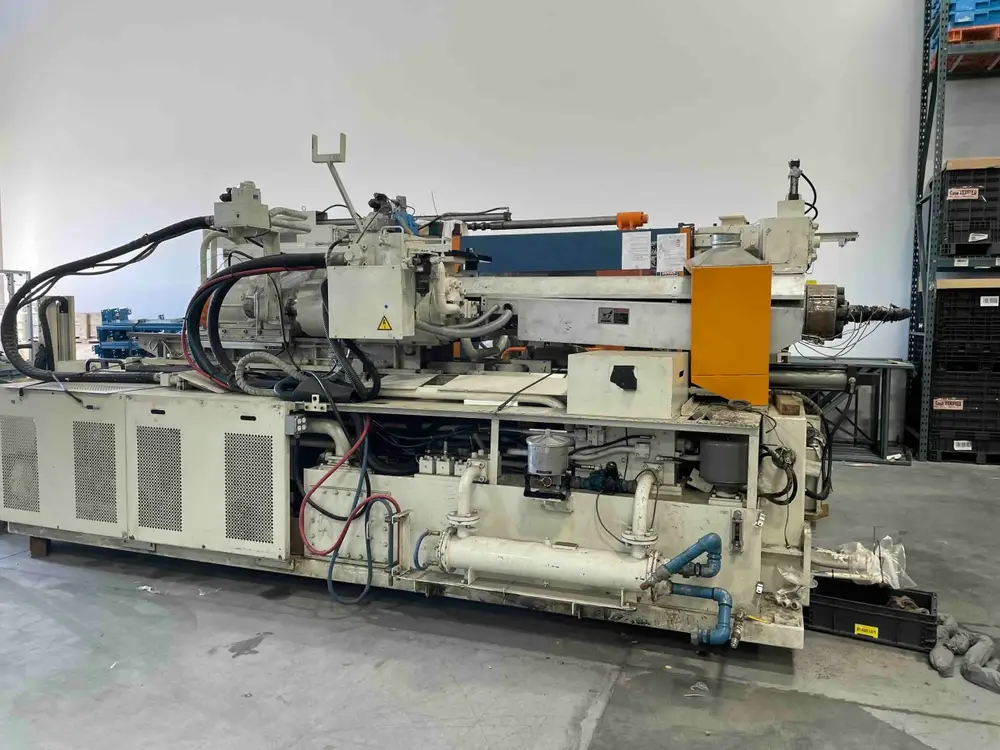

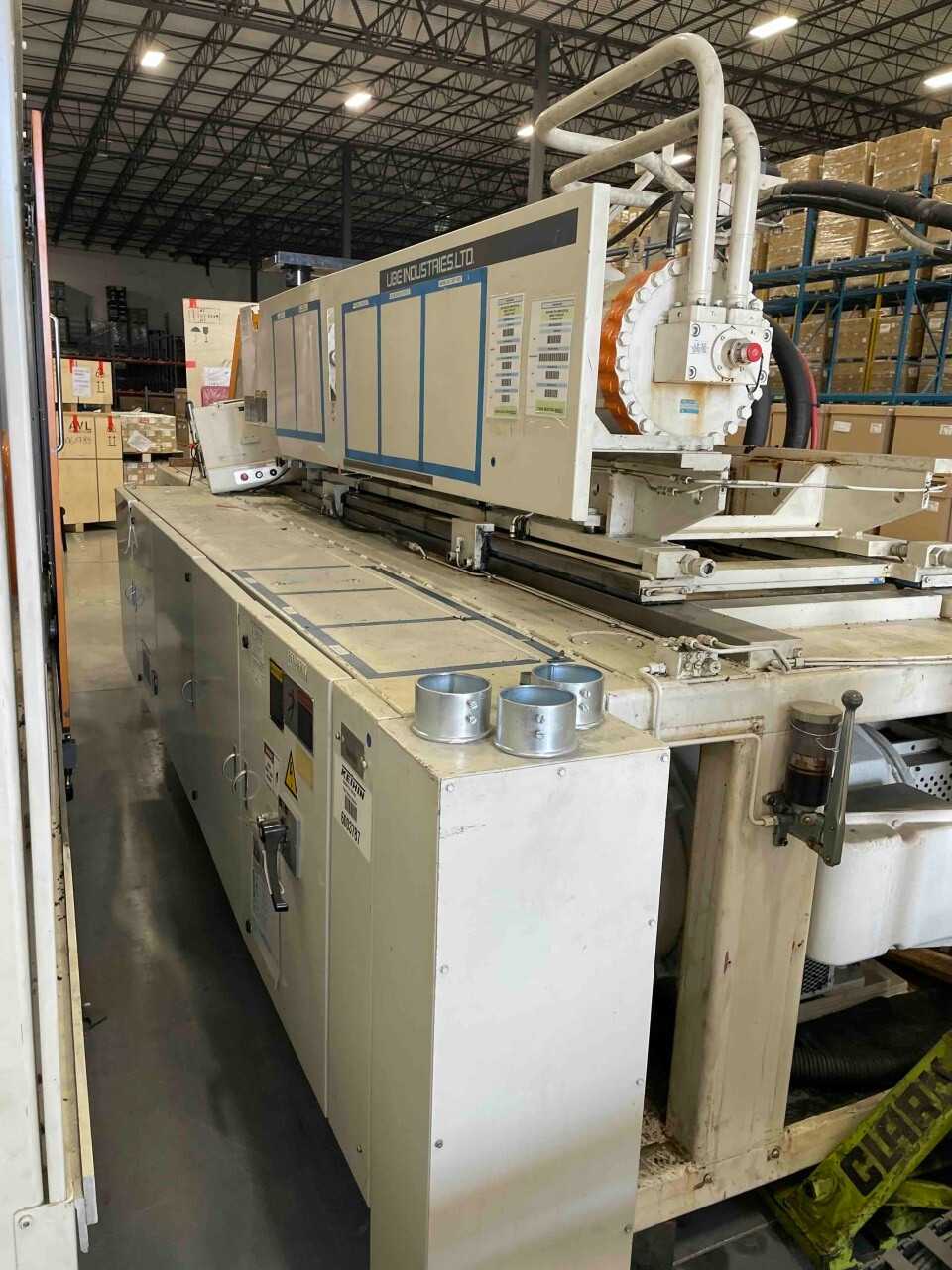

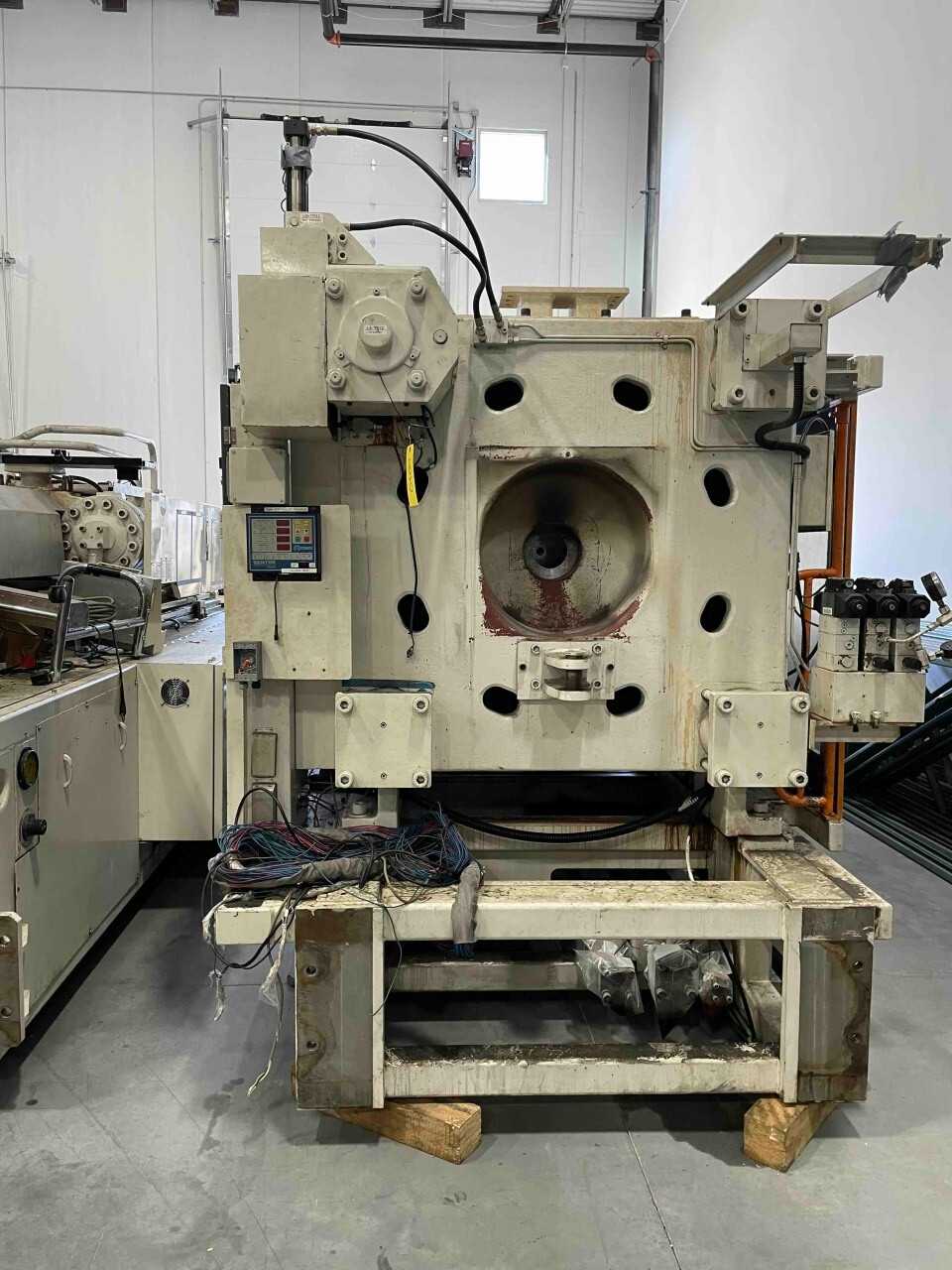

1999 Toshiba UBE 650 Ton Molding Machine
3704455
12763
ended
Major Tier 1 Automotive Supplier Hitachi Selling Conveyor, Molding Machine, Presses and Other Manufacturing Line Equipment
Online Auction
auction
Verified Seller
Auction Lot Ended
Location:
Logistics:
Rigging:
Loading:
Shipping:
Preview
More Assets From This Auction
See EventPin Carousel
Description
Terms
| Name | 1999 Toshiba UBE 650 Ton Molding Machine |
|---|---|
| Aucto ID | 300 |
| Manufacturer | Toshiba |
| Model | UBE 650 Ton |
| Year of Manufacture | 1999 |
| Additional Info | CONTACT REGARDING LOADING AND REMOVAL. BUYER CAN REMOVE BUT WILL NEED TO BE APPROVED BY HITACHI
CLAMPING FORCE: 650 TONS (6,500 KN)
INJECTION CAPACITY: 100 OZ (2,835 G)
SHOT SIZE: 100 OZ (2,835 G)
TIE BAR SPACING: 35.4" X 35.4" (900 MM X 900 MM)
PLATEN SIZE: 51.2" X 51.2" (1,300 MM X 1,300 MM)
MAXIMUM DAYLIGHT: 74.8" (1,900 MM)
EJECTOR STROKE: 11.8" (300 MM)
CONTROL SYSTEM: UBE-WEST, UBECOM 1.8B
SCREW DIAMETER: 95 MM
SCREW SPEED: 0-100 RPM
HYDRAULIC SYSTEM PRESSURE: 2,756 PSI (190 KG/CM2)
HEATING CAPACITY: 35 KW
MACHINE WEIGHT: APPROXIMATELY 60,000 LBS (27,215 KG) |
