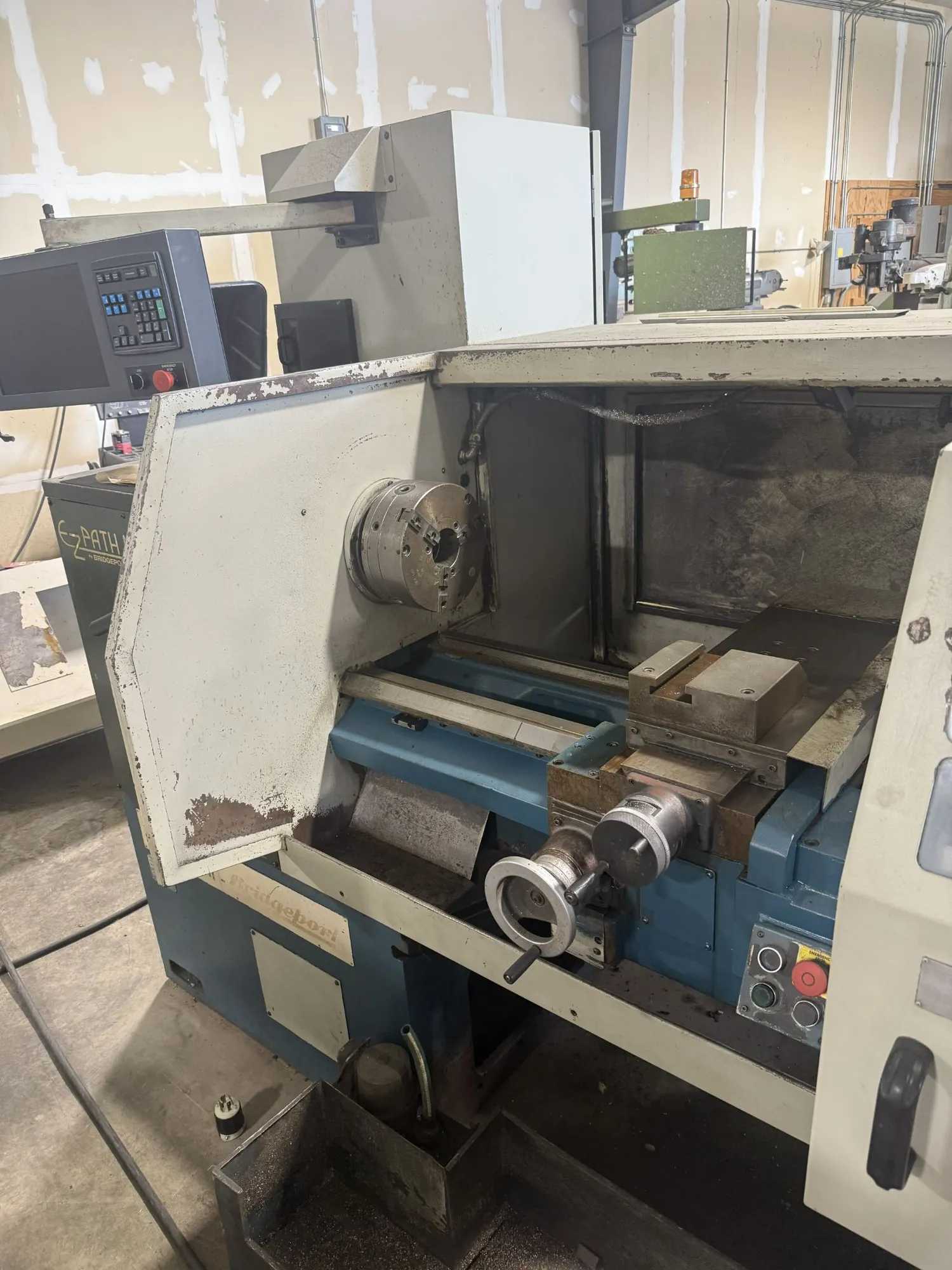

20" X 40" Bridgeport Romi EZ Path II CNC Lathe With New Controller & Updates

The Bridgeport EZ Path II CNC Lathe is a 2-axis machine tool designed for precise turning operations. Powered by a 10 HP main motor operating on a 230V, 3-phase, 60Hz power supply, it features a 20-inch swing over bed, 10-inch swing over cross slide, 20-inch turning diameter, and a 40-inch distance between centers with a Z-axis travel of 40 inches and X-axis travel of 10 inches. The spindle offers variable speeds up to 3,500 RPM and equips a 10-inch 3-jaw chuck along with a tailstock. It utilizes a Bridgeport EZ-Path CNC control system equipped with teach and constant surface speed capabilities, supported by a new motherboard, power supply, controller, static hard drive, and USB port. Additional machine components include a quick-change tool post, a Bijur lube system, a sliding chip enclosure, and a coolant system. Without live tooling or a sub-spindle, the unit has a footprint of approximately 107 inches in length, 56 inches in width, and 66 inches in height, weighing roughly 5,000 lbs.
