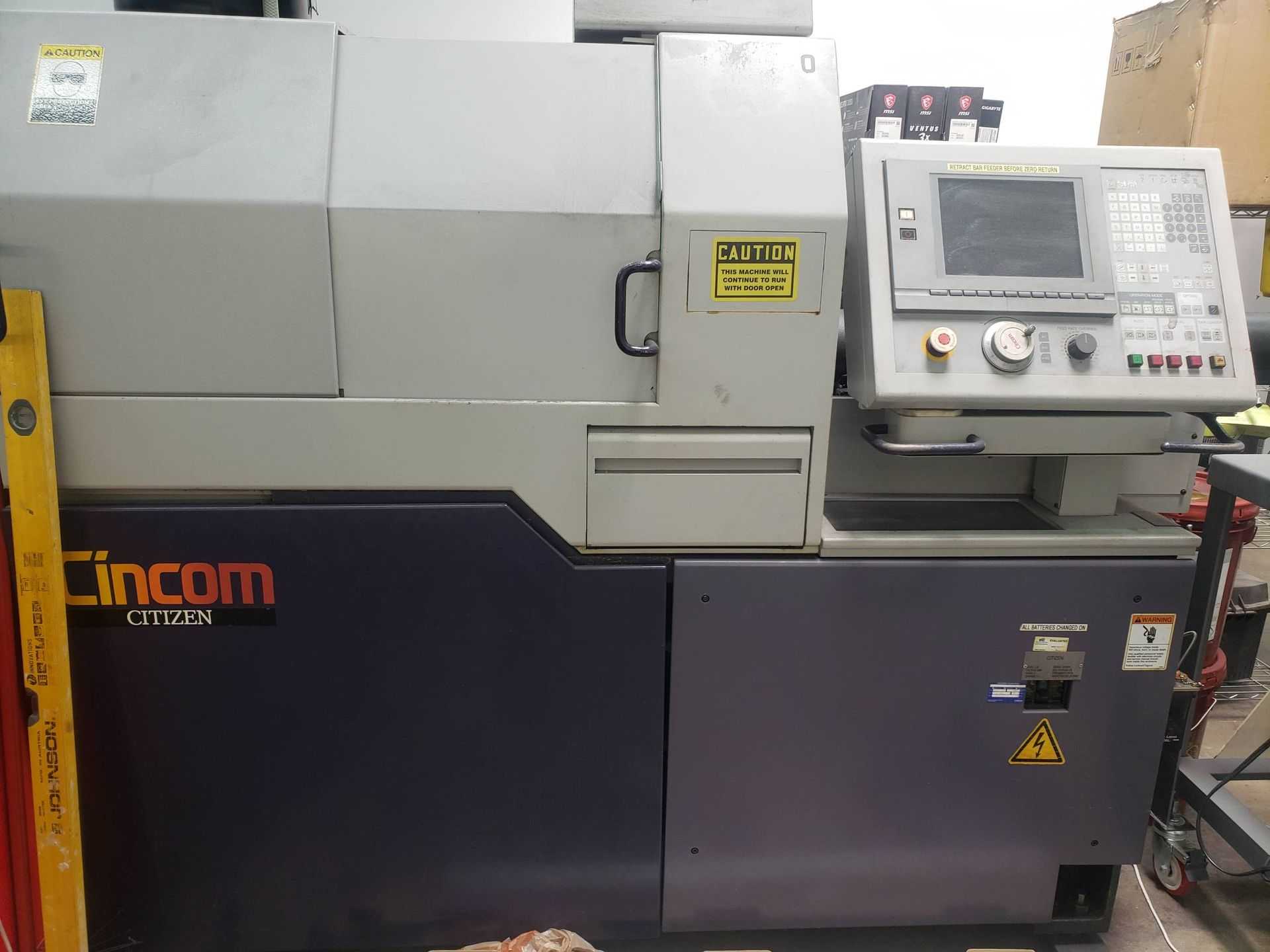

2000 CITIZEN CINCOM L20 SWISS-TYPE CNC LATHE W/ BAR FEEDER, 20MM DIA, 10K RPM

THE CITIZEN CINCOM L20 IS A HIGH-PERFORMANCE SWISS-TYPE CNC LATHE DESIGNED FOR PRECISION MACHINING OF PARTS UP TO 20 MM IN DIAMETER, WITH AN OPTIONAL 25 MM UPGRADE. IT FEATURES A MODULAR TOOLING SYSTEM AND A HIGH-SPEED MAIN SPINDLE REACHING 10,000 RPM, COMPLEMENTED BY A BACK SPINDLE ALSO CAPABLE OF 10,000 RPM FOR EFFICIENT SIMULTANEOUS FRONT AND BACK MACHINING. THE MACHINE SUPPORTS A MAXIMUM MACHINING LENGTH OF 200 MM PER CHUCKING WHEN USING A GUIDE BUSHING, WHILE ALSO OFFERING THE FLEXIBILITY TO OPERATE IN A NON-GUIDE BUSHING MODE FOR SHORTER WORKPIECES TO REDUCE REMNANT WASTE. TECHNICAL SPECIFICATIONS INCLUDE A RAPID FEED RATE OF 32 M/MIN FOR MOST AXES AND A SPINDLE THROUGH-HOLE DIAMETER OF 26.4 MM. DEPENDING ON THE SPECIFIC CONFIGURATION—SUCH AS THE TYPE VIII, X, OR XII—THE L20 CAN ACCOMMODATE BETWEEN 38 AND 45 TOOLS, WITH ROTARY TOOL SPEEDS REACHING UP TO 9,000 RPM ON THE GANG TOOL POST. ADVANCED FEATURES INCLUDE LOW-FREQUENCY VIBRATION (LFV) TECHNOLOGY FOR SUPERIOR CHIP CONTROL AND THE OPTION FOR A B-AXIS ON TYPE XII MODELS, WHICH ENABLES COMPLEX SLANTED MACHINING AND 5-AXIS SIMULTANEOUS CONTROL. THE MACHINE IS BUILT ON A RIGID, VIBRATION-PROOF CAST BED AND UTILIZES A CENTRALIZED LUBRICATION SYSTEM FOR REDUCED MAINTENANCE. OPERATION IS FACILITATED THROUGH A USER-FRIENDLY MITSUBISHI CNC CONTROL SYSTEM AND A 15-INCH TOUCHSCREEN INTERFACE.
