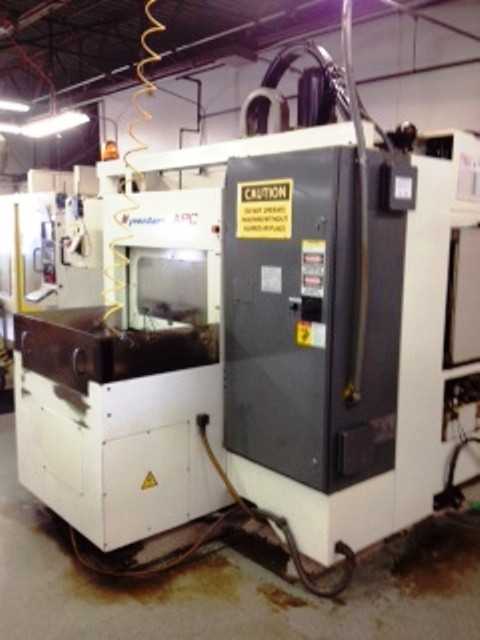

Name | 2000 Kitamura Mycenter 1 VMC |
---|---|
Aucto ID | 8 |
Manufacturer | Kitamura |
Model | Mycenter One APC |

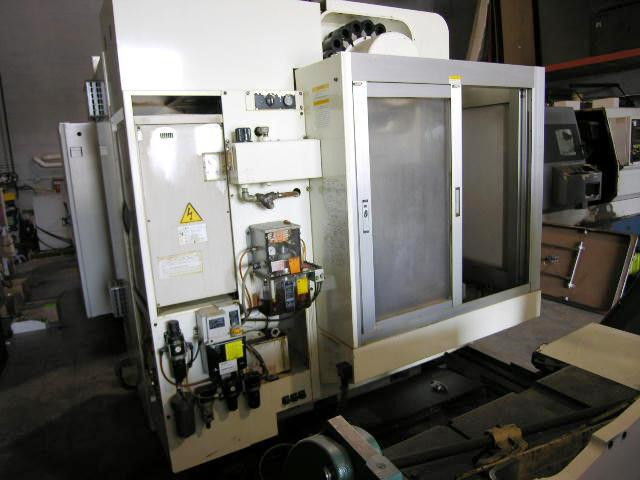

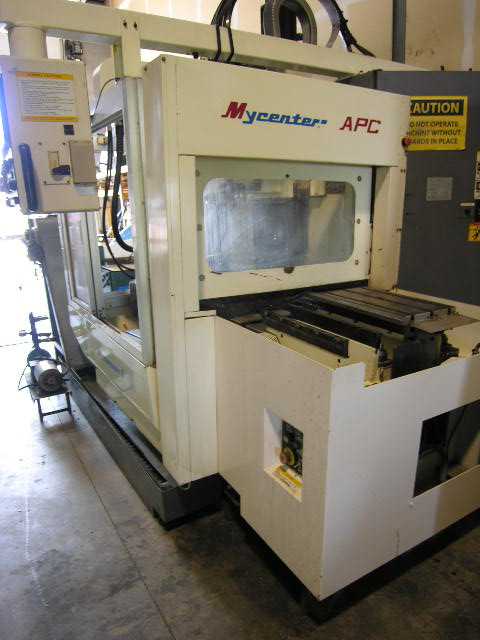

Additional Info | One Used Kitamura Mycenter 1 Vertical Machining Center with APC Model: Mycenter 1 S/N: 03114 Year: 2000 Condition: Excellent – Mint! Specifications: Pallet Size: 19.7" x 11.8" Pallet Load 200 lbs. Pallet Change Time 7.5 sec. X-Axis Table Travel: 19.9" Y-Axis Saddle Travel: 14" Z-Axis Spindle Head Travel: 16" Maximum Distance Spindle To Table: 8.5" to 21.5" Rapid Traverse Rate: X & Y 944 ipm Z Axis 787 ipm Spindle Taper: BT-35 Spindle Speeds: 13,000 RPM Spindle Drive Motor: 15 HP Automatic Tool Changer: 20 Positions Maximum Tool Diameter: 2.76" Maximum Tool Length: 9.8" Maximum Tool Weight: 8.8 lbs Tool Change time Tool to Tool 1.2 Sec Tool Change time 3.2 SEC. Approximate Dimensions: 127" x 91" x 84", machine is 74.5” W, add 33” for PC, and 10” for chip conveyor sticking out past the controls. Machine Weight 10,780 LBS Equipped With: Yasnac I80 CNC Control Two Speed Gear box RS 232 Port Interface Rigid tapping Helical Interpolation Flood Coolant System, Manual Pulse Generator and remote jog handle Daikin Spindle Chiller (Oil Cooling Sys) All available Books and Manuals – including Master Manual, Yasnac i80 Maintenance, Instruction, Appendix, Mycenter Programming manual, and disc 2 pallet, Pallet changer Chip Conveyor Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements. Video link #1 - http://www.youtube.com/watch?v=A1LbpjhhS94 Video link #2 - http://www.youtube.com/watch?v=BPTZvAhTfYs Video link #3 - http://www.youtube.com/watch?v=Q2Pit5jXRII |
