2000 MIGHTY VIPER VMC-B3000 BRIDGE-STYLE VMC, 3000X2100X1070MM, 6000 RPM, #50 TAPER, GEARBOX

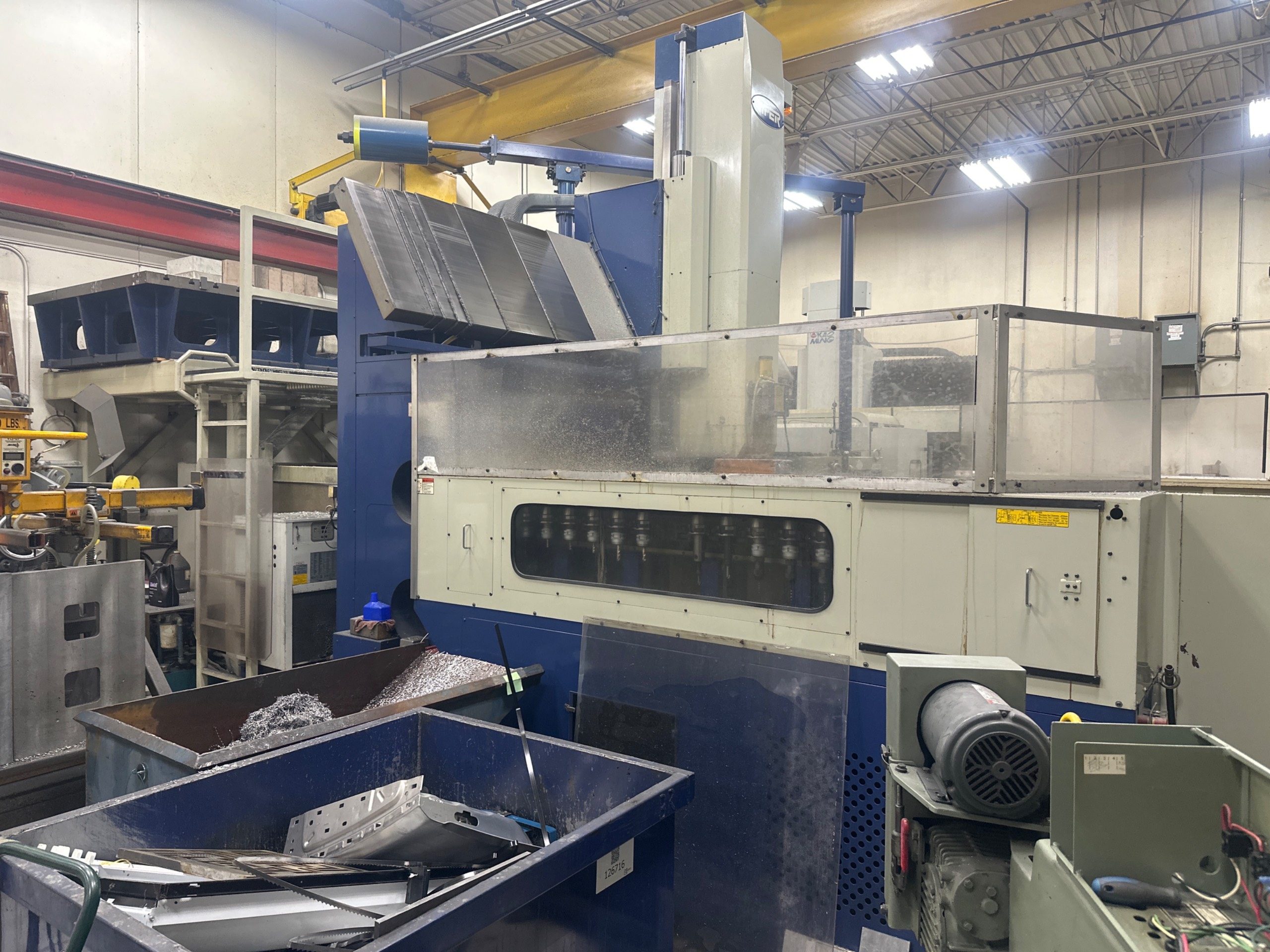

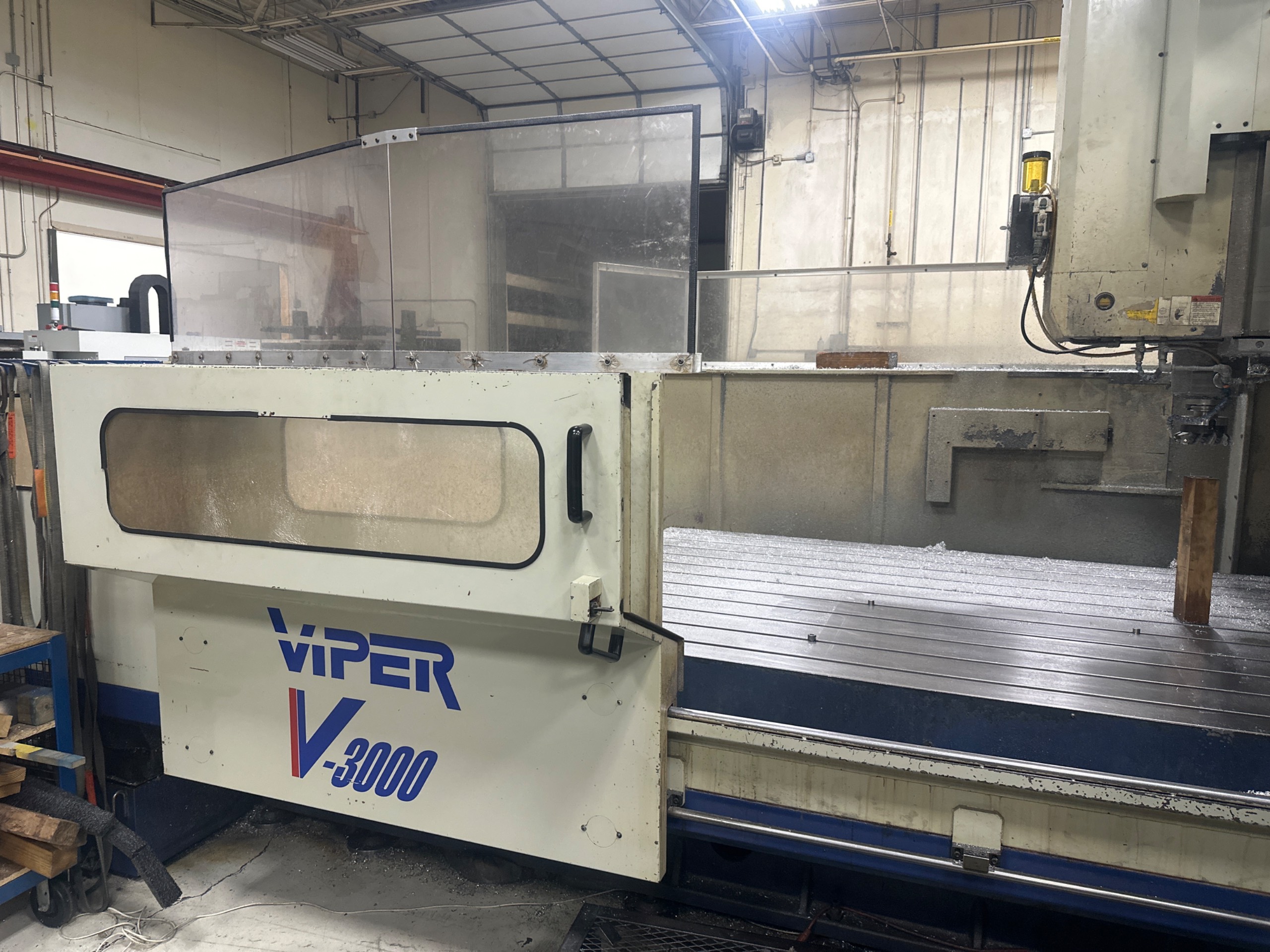

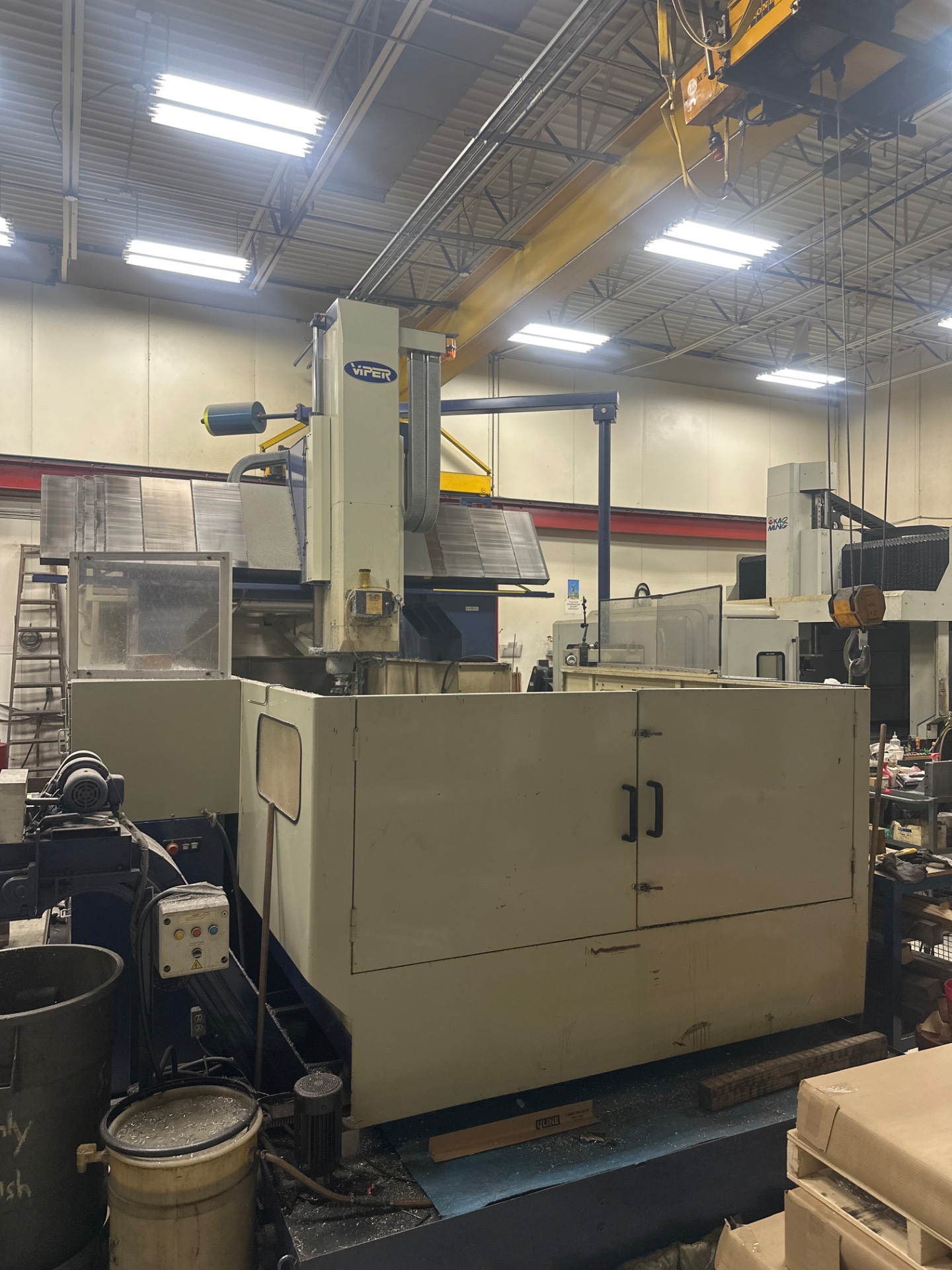

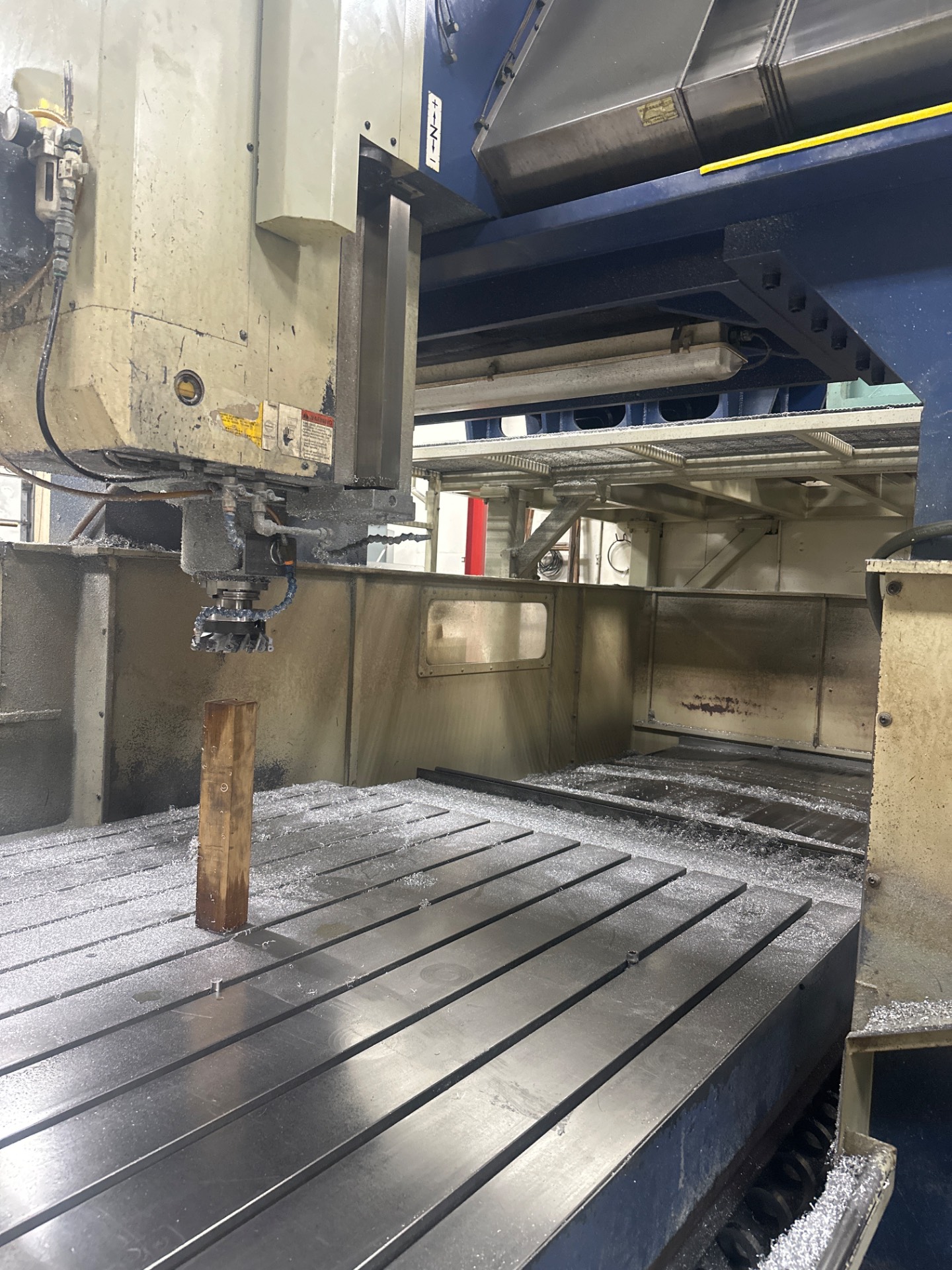

THE 2000 MIGHTY VIPER VMC-B3000 IS A HEAVY-DUTY BRIDGE-STYLE CNC VERTICAL MACHINING CENTER DESIGNED FOR LARGE-FORMAT AND PRECISION MACHINING APPLICATIONS. THIS 2000 MODEL FEATURES A DOUBLE-COLUMN CONSTRUCTION THAT PROVIDES HIGH RIGIDITY AND STABILITY FOR WORKING WITH ALUMINUM, STEEL, AND OTHER MATERIALS. THE MACHINE IS EQUIPPED WITH A LARGE WORKING TABLE MEASURING 3100 MM X 2040 MM, CAPABLE OF SUPPORTING A MAXIMUM LOAD OF 10,000 KG. IT OFFERS EXTENSIVE TRAVEL RANGES WITH 3000 MM IN THE X-AXIS, 2100 MM IN THE Y-AXIS, AND 1070 MM IN THE Z-AXIS. THE DISTANCE BETWEEN THE COLUMNS IS 2300 MM, WHILE THE DISTANCE FROM THE SPINDLE TO THE TABLE TOP RANGES FROM 110 MM TO 1180 MM. THE SPINDLE UTILIZES A #50 TAPER AND IS DRIVEN BY A TWO-SPEED GEARBOX, ACHIEVING A MAXIMUM SPEED OF 6000 RPM. THIS CONFIGURATION ENSURES HIGH TORQUE OUTPUT FOR HEAVY CUTTING OPERATIONS WHILE MAINTAINING PRECISION DURING HIGH-SPEED TASKS. THE BRIDGE-MILL DESIGN IS OPTIMIZED FOR MAINTAINING ACCURACY ACROSS LARGE COMPONENTS, MAKING IT SUITABLE FOR AUTOMOTIVE, AEROSPACE, AND DIE AND MOLD INDUSTRIES.
