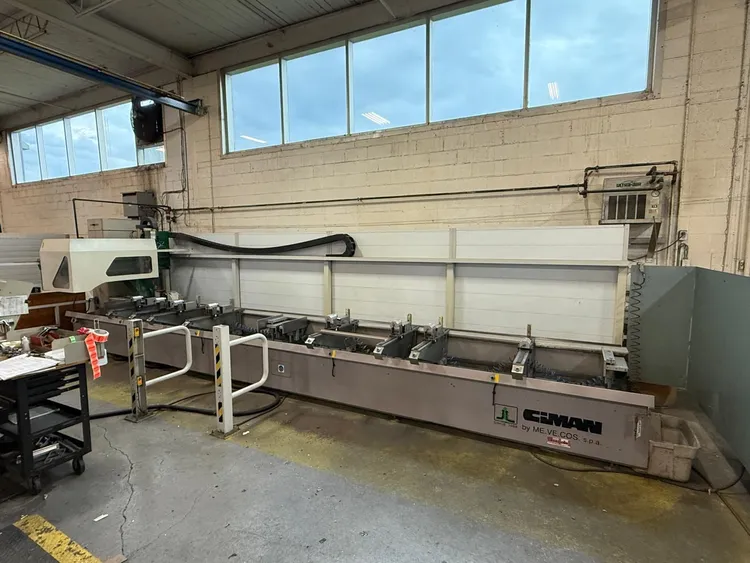

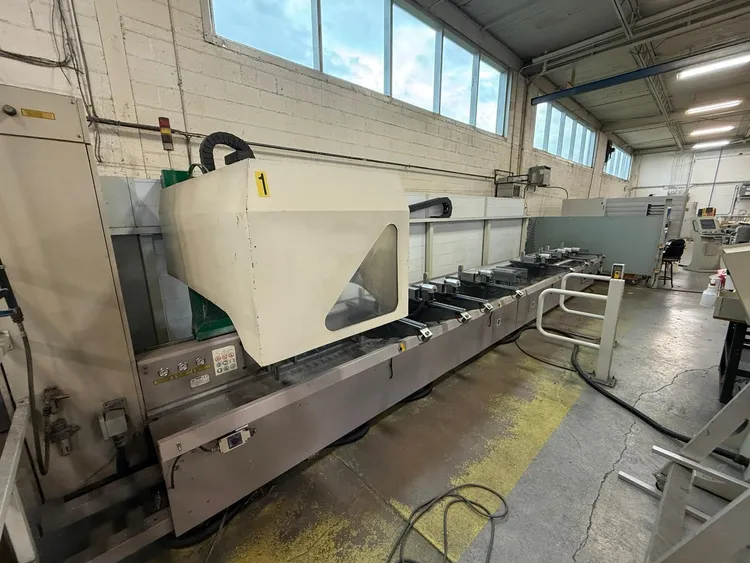

2001 CIMAN MIZAK 6.7 4-AXIS CNC PROFILE MACHINING CENTER

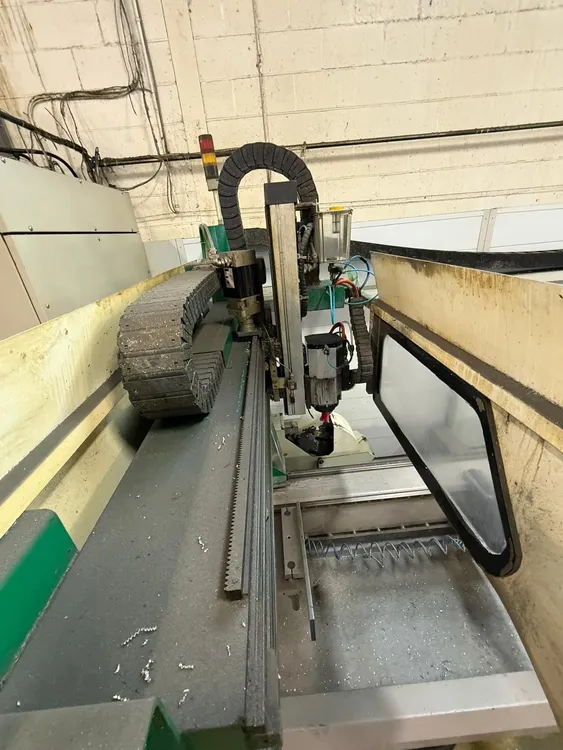

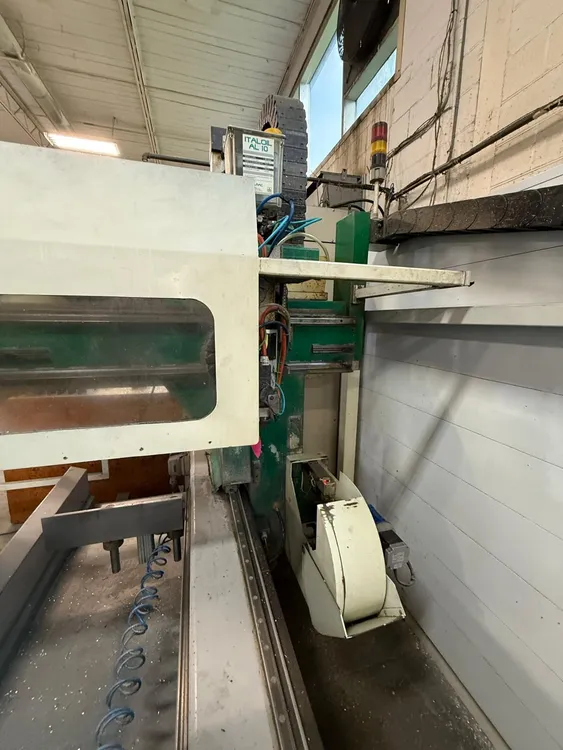

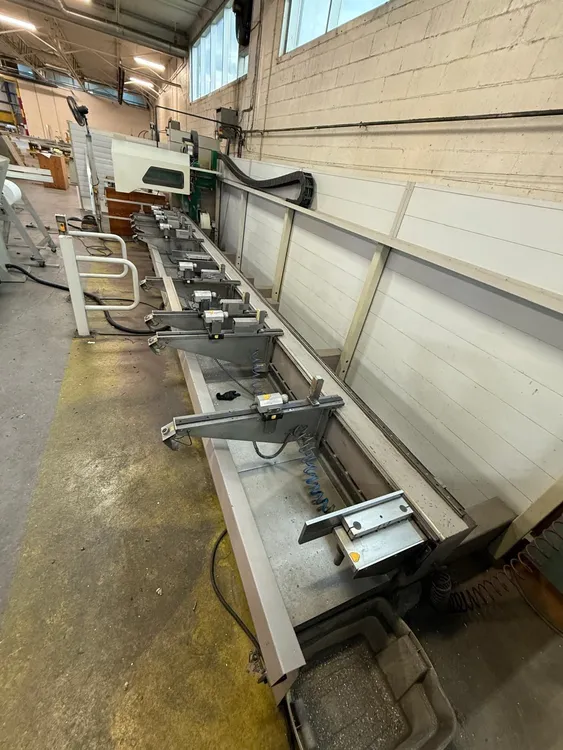

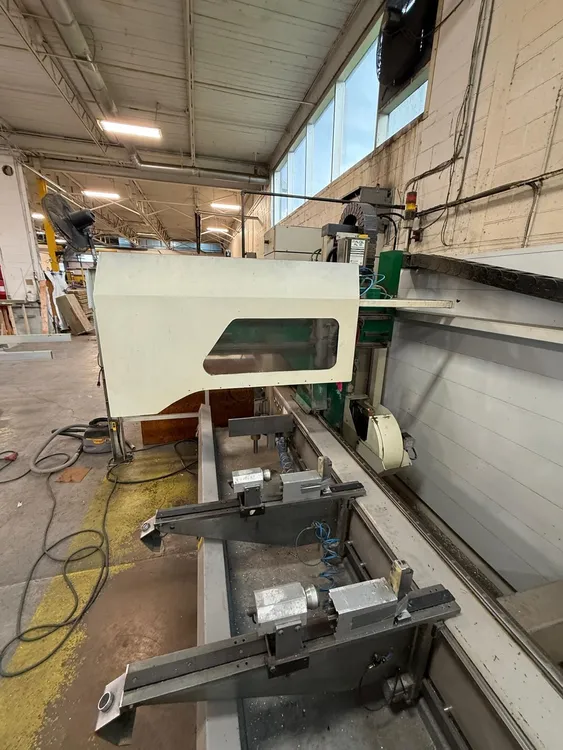

THE 2001 CIMAN MIZAK 6.7 IS A 4-AXIS CNC PROFILE MACHINING CENTER (MODEL: CENTRO MIZAK 6.7), OPERATING ON 400V, 60HZ, WITH 120 AMP AND 12 KW POWER REQUIREMENTS. IT FEATURES EXTENSIVE TRAVEL CAPACITY WITH AN X-AXIS TRAVEL OF 6,700 MM, Y-AXIS TRAVEL OF 650 MM, AND Z-AXIS TRAVEL OF 400 MM. THE B-AXIS ALLOWS FOR HEAD ROTATION OF ±100°, WITH THE Z-AXIS FEED REACHING UP TO 30 M/MIN. THE SPINDLE SPEED RANGE IS 0–24,000 RPM, SUPPORTED BY A MAIN MOTOR POWER OF APPROXIMATELY 7.5 HP (5.5 KW) AND USING AN ISO 30 TOOL HOLDER. TOOLING IS MANAGED BY AN 8-POSITION LINEAR RACK AUTOMATIC TOOL CHANGER (ATC). WORKHOLDING UTILIZES PNEUMATIC VICES/CLAMPS ALONG THE X-AXIS FOR PROFILE OR BAR POSITIONING. THE MACHINE OPERATES WITH A SHX-BASED PROGRAMMING ENVIRONMENT AND WEIGHS 4000 KG.
