2001 FANUC S-500I Robot, 15kg Payload, 2739mm Reach, RJ3 Controller, High Precision

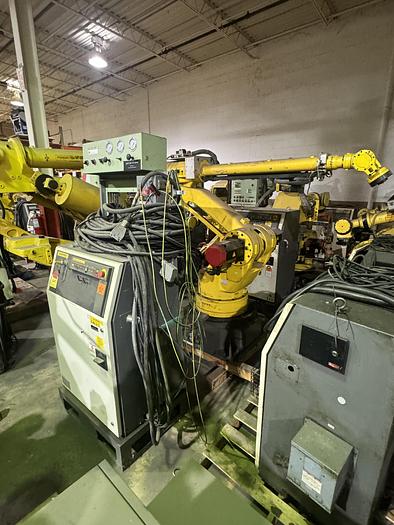

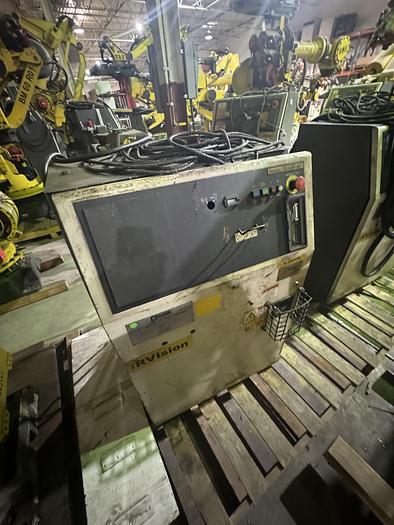

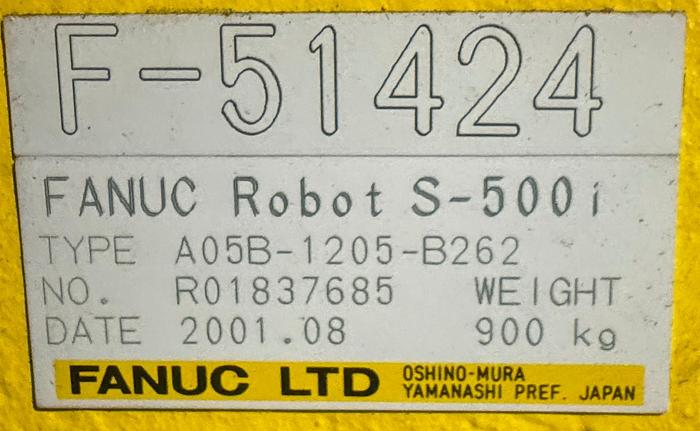

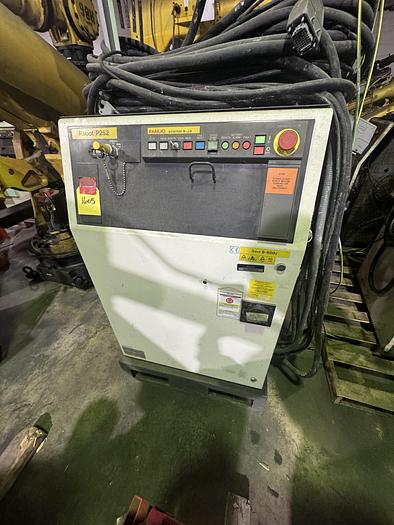

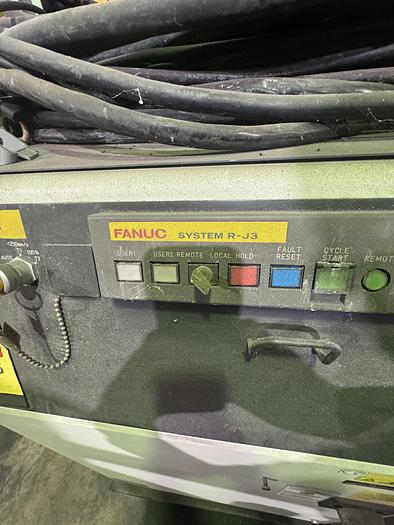

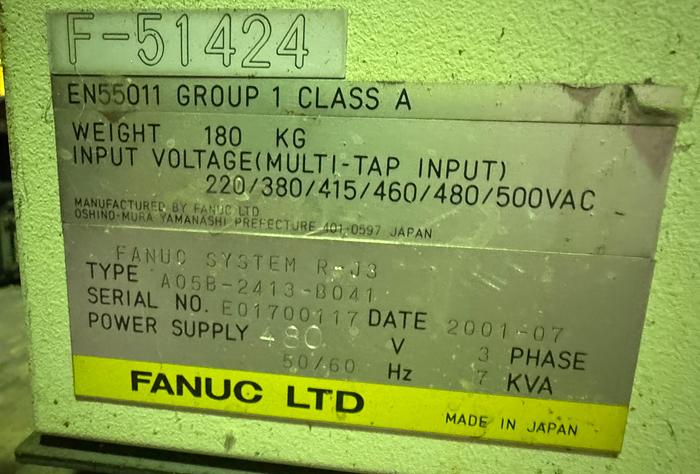

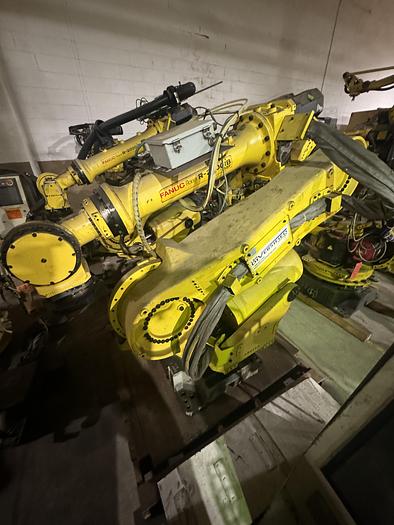

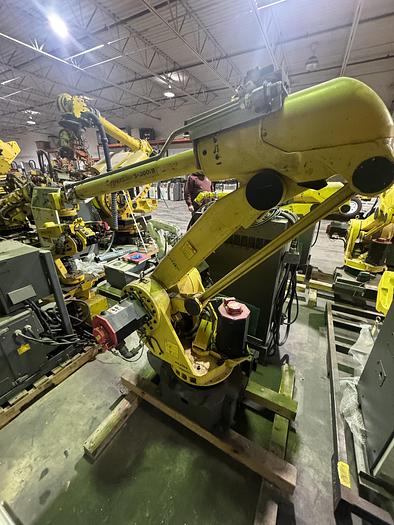

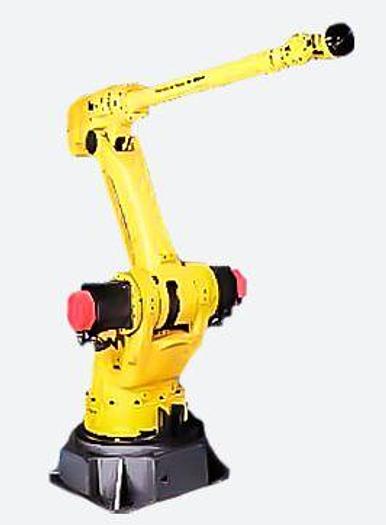

The 2001 FANUC S500i is a six-axis articulated CNC robot designed for a variety of industrial applications, including material handling, pick and place, bonding/sealing, grinding, and arc welding. It features a 15 kg payload capacity and an extensive 2739 mm horizontal reach, supported by a large work envelope. The mechanical unit has a mass of 900 kg and supports floor, inverted, and angle mounting configurations. Technical specifications include a repeatability of ±0.2500 mm. Axis motion speeds are rated at 90°/s for J1 and J2, and 320°/s for axes J3 through J6. The motion range for the axes is J1 ±300°, J2 ±160°, J3 ±160°, J4 ±480°, J5 ±240°, and J6 ±900°. The system is equipped with a FANUC RJ3 controller weighing 180 kg, a teach pendant, and connection cables. Its design is suitable for tasks such as dispensing, welding, and parts transfer.
