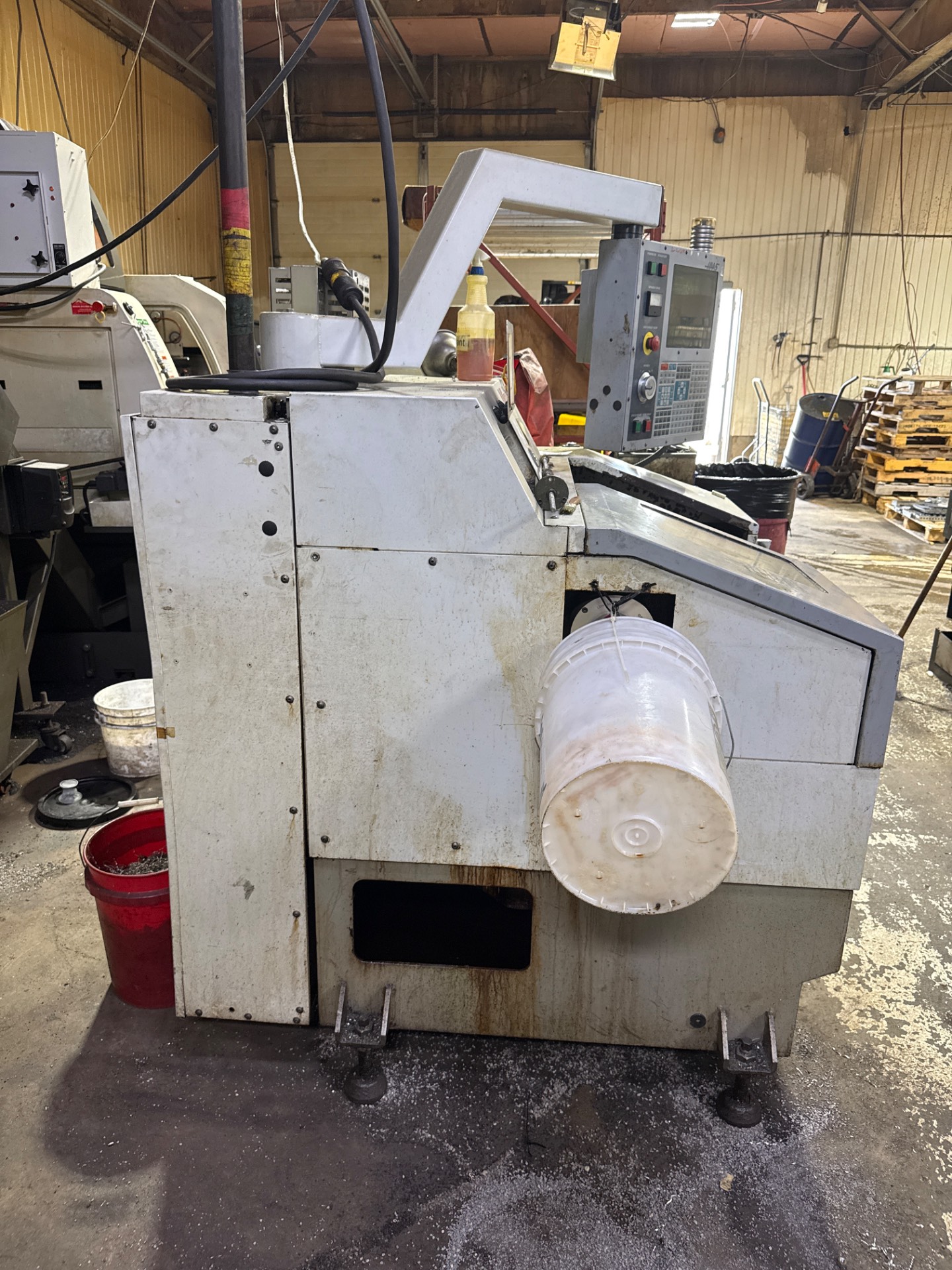

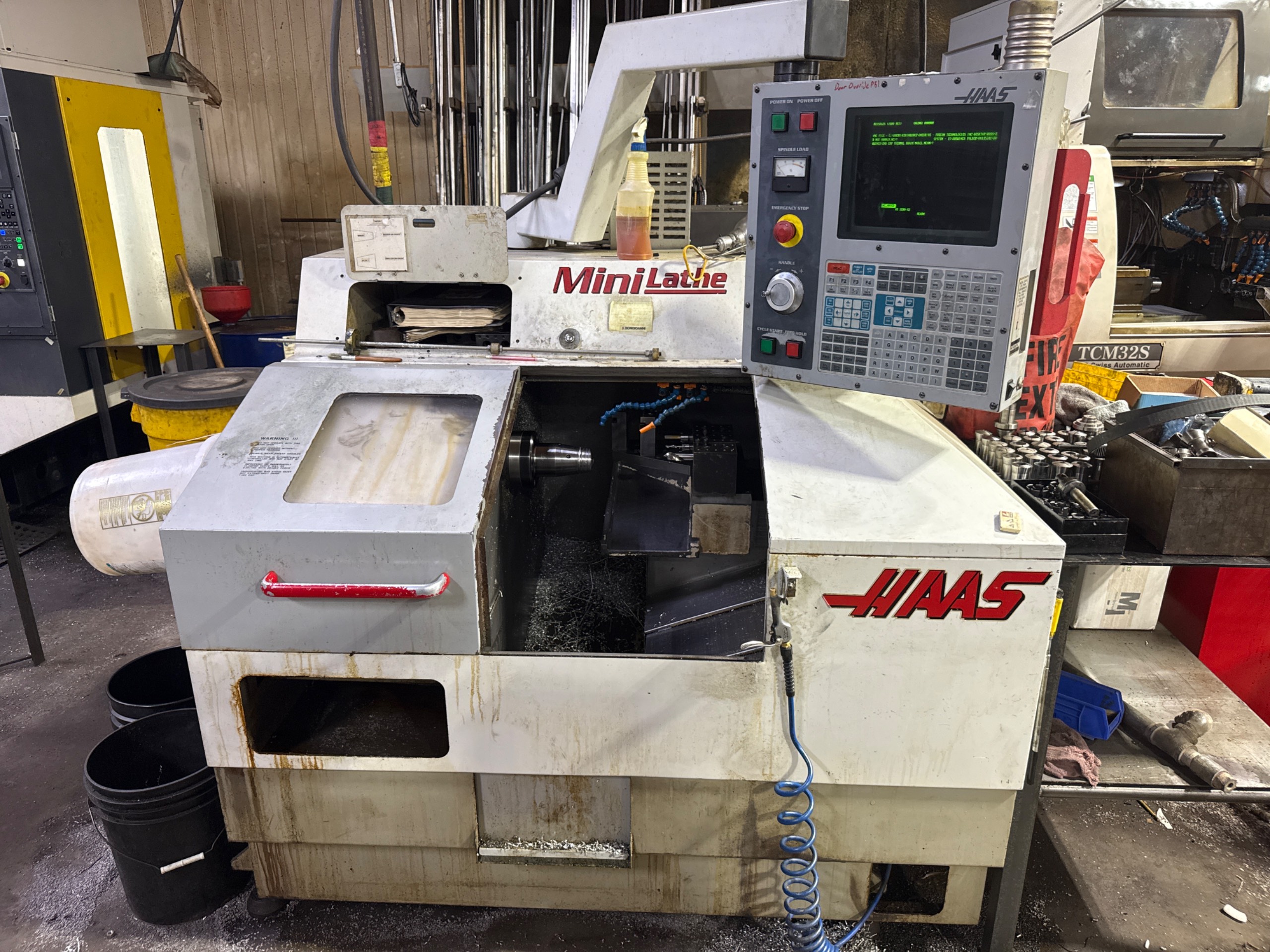

2001 Haas Mini Lathe CNC Turning Center 7.5HP, 6000RPM, 10-Station Turret, 5C Collet, 12X12 Travel

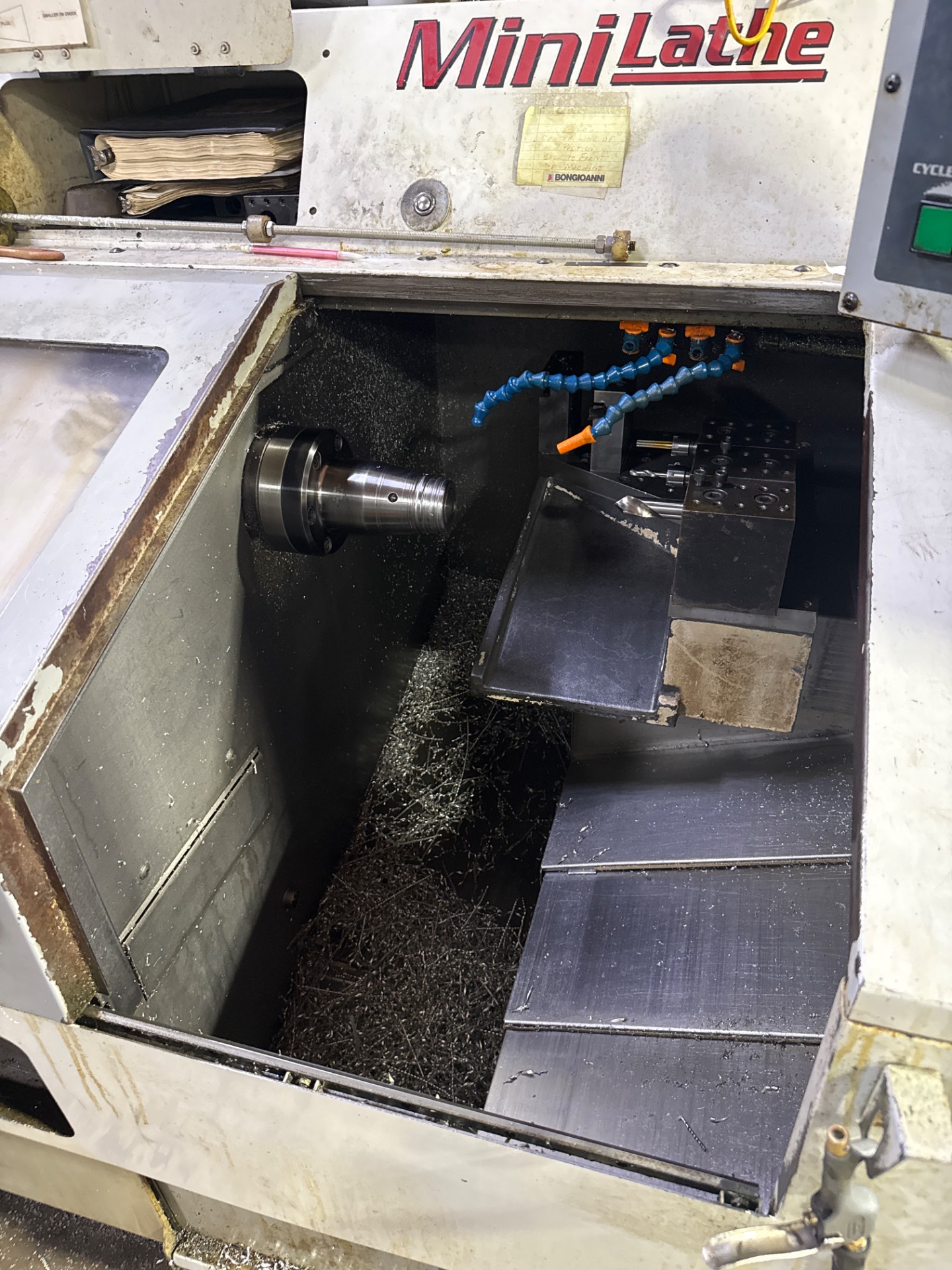

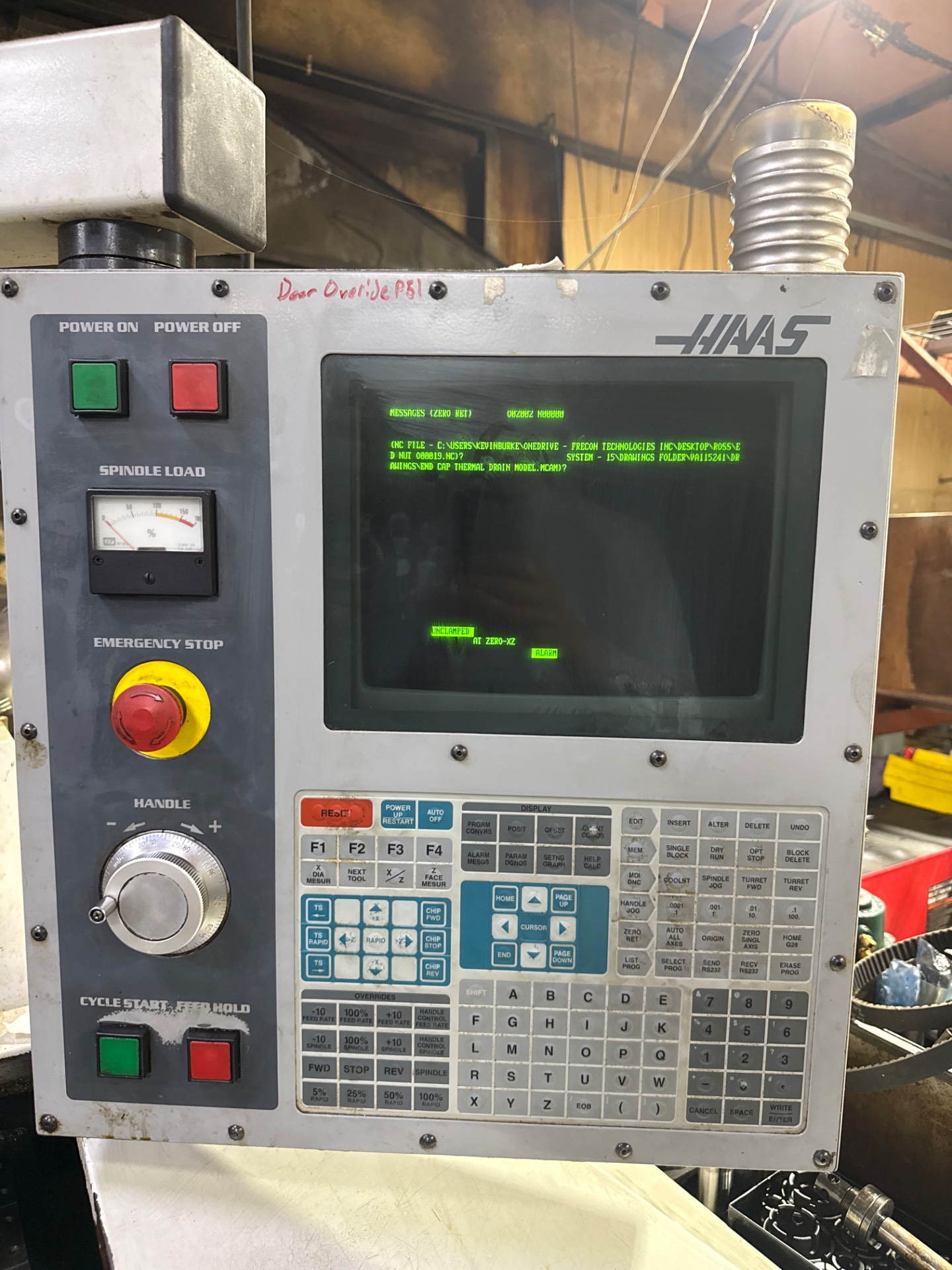

The Haas Mini Lathe is a compact CNC turning center designed for high-precision machining in smaller workspaces. It features a 7.5 HP main motor capable of reaching spindle speeds up to 6,000 RPM. The machine is equipped with a 5C collet chuck system and an A2-5 spindle nose, supporting a bar capacity of 1.06 inches. Its physical capacities include a maximum swing of 10.5 inches over the front apron, a maximum turning diameter of 5.8 inches, and a maximum machining length of 7.99 inches. The axis travels are 12 inches for both the X and Z axes, with rapid traverse rates reaching 650 IPM on the Z-axis and 600 IPM on the X-axis. Tooling is managed by a 10-station automatic turret. The system is powered by the Haas CNC control, featuring upgrades such as a color LCD monitor and standard programming features like rigid tapping and visual quick code. The total machine weight is approximately 4,000 lbs, with a physical footprint of roughly 54 inches by 68 inches by 74 inches. Additional technical features include a 1MB extended memory and a high-performance vector drive system for consistent torque.
