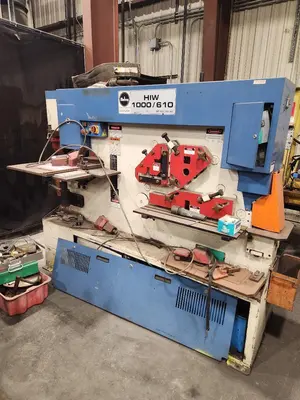

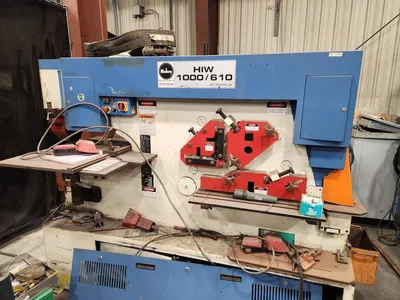

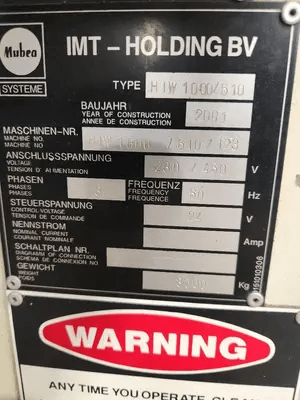

2001 MUBEA HIW-1000/610 110-TON DUAL-STATION HYDRAULIC IRONWORKER, 24-INCH THROAT

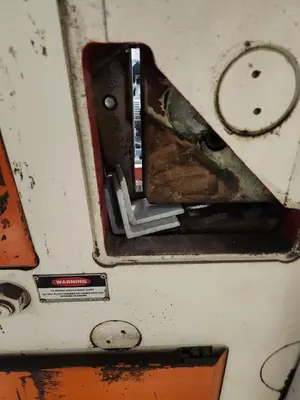

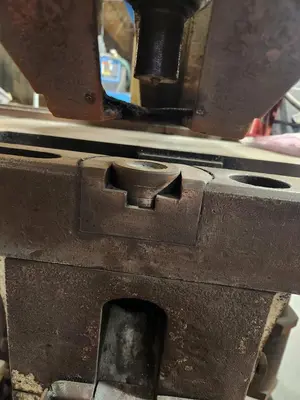

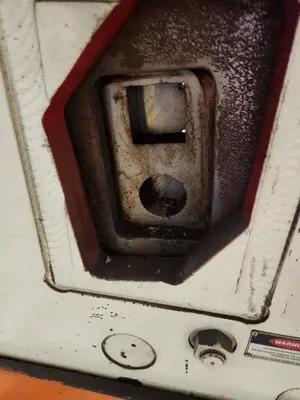

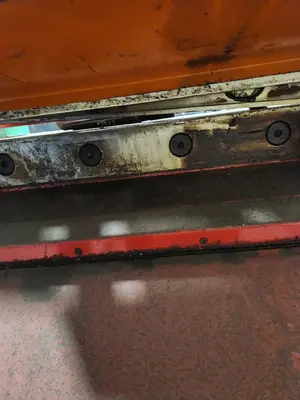

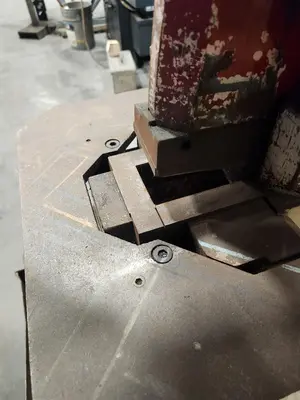

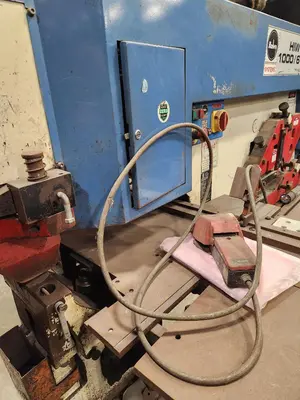

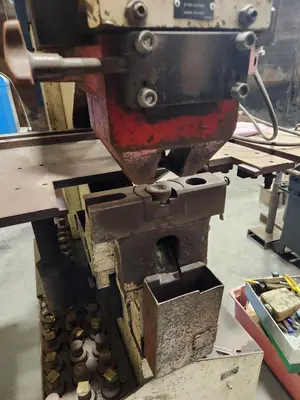

THE MUBEA MODEL HIW 1000/610 IS A 2001, 110-TON DUAL-STATION HYDRAULIC IRONWORKER WITH A 24-INCH (610 MM) THROAT DEPTH. IT IS EQUIPPED WITH FIVE DEDICATED WORKSTATIONS FOR PUNCHING, NOTCHING, ANGLE SHEARING, ROUND/SQUARE BAR SHEARING, AND FLAT BAR SHEARING. THE MACHINE IS POWERED BY AN 11 HP MOTOR AND OPERATES VIA DUAL CYLINDERS WITH FOOT PEDAL CONTROLS. KEY CAPACITIES INCLUDE SHEARING 6" X 6" X 5/8" ANGLE IRON, HANDLING FLAT BAR UP TO 8" X 1" OR 18" X 1/2", AND SHEARING ROUND BAR UP TO 1-3/8" (35MM) AND SQUARE BAR UP TO 1-1/4" (32MM). THE UNIT'S APPROXIMATE DIMENSIONS ARE 90" L X 30" W X 80" H (2200X1050X1830MM), WITH AN APPROXIMATE WEIGHT OF 6600 LBS (3000 KG).
