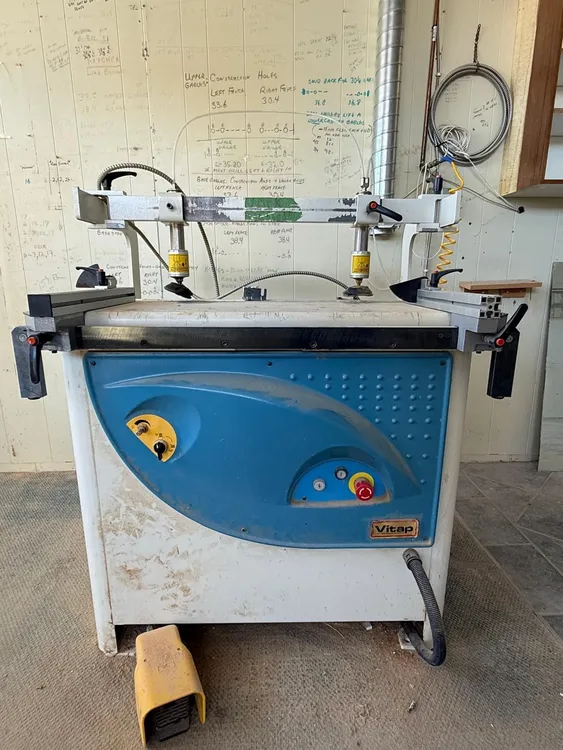

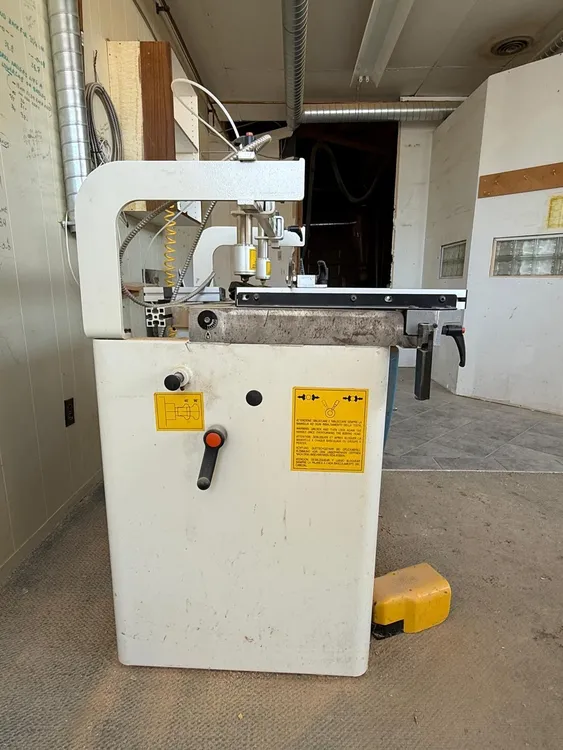

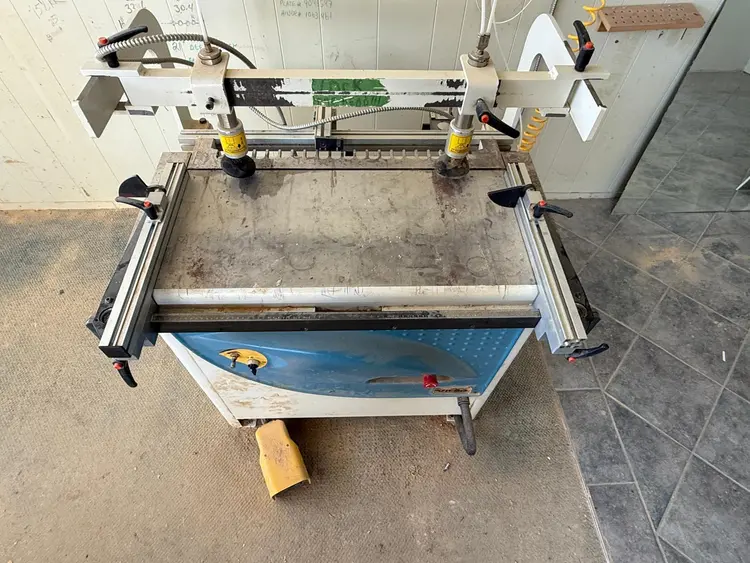

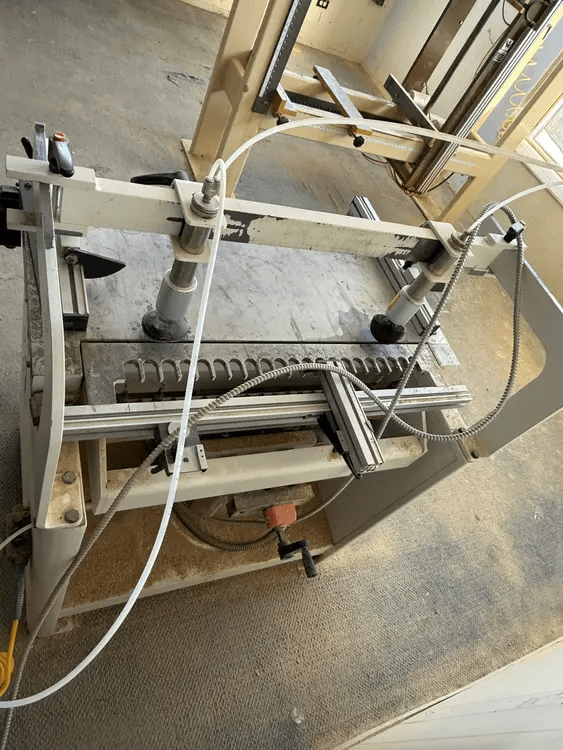

2001 VITAP ALFA21T MULTI-BORING MACHINE, 21 SPINDLES, 32MM SPACING, 2,800 RPM

THE 2001 VITAP ALFA21T IS A SEMI-AUTOMATIC SINGLE-HEAD MULTI-BORING MACHINE DESIGNED FOR CABINET, FURNITURE, AND PANEL DRILLING, SUITABLE FOR BOTH HORIZONTAL AND VERTICAL BORING. IT OPERATES ON 600V, 60HZ, 3PH POWER. THE BORING HEAD FEATURES 21 SPINDLES WITH 32 MM (1.26'') SPACING, A ROTATION SPEED OF 2,800 RPM, AND USES QUICK-CHANGE CHUCKS FOR 10 MM BIT SHANKS. DRILLING CAPACITY INCLUDES A MAXIMUM DEPTH OF 80 MM (3.15'') AND A BORING HEAD STROKE OF 80 MM. THE MAXIMUM HORIZONTAL BORING HEIGHT IS 70 MM (2.7''), WITH A MAXIMUM BORING DISTANCE (CENTER TO CENTER) OF 640 MM (25.2''). HEAD POSITIONING ALLOWS FOR VERTICAL, HORIZONTAL, AND INTERMEDIATE ANGLED TILT. THE WORKTABLE MEASURES 864 × 500 MM (34'' × 19.7''), SUPPORTING A MAXIMUM PANEL WIDTH OF 800 MM (31.5''), AND PANEL THICKNESSES RANGING FROM 10 MM (0.39'') MINIMUM TO 85 MM (3.35'') MAXIMUM. CLAMPING UTILIZES A PNEUMATIC PANEL CLAMPING SYSTEM WITH DUAL SAFETY CLAMPS. POSITIONING IS FACILITATED BY A MECHANICAL DIGITAL INDICATOR FOR HEAD HEIGHT, ADJUSTABLE SIDE AND FRONT FENCES WITH METRIC SCALES, AND A REFERENCE FENCE. THE MACHINE WEIGHS 2540 LBS, WITH DIMENSIONS OF 43'' X 37'' X 50''.
