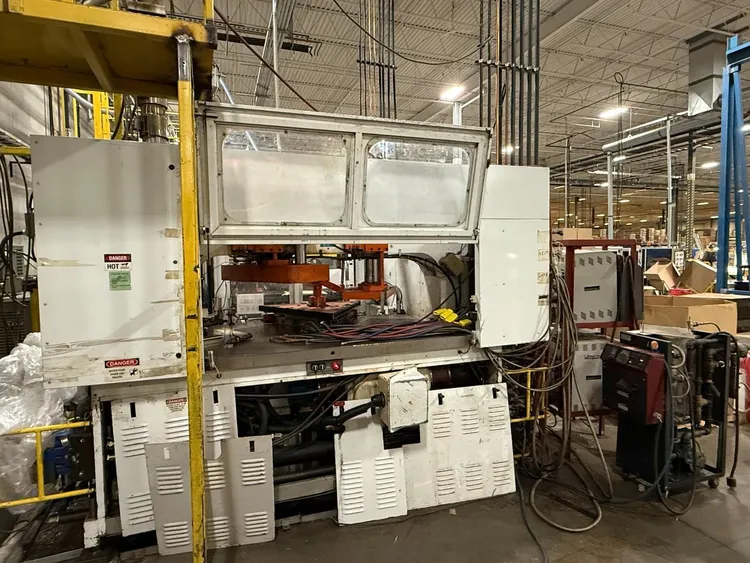

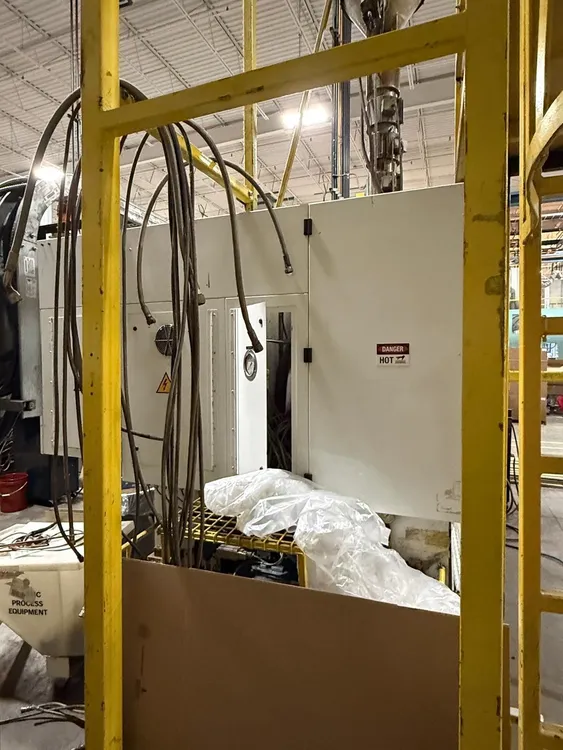

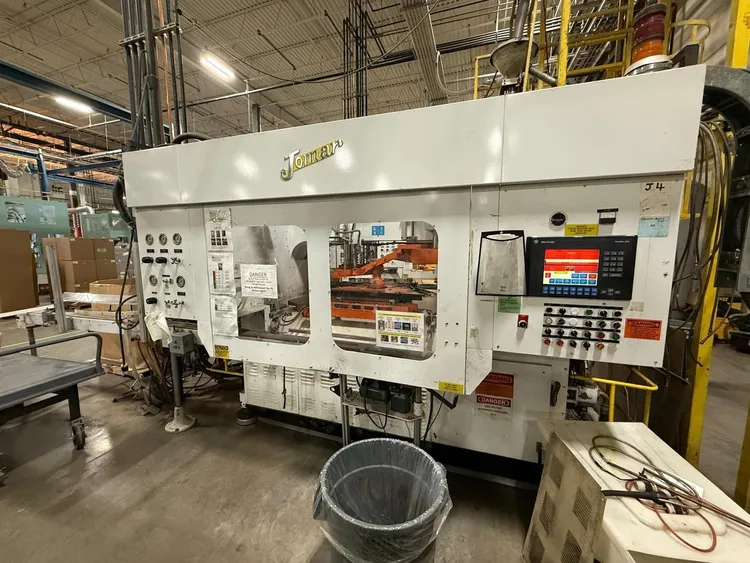

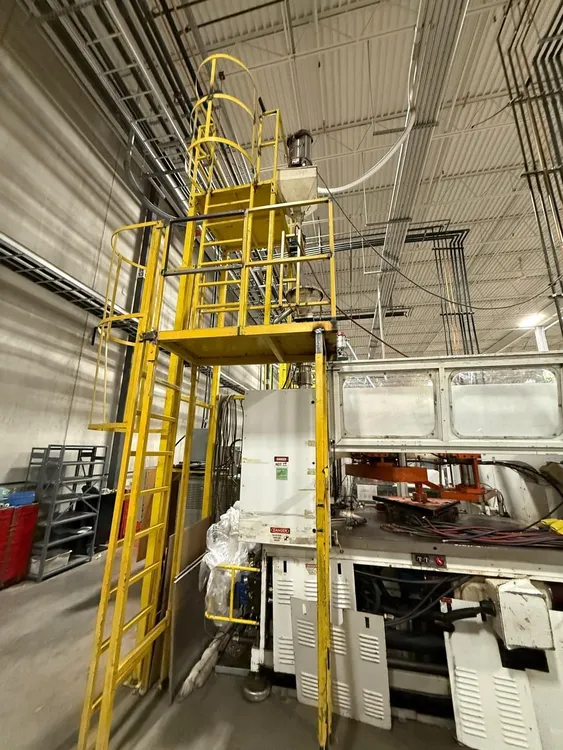

2002 JOMAR MODEL 135 INJECTION BLOW MOLDER, 135 TON, 100 HP, 270G SHOT, 460V, 3PH

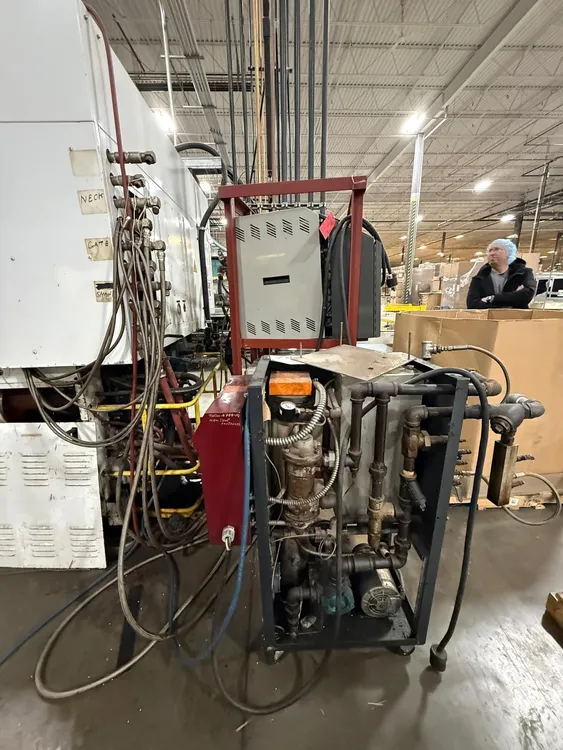

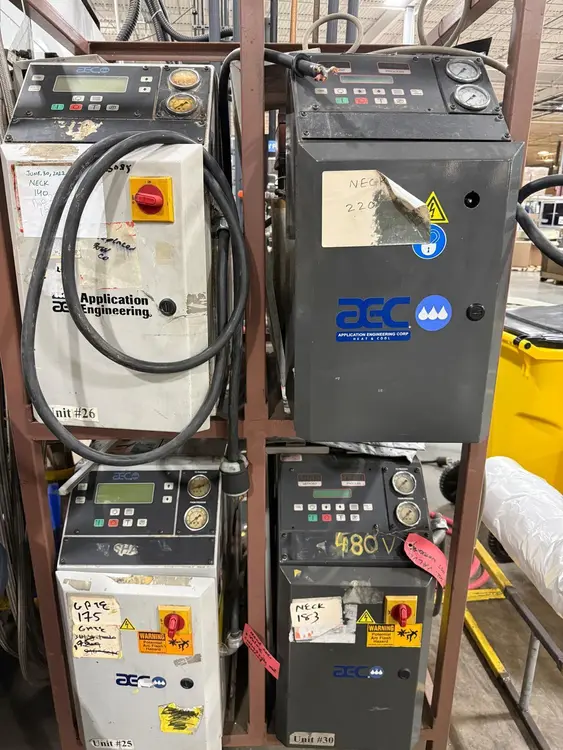

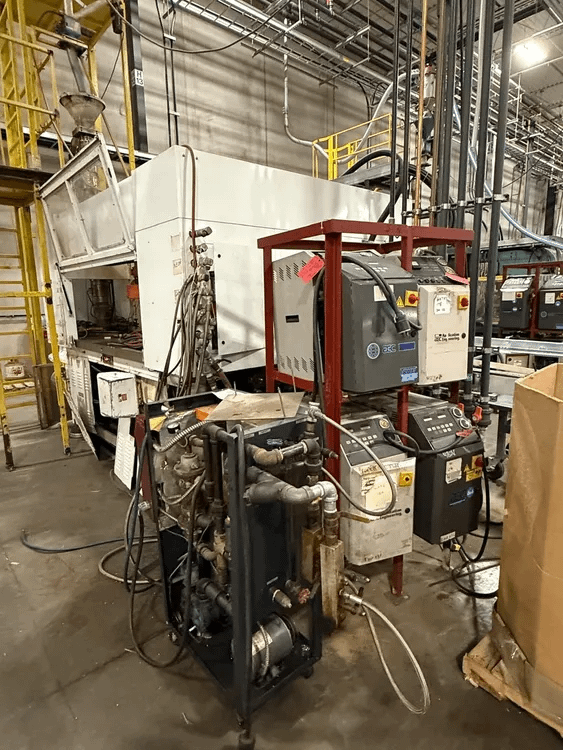

THE 2002 JOMAR MODEL 135 IS A PLASTIC INJECTION BLOW MOLDING MACHINE DESIGNED FOR INDUSTRIAL PRODUCTION. IT OPERATES ON A 460V, 60HZ, 3-PHASE POWER SUPPLY AND IS POWERED BY A 100 HP MAIN MOTOR. THE MACHINE FEATURES AN INJECTION CLAMP FORCE OF 135 TONS AND A BLOW MOLD CLAMP FORCE OF 28 TONS. TECHNICAL SPECIFICATIONS INCLUDE A 10.0-INCH SHUT HEIGHT AND A 6.0-INCH PRESS STROKE OR MOLD OPENING STROKE. IT ACCOMMODATES A MAXIMUM DIE SET SIZE OF 22.0 INCHES IN WIDTH BY 44.0 INCHES IN LENGTH, WITH A MAXIMUM DISTANCE OF 36 INCHES BETWEEN OUTSIDE MOLD CAVITIES. THE INJECTION UNIT UTILIZES A 2.5-INCH DIAMETER SCREW WITH A 24:1 EXTRUDER L/D RATIO, DELIVERING A SHOT WEIGHT OF 270 G. ADDITIONAL EQUIPMENT INCLUDES THERMOLATORS. THE MACHINE HAS OVERALL DIMENSIONS OF 149 X 95 X 134 INCHES AND A TOTAL WEIGHT OF 32,000 LBS.
