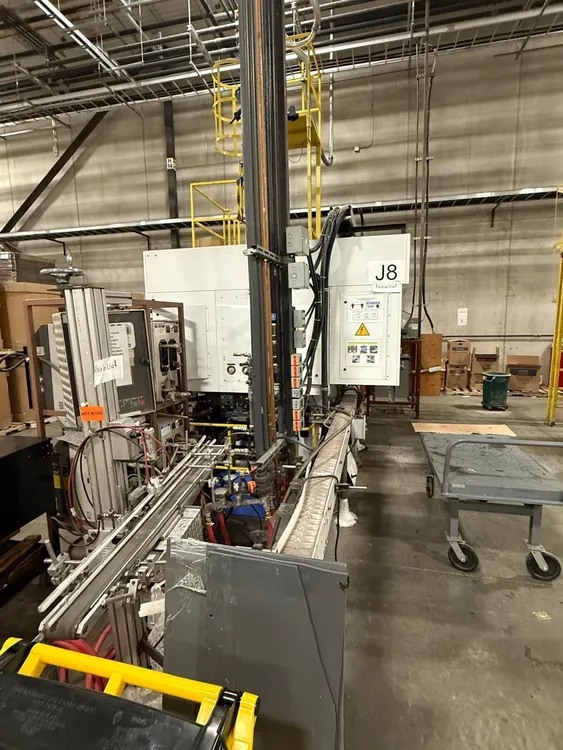

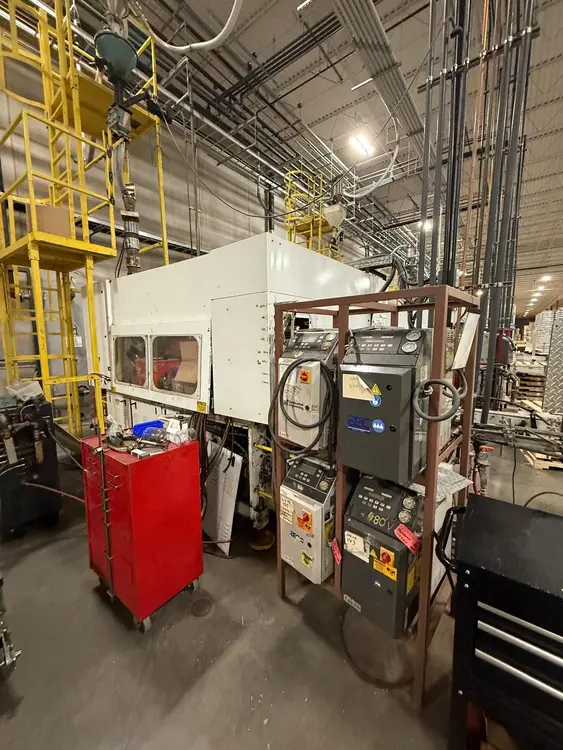

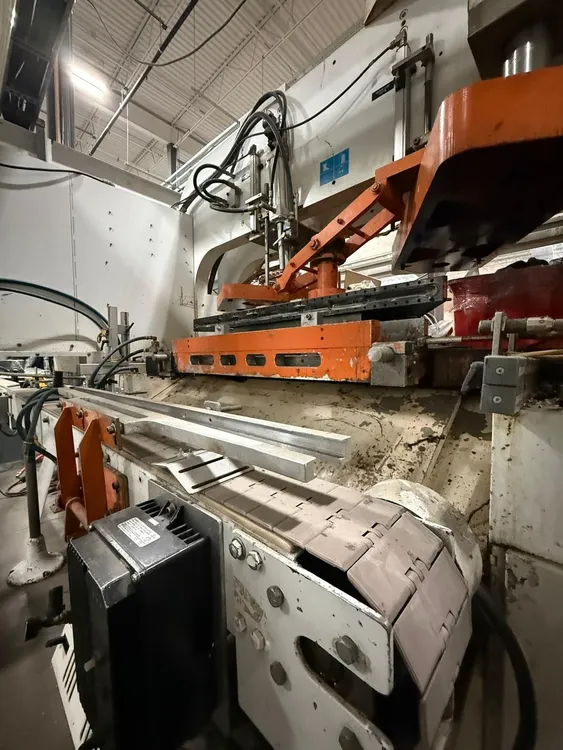

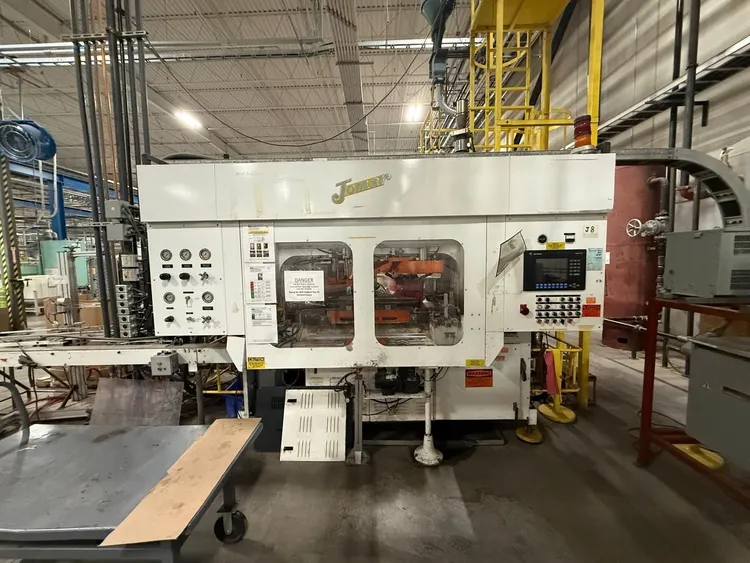

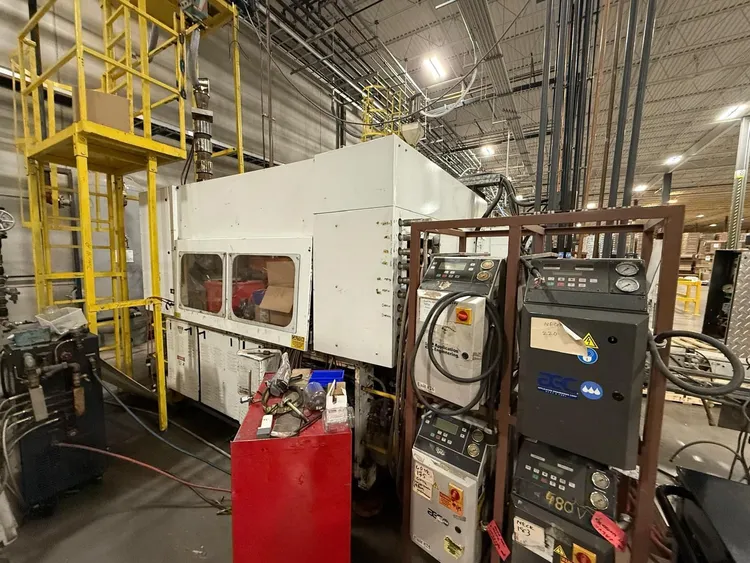

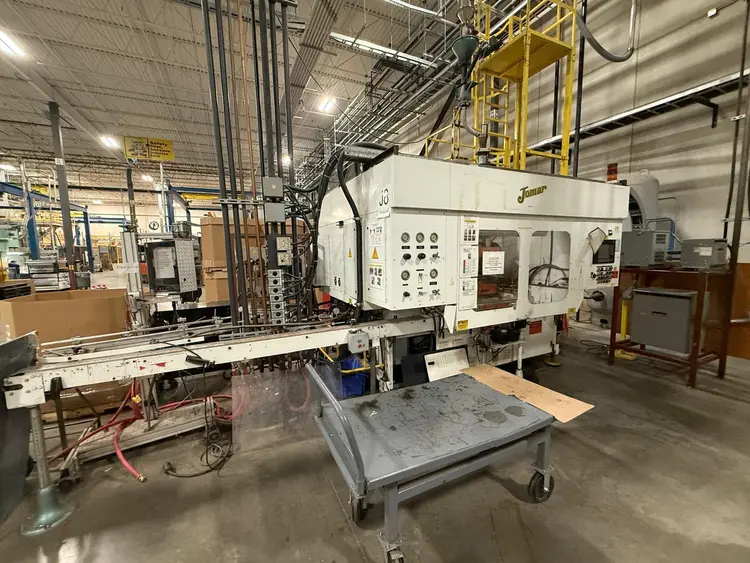

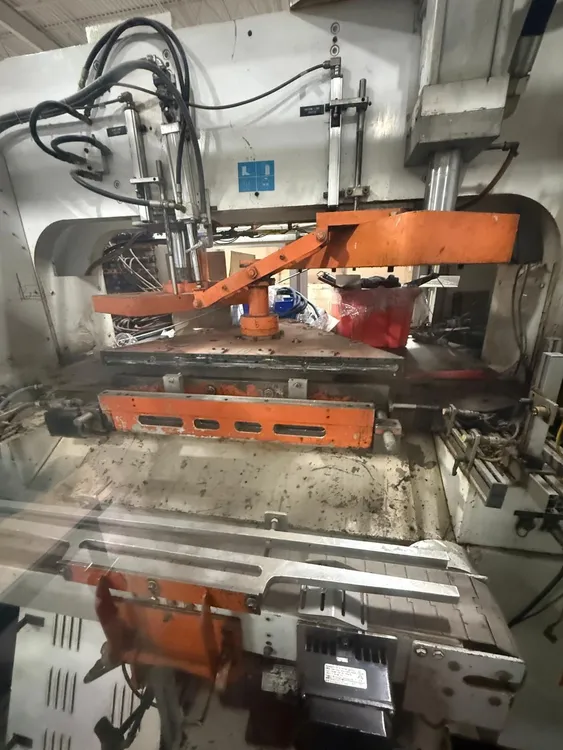

2002 JOMAR MODEL 135 INJECTION BLOW MOLDING MACHINE, 135 TONS, 460V, 100 HP, 32,000 LBS

THE 2002 JOMAR MODEL 135 IS A PLASTIC INJECTION BLOW MOLDING MACHINE OPERATING ON 460V, 60HZ, 3PH POWER. ITS CLAMPING SYSTEM FEATURES AN INJECTION CLAMP (PARISON CLAMP) FORCE OF 135 TONS AND A BLOW MOLD CLAMP FORCE OF 28 TONS. KEY MOLD DIMENSIONS INCLUDE A SHUT HEIGHT OF 10.0 INCHES, A PRESS STROKE (MOLD OPENING STROKE) OF 6.0 INCHES, A MAXIMUM DIE SET SIZE OF 22.0 IN (W) × 44.0 IN (L), AND A MAXIMUM DISTANCE BETWEEN OUTSIDE MOLD CAVITIES OF 36 INCHES. THE INJECTION AND SCREW ASSEMBLY UTILIZES A TYPICAL SCREW DIAMETER OF 2.5 INCHES AND TYPICAL EXTRUDER L/D RATIOS OF 24:1, PROVIDING A SHOT WEIGHT OF 270 G. THE MACHINE'S ELECTRICAL DRIVE IS POWERED BY A 100 HP MAIN MOTOR. THE UNIT WEIGHS 32,000 LBS AND HAS OVERALL MACHINE DIMENSIONS OF 149'' X 95'' X 134''.
