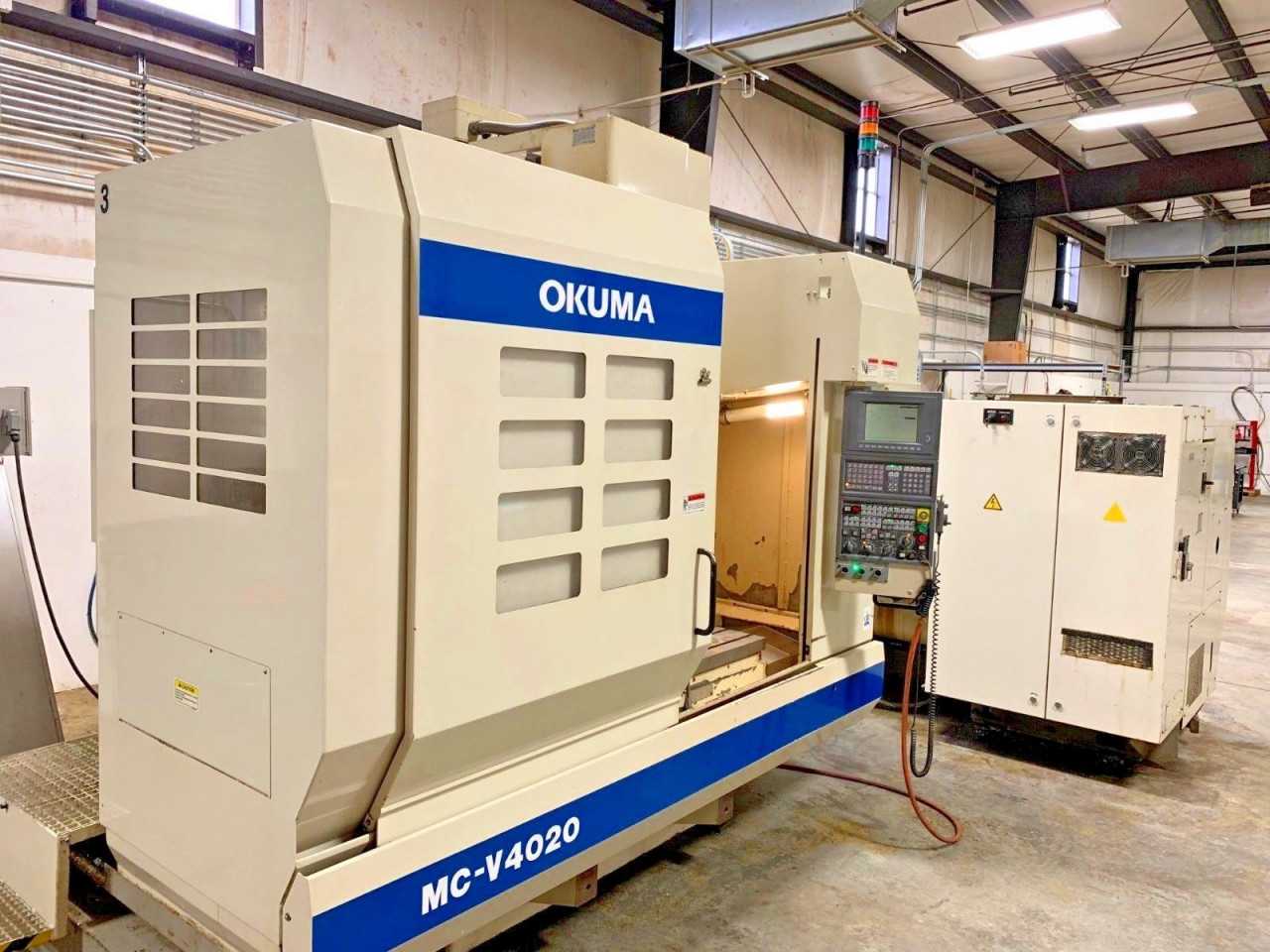

2002 Okuma MC-V4020 Vertical Machining Center - OSP 10M Control - DNC-B

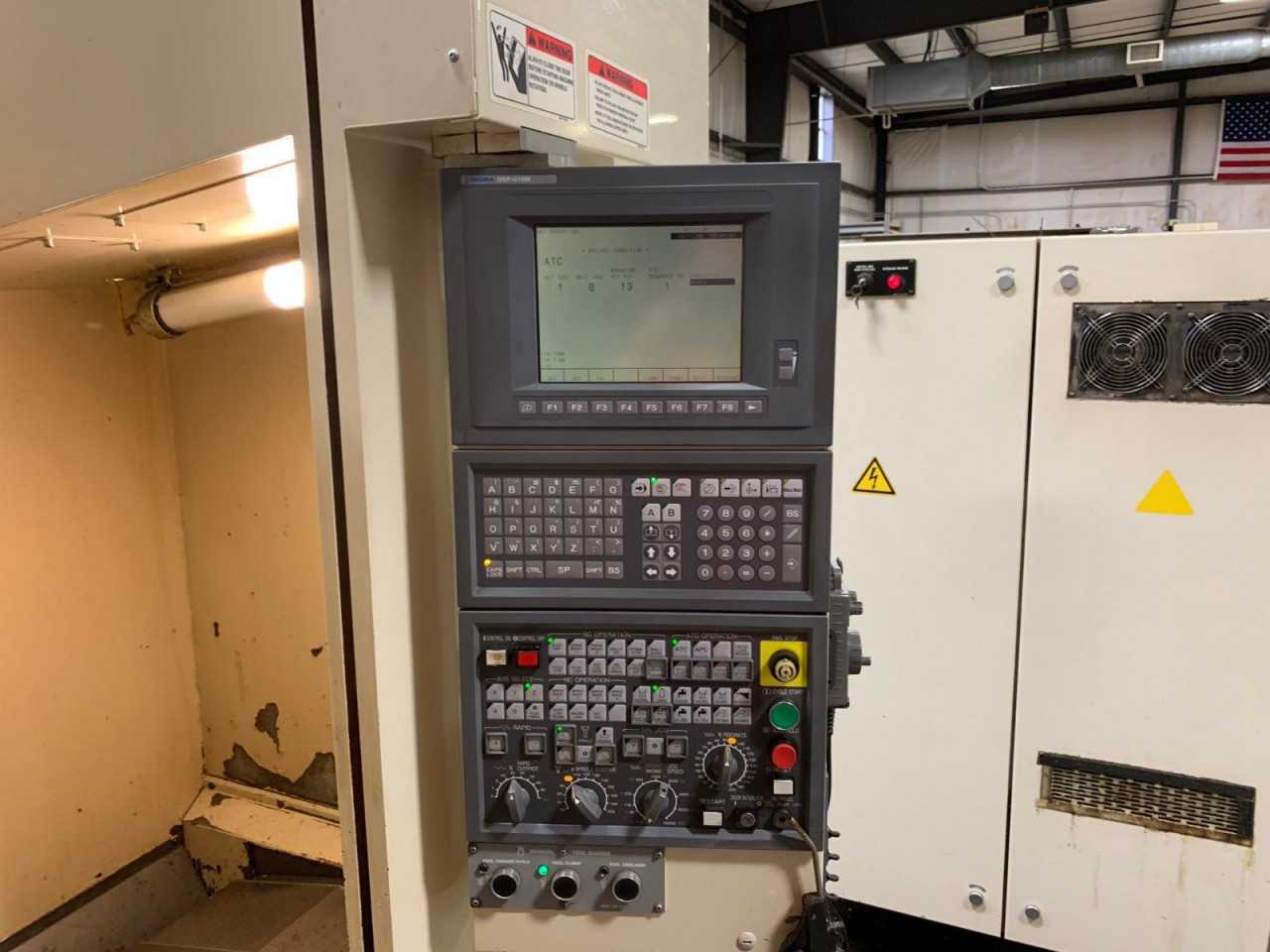

Specification Description Table Size: 47" x 20.8" Table Load Capacity: 1500 lbs Travels (X & Y & Z: 40" x 20.08" x 17.72" Spindle Nose to Table Top: 6.3" - 24.02" Rapid Traverse (X & Y / Z): 1417 ipm / 1191 ipm on Z Spindle Speed: 40 - 8000 rpm Spindle Taper: CAT-40 Spindle Motor: 20 HP ATC Positions: 20 ATC Type: Side Mount, Twin Arm Machine Size: 112" x 128" x 108" Tall Machine Weight: 15,400 lbs Power Requirement: 220v, 3 Phase Air Pressure: 120 psi, 15 scfm Equipped With: - OSP- U10M CNC Control w/ Remote Handwheel, RS-232, DNC-B - Lift up Conveyor - 20 Position ATC - Coolant System - All Available Manuals
