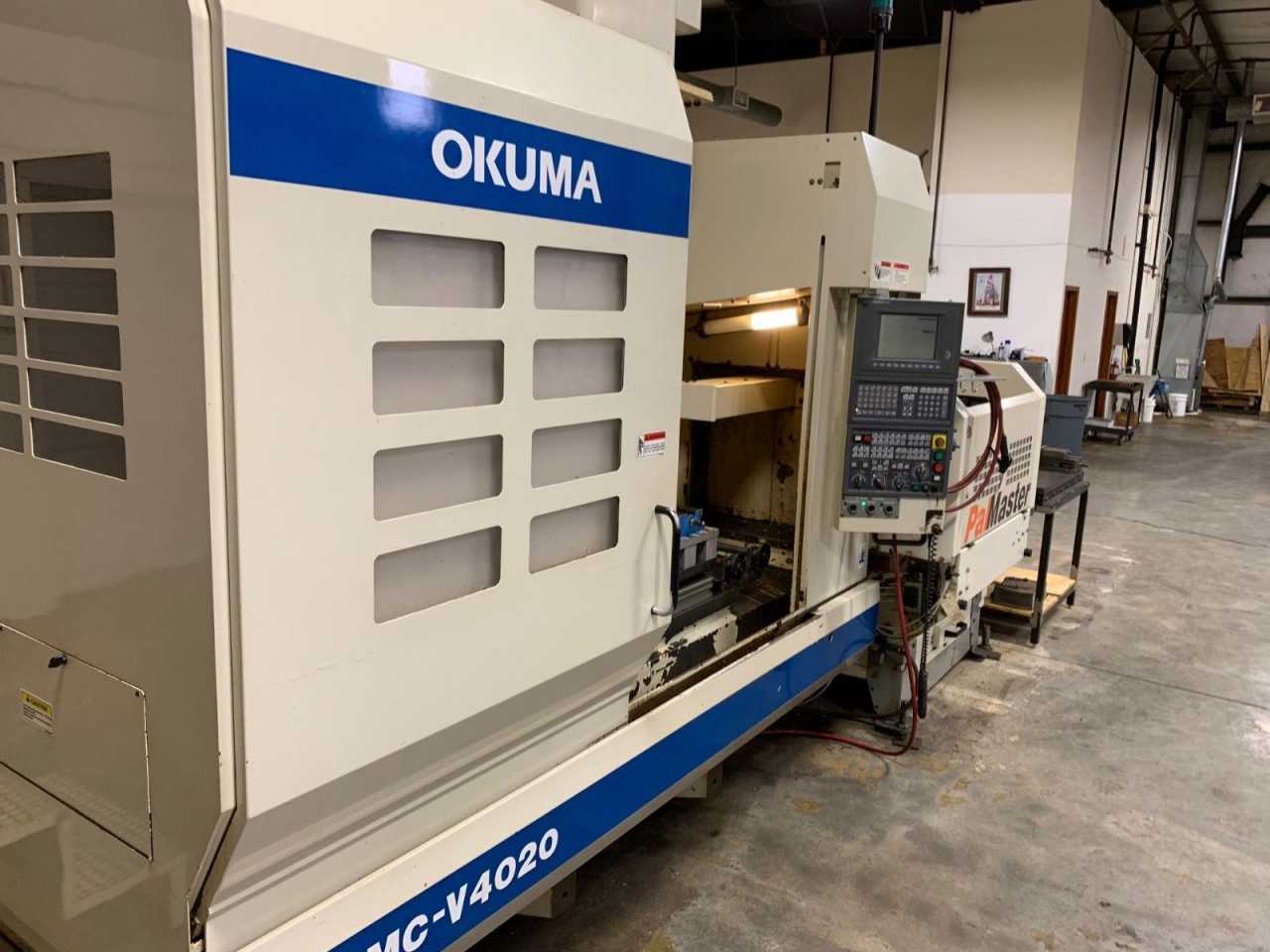

Name | 2002 Okuma MC-V4020 Vertical Machining Center with Pallet Changer |
---|---|
Aucto ID | 126 |
Manufacturer | Okuma |
Model | MC-V4020 |

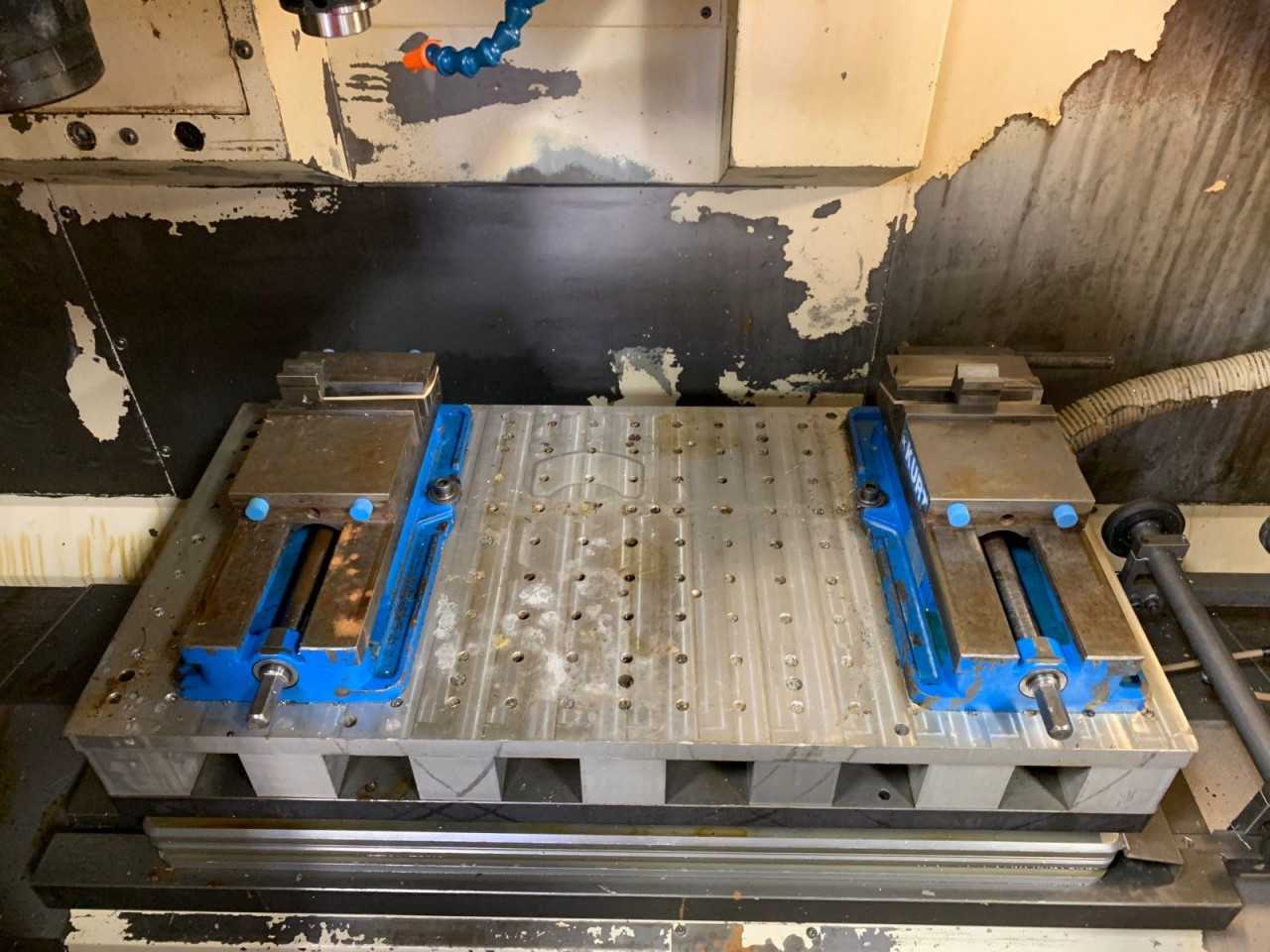

Additional Info | Specification Description Table Size: 47" x 20.8" Table Load Capacity: 1500 lbs Travels (X & Y & Z: 40" x 20.08" x 17.72" Spindle Nose to Table Top: 6.3" - 24.02" Rapid Traverse (X & Y / Z): 1417 ipm / 1191 ipm on Z Spindle Speed: 40 - 8000 rpm Spindle Taper: CAT-40 Spindle Motor: 20 HP ATC Positions: 20 ATC Type: Side Mount, Twin Arm Machine Size: 112" x 128" x 108" Tall Machine Weight: 15,400 lbs Power Requirement: 220v, 3 Phase Air Pressure: 120 psi, 15 scfm Equipped with: OKUMA OSP-U10M CNC CONTROL 10.4" Monochrome LCD 30 Position Side Mount Tool Changer (2) Pallet West Tech PalMaster Automatic Pallet Changer Remote Manual Pulse Generator Spindle Chiller Unit Chip Conveyor (Left Rear Exit) |
