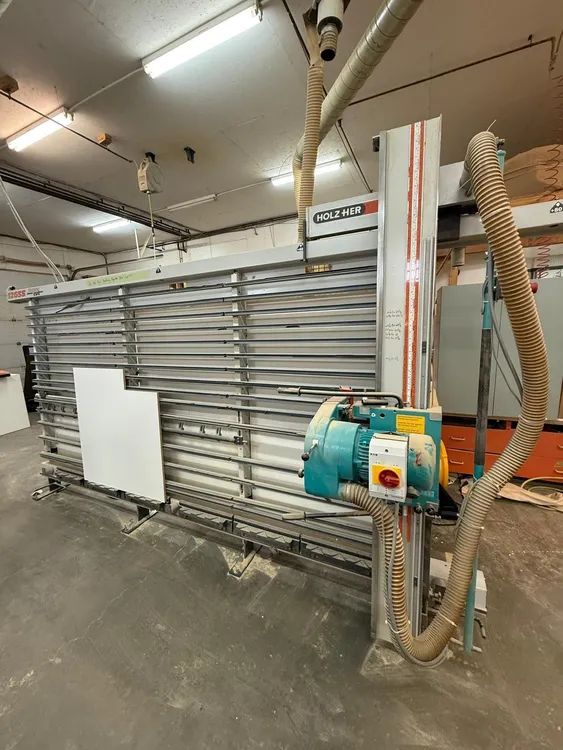

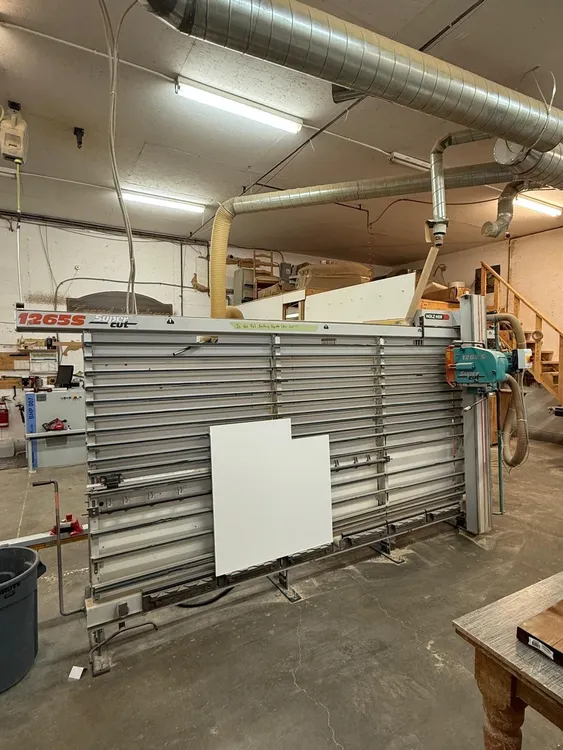

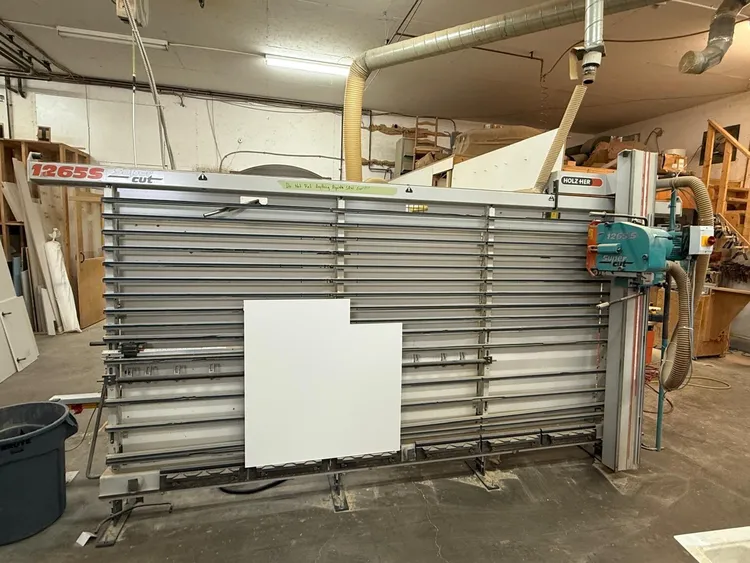

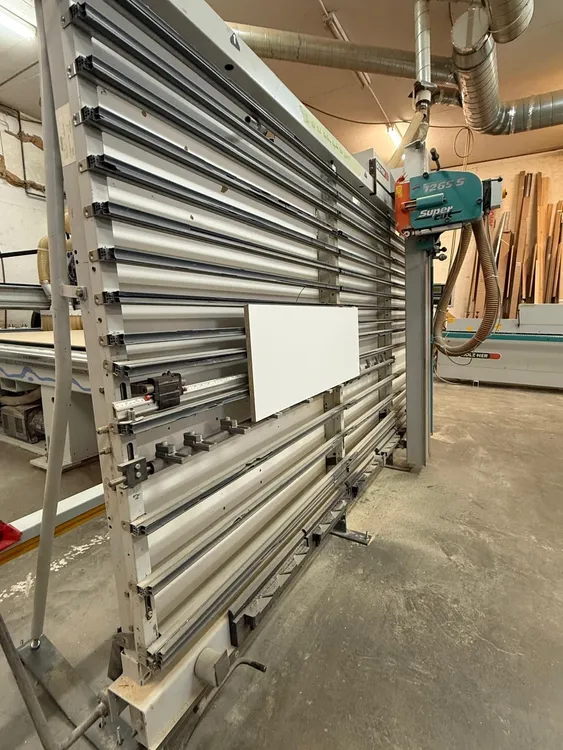

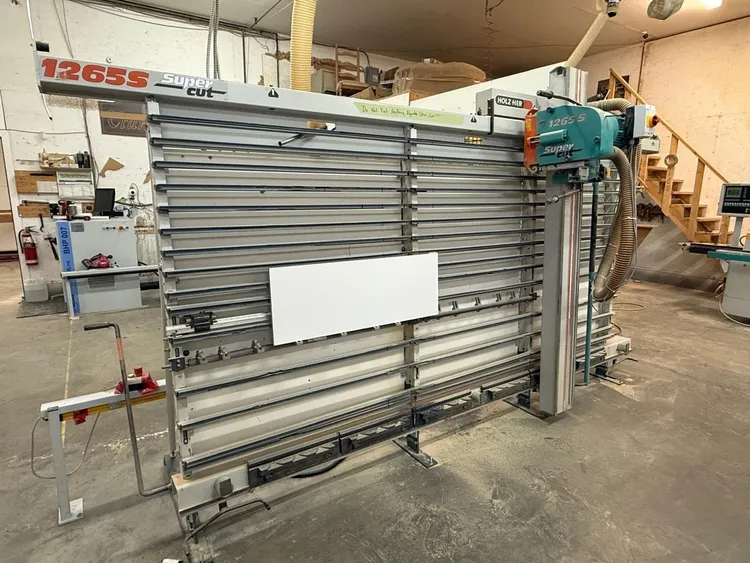

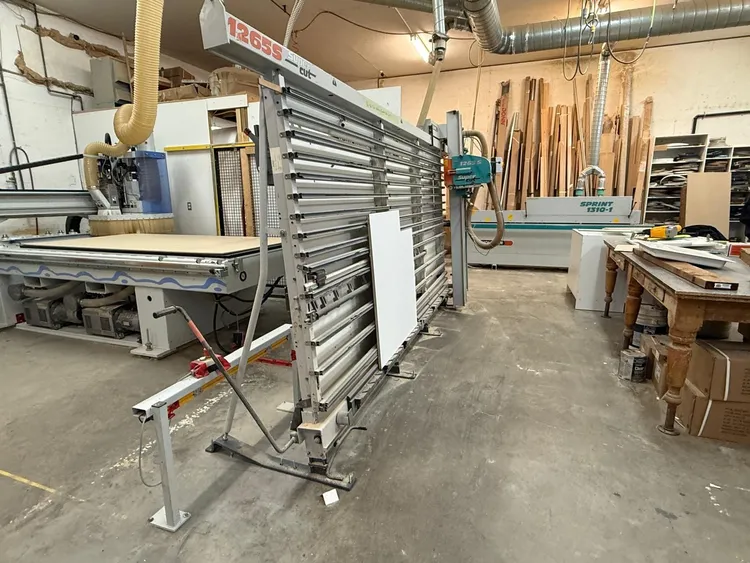

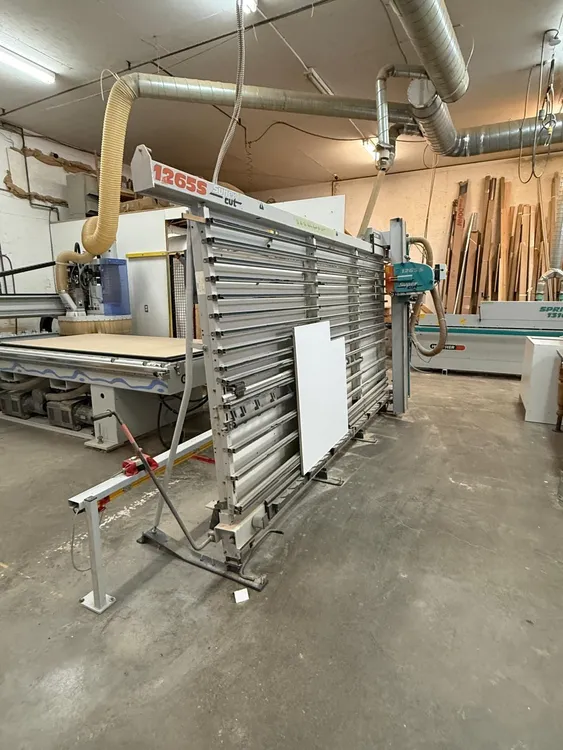

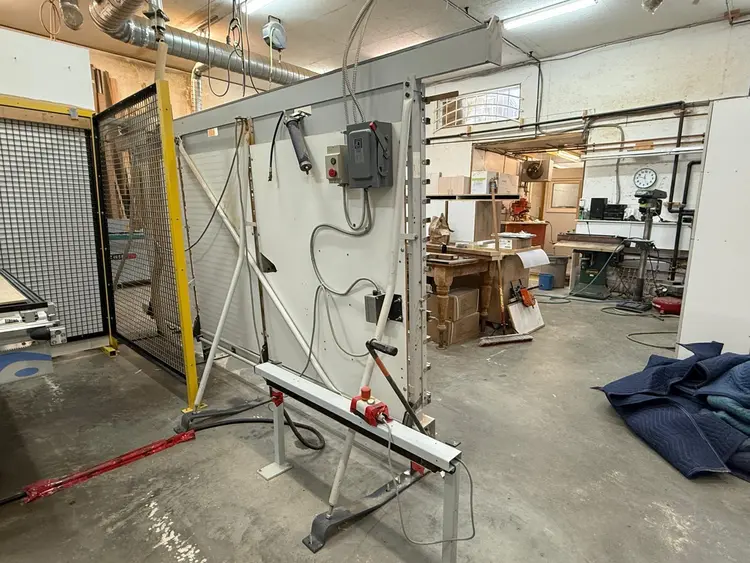

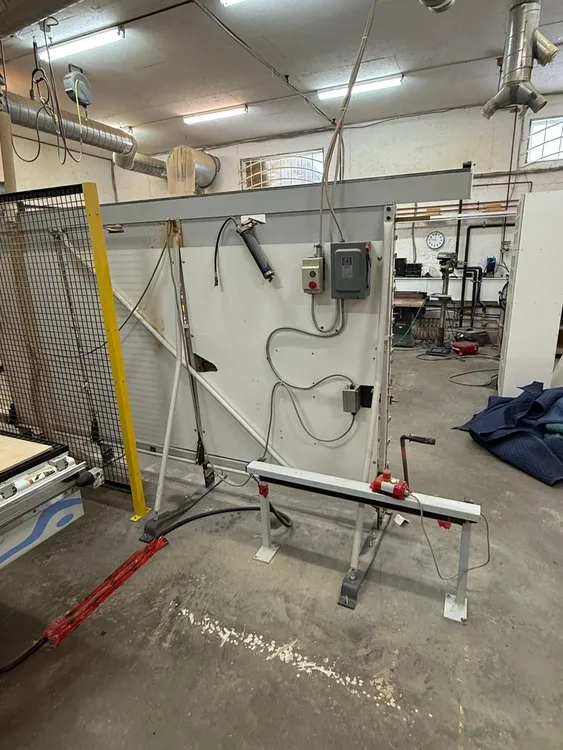

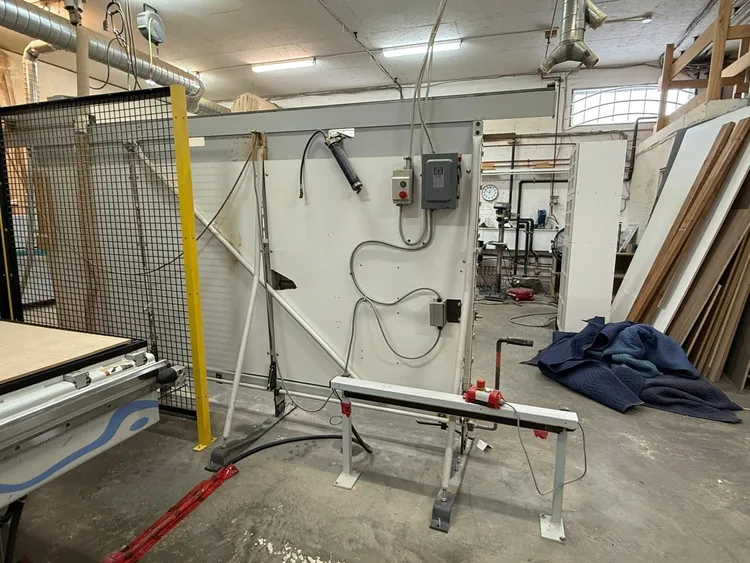

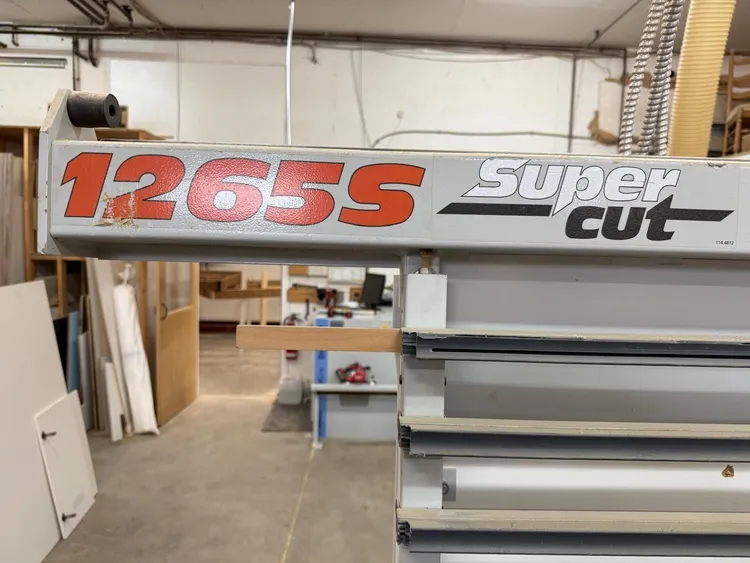

2003 HOLZ-HER 1265 SUPERCUT AUTOMATIC PANEL SAW

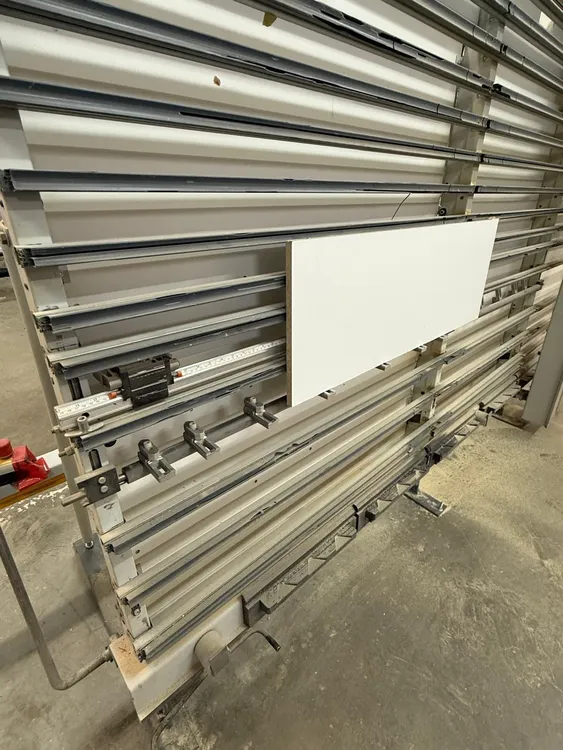

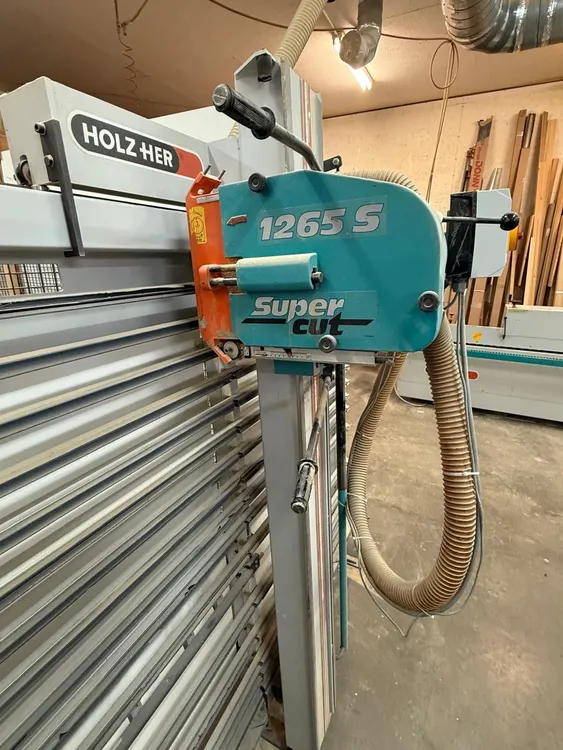

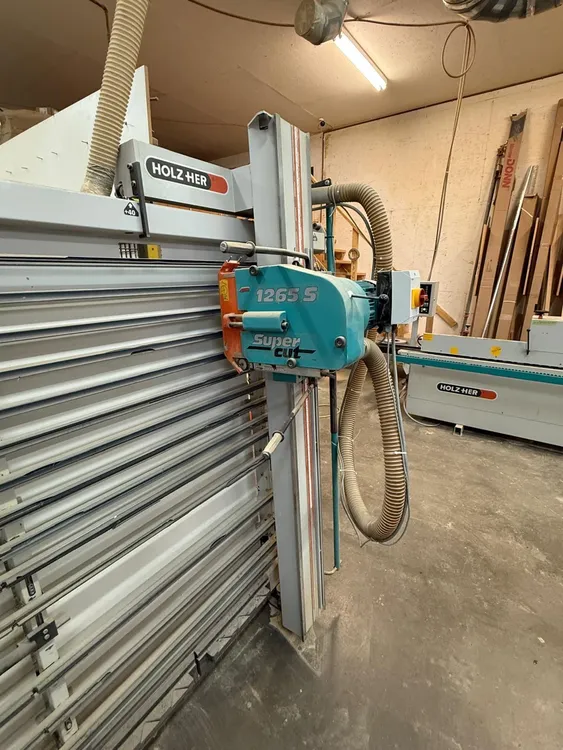

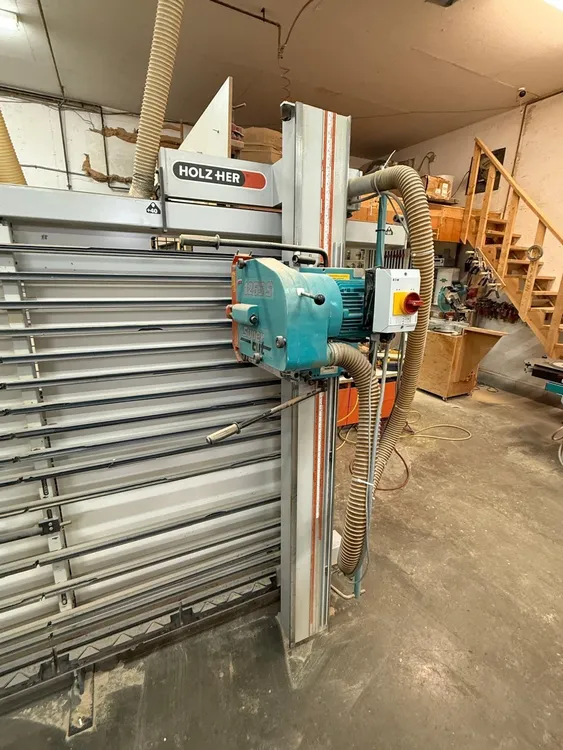

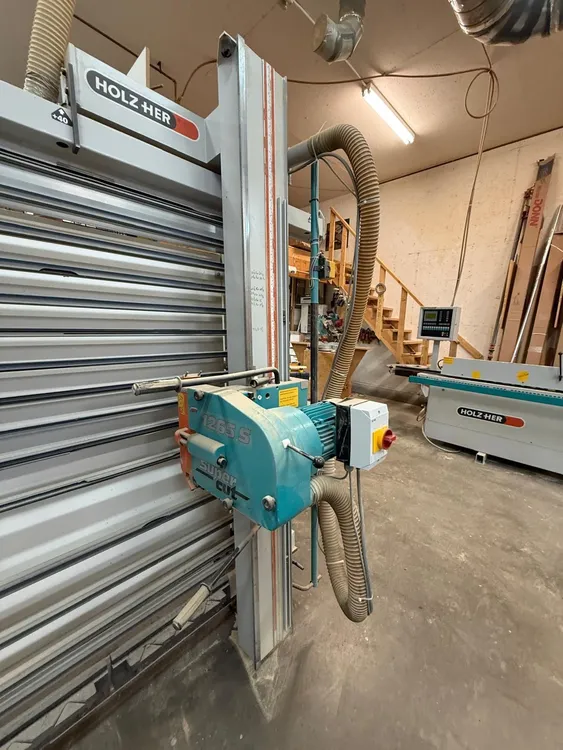

THE 2003 HOLZ-HER 1265 SUPERCUT AUTOMATIC PANEL SAW (MODEL 1265S) IS A VERTICAL PANEL SAW FEATURING A PATENTED SUPERCUT SCORING SYSTEM FOR CHIP-FREE CUTTING READY FOR FINISHING. TECHNICAL SPECIFICATIONS INCLUDE A 4 HP, 230V/60HZ MOTOR, DELIVERING 6540 RPM BLADE SPEED. THIS MACHINE IS DESIGNED FOR PANEL PROCESSING, WITH CUTTING DIMENSIONS UP TO 75 INCHES IN LENGTH AND 169 INCHES IN HEIGHT, AND A MAXIMUM CUTTING DEPTH OF 2 INCHES. IT USES AN 8.6-INCH (220 MM) SAW BLADE. THE MACHINE REQUIRES 825 CFM FOR EXTRACTION, WITH A UNIT CONNECTION OF 65 MM (2 1/2 INCHES). STANDARD FEATURES INCLUDE A LENGTH STOP WITH A MEASURING TAPE (MM & IN), FULL-LENGTH PANEL SUPPORT, A RIP GAUGE, AND A DIGITAL INDICATOR FOR VERTICAL CUTS. THE SAW UNIT INCLUDES A 90° ROTATING SAW HEAD FOR BOTH RIP AND CROSSCUTTING. THE FLOOR SPACE REQUIRED FOR THE MACHINE IS 62 1/2 INCHES IN LENGTH.
