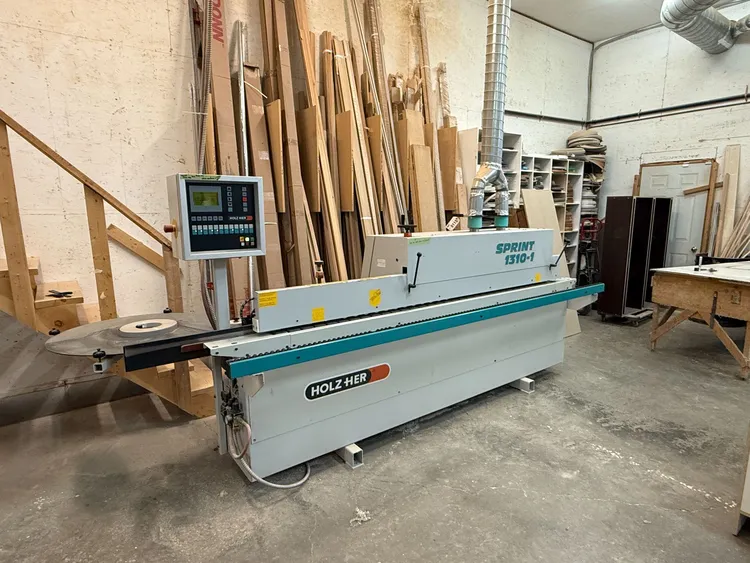

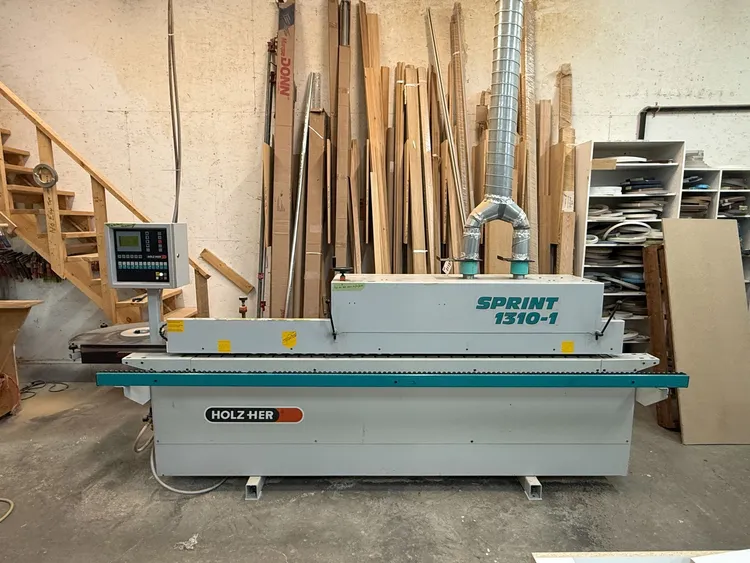

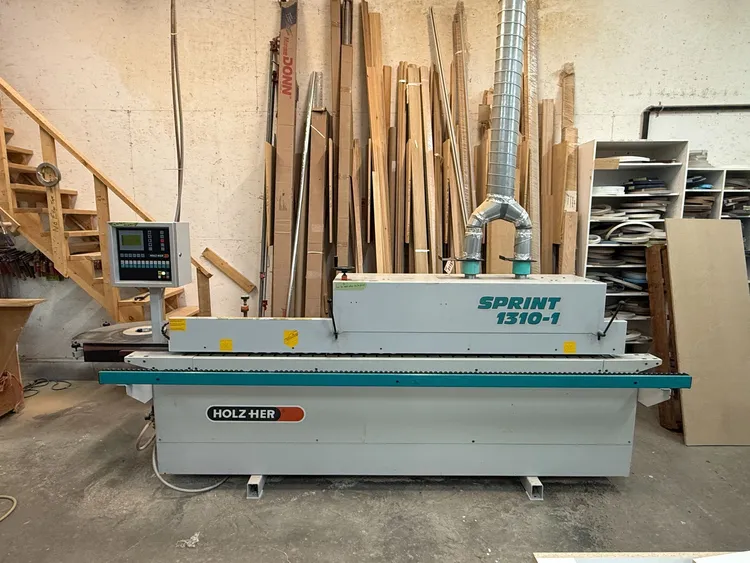

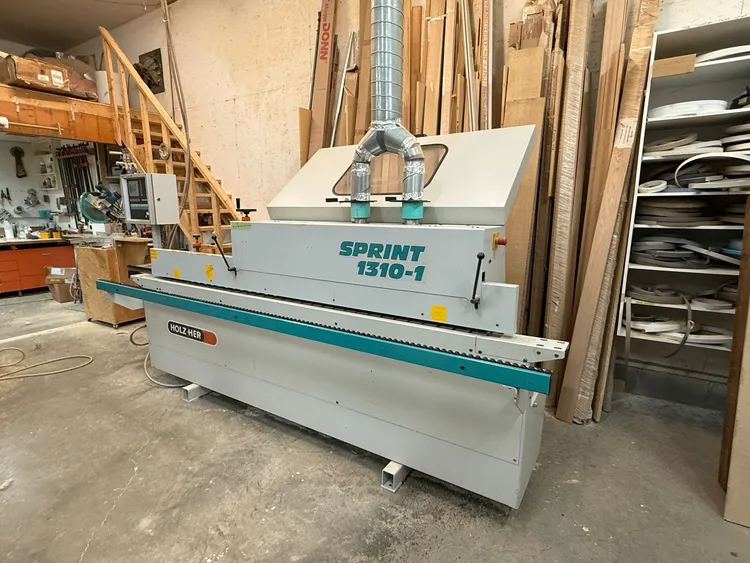

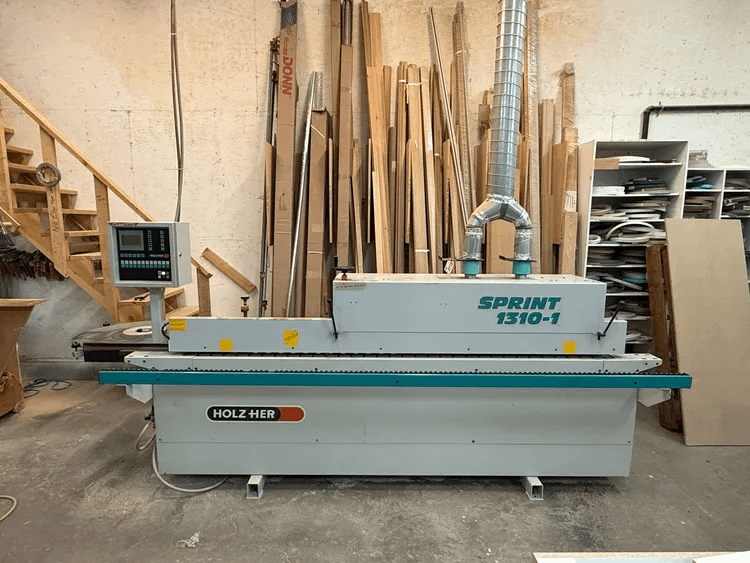

2003 HOLZ-HER SPRINT 1310 AUTOMATIC SINGLE-SIDED EDGE BENDER

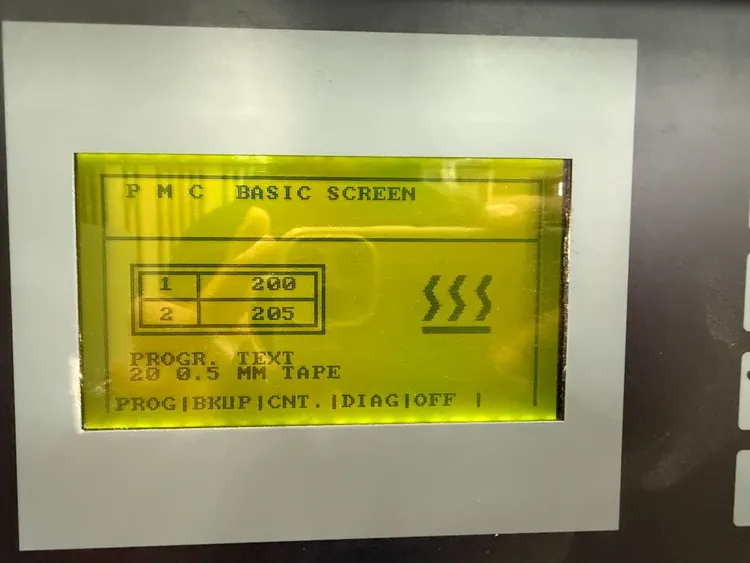

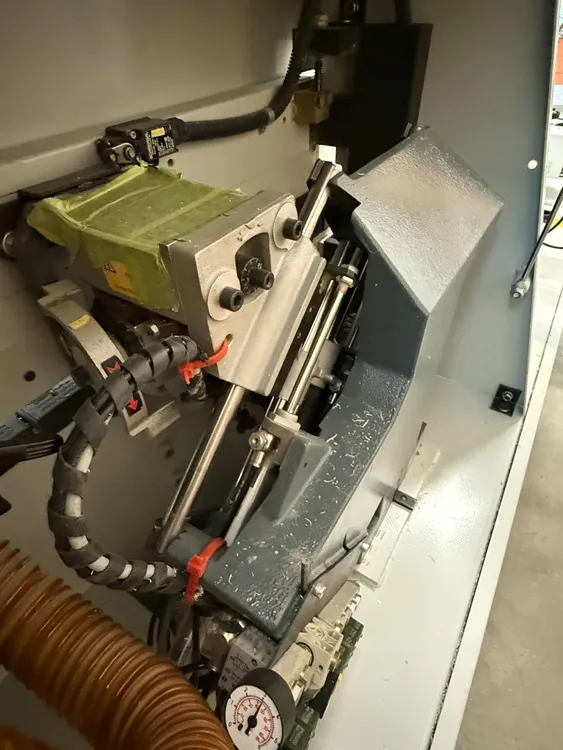

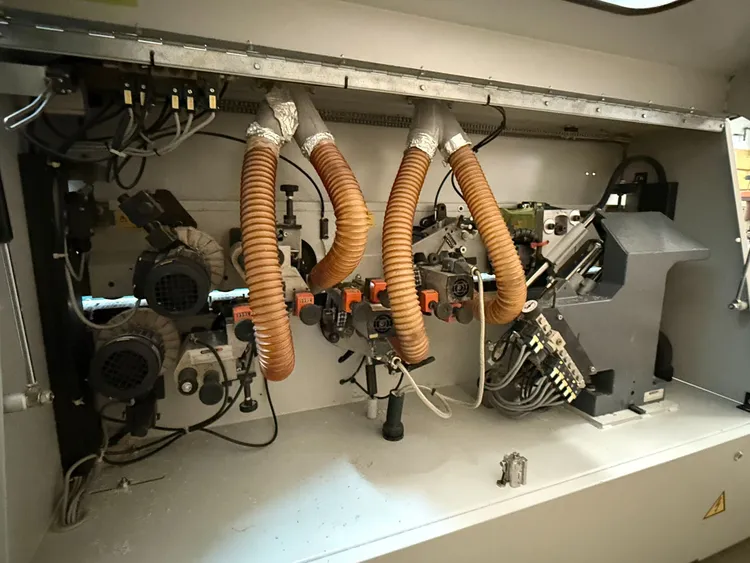

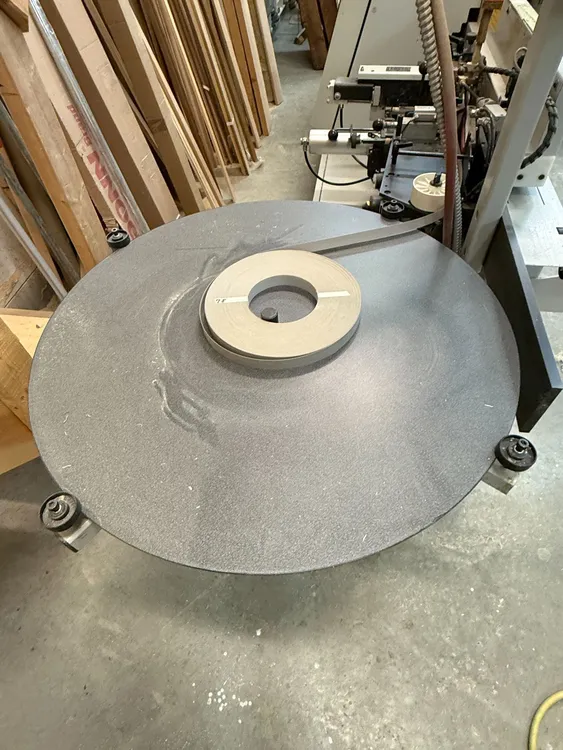

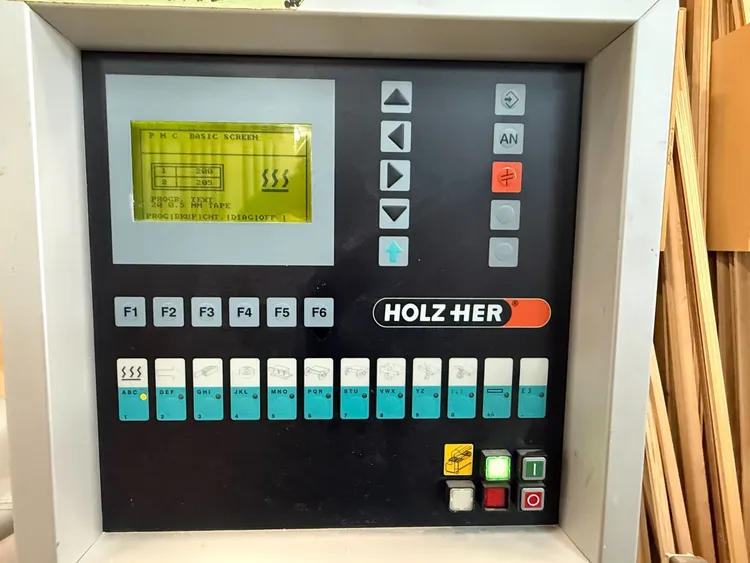

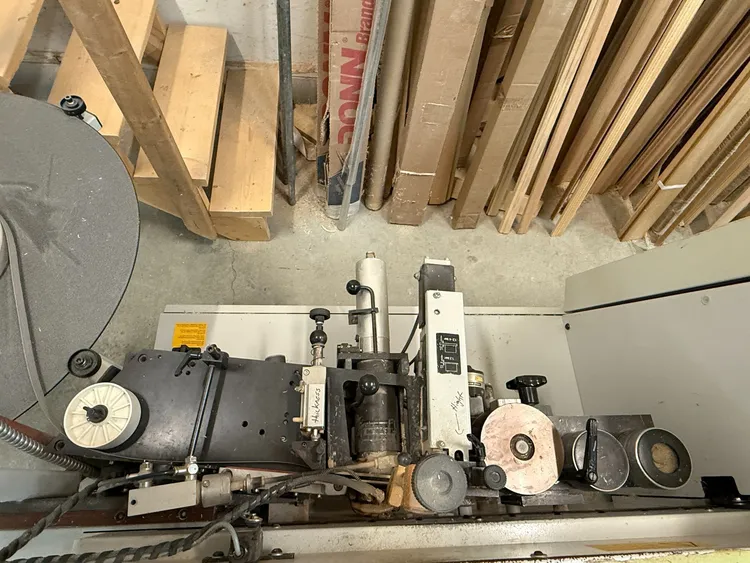

THE HOLZ-HER SPRINT 1310-1 IS AN AUTOMATIC SINGLE-SIDED EDGE BANDER DESIGNED FOR HIGH-QUALITY EDGE PROCESSING. THIS MODEL UTILIZES THE PATENTED GLU JET THIN FILM TECHNOLOGY CARTRIDGE SYSTEM (1905/1906 M) FOR APPLYING EVA OR POLYURETHANE GLUE, FEATURING A SHORT HEAT-UP TIME OF ONLY 3 TO 5 MINUTES. IT CAN ACCOMMODATE WORKPIECE THICKNESSES RANGING FROM 6 MM TO 50 MM, WITH OPTIONAL CAPACITY UP TO 60 MM, AND HANDLE EDGE THICKNESSES UP TO 8 MM (5/16"), OR UP TO 15 MM WITH CERTAIN CONFIGURATIONS. CORE UNITS INCLUDE THE EDGING MAGAZINE, GLUE APPLICATION SYSTEM, PRESSURE UNIT (1912 WITH TWO PRESSURE ROLLERS), TRIMMING UNIT, AND A MULTIFUNCTIONAL MILLING UNIT. THE MACHINE TYPICALLY OPERATES ON 3-PHASE, 230-VOLT ELECTRICS AND INCLUDES A PLC SCREEN FOR PROGRAM WRITING CAPABILITY. OPTIONAL UNITS INCLUDE A RADIUS SCRAPER (1929) AND BUFFING UNIT (1940) FOR A PERFECT FINISH. IT OFFERS A VARIABLE FEED RATE UP TO 18 M/MIN.
