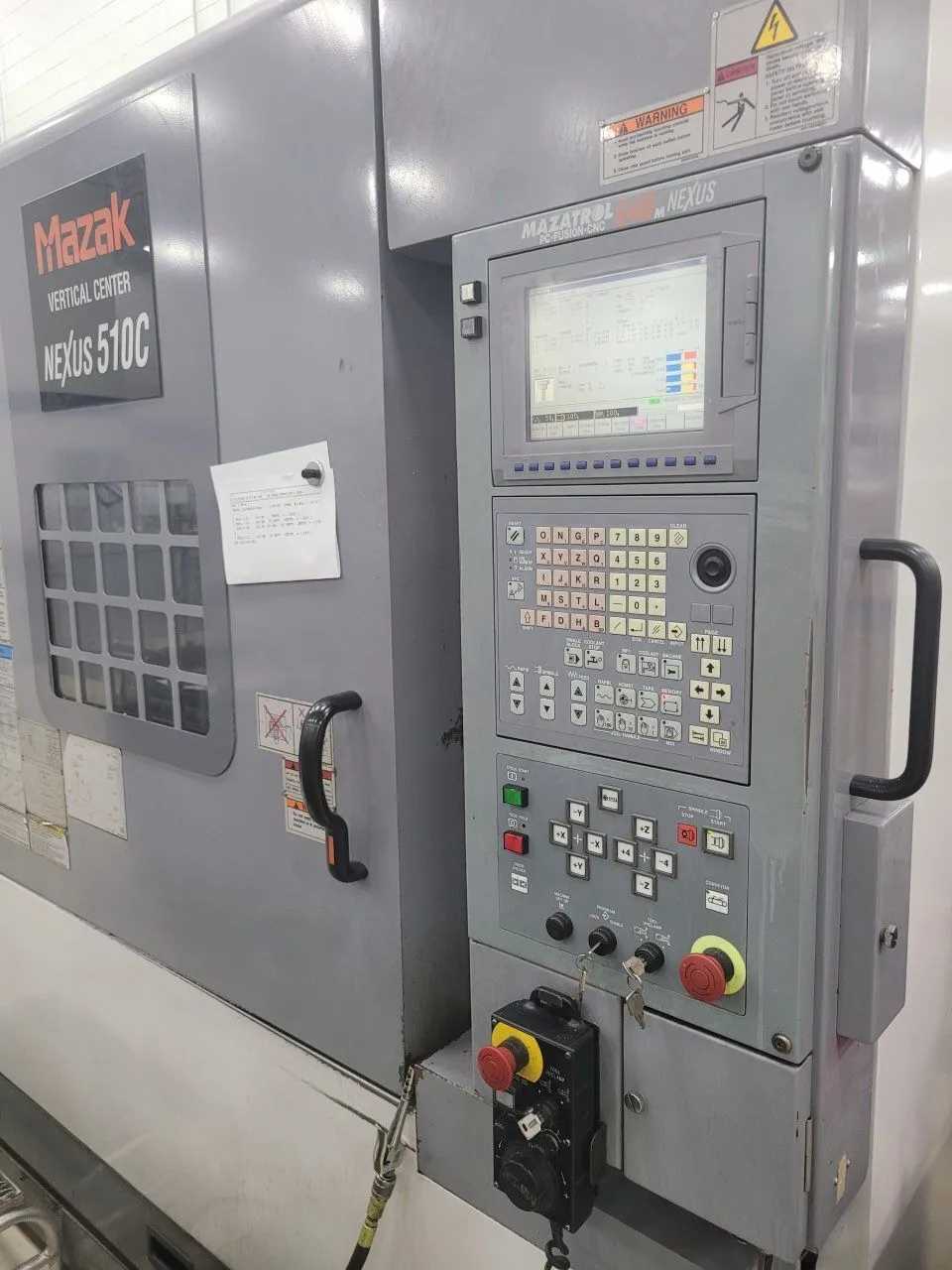

2003 MAZAK NEXUS VCN 510C/40-II, VERTICAL MACHINING CENTERS, 3 AXIS, 1050X530X510 MM TRAVEL

THE MAZAK NEXUS VCN 510C/40-II IS A 3-AXIS VERTICAL MACHINING CENTER CONTROLLED BY A MAZAK FUSION CNC SYSTEM, COMPATIBLE WITH G-CODE PROGRAMMING. IT FEATURES A WORK ENVELOPE DEFINED BY X, Y, AND Z AXIS TRAVELS OF 41.34 INCHES, 20.87 INCHES, AND 20.08 INCHES, RESPECTIVELY. RAPID TRAVERSE RATES ARE 1417 IPM FOR THE X AND Y AXES, AND 1181 IPM FOR THE Z AXIS. THE MACHINE'S WORK TABLE, MEASURING 61.18 INCHES IN LENGTH BY 21.66 INCHES IN WIDTH, SUPPORTS A MAXIMUM LOAD OF 2646 POUNDS. POWER IS SUPPLIED BY A 25 HP SPINDLE CAPABLE OF SPEEDS UP TO 12,000 RPM, UTILIZING A CAT-40 TAPER. TOOL MANAGEMENT IS FACILITATED BY A 30-TOOL AUTOMATIC TOOL CHANGER, AND THE MACHINE INCLUDES ADVANCED TOOL LENGTH MEASUREMENT (ATLM) SYNCH TAP FUNCTIONALITY ALONG WITH A TOUCH PROBE.
