2004 FANUC Arc Mate 100iB Articulated Robot, 6kg Payload, 1373mm Reach, RJ3iB Control

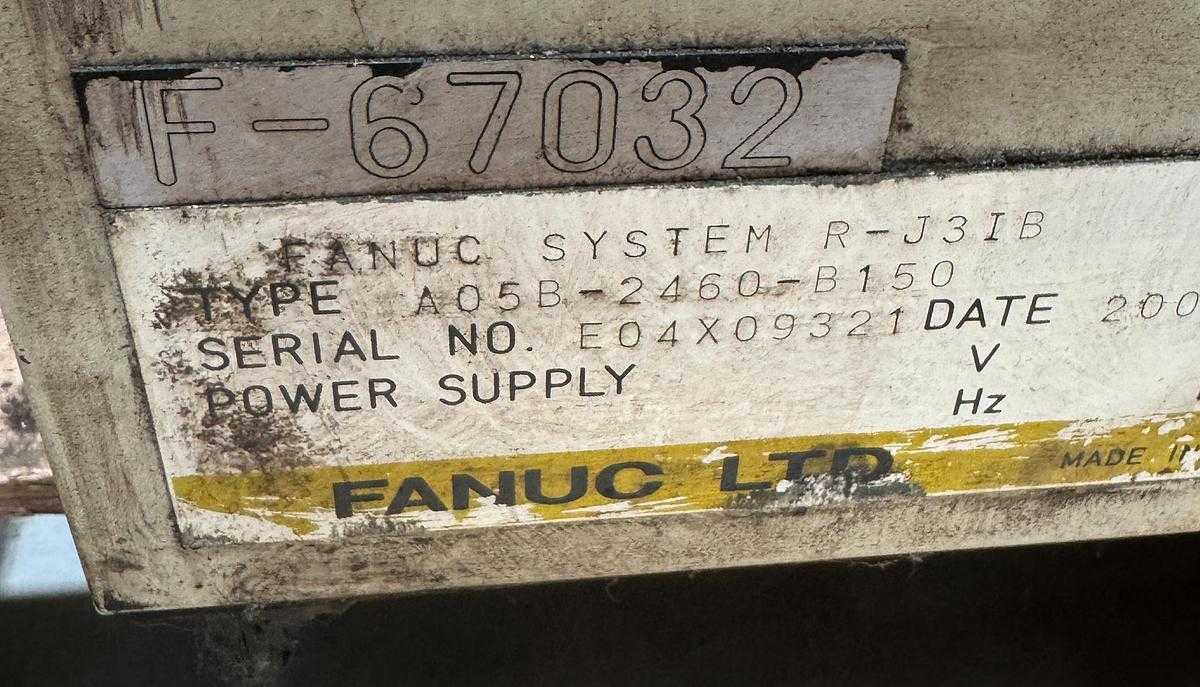

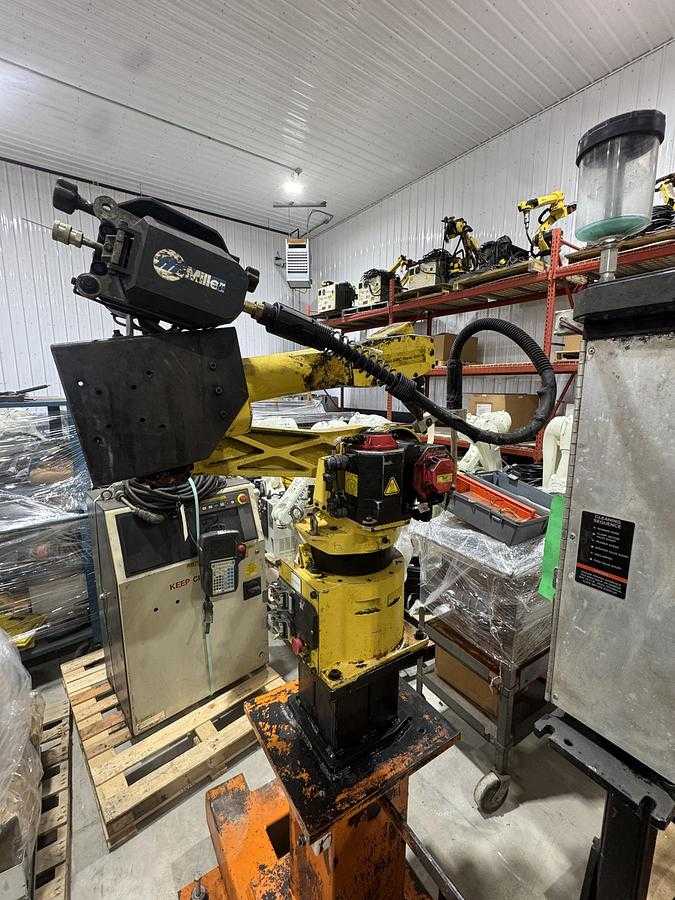

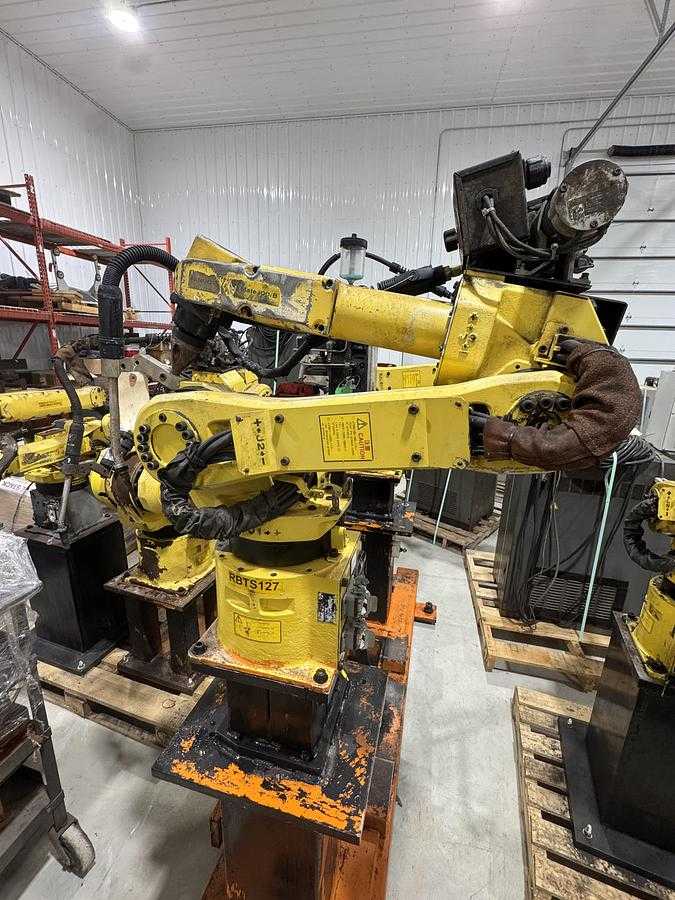

The 2004 FANUC Arc Mate 100iB is a six-axis, electric servo-driven articulated robot designed for high-speed welding, cutting, and pick-and-place applications. It features a 6 kg payload capacity, a 1373 mm reach, and a repeatability of 0.08 mm. The robot has a mass of 135 kg and supports floor, inverted, wall, and angle mounting. It is equipped with a narrow wrist for accessibility to confined spaces and a large work envelope for handling large parts. The unit includes internal routing for gas/air lines and wire feeder cables to improve reliability. Motion speeds for the axes are J1 150°/s, J2 160°/s, J3 170°/s, J4 400°/s, J5 400°/s, and J6 520°/s. The motion range for the axes is J1 ±170°, J2 +160°/-90°, J3 +145°/-170°, J4 ±190°, J5 ±140°, and J6 ±360°. The system includes a FANUC RJ3iB control, a FANUC teach pendant, connection cables, a Miller wire feeder, and a welding torch. Advanced servo control features enable smooth point-to-point motion to increase throughput and arc on-time. The robot is compatible with major brands of welding equipment for maximum flexibility.
